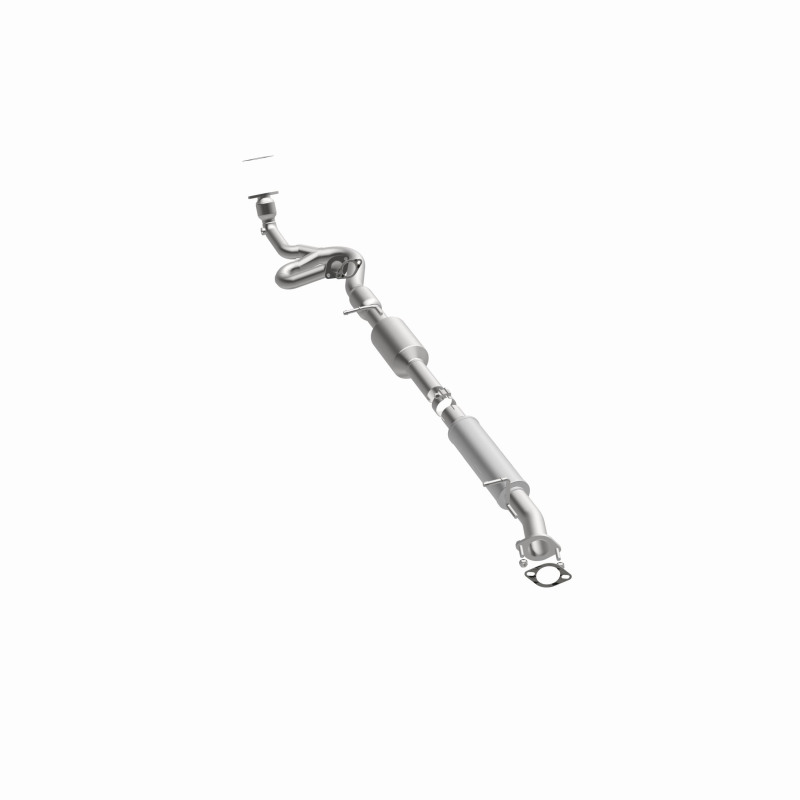

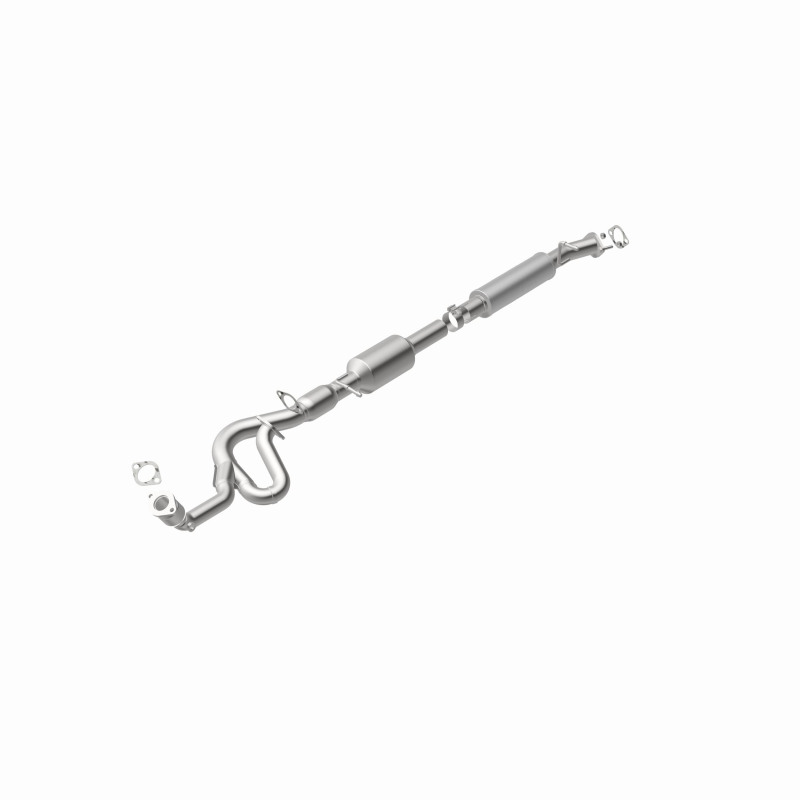

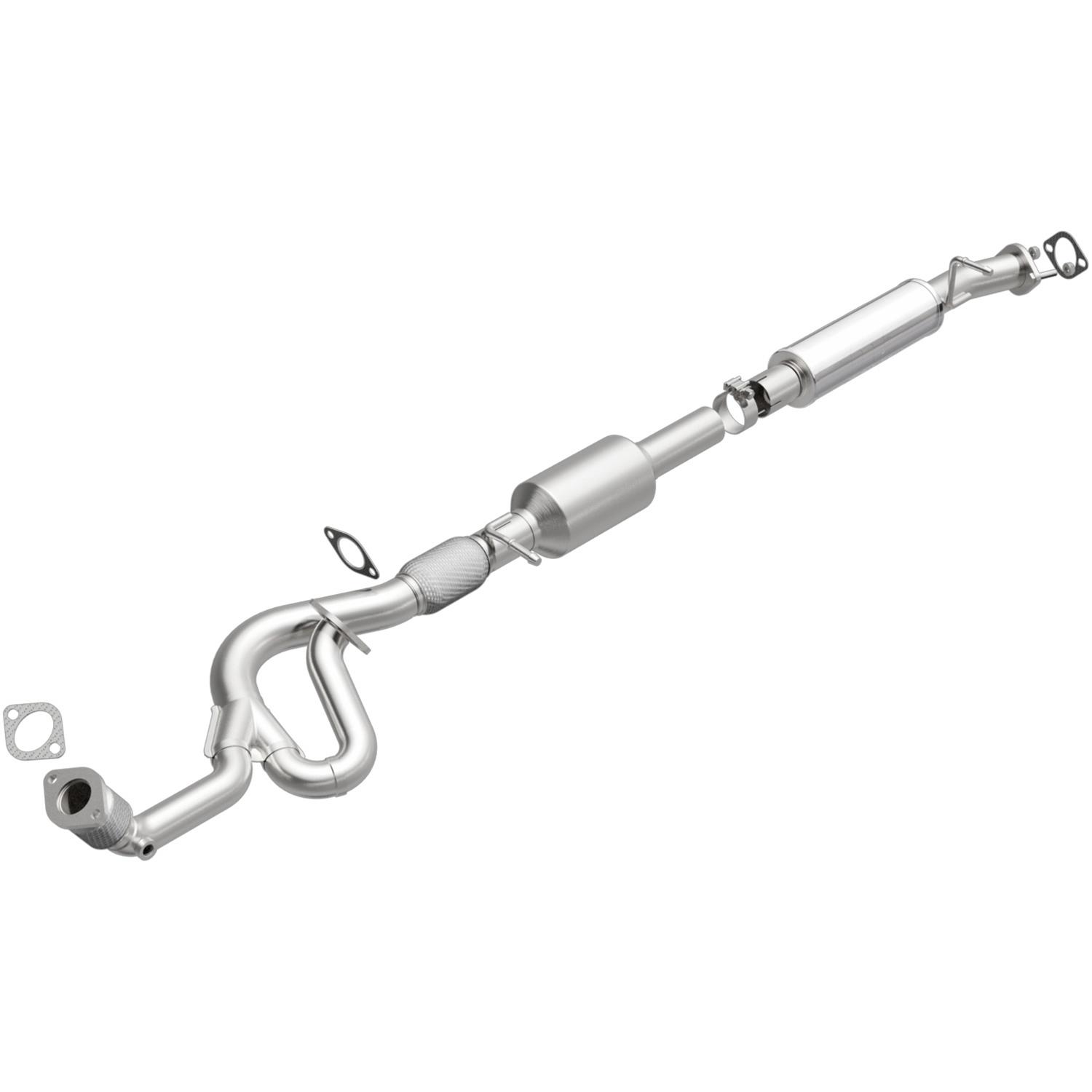

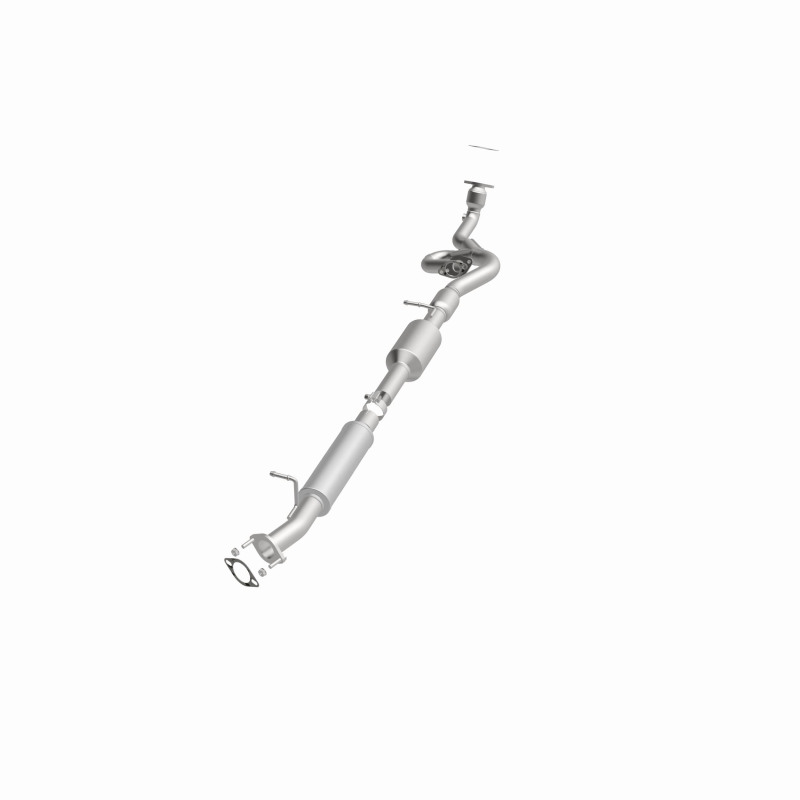

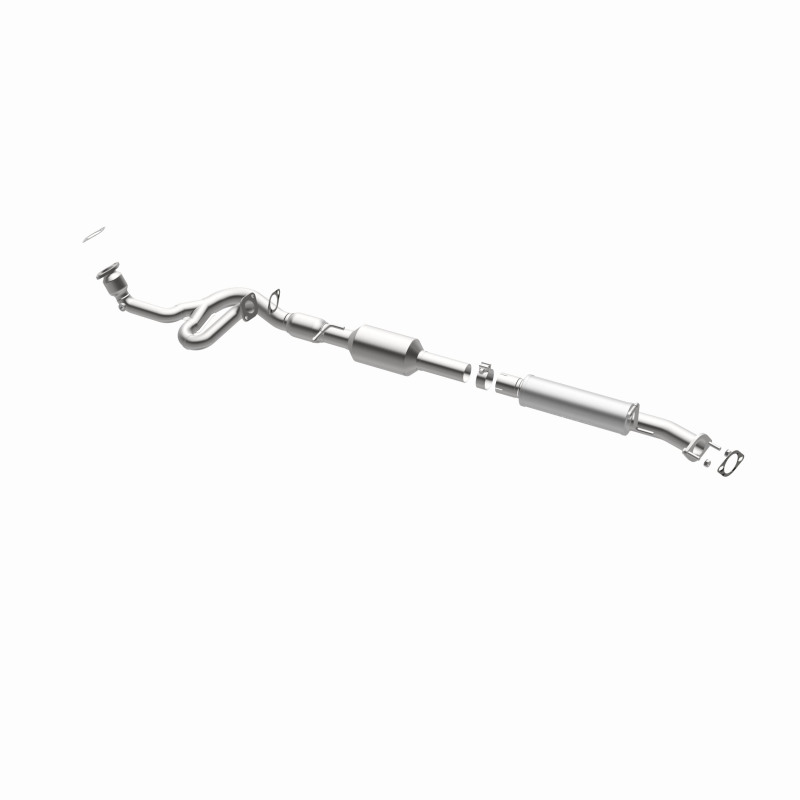

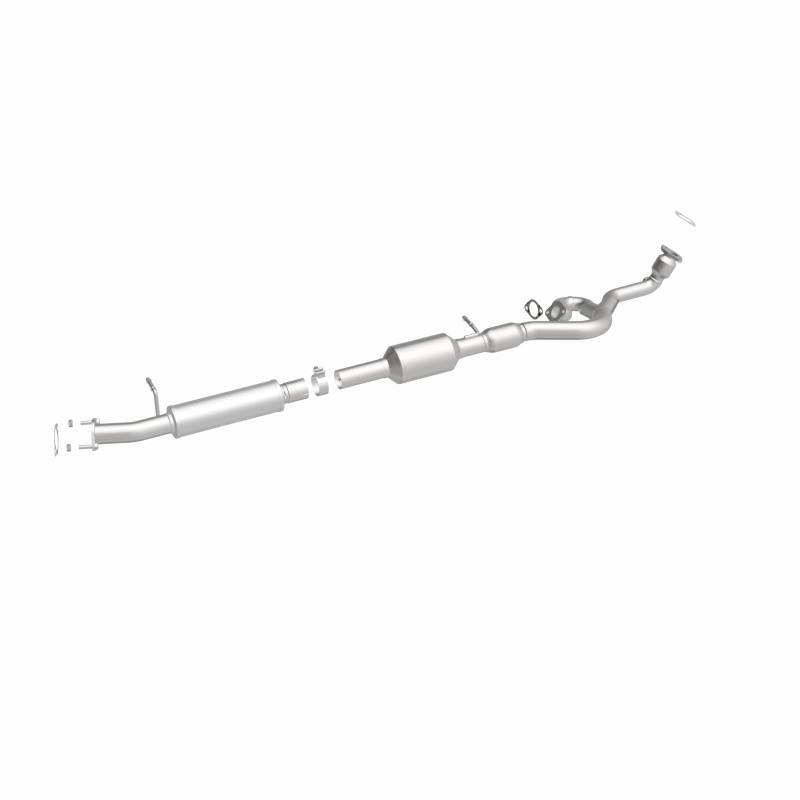

MagnaFlow 05-06 Hyundai Santa Fe 3.5L Direct Fit Converter
MagnaFlow 05-06 Hyundai Santa Fe 3.5L Direct Fit Converter
A$2,419.46
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5491248. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2005-2006 Hyundai Santa Fe 3.5L. MagnaFlow 5491248 includes (3) Flange Gaskets, (1) Torca Clamp, (2) Bolts, (2) Nuts and interchanges with OE parts 28610-26700, 28610-26701, 28610-26702. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Product Overview
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5491248. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2005-2006 Hyundai Santa Fe and interchanges with OE parts 28610-26700 and 28610-26701, among others. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Features and Benefits
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
- Precision Stamped Collector Design For Optimal Exhaust Flow; Engine Efficiency And Fuel Economy
- Mandrel Bent Tubing Retains OEM-Like Design And Geometry; Ensuring Smooth Exhaust Flow For Peak Fuel Economy Operation
- Torca AccuSeal® Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force Preventing Pipe Distortion
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel MIG Welds
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Precision stamped collector design for optimal exhaust flow, engine efficiency, and fuel economy
- Simplifies installation with essential gaskets and hardware being included in the box
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height: | 5 |
| Body Length: | 11.000 in. |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 5.000 in. |
| CARB Executive Order Number: | D-193-146 |
| California Air Resources Board (CARB) Certified: | Yes |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Quantity: | 1 |
| Core Substrate Material: | Ceramic |
| Description: | California Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | Yes |
| Gasket Or Seal Included: | Yes |
| Grade Type: | Regular |
| Hanger Included: | Yes |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 2.000 in. |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 2 |
| Inlet Mounting Hardware Included: | Yes |
| Inlet Quantity: | 2 |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.500 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Bolt-On |
| Outlet Attachment: | Bolt-On |
| Outlet Diameter: | 2.500 in. |
| Outlet Gasket Included: | Yes |
| Outlet Inside Diameter: | 2.5 |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Bolt-On |
| Overall Length: | 78.625 |
| Oxygen Sensor Location: | Pre Converter |
| Part Number: | mag5491248 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 1 |
| Series: | California |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | CARB Compliant Direct-Fit Catalytic Converter |
| Subtitles: | California / CARB Compliant |
| Title: | MagnaFlow 2005-2006 Hyundai Santa Fe California Grade CARB Compliant Direct-Fit Catalytic Converter |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Mandrel Bent Tubing Retains OEM-Like Design And Geometry; Ensuring Smooth Exhaust Flow For Peak Fuel Economy Operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- Precision Stamped Collector Design For Optimal Exhaust Flow; Engine Efficiency And Fuel Economy
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Simplifies installation with essential gaskets and hardware being included in the box
- Torca AccuSeal® Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force Preventing Pipe Distortion
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 5491248
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563155524
- Product Attributes - Inlet Quantity
- 2
- Product Attributes - Inlet Diameter (in.)
- 2.00 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Outlet Attachment
- Stock flange
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 78.63
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - CARB EO Number(s)
- D-193-146
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag5491248 |
| SFX Item ID | 4290213 |
| Supplier Item Code | 4290213 |
| Manufacturer SKU | 5491248 |
| Manufacturer UPC | 888563155524 |
| Alternative References | MFL5491248, MPE-5491248, 3.5L |
