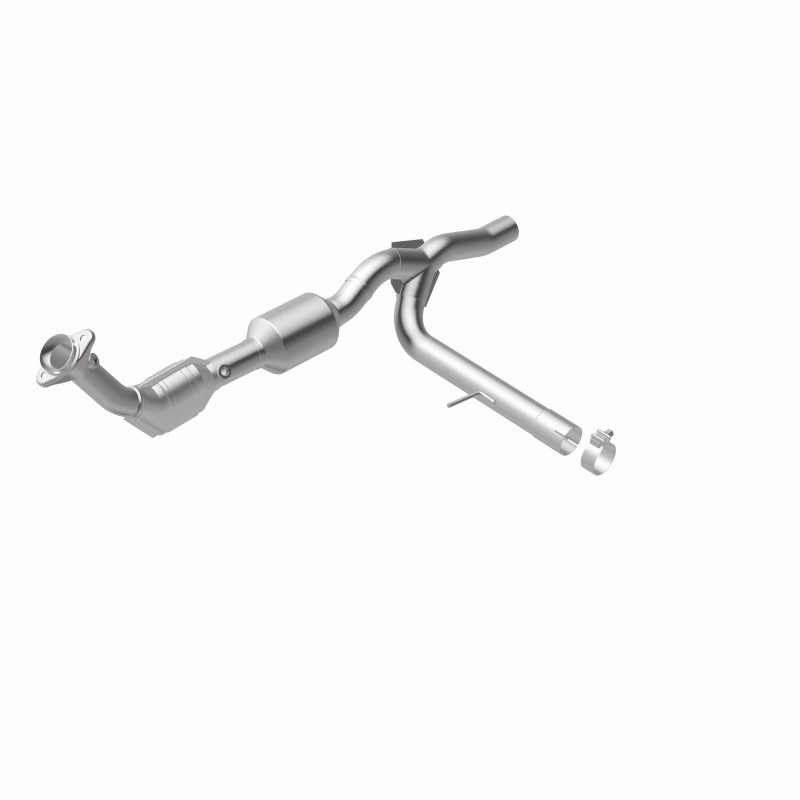

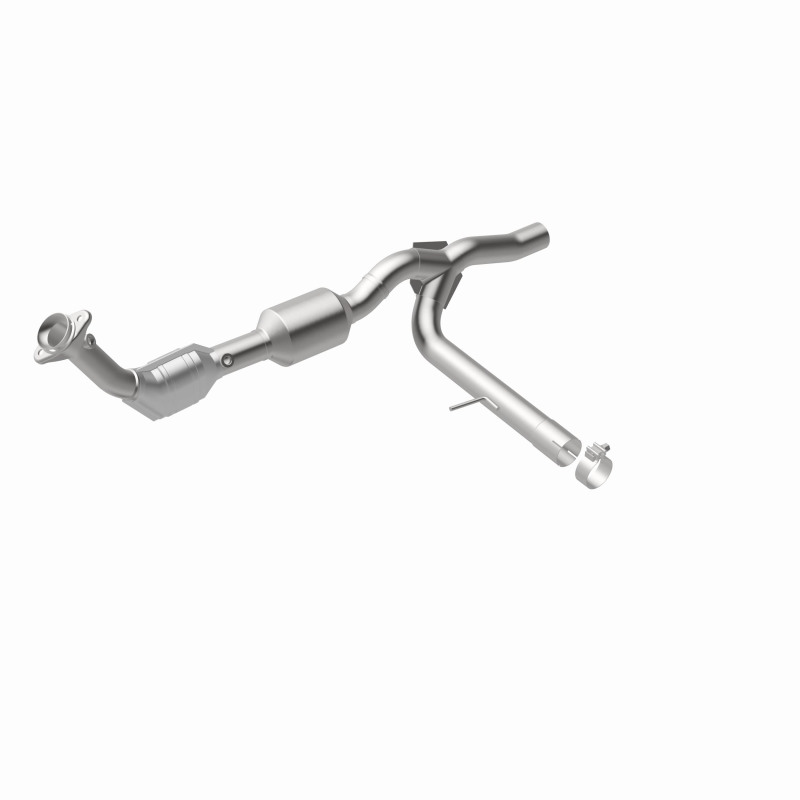

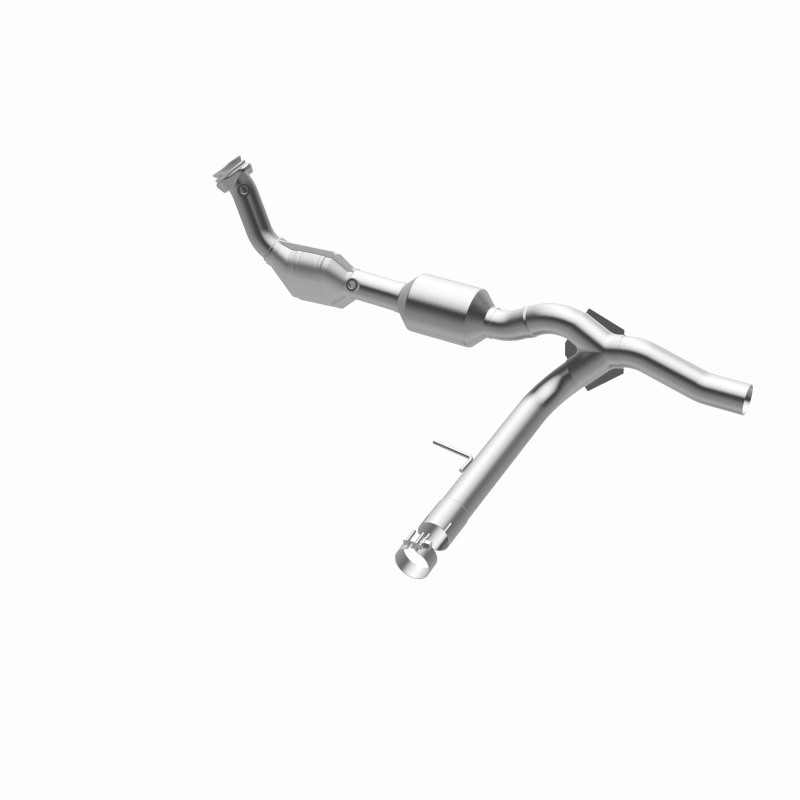

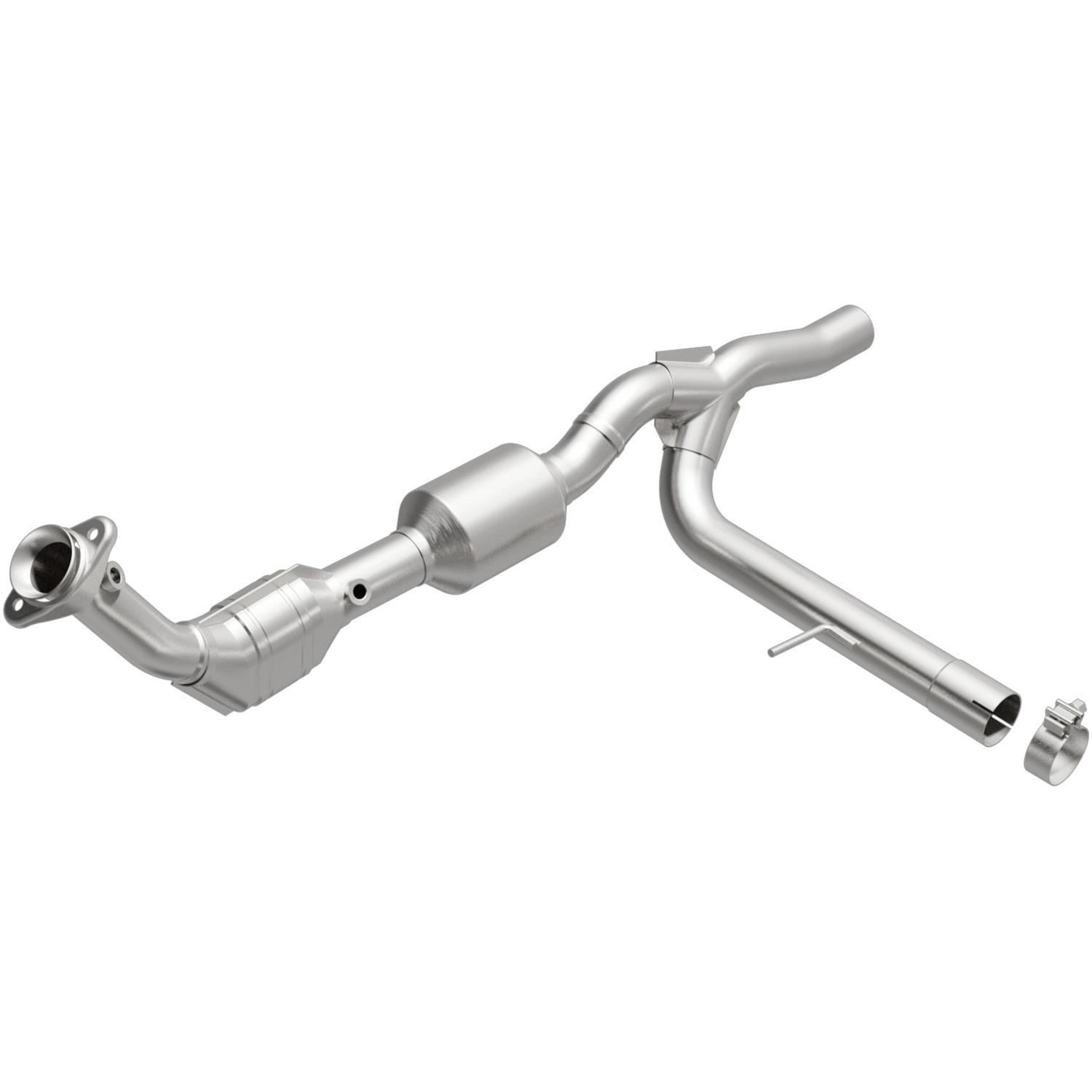

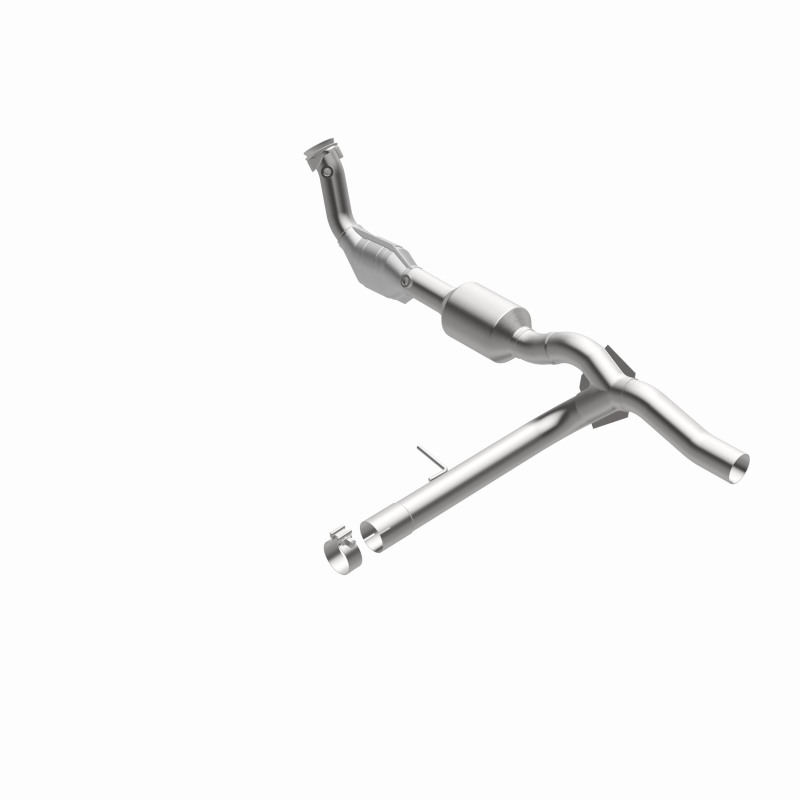

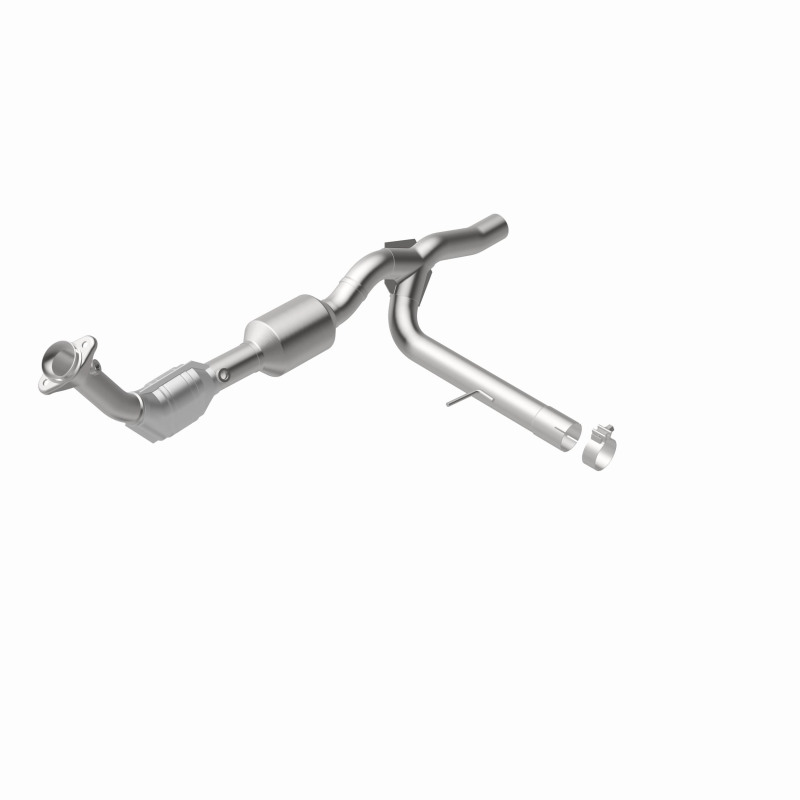

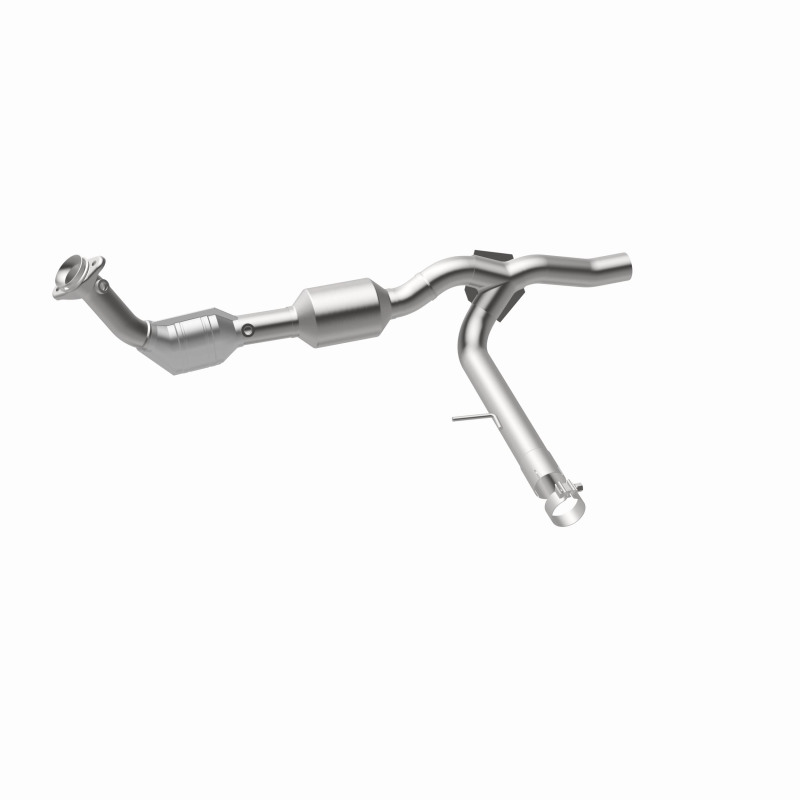

MagnaFlow 04-06 F-150 V8 4.6 OEM Underbody Direct Fit Converter
MagnaFlow 04-06 F-150 V8 4.6 OEM Underbody Direct Fit Converter
A$1,643.61
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52450. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2004-2006 Ford F-150 4.6L. MagnaFlow 52450 includes (1) Torca Clamp and interchanges with OE parts 4L3Z-5E212-FB, 4L3Z-5E212-KB, 4L3Z-5E212-KD, 5L3Z-5E212-FB, 5L3Z-5E212-PB. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52450. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2004-2006 Ford F-150 and interchanges with OE parts 4L3Z-5E212-KD and 5L3Z-5E212-PB, among others. Hardware is included to eliminate the hassle of working with corroded factory parts. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Precision Stamped Collector Design For Optimal Exhaust Flow/Engine Efficiency And Fuel Economy
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Precision stamped collector design for optimal exhaust flow, engine efficiency, and fuel economy
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height Position Front: | 3.5 |
| Body Height Position Rear: | 5 |
| Body Length Position Front: | 7.75 |
| Body Length Position Rear: | 9 |
| Body Material: | Stainless Steel |
| Body Shape Position Front: | Oval |
| Body Shape Position Rear: | Round |
| Body Type Position Front: | Clam-Shell |
| Body Type Position Rear: | Spun |
| Body Width Position Front: | 6.375 |
| Body Width Position Rear: | 5 |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Quantity: | 2 |
| Core Substrate Material: | Ceramic |
| Description: | OEM Grade Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | No |
| Gasket Or Seal Included: | No |
| Grade Type: | Regular |
| Hanger Included: | Yes |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment: | Bolt-On;Clamp-On |
| Inlet Diameter: | 2.25;2.5 |
| Inlet Gasket Included: | No |
| Inlet Inside Diameter: | 2.25;2.5 |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 2 |
| Inlet Type: | Bolt-On;Clamp-On |
| Main Piping Diameter: | 2.500 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Clamp-On |
| Outlet Attachment: | Clamp-On |
| Outlet Diameter: | 2.500 in. |
| Outlet Gasket Included: | No |
| Outlet Inside Diameter: | 2.5 |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Clamp-On |
| Overall Length: | 48.500 in. |
| Oxygen Sensor Location: | Pre and Post Converter |
| Part Number: | mag52450 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 2 |
| Series: | OEM Grade |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Subtitles: | Federal / EPA Compliant |
| Title: | MagnaFlow 2004-2006 Ford F-150 OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Precision Stamped Collector Design For Optimal Exhaust Flow/Engine Efficiency And Fuel Economy
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 52450
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563154404
- Product Attributes - Inlet Quantity
- 2
- Product Attributes - Inlet Diameter (in.)
- Stock in.
- Product Attributes - Converter Inlet Attachment
- Stock flange/Slip fit
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 48.50
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag52450 |
| SFX Item ID | 4289955 |
| Supplier Item Code | 4289955 |
| Manufacturer SKU | 52450 |
| Manufacturer UPC | 888563154404 |
| Alternative References | MFL52450, MPE-52450, F-150 |
Compatibility
