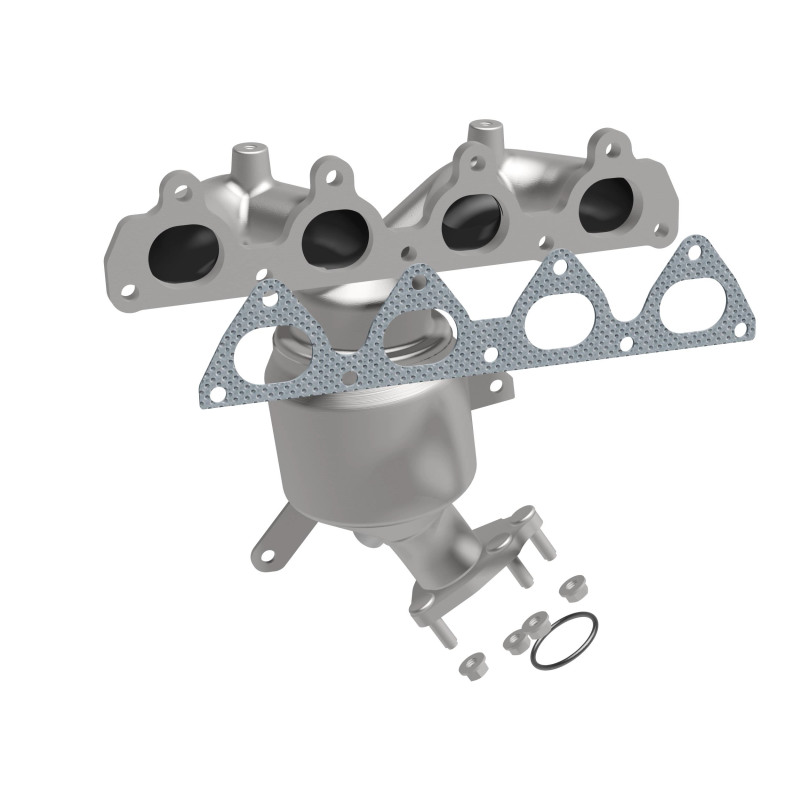

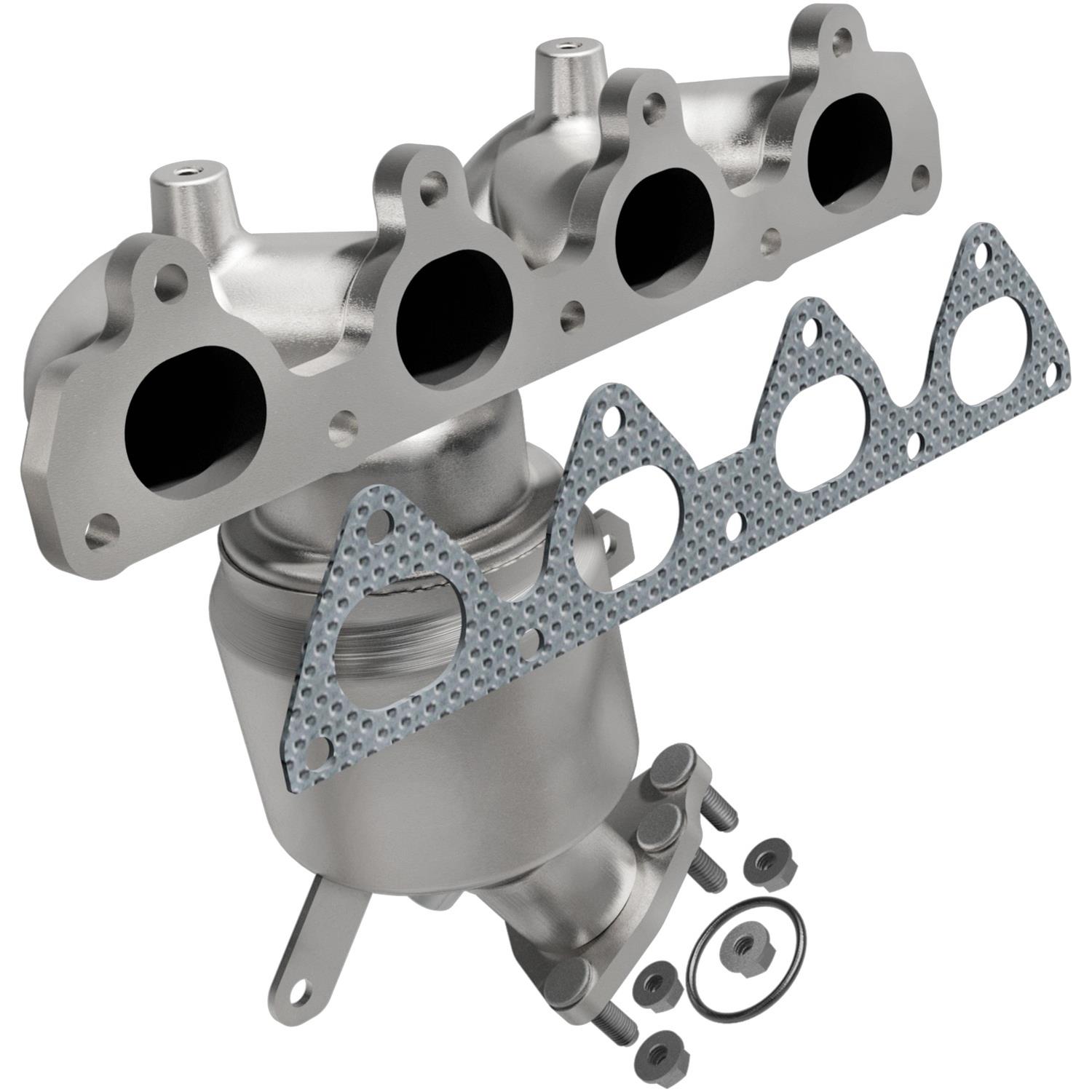

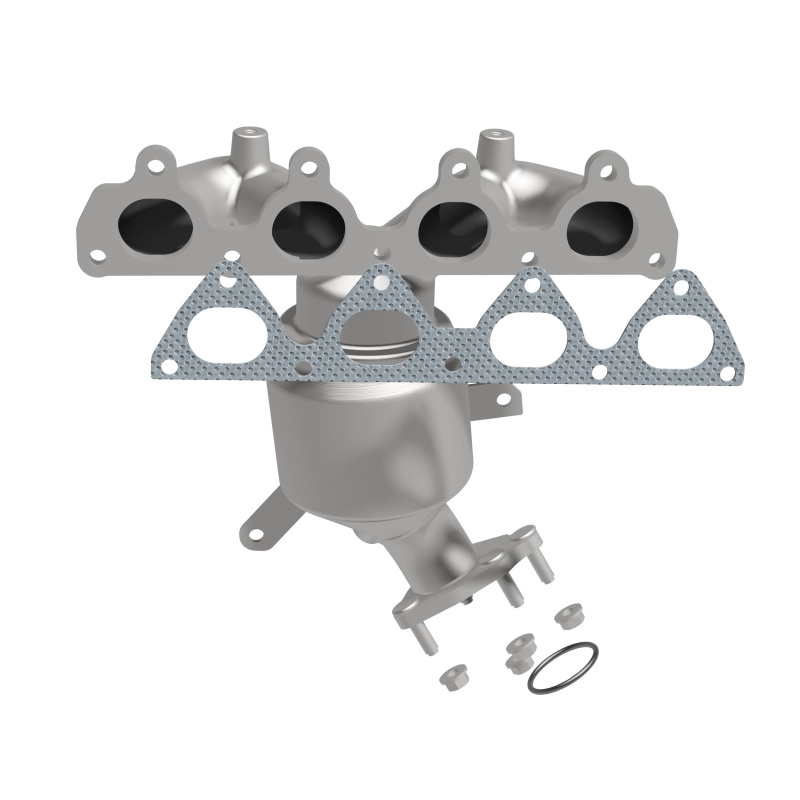

MagnaFlow Direct Fit Catalytic Converter Civic-Del Sol 96-99 1.6L
MagnaFlow Direct Fit Catalytic Converter Civic-Del Sol 96-99 1.6L
A$1,955.87
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Manifold Catalytic Converter 50602. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Manifold Catalytic Converter is designed to fit the 1996-2000 Honda Civic 1.6L & 1996-1997 Honda Civic del Sol S 1.6L. MagnaFlow 50602 includes (2) Flange Gaskets, (4) Nuts and interchanges with OE parts 18160-P2E-A00, 18160-P2E-A01, 18160-P2E-A02, 18160-P2E-A10, 18160-P2E-A12, 18160-P2E-A22, 18160-P2E-A50, 18160-P2E-A51, 18160-P2E-A52, 18160-P2E-L00, 18160-P2E-L01, 18160-P2E-L02, 18160-P2E-L50, 18160-P2E-L51, 18160-P2E-L52, 18160-P2M-A01, 18160-P2M-A02, 18160-PDN-A00, 18160-PDN-A01, 18160-PDN-A02. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.
Product Overview
MagnaFlow specializes in superior catalytic converter and exhaust technology and has spent the past 30+ years earning its reputation as a global market leader. American engineered and manufactured, MagnaFlow Catalytic Converters combine efficient industrial design to produce a product that exceeds, rather than meets, the highest standards of product performance and efficiency in the industry. MagnaFlow uses both Ceramic and Metallic substrates with different combinations of cell density and wall thickness to meet vehicle specific requirements. MagnaFlow Direct-Fit Catalytic Converters are designed for easy bolt-on installation for the Professional Installer. Each is designed to exact the original equipment specifications. While the majority of the Direct-Fit Catalytic Converter products do not require welding, cutting or bending, limited applications may require additional welding for optimal installation.
All Federal catalytic converters meet EPA requirements. Federal Catalytic Converters are not legal for sale, installation or use on vehicles registered in the state of California.
All California State Catalytic converters are CARB compliant. Converters in this catalog are based on Executive Orders issued by the California Air Resource Board and must be used in accordance with this information. In California, it is illegal to select a catalytic converter for installation based solely on vehicle weight and engine size.
* Stainless steel construction
* Formulated for Gas and Diesel Applications
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| 10982: | Stainless Steel |
|---|---|
| Air Tube Adaptable: | No |
| Air Tube Count: | 0 |
| Anticipated Ship Out Time: | Approximately 1-2 Days |
| Body Length: | 5.500 in. |
| Body Material: | Stainless Steel |
| Body Type: | Spun |
| Body Width: | 5.000 in. |
| CARB Compliant: | No |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Catalytic Converter Body Material: | Stainless |
| Catalytic Converter Configuration: | Direct-Fit |
| Catalytic Converter Format: | Pre-Catalytic Converter and Main Catalytic Converter |
| Catalytic Converter Inlet Diameter: | 4.25 |
| Catalytic Converter Length: | 5.5 |
| Catalytic Converter Outlet Diameter: | 2 |
| Catalytic Converter Overall Length: | 14.25 |
| Catalytic Converter Oxygen Sensor Location: | Pre and Post Converter |
| Catalytic Converter Substrate Material: | Ceramic |
| Catalytic Converter Width: | 5 |
| Clamp Included: | No |
| Clamps Included: | No |
| Components: | Gasket=2 |
| Converter Body Length: | 6.25 |
| Converter Body Material: | Stainless Steel |
| Converter Body Size: | OEM |
| Converter Quantity: | 1 |
| Converter Tube Material: | Stainless Steel |
| Core Substrate Material: | Ceramic |
| Description: | HM Grade Manifold Catalytic Converter |
| Emission: | Non-California (49-State) |
| Exhaust Component Mount Type: | Uses Factory Hangers |
| Exhaust Inlet Connection Type: | Bolt-On |
| Exhaust Outlet Connection Type: | Bolt-On |
| Exhaust Pipe Material: | Stainless Steel |
| Finish: | Stainless Steel |
| Grade Type: | Regular |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Connection Type: | Bolt-On |
| Inlet Diameter: | 4.250 in. |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | OEM |
| Inlet Mounting Hardware Included: | No |
| Inlet Type: | Flanged |
| Main Piping Diameter: | 2.000 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Bolt-On |
| Outlet Attachment: | Bolt-On |
| Outlet Connection Type: | Bolt-On |
| Outlet Diameter: | 2.000 in. |
| Outlet Gasket Included: | Yes |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Outside Diameter: | OEM |
| Outlet Quantity: | 1 |
| Outlet Type: | Flanged |
| Overall Length: | 14.250 in. |
| Oxygen Sensor Location: | Pre and Post Converter |
| Part Number: | mag50602 |
| Prop 65 Y/N: | No |
| Recommended Use: | Converter |
| Sensor Port Count: | 2 |
| Series: | HM Grade |
| Substrate Material: | Ceramic |
| Subtitle: | Federal / EPA Compliant Manifold Catalytic Converter |
| Subtitles: | Federal / EPA Compliant |
| Title: | MagnaFlow HM Grade Federal / EPA Compliant Manifold Catalytic Converter 50602 |
| Type: | One-Piece |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converter with Integrated Exhaust Manifold
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 50602
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 841380017369
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic honeycomb
- Product Attributes - Converter Overall Length (in.)
- 14.25
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag50602 |
| SFX Item ID | 4284921 |
| Supplier Item Code | 4284921 |
| Manufacturer SKU | 50602 |
| Manufacturer UPC | 841380017369 |
| Alternative References | mpe-50602, MFL50602, 1.6L |
