Description

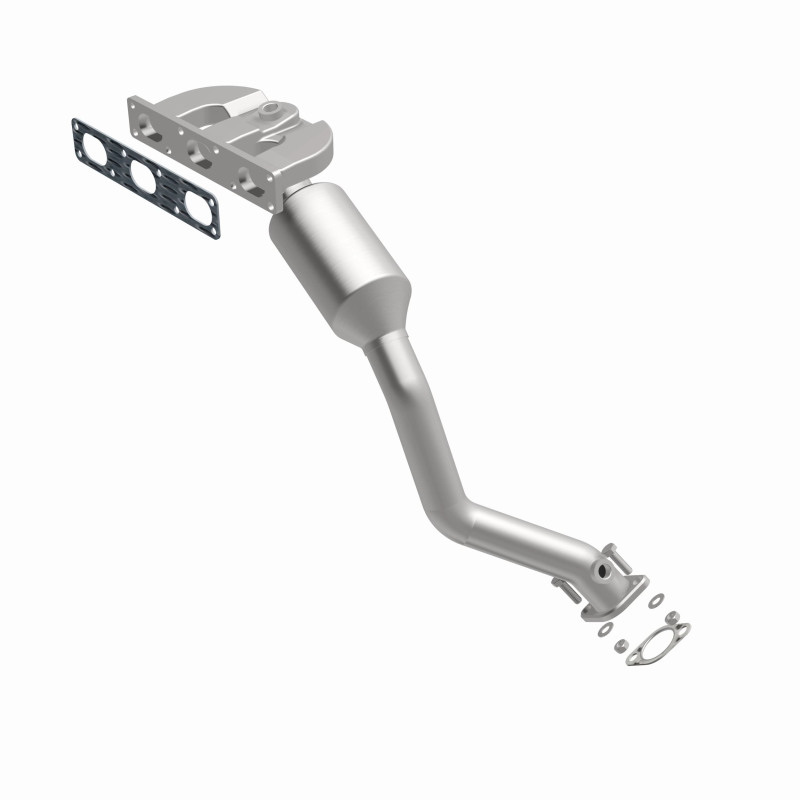

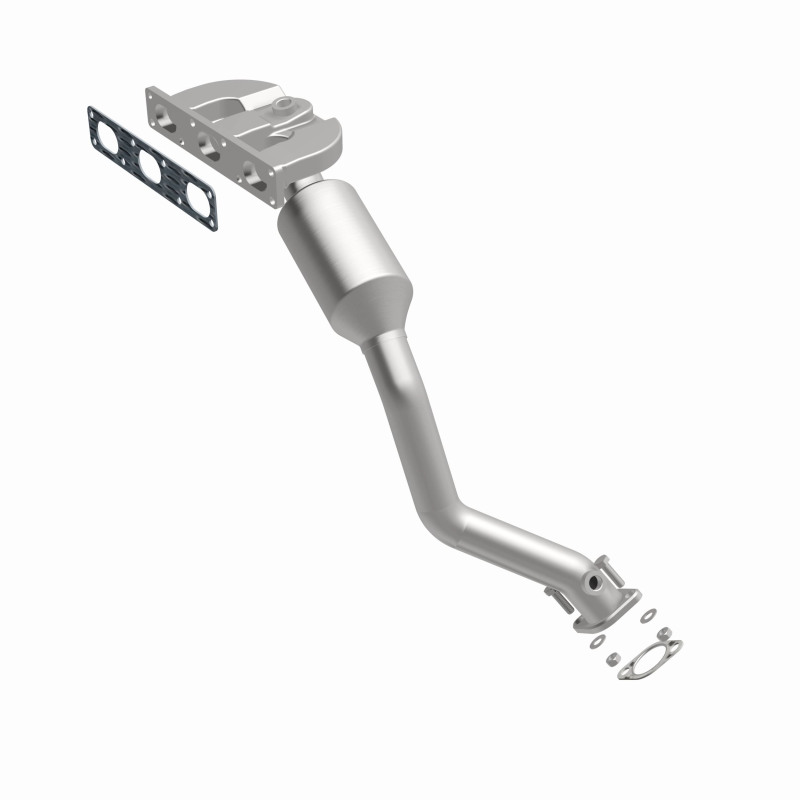

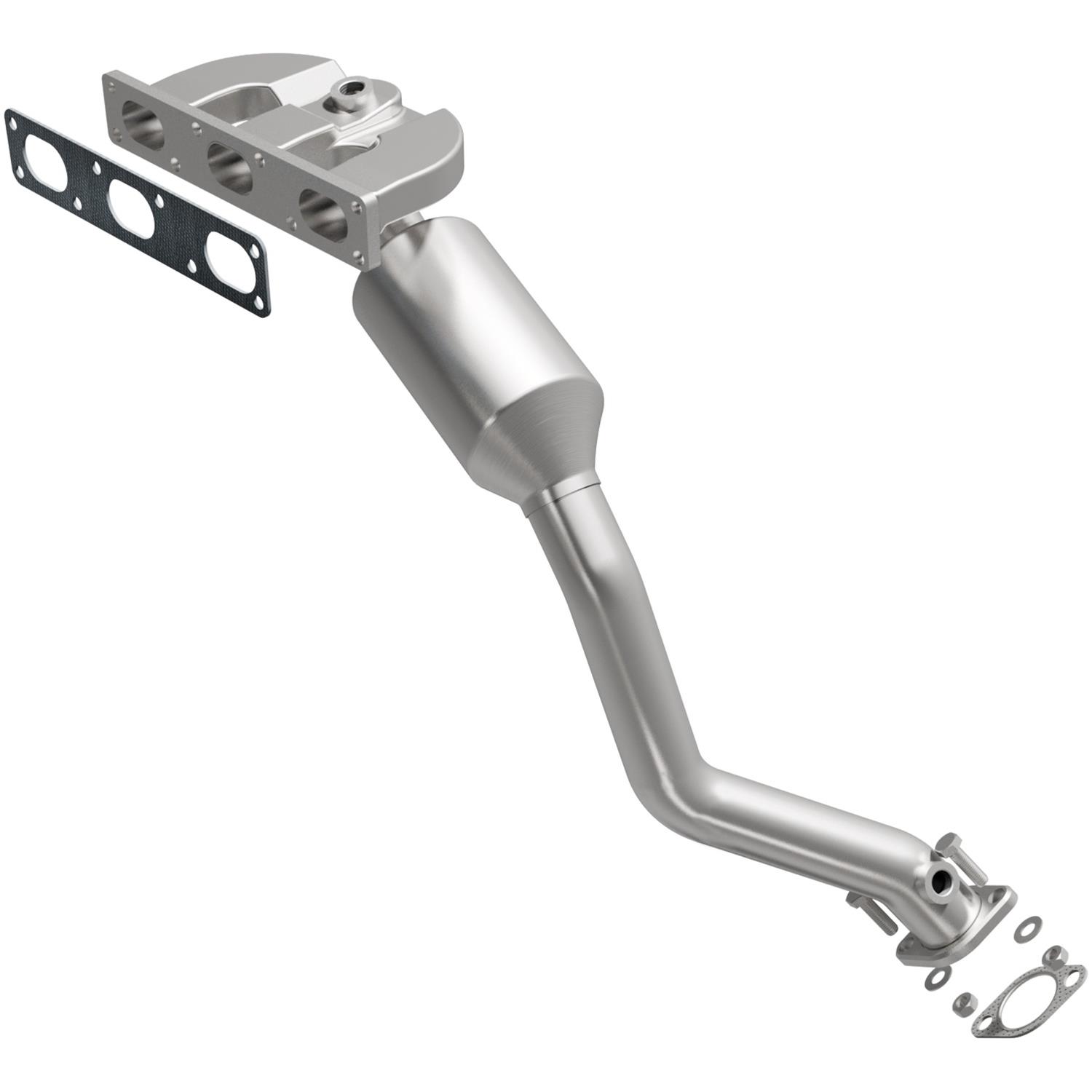

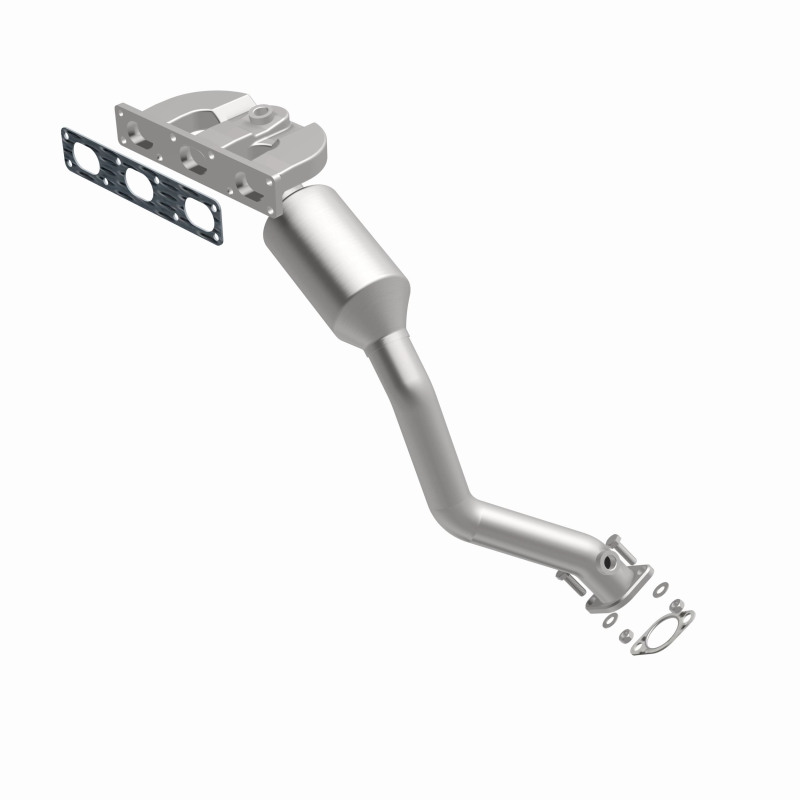

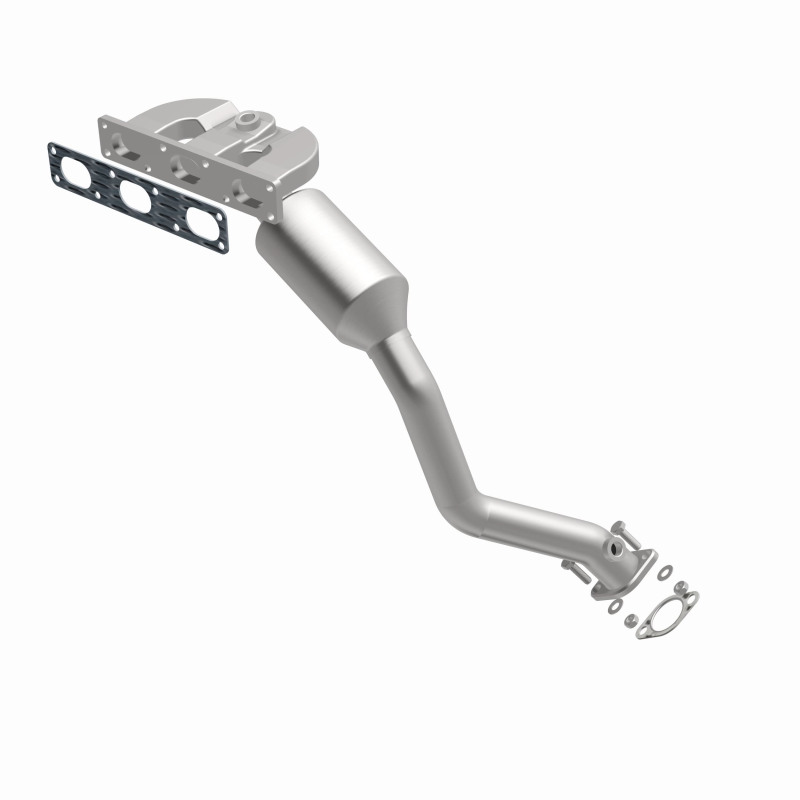

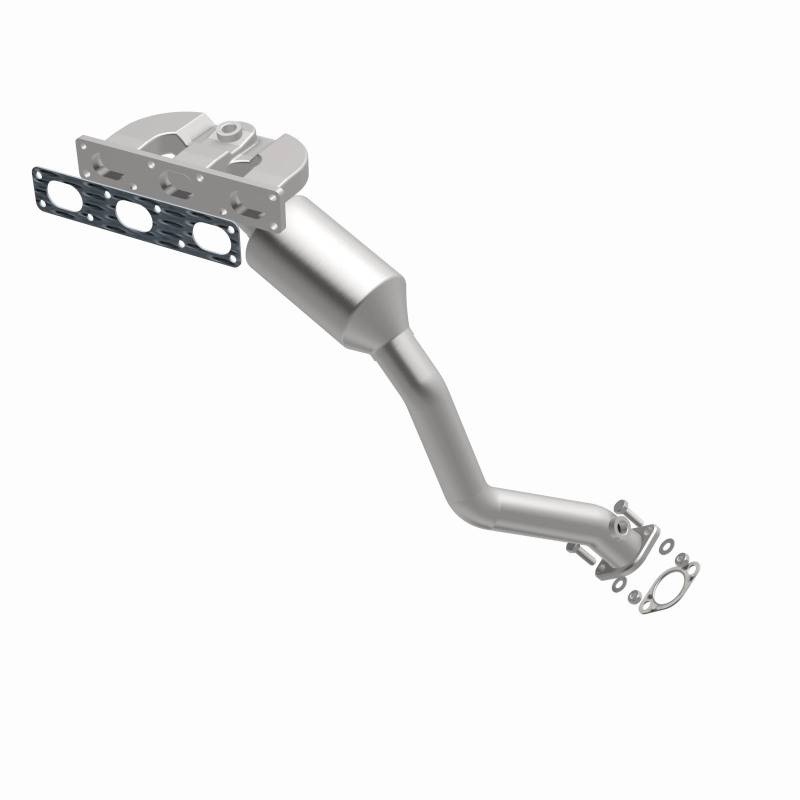

Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Manifold Catalytic Converter 4551772. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Manifold Catalytic Converter is designed to fit the 2001-2006 BMW X5 3.0L. MagnaFlow 4551772 includes (2) Flange Gaskets, (2) Flat Washers, (2) Bolts, (2) Nuts and interchanges with OE parts 18 40 7 507 347, 18 40 7 508 805, 18 40 7 514 498. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Product Overview
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 4551772. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2001-2006 BMW X5 and interchanges with OE parts 18 40 7 514 498 and 18 40 7 507 347, among others. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Features and Benefits
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel MIG Welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Simplifies installation with essential gaskets and hardware being included in the box
Product Details
| 10982: | Stainless Steel |
|---|---|
| Air Tube Adaptable: | No |
| Air Tube Count: | 0 |
| Body Height: | 4 |
| Body Length: | 8.500 in. |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 4.000 in. |
| CARB Executive Order Number: | D-193-145 |
| California Air Resources Board (CARB) Certified: | Yes |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Clamp Included: | No |
| Clamps Included: | No |
| Converter Body Length: | 9 |
| Converter Body Material: | Stainless Steel |
| Converter Quantity: | 1 |
| Converter Tube Material: | Stainless Steel |
| Core Substrate Material: | Ceramic |
| Description: | California Manifold Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | Yes |
| Gasket Or Seal Included: | Yes |
| Grade Type: | Regular |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 1.750 in. |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 1.750 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 3 |
| Inlet Type: | Flanged |
| Main Piping Diameter: | 2.000 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Bolt-On |
| Outlet Attachment: | Bolt-On |
| Outlet Diameter: | 2.000 in. |
| Outlet Gasket Included: | Yes |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Outside Diameter: | 2.000 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Flanged |
| Overall Length: | 25.500 in. |
| Oxygen Sensor Location: | Pre and Post Converter |
| Part Number: | mag4551772 |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 2 |
| Series: | California |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | CARB Compliant Manifold Catalytic Converter |
| Subtitles: | California / CARB Compliant |
| Title: | MagnaFlow 2001-2006 BMW X5 California Grade CARB Compliant Manifold Catalytic Converter |
| Type: | One-Piece |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converter with Integrated Exhaust Manifold
Features
- Durable 308 stainless steel MIG welds
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Simplifies installation with essential gaskets and hardware being included in the box
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 4551772
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow California Grade CARB Compliant Direct-Fit Manifold Catalytic Converters
- Product Attributes - UPC
- 888563153346
- Product Attributes - Inlet Quantity
- 3
- Product Attributes - Inlet Diameter (in.)
- 1.75 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.00 in.
- Product Attributes - Converter Outlet Attachment
- Stock flange
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 25.50
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - CARB EO Number(s)
- D-193-145
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag4551772 |
| SFX Item ID | 4289824 |
| Supplier Item Code | 4289824 |
| Manufacturer SKU | 4551772 |
| Manufacturer UPC | 888563153346 |
| Alternative References | MFL4551772, MPE-4551772, 3.0L |
