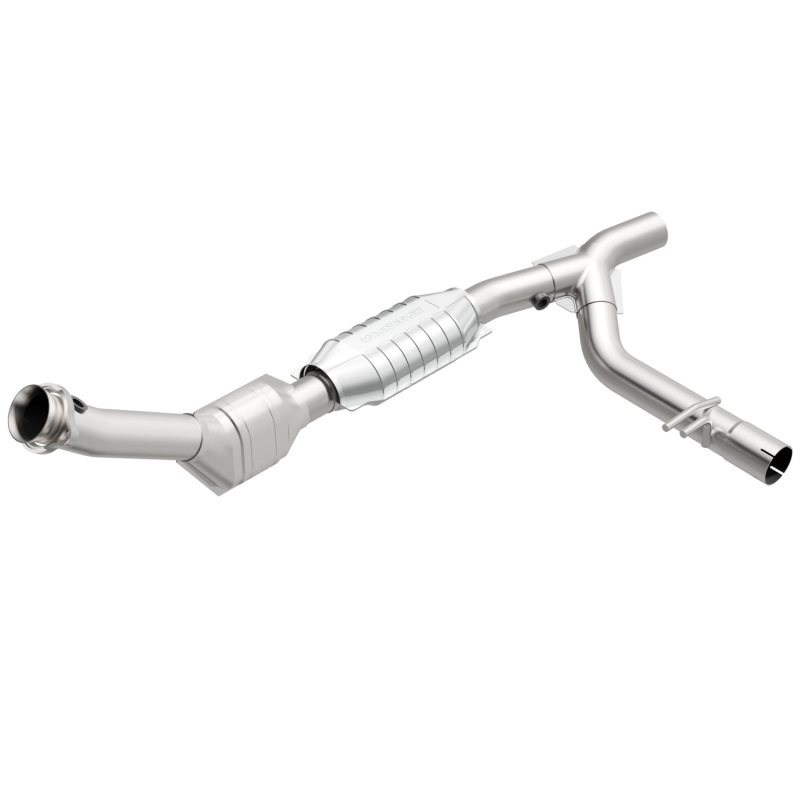

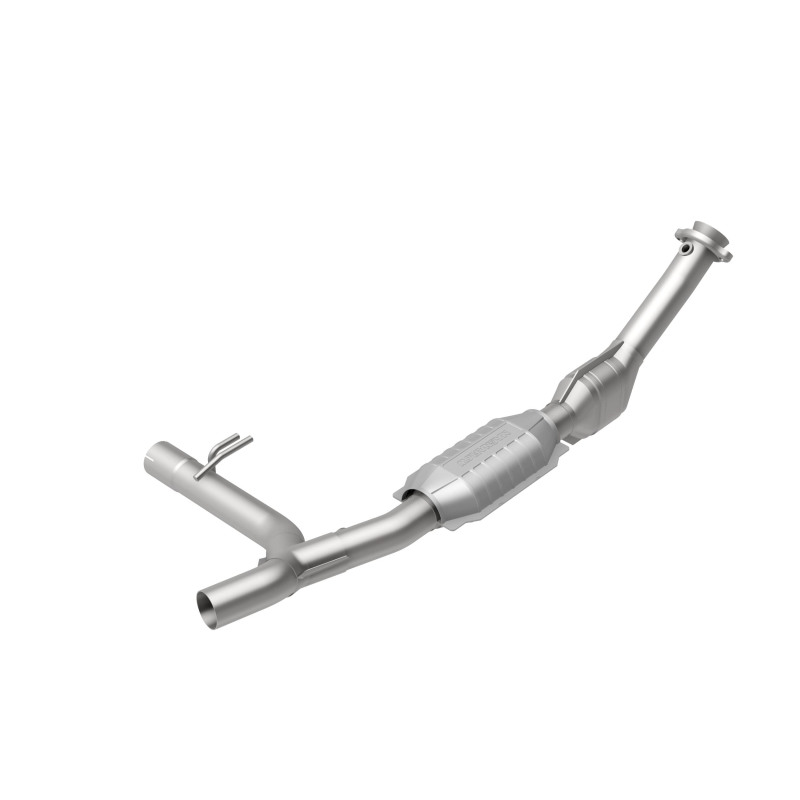

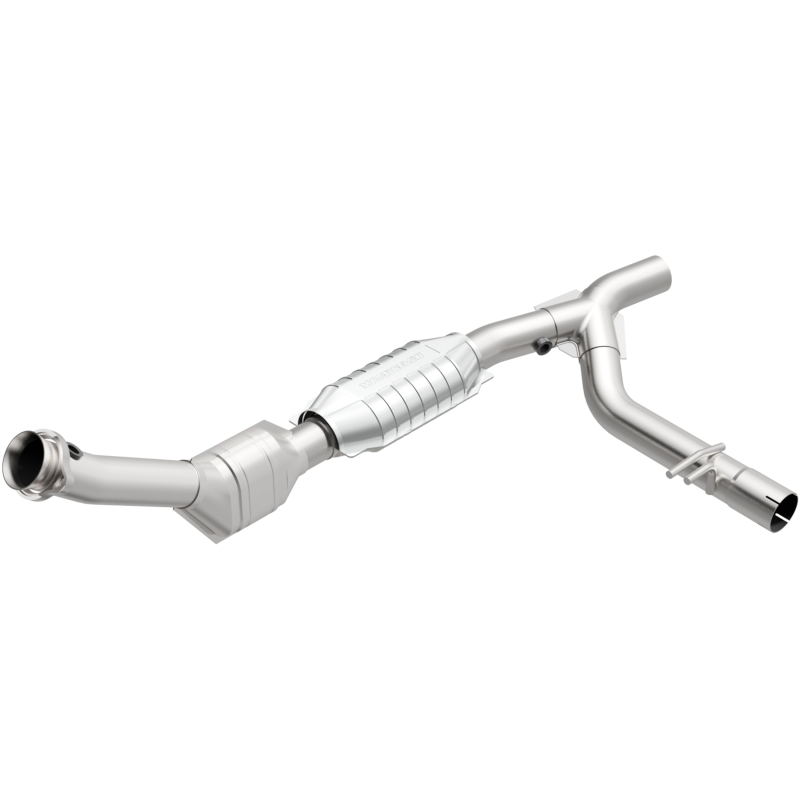

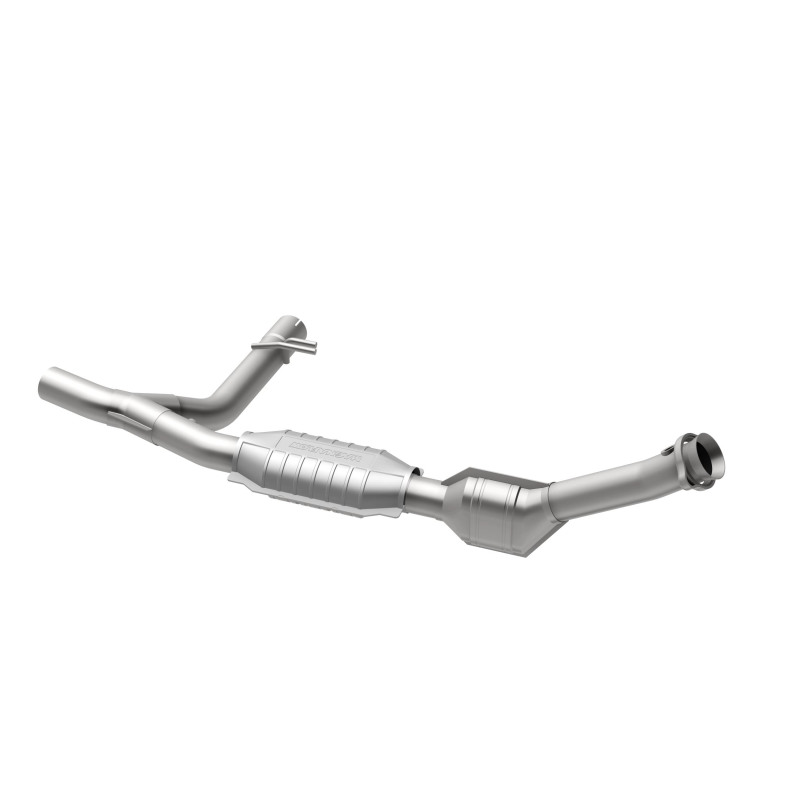

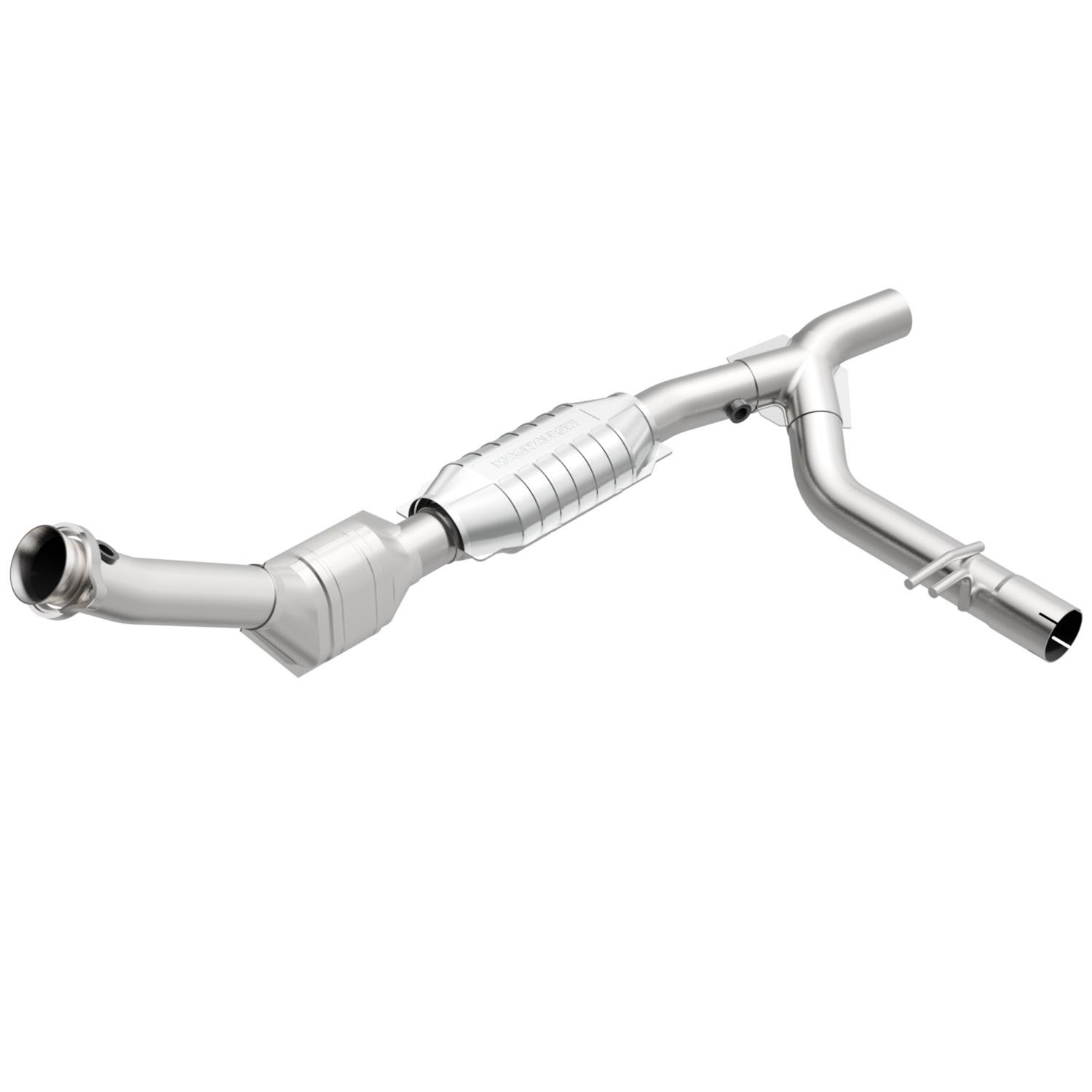

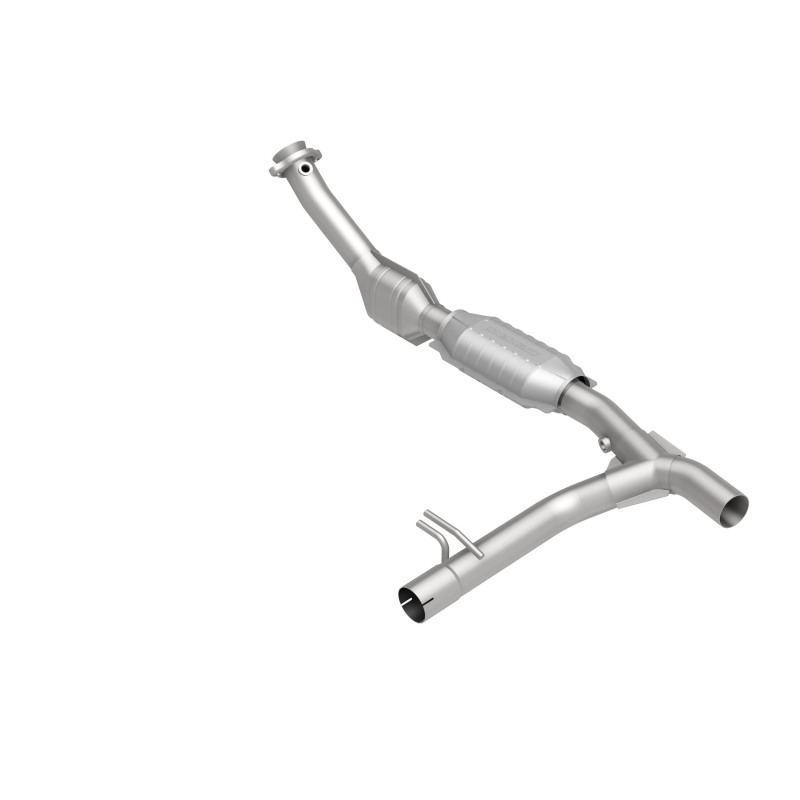

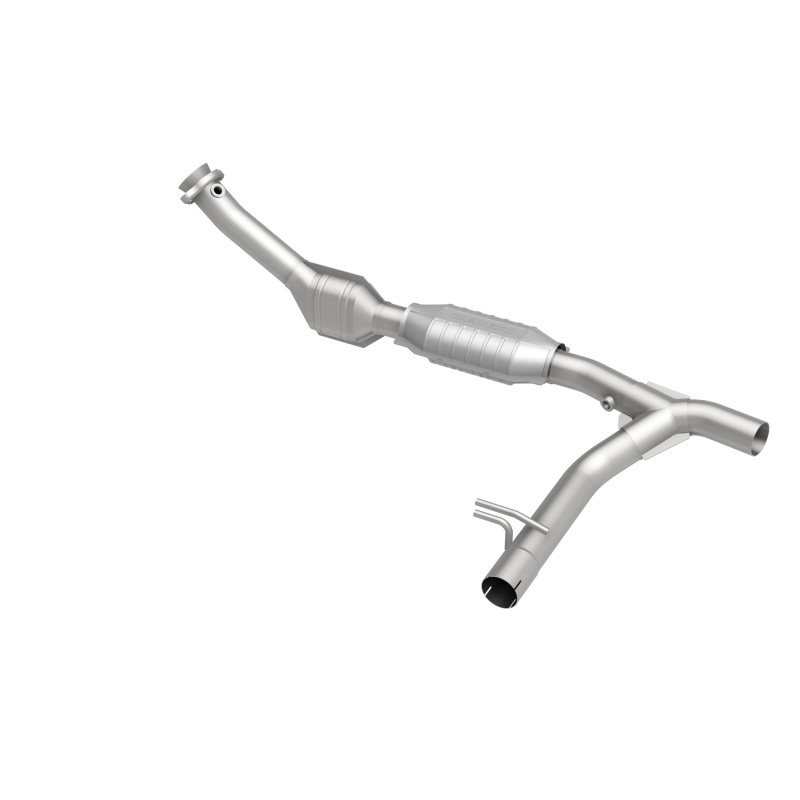

MagnaFlow Direct Fit Catalytic Converter 97-98 Expedition-Navigator
MagnaFlow Direct Fit Catalytic Converter 97-98 Expedition-Navigator
A$1,981.55
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
MagnaFlow HM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 23319 helps keep the check engine light off. DIY installation is easy with the proper tools (no cutting or welding required). With features including mandrel-bent tubing to eliminate flow restrictions and stainless steel construction to resist corrosion, you can have confidence in the quality of this catalytic converter. Using state-of-the-art 3D scanning systems in the design process, the MagnaFlow metrology department ensures this new part to fit and function like the original equipment. Designed to fit the 1997-2003 Ford F-150, 1997-2002 Ford Expedition, and more, this direct-fit catalytic converter also interchanges with OE parts F85Z-5E212-EA and F85Z-5E212-GA, among others. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with Federal/EPA Emission systems.
Product Overview
MagnaFlow specializes in superior catalytic converter and exhaust technology and has spent the past 30+ years earning its reputation as a global market leader. American engineered and manufactured, MagnaFlow Catalytic Converters combine efficient industrial design to produce a product that exceeds, rather than meets, the highest standards of product performance and efficiency in the industry. MagnaFlow uses both Ceramic and Metallic substrates with different combinations of cell density and wall thickness to meet vehicle specific requirements. MagnaFlow Direct-Fit Catalytic Converters are designed for easy bolt-on installation for the Professional Installer. Each is designed to exact the original equipment specifications. While the majority of the Direct-Fit Catalytic Converter products do not require welding, cutting or bending, limited applications may require additional welding for optimal installation.
All Federal catalytic converters meet EPA requirements. Federal Catalytic Converters are not legal for sale, installation or use on vehicles registered in the state of California.
All California State Catalytic converters are CARB compliant. Converters in this catalog are based on Executive Orders issued by the California Air Resource Board and must be used in accordance with this information. In California, it is illegal to select a catalytic converter for installation based solely on vehicle weight and engine size.
* Stainless steel construction
* Formulated for Gas and Diesel Applications
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Precision stamped collector design for optimal exhaust flow, engine efficiency, and fuel economy
Product Details
| 2899: | No |
|---|---|
| Air Tube Adaptable: | No |
| Air Tube Count: | 0 |
| Anticipated Ship Out Time: | Approximately 1-2 Days |
| Body Length: | 7.750 in. |
| Body Material: | Stainless Steel |
| Body Type: | Clam-Shell |
| Body Width: | 2.500 in. |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| California Air Resources Board (CARB): | No |
| California Air Resources Board Approved: | No |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Catalytic Converter Body Material: | Stainless |
| Catalytic Converter Format: | Pre-Catalytic Converter and Main Catalytic Converter |
| Catalytic Converter Overall Length: | 47 |
| Catalytic Converter Oxygen Sensor Location: | Pre and Post Converter |
| Clamp Included: | No |
| Clamps Included: | No |
| Converter Body Size: | OEM |
| Converter Quantity: | 2 |
| Core Substrate Material: | Ceramic |
| Description: | HM Grade Direct-Fit Catalytic Converter |
| Emission: | Non-California (49-State) |
| Exhaust Component Mount Type: | Uses Factory Hangers |
| Exhaust Pipe Material: | Stainless Steel |
| Finish: | Stainless Steel |
| Grade Type: | Regular |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Included: | Yes |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Gasket Included: | No |
| Inlet Inside Diameter: | 2.500 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.500 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | No |
| Outlet Gasket Included: | No |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Clamp-On |
| Overall Length: | 47.000 in. |
| Oxygen Sensor Location: | Pre and Post Converter |
| Part Number: | mag23319 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Recommended Use: | Converter |
| Sensor Port Count: | 2 |
| Series: | HM Grade |
| Substrate Material: | Ceramic |
| Subtitle: | Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Subtitles: | Federal / EPA Compliant |
| Title: | MagnaFlow HM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter 23319 |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converter
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 23319
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 841380016683
- Product Attributes - Inlet Diameter (in.)
- 2.50 in.
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic honeycomb
- Product Attributes - Converter Overall Length (in.)
- 47.00
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag23319 |
| SFX Item ID | 4285569 |
| Supplier Item Code | 4285569 |
| Manufacturer SKU | 23319 |
| Manufacturer UPC | 841380016683 |
| Alternative References | mpe-23319, MFL23319 |
