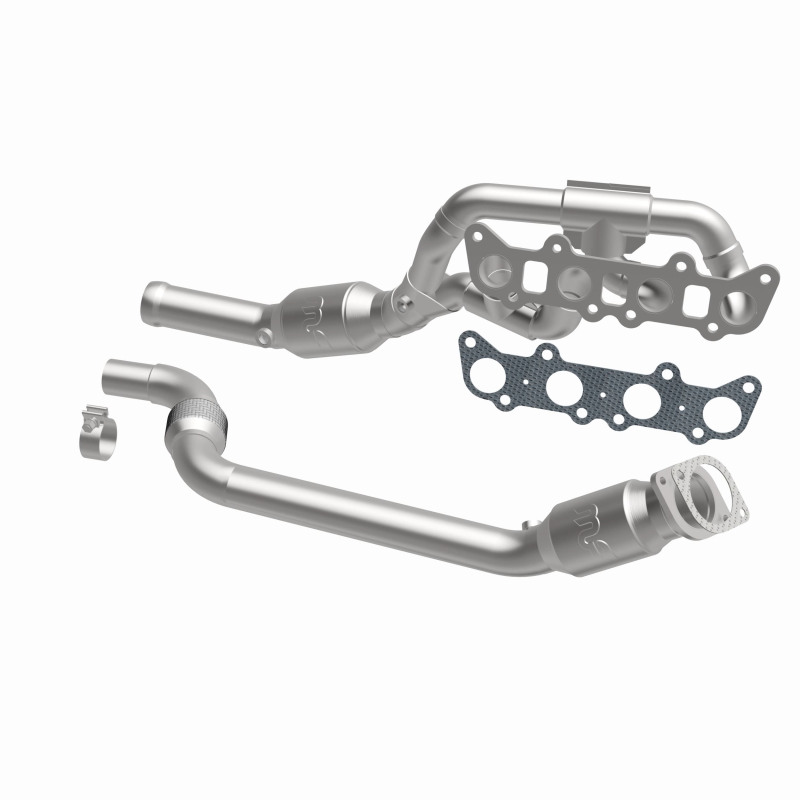

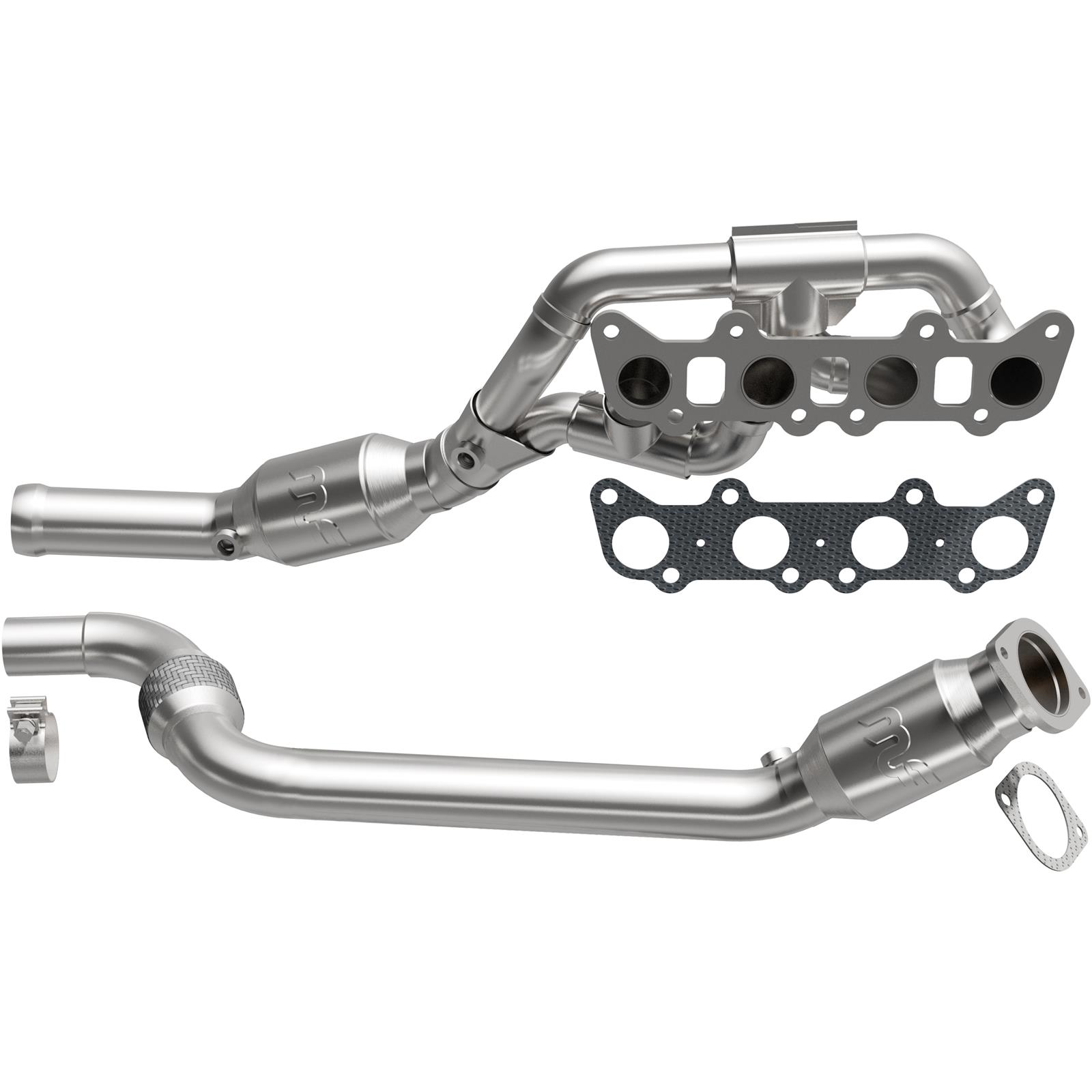

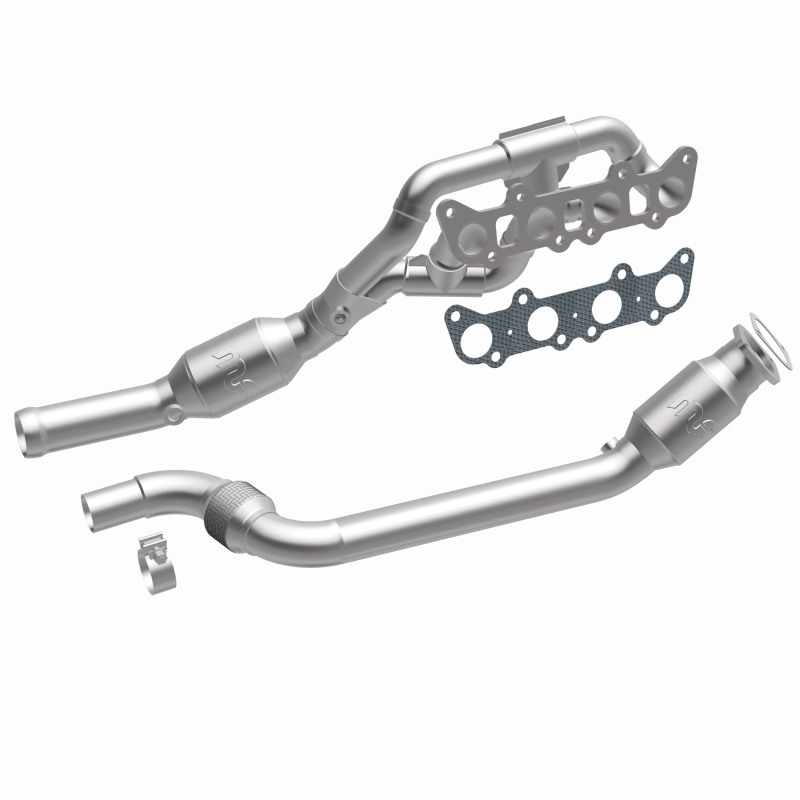

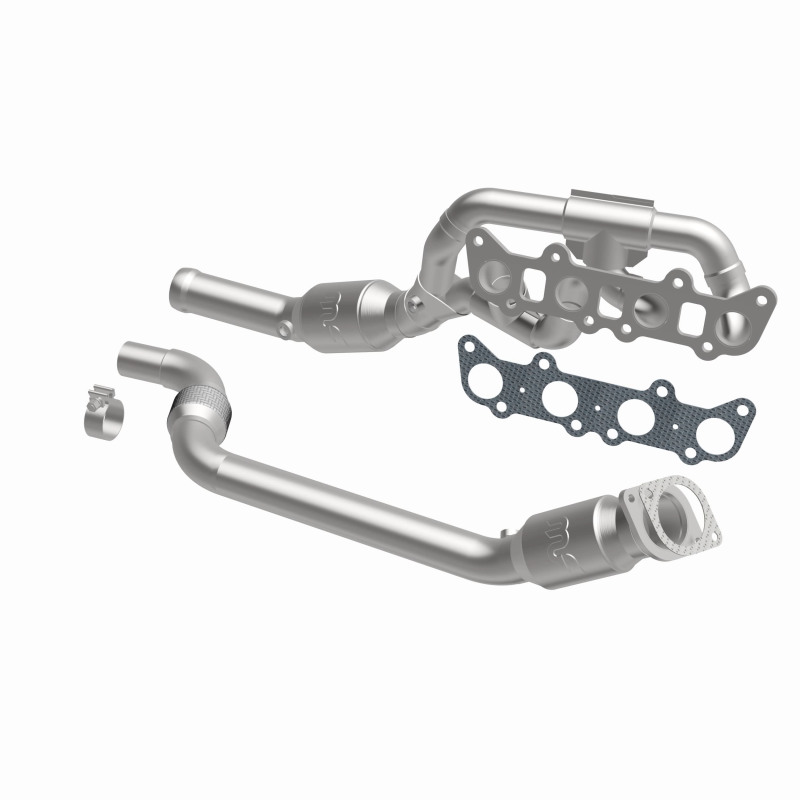

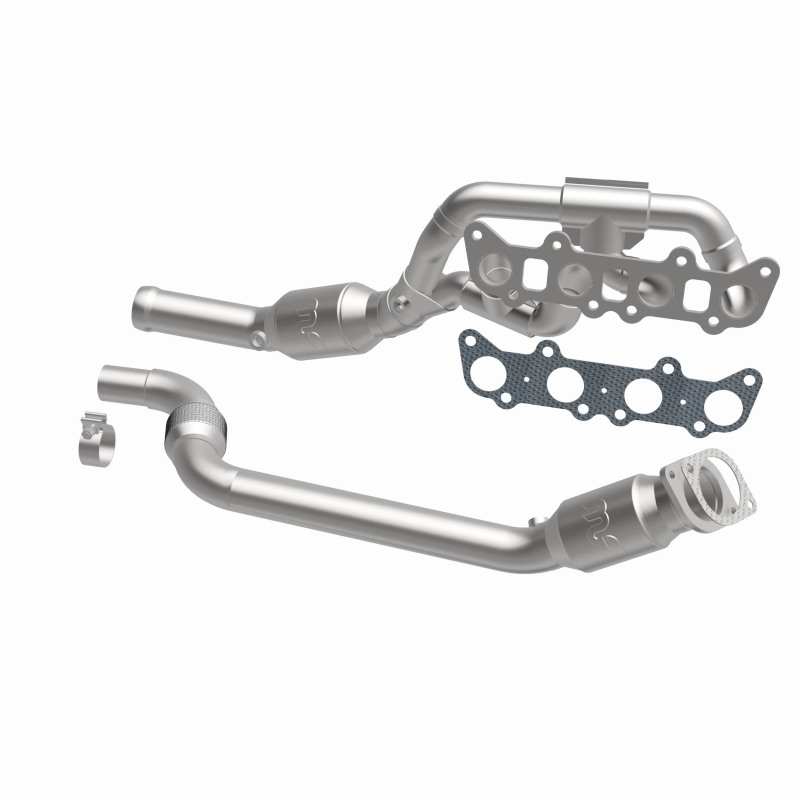

MagnaFlow 2015 Ford Mustang 5.0 Direct Fit EPA Compliant Manifold Catalytic Converter
MagnaFlow 2015 Ford Mustang 5.0 Direct Fit EPA Compliant Manifold Catalytic Converter
A$4,233.70
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Manifold Catalytic Converter 22-214. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Manifold Catalytic Converter is designed to fit the 2015-2023 Ford Mustang 5.0L. MagnaFlow 22-214 includes (2) Flange Gaskets, (1) Torca Clamp and interchanges with OE parts FR3Z-5E212-B, FR3Z-5E212-P, FR3Z-5G232-A, FR3Z-5G232-F, JR3Z-5A212-G, JR3Z-5G232-C, JR3Z-5G232-E. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 22-214. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2015-2023 Ford Mustang and interchanges with OE parts JR3Z-5G232-E and JR3Z-5G232-C, among others. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| 10982: | Stainless Steel |
|---|---|
| Air Tube Adaptable: | No |
| Air Tube Count: | 0 |
| Body Height: | 4.000 in. |
| Body Length Position Left: | 8.5 |
| Body Length Position Right: | 8.25 |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 4.000 in. |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| Catalytic Converter Air Tube Adapter: | No |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Body Length: | 7.75 |
| Converter Body Material: | Stainless Steel |
| Converter Quantity: | 2 |
| Converter Tube Material: | Stainless Steel |
| Core Substrate Material: | Metallic |
| Description: | OEM Grade Manifold Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | Yes |
| Grade Type: | Regular |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 1.75;3 |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 1.750 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 5 |
| Inlet Type: | Flanged |
| Main Piping Diameter: | 2.5 |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Clamp-On |
| Outlet Attachment: | Clamp-On |
| Outlet Diameter: | 2.500 in. |
| Outlet Gasket Included: | No |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Quantity: | 2 |
| Outlet Type: | Flanged |
| Overall Length: | 39.125 |
| Oxygen Sensor Location: | Pre and Post Converter |
| Part Number: | mag22-214 |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 3 |
| Series: | OEM Grade |
| Shape: | Round |
| Substrate Material: | Ceramic |
| Substrate: | Metallic |
| Subtitle: | Federal / EPA Compliant Manifold Catalytic Converter |
| Title: | MagnaFlow 2015-2023 Ford Mustang OEM Grade Federal / EPA Compliant Manifold Catalytic Converter |
| Type: | Two-Piece |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converter with Integrated Exhaust Manifold
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 22-214
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Manifold Catalytic Converters
- Product Attributes - UPC
- 888563154992
- Product Attributes - Inlet Quantity
- 5
- Product Attributes - Inlet Diameter (in.)
- 1.75 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 2
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Metallic substrate
- Product Attributes - Converter Overall Length (in.)
- 39.13
- Product Attributes - Converter Overall Thickness (in.)
- 4.00
- Product Attributes - Converter Overall Width (in.)
- 4.00
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Pre and Post converter assembly. Round Spun body Converters. Includes gasket.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag22-214 |
| SFX Item ID | 4288975 |
| Supplier Item Code | 4288975 |
| Manufacturer SKU | 22-214 |
| Manufacturer UPC | 888563154992 |
| Alternative References | MFL22-214, MPE-22-214 |
