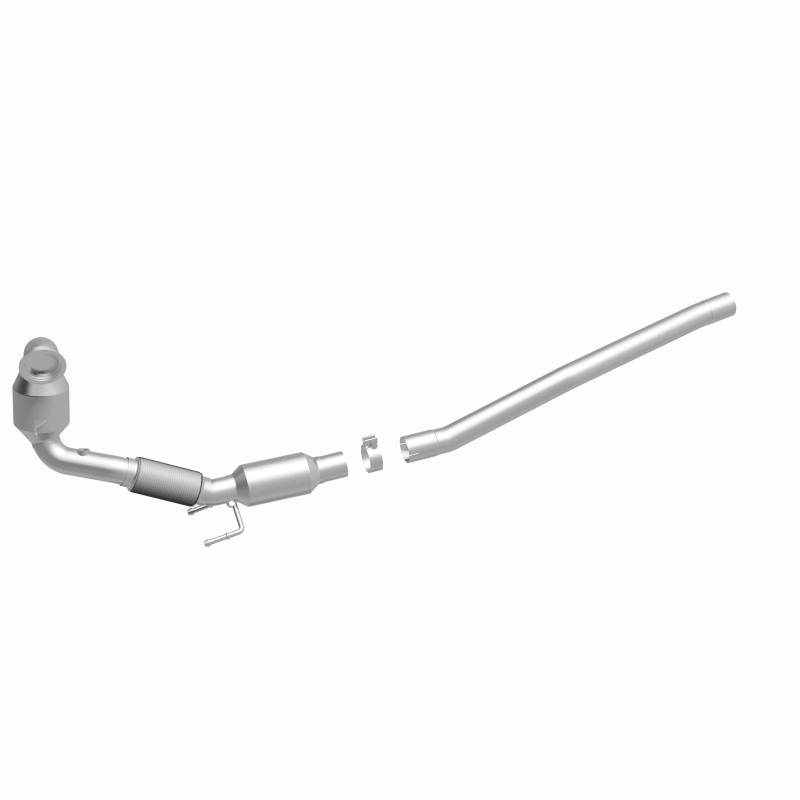

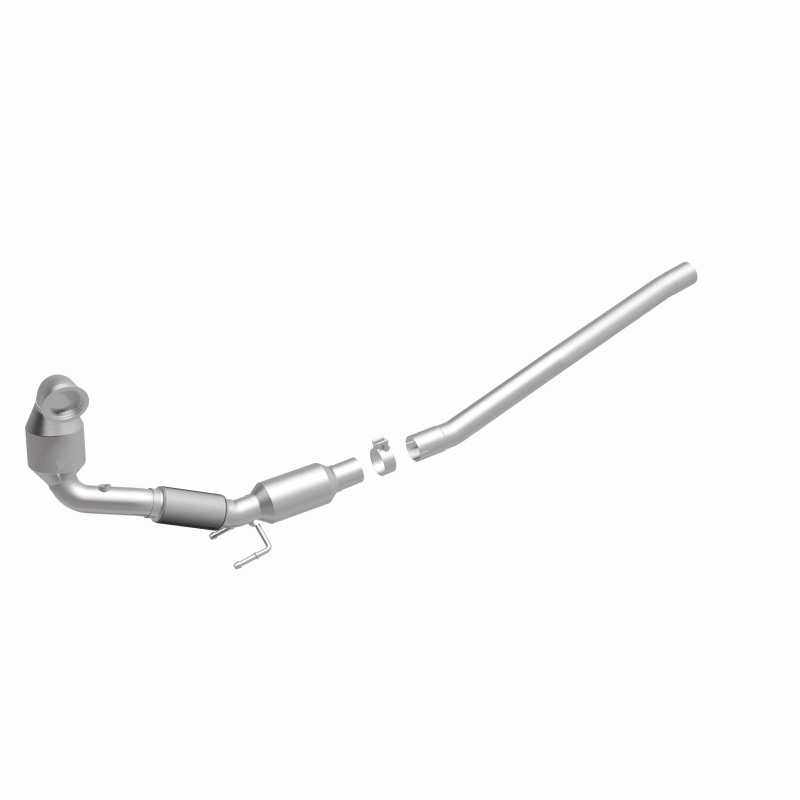

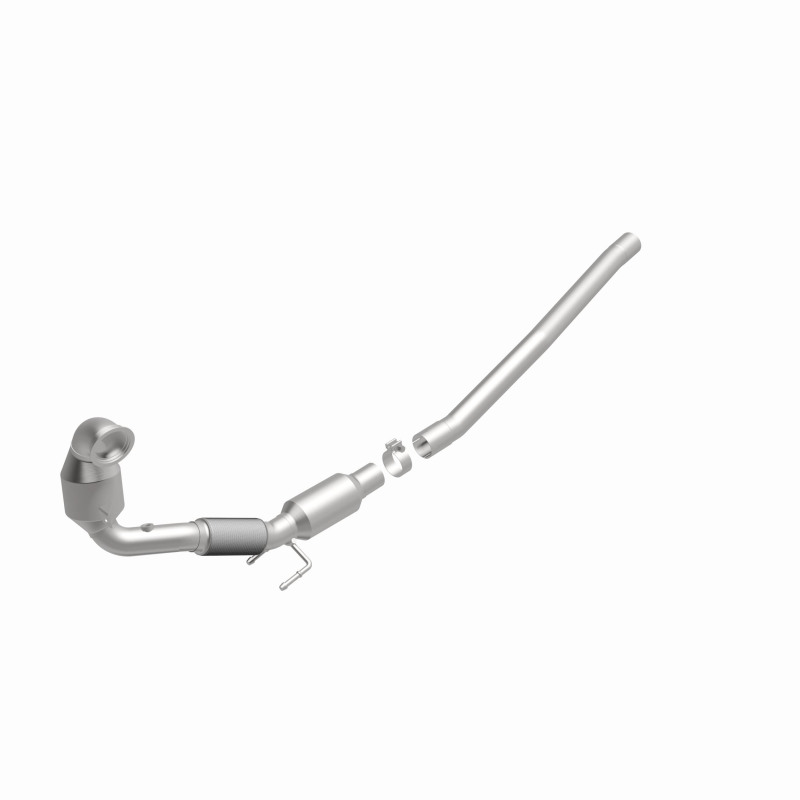

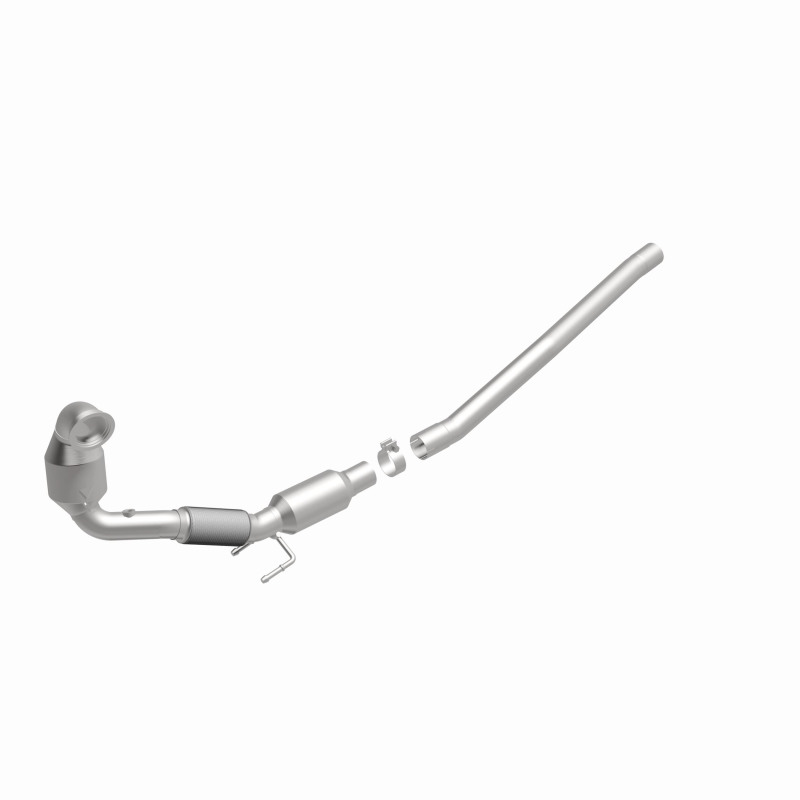

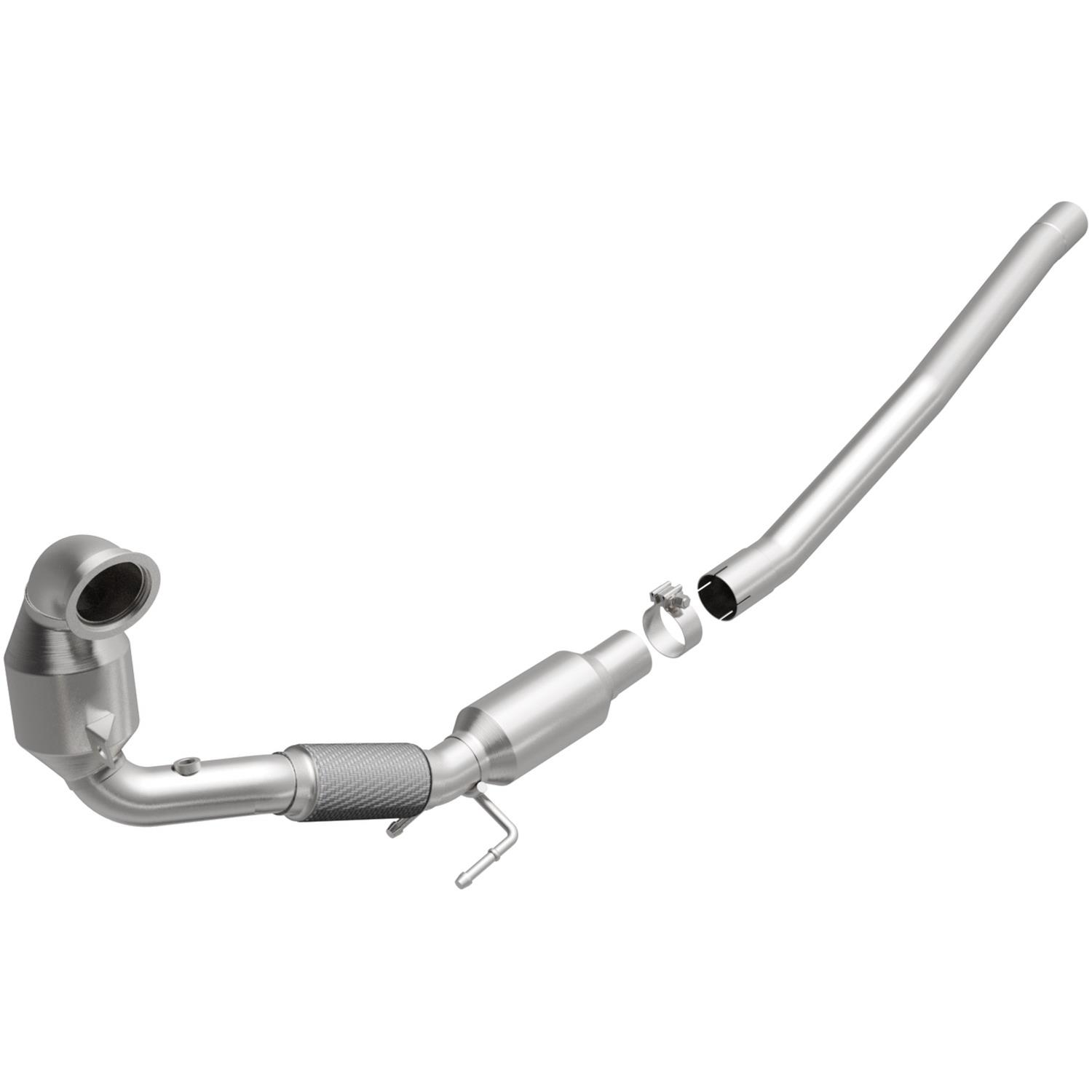

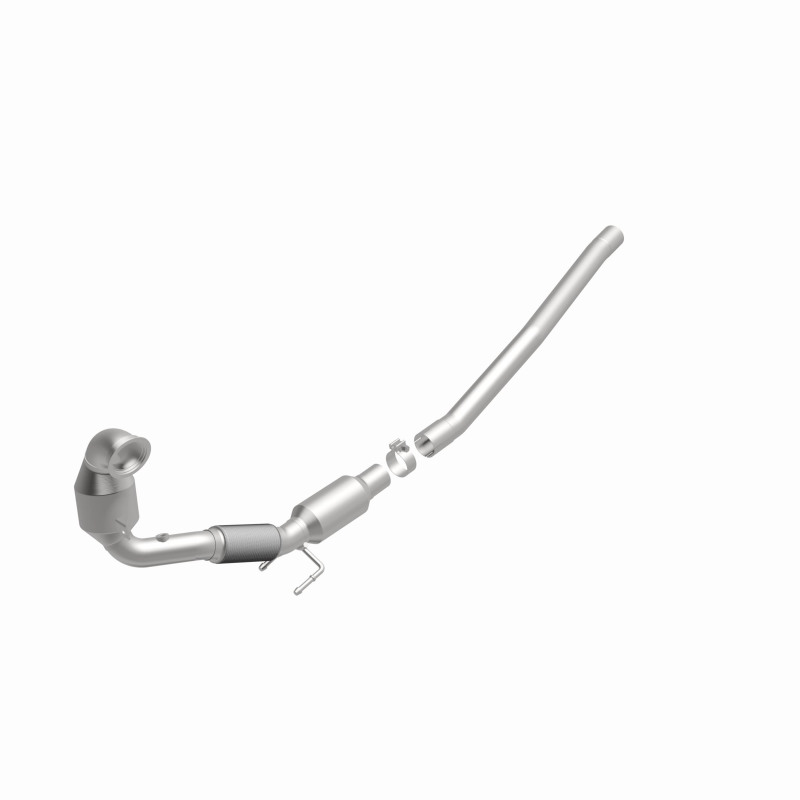

MagnaFlow Direct Fit Catalytic Converter 15-16 Audi A3 2.0L
MagnaFlow Direct Fit Catalytic Converter 15-16 Audi A3 2.0L
A$2,293.67
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 21-580. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2015-2016 Audi A3 Quattro 2.0L. MagnaFlow 21-580 includes (1) Torca Clamp and interchanges with OE parts 5Q0 254 501 DX. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 21-580. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2015-2016 Audi A3 Quattro and interchanges with OE part 5Q0 254 501 DX. Hardware is included to eliminate the hassle of working with corroded factory parts. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height Position Front: | 5 |
| Body Height Position Rear: | 4 |
| Body Length Position Front: | 8.125 |
| Body Length Position Rear: | 9 |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width Position Front: | 5 |
| Body Width Position Rear: | 4 |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| Catalytic Converter Air Tube Adapter: | No |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Quantity: | 2 |
| Core Substrate Material: | Ceramic |
| Description: | OEM Grade Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | No |
| Grade Type: | Regular |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment: | Clamp-On |
| Inlet Diameter: | 3 |
| Inlet Gasket Included: | No |
| Inlet Inside Diameter: | 3 |
| Inlet Mounting Hardware Included: | Yes |
| Inlet Quantity: | 1 |
| Inlet Type: | Clamp-On |
| Main Piping Diameter: | 2.5 |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment: | Clamp-On |
| Outlet Diameter: | 2.5 |
| Outlet Gasket Included: | No |
| Outlet Inside Diameter: | 2.5 |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Clamp-On |
| Overall Length: | 66.625 |
| Oxygen Sensor Location: | Post Converter |
| Part Number: | mag21-580 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 1 |
| Series: | OEM Grade |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Title: | MagnaFlow 2015-2016 Audi A3 Quattro OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 21-580
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563166384
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Overall Length (in.)
- 64.25
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Interchanges with OEM part number 5Q0 254 501 DX.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag21-580 |
| SFX Item ID | 4288950 |
| Supplier Item Code | 4288950 |
| Manufacturer SKU | 21-580 |
| Manufacturer UPC | 888563166384 |
| Alternative References | mpe-21-580, MFL21-580, 2.0L |
