Magnaflow 24+ Ford Ranger Overland Series - High Clearance Exit
Magnaflow 24+ Ford Ranger Overland Series - High Clearance Exit
A$2,620.33
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

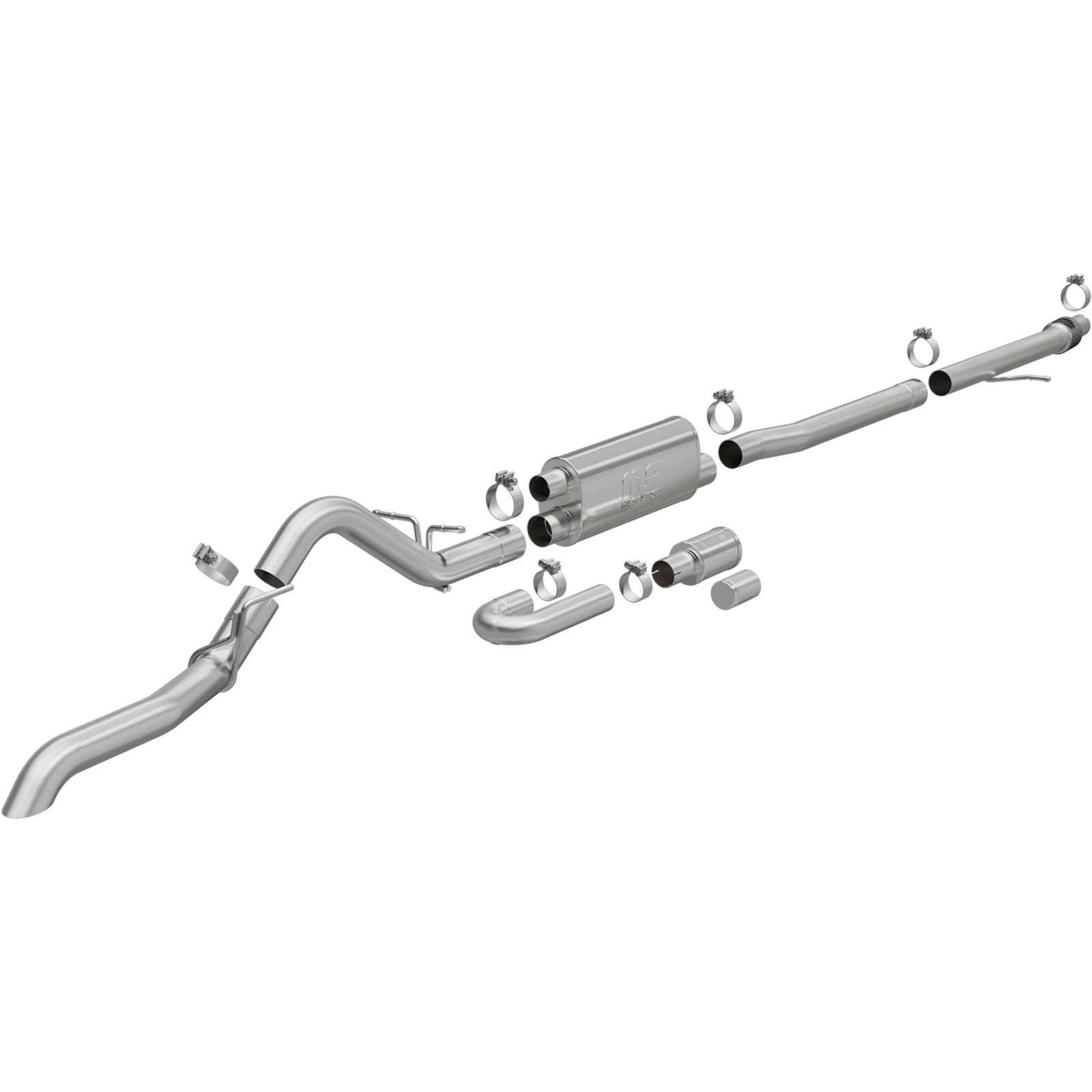

The MagnaFlow® Ford Ranger Overland Series™ Cat-Back Performance Exhaust System #19636 is engineered for off-road function and built to explore further. This Ford Ranger exhaust system is designed for the Ford Ranger equipped with the I4-2.3L engine option. The high clearance exhaust design of this kit is designed to keep your truck clear of any challenging terrain or obstacles you may come across. #19636 3” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit style. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. This truck exhaust kit can be tailored to your preferred exhaust tone by installing various exhaust modules that are integrated with the muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in different configurations to mitigate a wide range of droning frequencies. Looking for a smoother, quieter ride on the trails? Simply connect the NDT module. Prefer a more aggressive signature sound? Install the pipe cap to cover the muffler accessory port. Exhaust kit #19636 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This Ford Ranger cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow®’s limited lifetime warranty.
Product Overview
The MagnaFlow Ford Ranger Overland Series Cat-Back Performance Exhaust System #19636 is engineered for off-road function and built to explore further. This Ford Ranger exhaust system is designed for the 2024-2025 Ford Ranger equipped with the I4-2.3L engine option. The high clearance exhaust design of this kit is designed to keep your truck clear of any challenging terrain or obstacles you may come across. #19636 3” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance single passenger side rear exit style. MagnaFlow NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. This truck exhaust kit can be tailored to your preferred exhaust tone by installing various exhaust modules that are integrated with the muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in different configurations to mitigate a wide range of droning frequencies. Looking for a smoother, quieter ride on the trails? Simply connect the NDT module. Prefer a more aggressive signature sound? Install the pipe cap to cover the muffler accessory port. Exhaust kit #19636 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from the catalytic converter on back. This Ford Ranger cat-back performance exhaust system is made of durable, corrosion resistant stainless steel and produced using advanced CNC precision robotic manufacturing techniques, all backed by MagnaFlow’s limited lifetime warranty.
Features and Benefits
- No-Drone-Technology (NDT) allows for a quiet cabin
- No-Drone-Technology Allows For A Quiet Cabin
- Dyno Proven Performance
- High Clearance Exit
Product Details
| 11021: | 5 |
|---|---|
| 11022: | 18 |
| 11023: | 8 |
| 11048: | 4 |
| 11049: | 6 |
| 11050: | 4 |
| 11064: | Straight-Through |
| Catalytic Converter Quantity: | 0 |
| Clamping Type: | Band Clamp |
| Description: | Overland Series Stainless Cat-Back System |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Cat-Back |
| Exit Position: | Single Straight Passenger Side Rear |
| Exit Style: | Turndown In Front Of Rear Tire |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Type: | Clamp-On |
| Main Piping Diameter: | 3 |
| Mounting Bracket Included: | No |
| Muffler (Right)Type: | Tuned Chamber |
| Muffler Body Material: | Stainless Steel |
| Muffler Finish: | Brushed |
| Muffler Quantity: | 2 |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Part Number: | mag19636 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Subtitles: | Cat-Back |
| Tail Pipe Material: | Stainless Steel |
| Title: | MagnaFlow 2024-2025 Ford Ranger Overland Series Cat-Back Performance Exhaust System |
| Type: | Cat-Back |
| Valve Included: | No |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19636
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563199931
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Single
- Product Attributes - Exit Location
- Rear
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- Two
- Product Attributes - Muffler Configuration
- Single inlet/Dual outlet
- Product Attributes - Muffler Style
- Chambered
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Brushed
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19636 |
| SFX Item ID | 4289438 |
| Supplier Item Code | 4289438 |
| Manufacturer SKU | 19636 |
| Manufacturer UPC | 888563199931 |
| Alternative References | mpe-19636, MFL19636 |
