Description

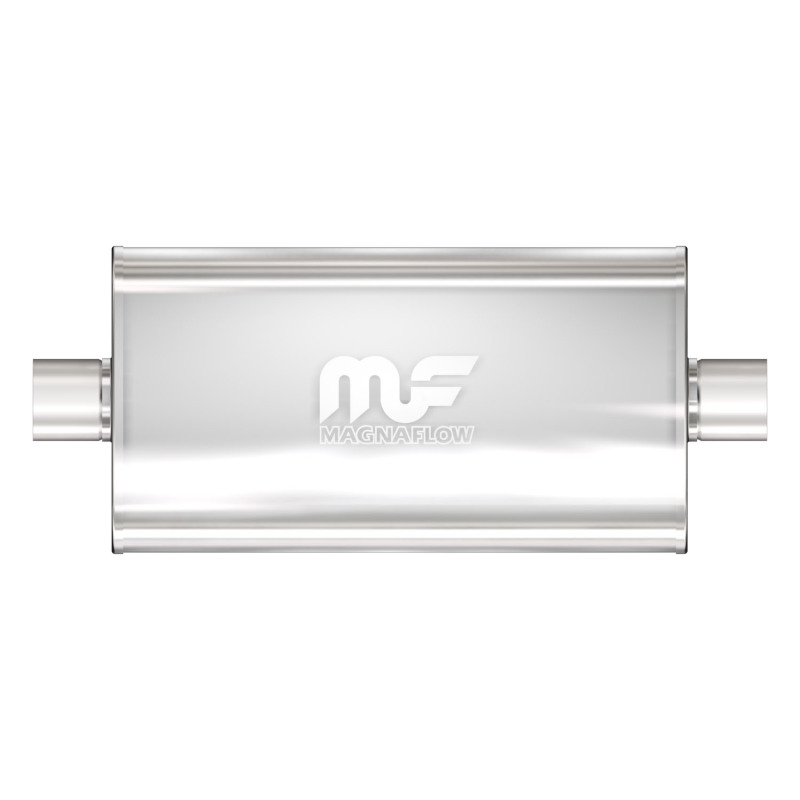

The MagnaFlow 5 X 11in. Oval Straight-Through Performance Exhaust Muffler 12576 is engineered to enhance your ride with a healthy helping of our signature exhaust sound and dyno-proven performance thanks to its free-flowing straight-through perforated stainless steel core wrapped in stainless steel mesh and acoustic fiber fill. The reversible, universal 2.5/2.5in. diameter inlet/outlet Straight-Through layout allows you to install it in whatever orientation and configuration you see fit. However, professional installation is highly recommended. Muffler 12576s weight-optimized 5x11x22in. oval-shaped body features a satin finish that elevates the overall aesthetics of your current exhaust setup. 12576 is made of durable, corrosion resistant stainless steel and produced using cutting-edge CNC precision robotic manufacturing techniques, all backed by MagnaFlow's limited lifetime construction warranty.
Product Overview
The MagnaFlow 5 X 11in. Oval Straight-Through Performance Exhaust Muffler 12576 is engineered to enhance your ride with a healthy helping of our signature exhaust sound and dyno-proven performance thanks to its free-flowing straight-through perforated stainless steel core wrapped in stainless steel mesh and acoustic fiber fill. The reversible, universal 2.5/2.5in. diameter inlet/outlet Straight-Through layout allows you to install it in whatever orientation and configuration you see fit. However, professional installation is highly recommended. Muffler 12576s weight-optimized 5x11x22in. oval-shaped body features a satin finish that elevates the overall aesthetics of your current exhaust setup. 12576 is made of durable, corrosion resistant stainless steel and produced using cutting-edge CNC precision robotic manufacturing techniques, all backed by MagnaFlow's limited lifetime construction warranty.
Features and Benefits
- Delivers A Smooth-Deep Tone
- Delivers a Smooth, Deep Tone
- Mufflers Are Bi-Directional
- 100 Percent Stainless Steel
- 100% Stainless Steel
Product Details
| Body Diameter: | 5 x 11 |
|---|---|
| Body Finish: | Satin |
| Body Height: | 5.000 in. |
| Body Length: | 22.000 in. |
| Body Material: | Stainless |
| Body Shape: | Oval |
| Body Width: | 11.000 in. |
| Core Diameter: | 3 |
| Core Size: | 3 |
| Description: | Straight-Through Performance Muffler; 2.5in. Center/Center; 5x22x11 Body |
| Exhaust Tip Quantity: | |
| Finish: | Satin |
| Hanger Included: | No |
| Inlet Connection Type: | Pipe |
| Inlet Diameter: | 2.5 |
| Inlet Inside Diameter: | 2.500 in. |
| Inlet Outside Diameter: | 2.500 in. |
| Inlet Position: | Front |
| Inlet Quantity: | 1 |
| Inlet Type: | Center |
| Main Piping Diameter: | 2.500 in. |
| Material: | Stainless |
| Muffler Body Diameter: | 5.000 in. x 11.000 in. |
| Muffler Configuration: | Center/Center |
| Muffler Count: | 1 |
| Muffler Overall Length: | 28.000 in. |
| Muffler Type: | Straight-Through |
| Note: | Acoustical Packing |
| Outlet Diameter: | 2.5 |
| Outlet Inside Diameter: | 2.500 in. |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Position: | Rear |
| Outlet Quantity: | 1 |
| Outlet Type: | Center |
| Overall Length: | 28 |
| Part Number: | mag12576 |
| Prop 65 Y/N: | No |
| Removable Core: | No |
| Reversible: | Yes |
| Series: | Straight-Through |
| Shape: | Oval |
| Subtitle: | Performance Muffler |
| Subtitles: | Center/Center |
| Tip Quantity: | 0 |
| Title: | MagnaFlow 5 X 11in. Oval Straight-Through Performance Exhaust Muffler 12576 |
| Type: | Straight-Through |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust Muffler
Features
- 100 Percent Stainless Steel
- 100% Stainless Steel
- Delivers A Smooth-Deep Tone
- Delivers a Smooth, Deep Tone
- Mufflers Are Bi-Directional
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 12576
- Product Attributes - Part Type
- Mufflers
- Product Attributes - Product Line
- MagnaFlow Performance Mufflers
- Product Attributes - UPC
- 841380001122
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Inlet Diameter (in.)
- 2.50 in.
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Internal Construction
- Perforated stainless tube with packing
- Product Attributes - Inlet Location
- Center
- Product Attributes - Outlet Location
- Center
- Product Attributes - Case Shape
- Oval
- Product Attributes - Reversible
- Yes
- Product Attributes - Muffler Finish
- Natural
- Product Attributes - Case Exterior Length (in.)
- 22.00 in.
- Product Attributes - Overall Length (in.)
- 28.00 in.
- Product Attributes - Thickness (in.)
- 5.000
- Product Attributes - Width (in.)
- 11.000 in.
- Product Attributes - Outlet Style
- Standard, without tip
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This muffler is only welded on the inlet side and press fit on the outlet side.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag12576 |
| SFX Item ID | 4286189 |
| Supplier Item Code | 4286189 |
| Manufacturer SKU | 12576 |
| Manufacturer UPC | 841380001122 |
| Alternative References | mpe-12576, MFL12576, 22X5X11 |
