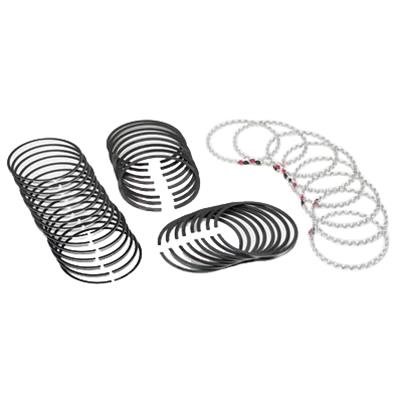

JE Pistons Ring Sets 1.0-1.2-2.8-81.50

SKU: JEPJG1005-3209

Piston Rings

JE Piston Rings...

JE Pistons

JE Pistons Ring Sets 1.0-1.2-2.8-81.50

SKU: JEPJG1005-3209

Piston Rings

JE Piston Rings...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

Product Overview

JE Pistons has been the industry leader in the design, development and manufacturing of forged racing pistons for 60 years. The benefit of that experience, along with the technology and data gathered over the course of those years, has enabled JE to create a product line to compliment our world-class piston designs; JE Pro Seal Pistons Rings. Top teams in NASCAR, ALMS, NHRA, and AMA demand JE Pro Seal Rings for their engines. JE Pro Seal Rings are available for most racing, street, and powersports applications. JE offers over 2300 ringset and individual part numbers in stock and ready to ship. Don't see what you need? JE also offers custom ring manufacturing services." ProSeal Piston Rings are Sold as MATCHED SETS, the 6th Digit of the Part # Indicates the Number of Rings Included in the Set (i.e. JXC0F4-2953-2 is a set of 4 Rings). Please Order Accordingly. *Custom Application are also Available

Product Details

2nd Ring:	1.2mm
Bore Diameter - Web:	3.209 IN / 81.51 MM
Bore Diameter:	81.51
Bore:	81.50 mm(3.209in)
Category Hierarchy:	Auto>Accessories>Pro Seal Piston Rings
Description:	ProSeal Ring Set
Engine Type:	ICE
File Fit:	Yes
Industry:	Automotive
Oil Ring Axial Height:	2.80
Oil Ring Radial Width:	0.128
Oil Ring Thickness:	0.110
Oil Ring:	2.8mm
Out of Stock Message:	Call for Availability
Part Number:	jepJG1005-3209
Product Type:	Engine Piston Ring Set
Prop 65 (C, R or CR):	CR
Prop 65 - Short Label:	Prop 65 Warning Label.JPG
Prop 65 Yes/No:	Yes
Ring Set Thickness:	0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
Ring Type:	3 Ring
Second Compression Ring Thickness:	0.0472
Second Ring Axial Height:	1.20
Second Ring Facing Material:	Phosphate
Second Ring Material:	Ductile Iron
Second Ring Radial Width:	0.138
Second Ring Shape:	Napier, Back Cut, Neutral
Third Ring Facing Material:	Carbon Steel
Third Ring Material:	Carbon Steel
Third Ring Shape:	Flex Vent
Title - Web:	Piston Ring Set - 3.209 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 5 Cyl.
Title:	Piston Ring Set - 3.209 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 5 Cyl.
Top Compression Ring Thickness:	0.0394
Top Ring Axial Height:	1.00
Top Ring Facing Material:	Nitride
Top Ring Material:	Carbon Steel
Top Ring Radial Width:	0.126
Top Ring Shape:	Barrel Face, Back Cut, Neutral
Top Ring:	1.0mm
