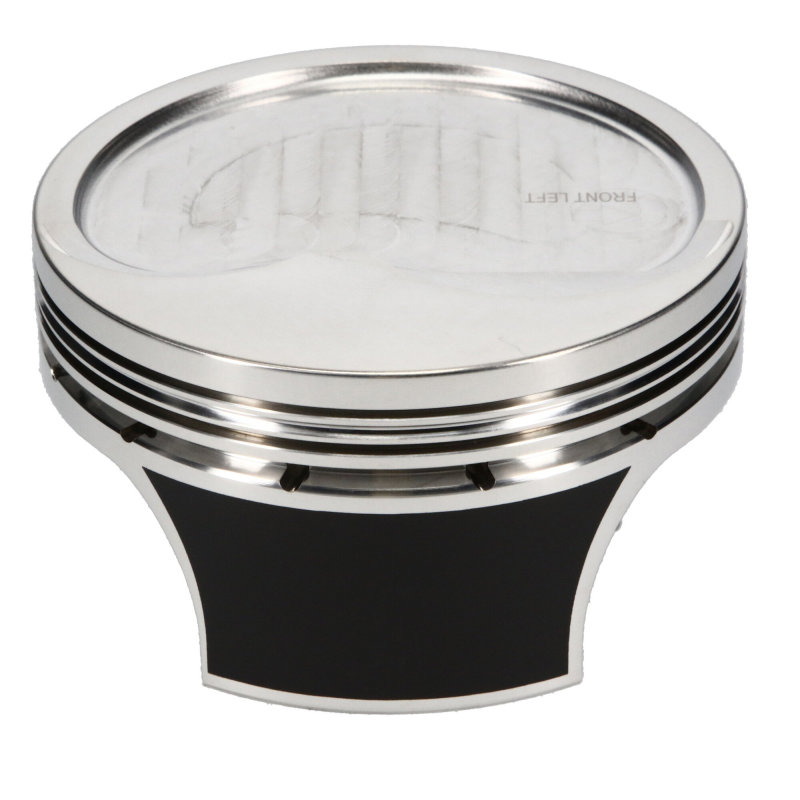

JE Pistons 360995 Pistons, SRP PRO 2618 GEN III/ IV LS

SKU: JEP360995

Pistons

JE Pistons

JE Pistons 360995 Pistons, SRP PRO 2618 GEN III/ IV LS

SKU: JEP360995

Pistons

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, SRP Pro 2618 Pistons pistons are made 100% in the USA. Available for GM LS Engines. Equipped with the following custom level features

Application Summary

Chevrolet LS Gen III/IV

Part Type

Engine Piston Kit

Data: v4.2 - Upd: 2026-10-14 10:58:34

Features

Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Designed specifically for GM LS Engines. To provide optimized performance durability
Forged in the USA using 2618 aluminum, yielding tensile strength and minimal thermal expansion
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
Made 100% in the USA
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 360995
Product Attributes - Part Type: Pistons
Product Attributes - UPC: 193564245014
Product Attributes - Piston Rings Included: Yes
Product Attributes - Bore (in.): 4.070 in.
Product Attributes - Bore (mm): 103.378mm
Product Attributes - Stroke: 3.622 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 6.2L/377
Product Attributes - Rod Length: 6.098 in.
Product Attributes - Piston Style: Dish, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.330 in.
Product Attributes - Piston Head Volume (cc): +17.20cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.945 in.
Product Attributes - Piston Ring Thickness: 0.048 in. x 0.060 in. x 0.118 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.048 in.
Product Attributes - Second Ring Thickness: 0.060 in.
Product Attributes - Oil Ring Thickness: 0.118 in.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 8.
Product Attributes - Notes: Made from 2618 alloy forged aluminum.
Product Attributes - Special Attention: Designed to work with LSX/L92 12-degree cylinder heads.
