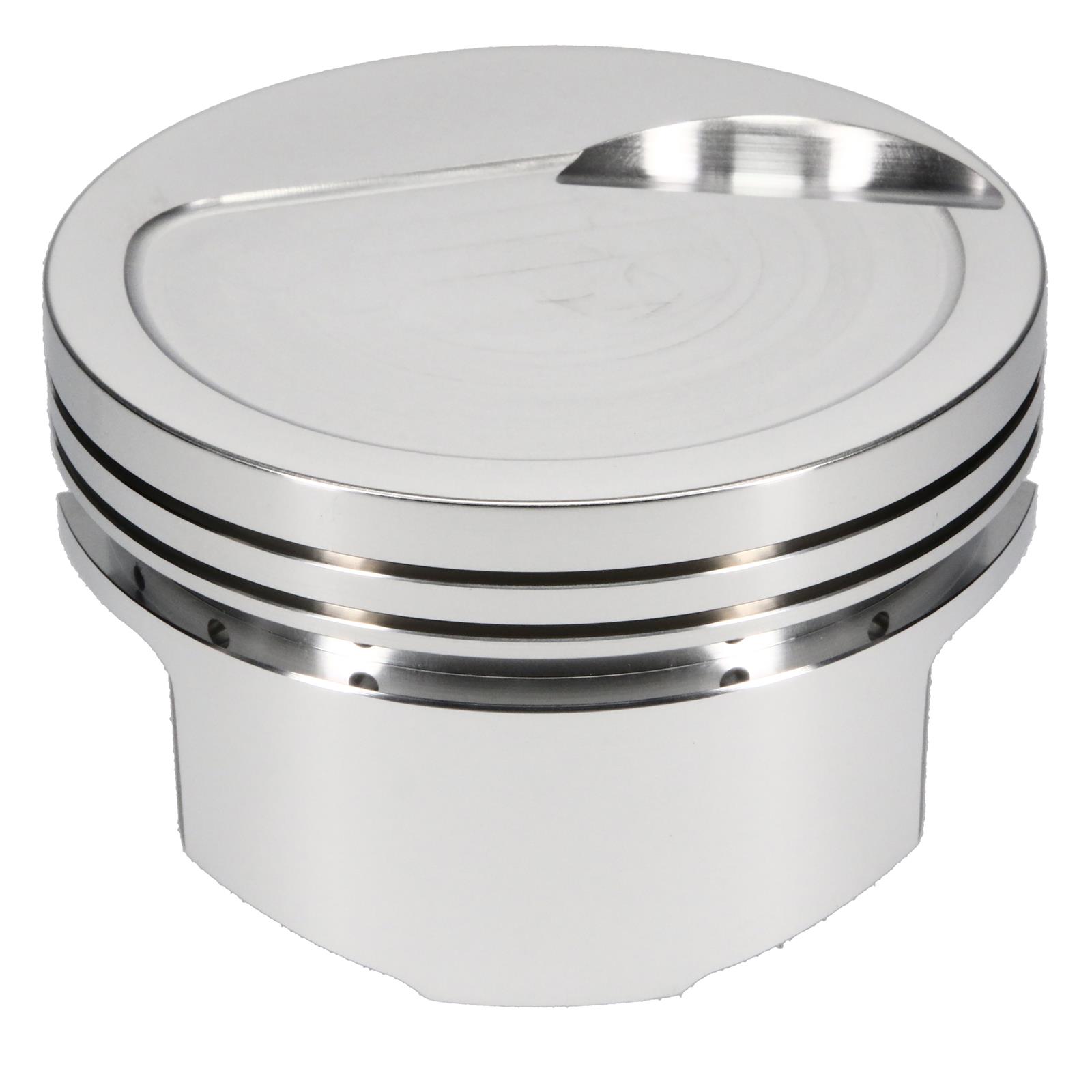

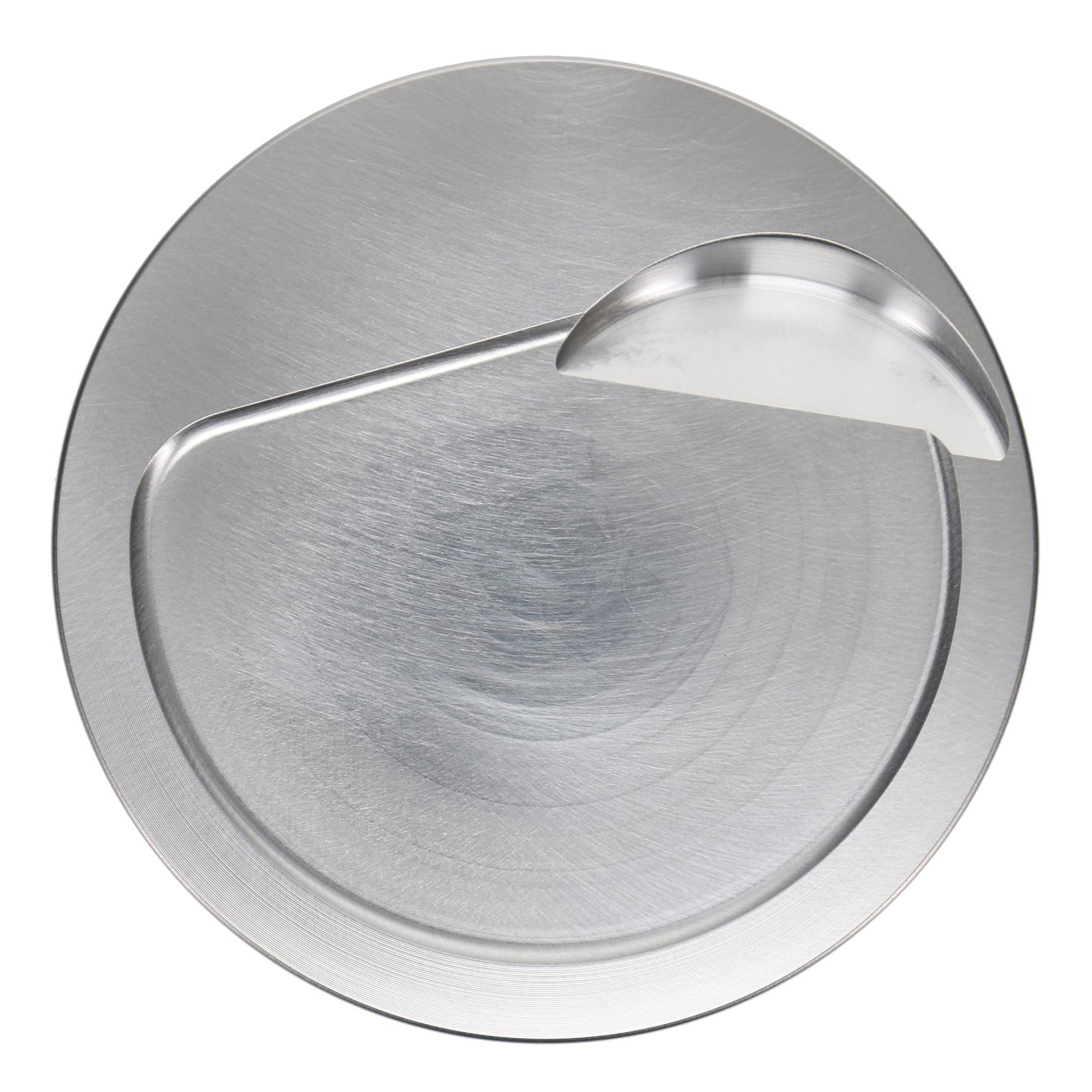

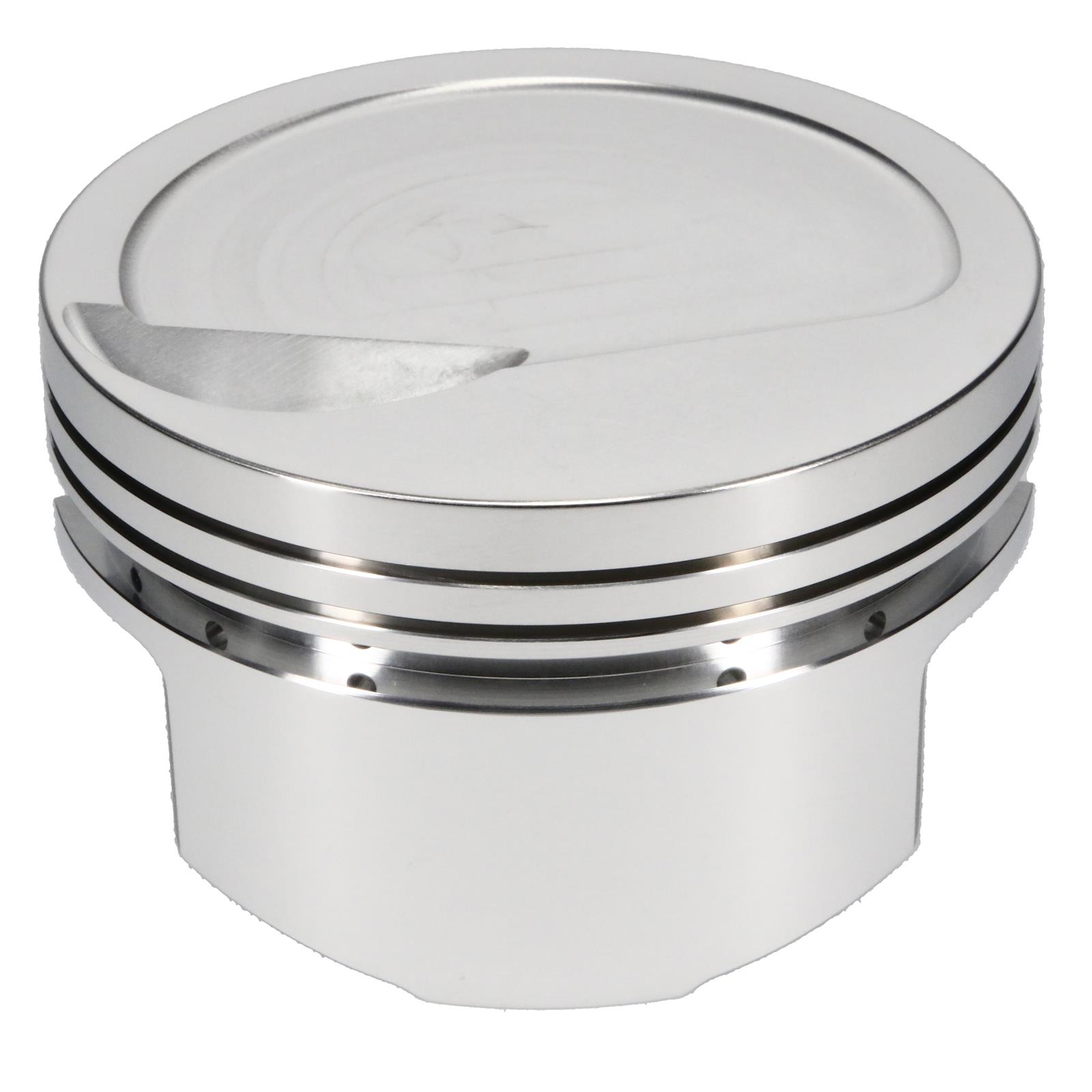

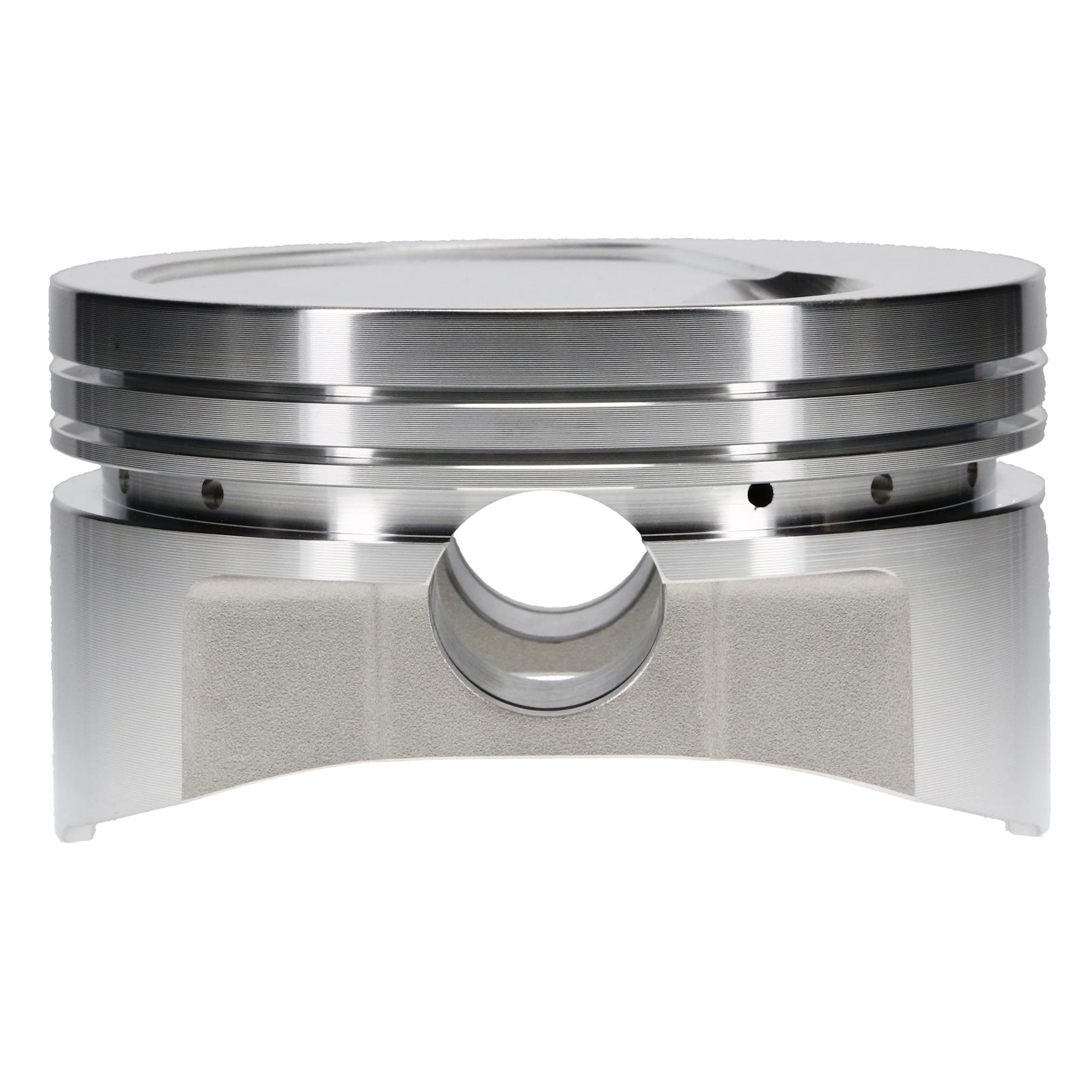

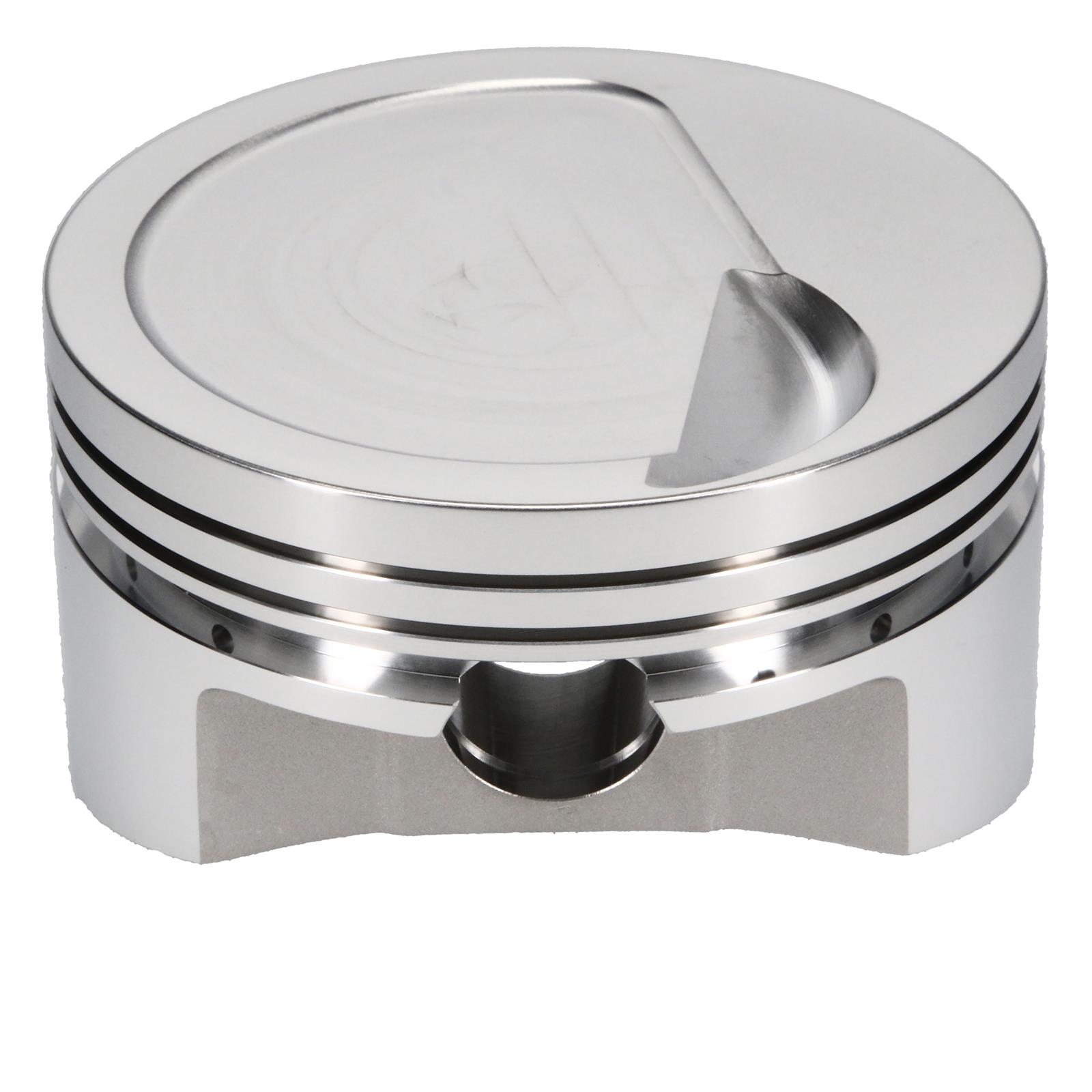

JE Pistons 338171S Pistons, 454 BBC INVT DOME

SKU: JEP338171S

Pistons

SKU: JEP338171S

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Pistons, 454 BBC INVT DOME

Pistons

Data: v4.2 - Upd: 2026-10-14 11:07:01

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 338171S
Product Attributes - Part Type: Pistons
Product Attributes - UPC: 193564263292
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 4.280 in.
Product Attributes - Bore (mm): 108.712mm
Product Attributes - Stroke: 4.250 in.
Product Attributes - Engine Stroke Type: Stroked
Product Attributes - Actual Engine Displacement: 8.0L/489
Product Attributes - Rod Length: 6.385 in.
Product Attributes - Piston Style: Dish, with single valve relief
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.270 in.
Product Attributes - Piston Head Volume (cc): +9.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.990 in.
Product Attributes - Piston Ring Thickness: 0.064 in. x 0.064 in. x 0.218 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.064 in.
Product Attributes - Second Ring Thickness: 0.064 in.
Product Attributes - Oil Ring Thickness: 0.218 in.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Made from 4032 alloy forged aluminum.

Application Data
