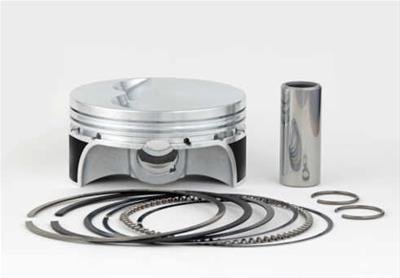

JE Auto forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Chevrolet Big Block Engines JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features

• 3D Undercrown Milling: The 3 dimensional undercrown milling machining process allows for uniform deck thickness therefore creating a lighter and more durable piston.
• Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
• Contact Reduction: Reduce the amount of contact area against the cylinder wall when the piston "Rocks over". Contact reduction also serves to disrupt the flame travel into the crevice area causing a reduction in detonation.
• Designed specifically for Chevrolet Big Block Engines To provide optimized performance durability
• Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
• Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
• Includes high-quality wrist pins, and locks
• Lateral Gas Ports: This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. Resulting in increased ring seal and is most common in circle track applications.
• Made 100% in the USA
• Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
• Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
• Smooth Crown Finish: Deburs all areas around the valve pocket and dome area, to reduces stress risers and prevent hot spots.

Chevrolet Big Block 502
