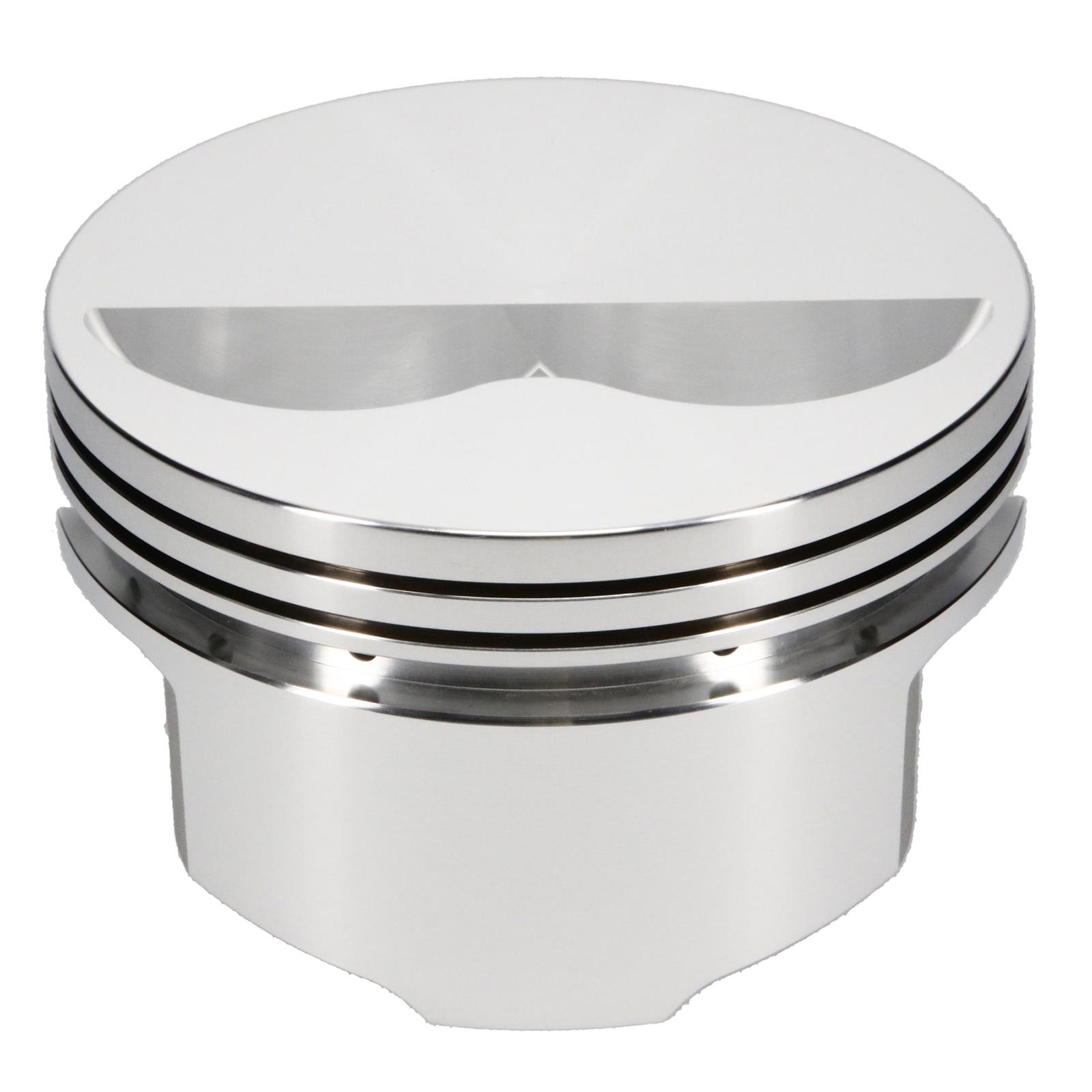

JE Pistons 329634 Pistons, 400 SBC FLAT TOP

SKU: JEP329634

Pistons

JE Pistons

JE Pistons 329634 Pistons, 400 SBC FLAT TOP

SKU: JEP329634

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Pistons, 400 SBC FLAT TOP

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 10:58:35

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 329634
Product Attributes - Part Type: Pistons
Product Attributes - UPC: 193564248732
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 4.130 in.
Product Attributes - Bore (mm): 104.902mm
Product Attributes - Stroke: 3.750 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 6.6L/402
Product Attributes - Rod Length: 6.000 in.
Product Attributes - Piston Style: Flat top, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.125 in.
Product Attributes - Piston Head Volume (cc): +5.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.927 in.
Product Attributes - Piston Ring Thickness: 0.064 in. x 0.064 in. x 0.218 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.064 in.
Product Attributes - Second Ring Thickness: 0.064 in.
Product Attributes - Oil Ring Thickness: 0.218 in.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 8.
Product Attributes - Notes: Made from 4032 alloy forged aluminum.
Product Attributes - Special Attention: Designed to work with Chevy 23 degree cylinder heads with 20/30 valve spacing..
