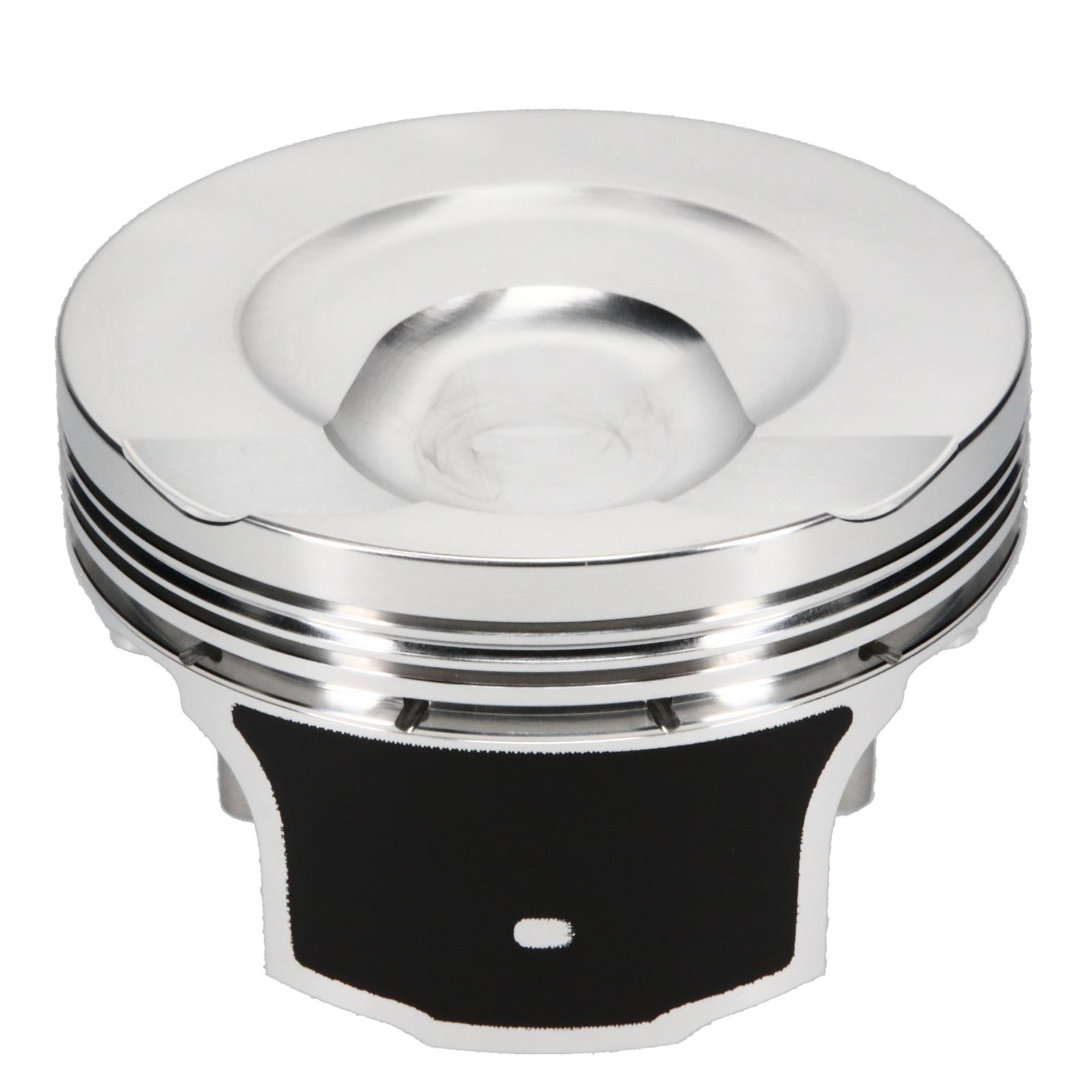

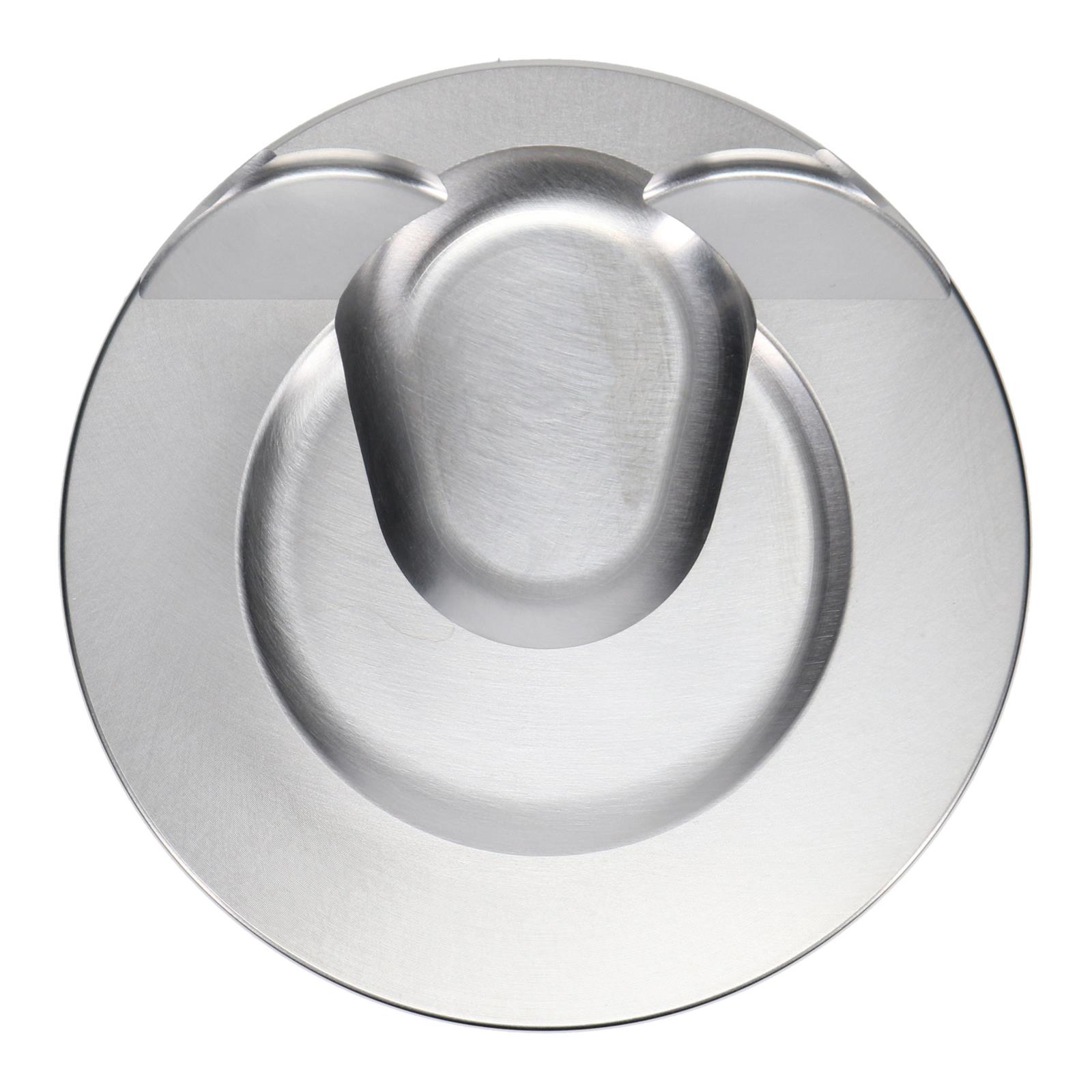

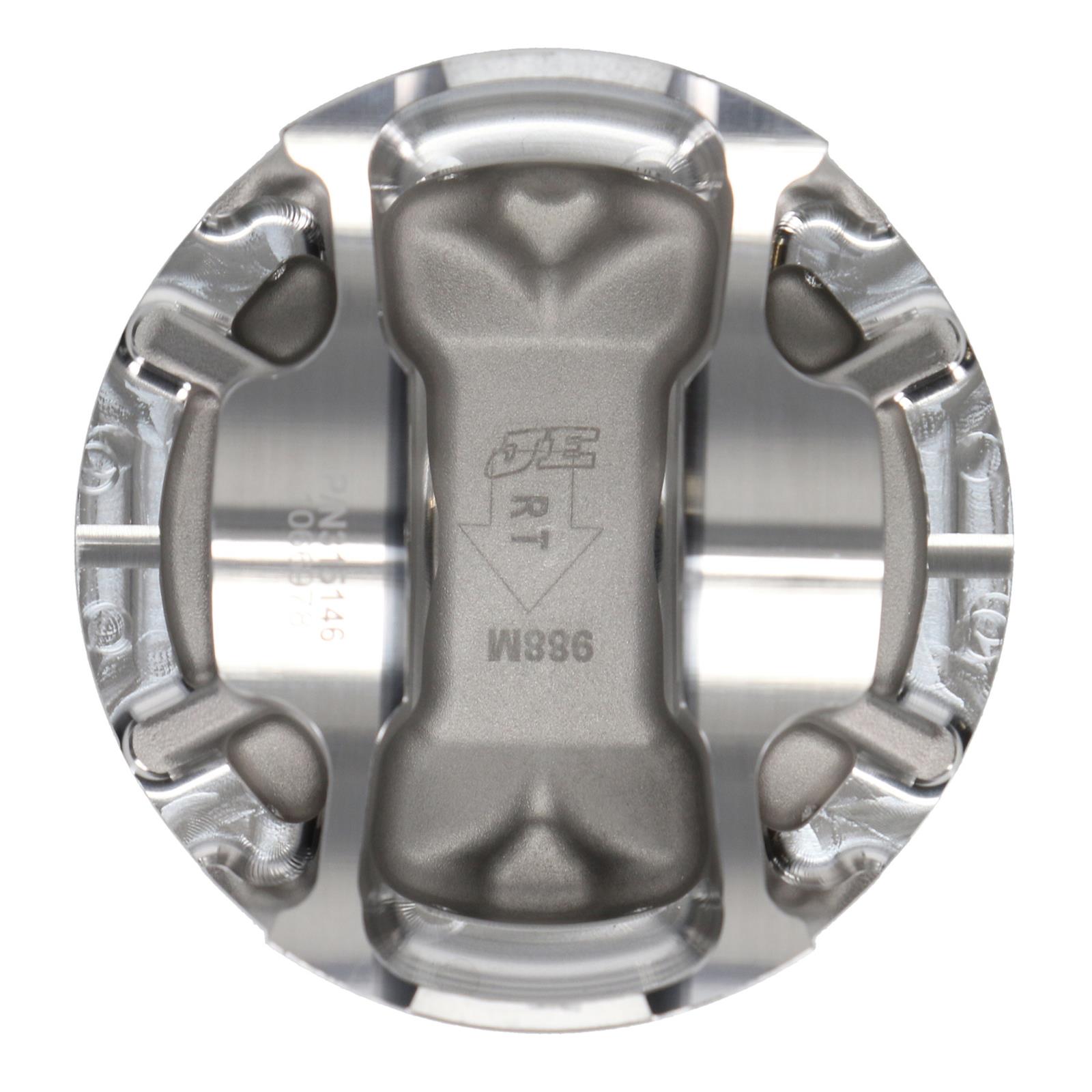

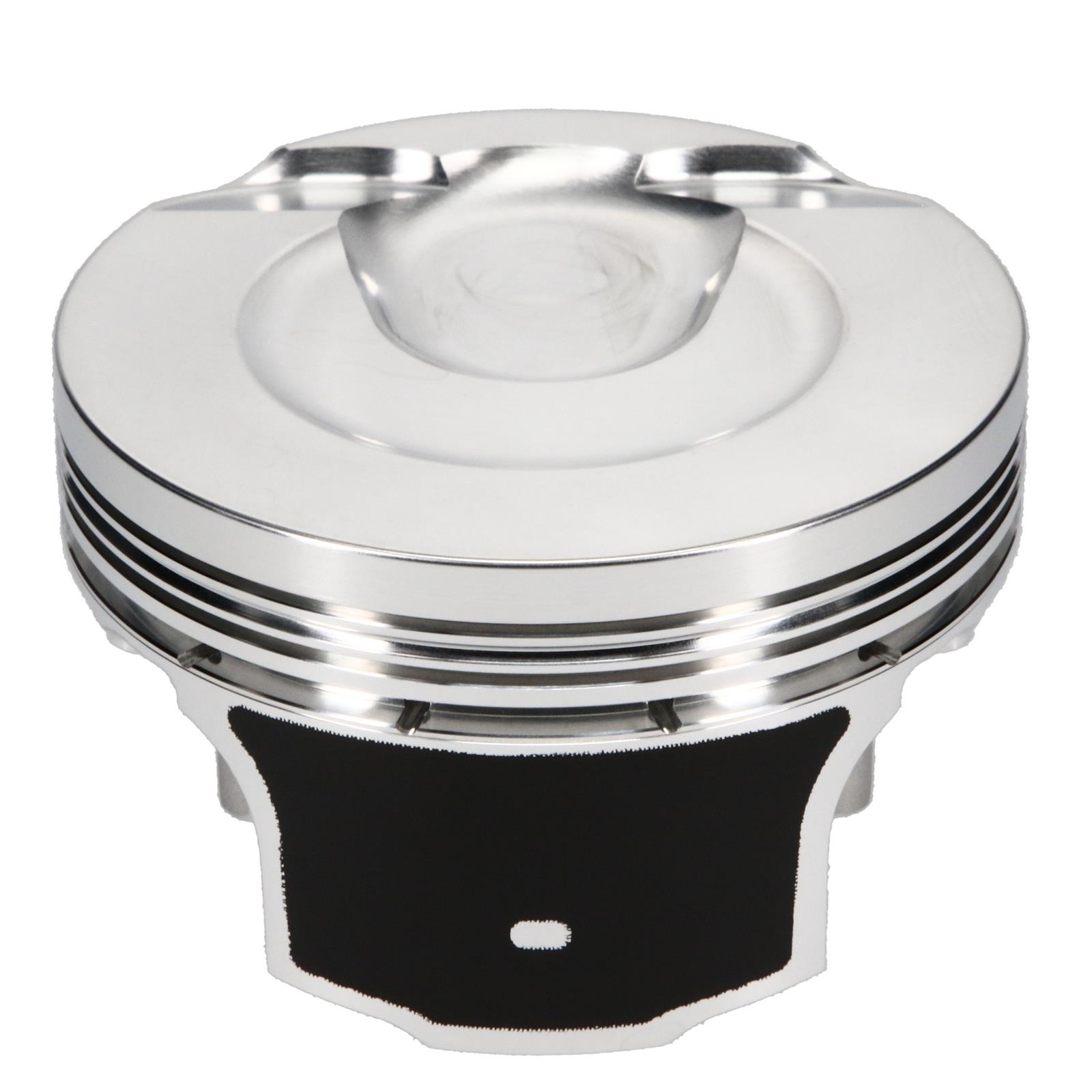

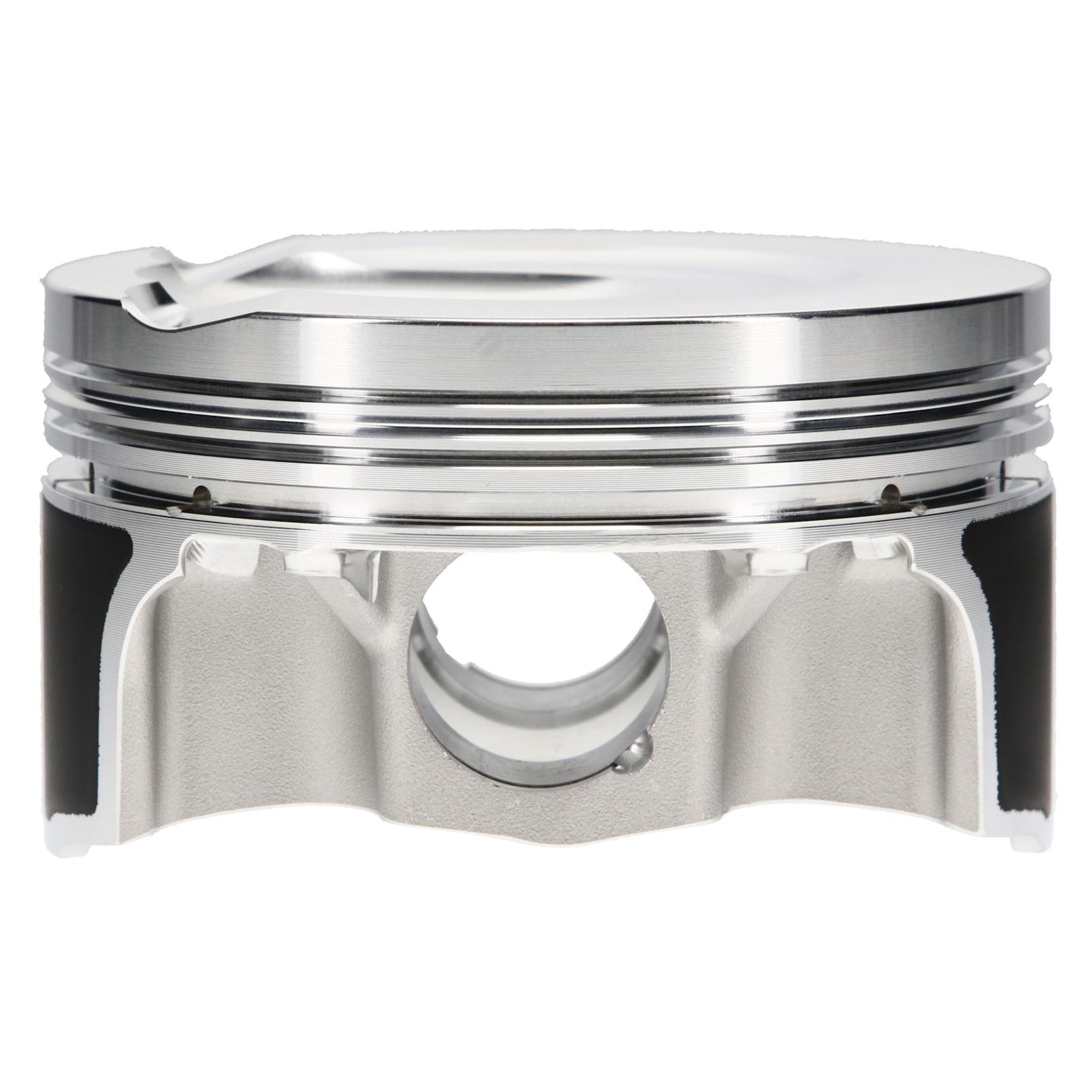

JE Pistons Ford EcoBoost 315147R Pistons, Single - ECOBOOST 3.5L V6 KIT
JE Pistons Ford EcoBoost 315147R Pistons, Single - ECOBOOST 3.5L V6 KIT
A$703.15
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
JE Pistons Ford EcoBoost pistons are single replacements forged using 2618 aluminum and yielding the high tensile strength needed for high-demand performance applications. They are designed specifically for your Ford's engine and use application; each piston features a proprietary Forged Side Relief (FSR) that minimizes friction and power loss with a reduced skirt width and saves additional weight with a shorter wrist pin. The pistons include high-quality wrist pins, locks, and feature accumulator grooves that help reduce pressure from combustion gases, reducing ring flutter and improving ring seal.
JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import, and sport compact applications, and they have been performance-proven in victory lane time and time again. Equip your engine with the best in forged pistons—JE Pistons.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 315147R
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons Ford EcoBoost Pistons
- Product Attributes - UPC
- 193564011381
- Product Attributes - Piston Rings Included
- Yes
- Product Attributes - Bore (in.)
- 3.652 in.
- Product Attributes - Bore (mm)
- 92.750mm
- Product Attributes - Stroke
- 86.70mm
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 3.5L/3515cc
- Product Attributes - Rod Length
- 152.750mm
- Product Attributes - Piston Style
- Dish, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.240 in.
- Product Attributes - Piston Head Volume (cc)
- -8.90cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.905 in.
- Product Attributes - Piston Ring Thickness
- 0.040 in. x 0.048 in. x 0.111 in.
- Product Attributes - File Fit
- Yes
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.040 in.
- Product Attributes - Top Ring Material
- Ductile iron
- Product Attributes - Top Ring Facing Material
- Plasma-moly
- Product Attributes - Second Ring Thickness
- 0.048 in.
- Product Attributes - Second Ring Material
- Cast iron
- Product Attributes - Second Ring Facing Material
- Phosphate coated
- Product Attributes - Oil Ring Thickness
- 0.111 in.
- Product Attributes - Oil Ring Material
- Carbon steel
- Product Attributes - Oil Ring Facing Material
- Chrome
- Product Attributes - Oil Ring Tension
- Standard
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits right side exhaust valve orientation, works with turbocharger and nitrous.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep315147R |
| SFX Item ID | 4800302 |
| Supplier Item Code | 4800302 |
| Manufacturer SKU | 315147R |
| Manufacturer UPC | 193564011381 |
| Alternative References | 3.5L |
