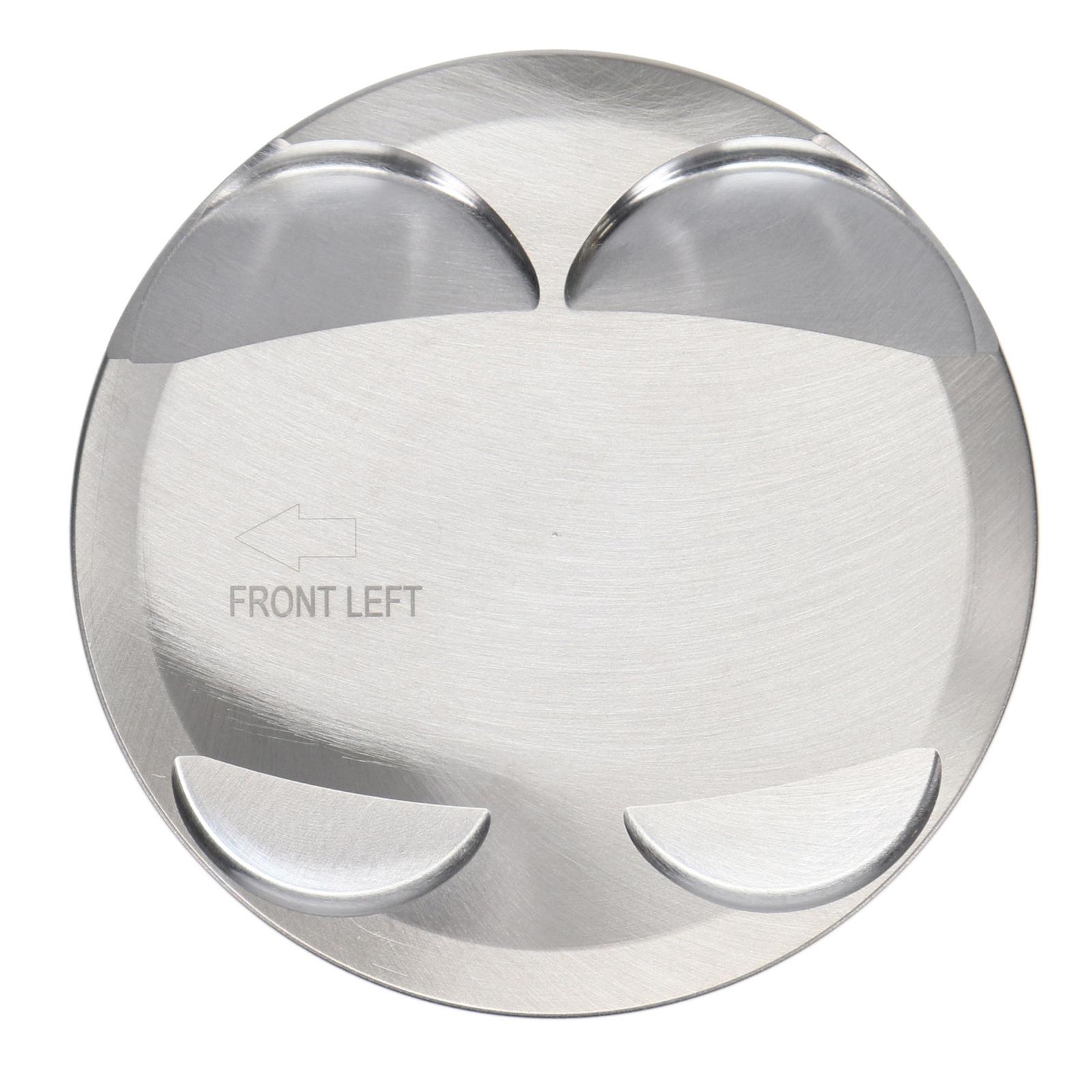

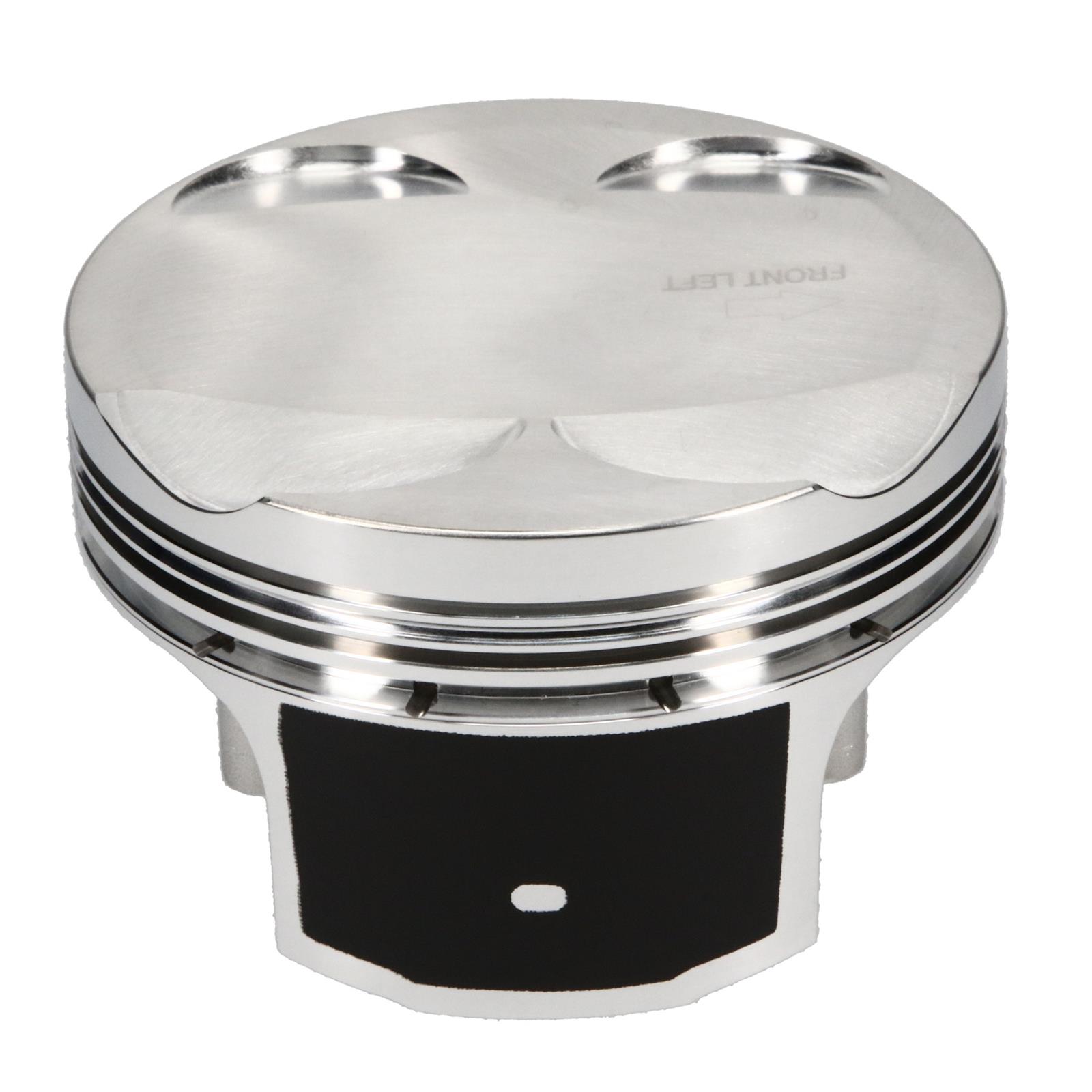

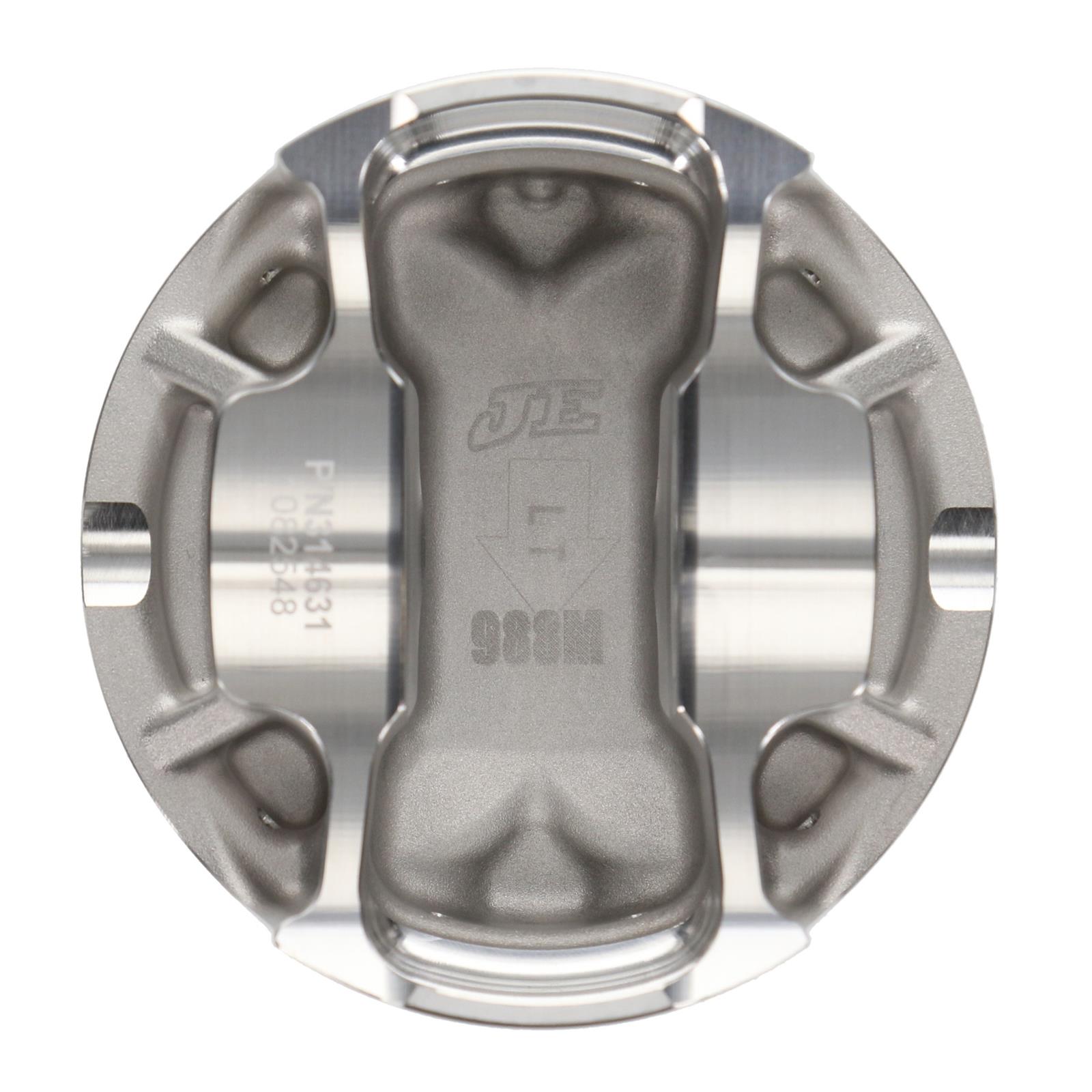

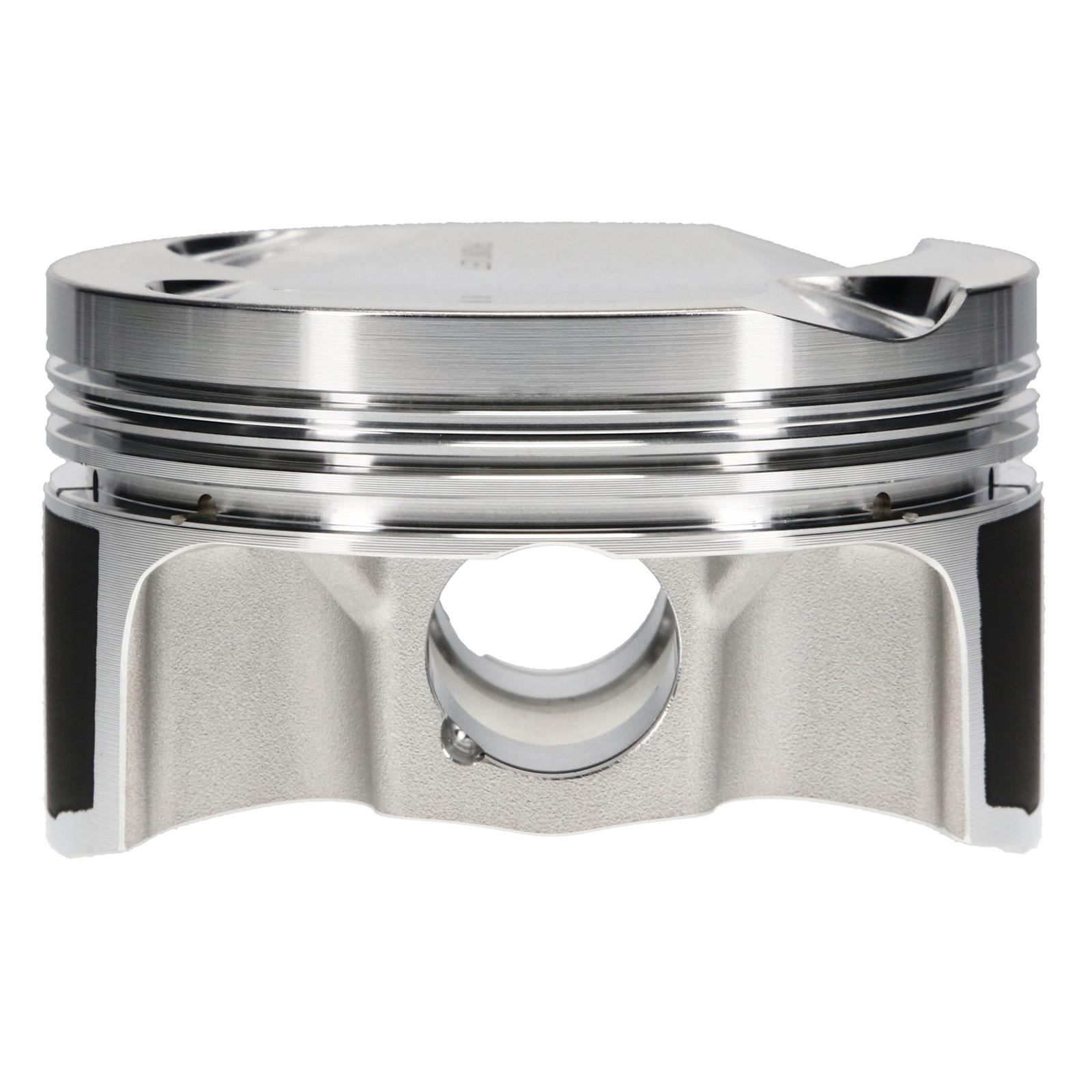

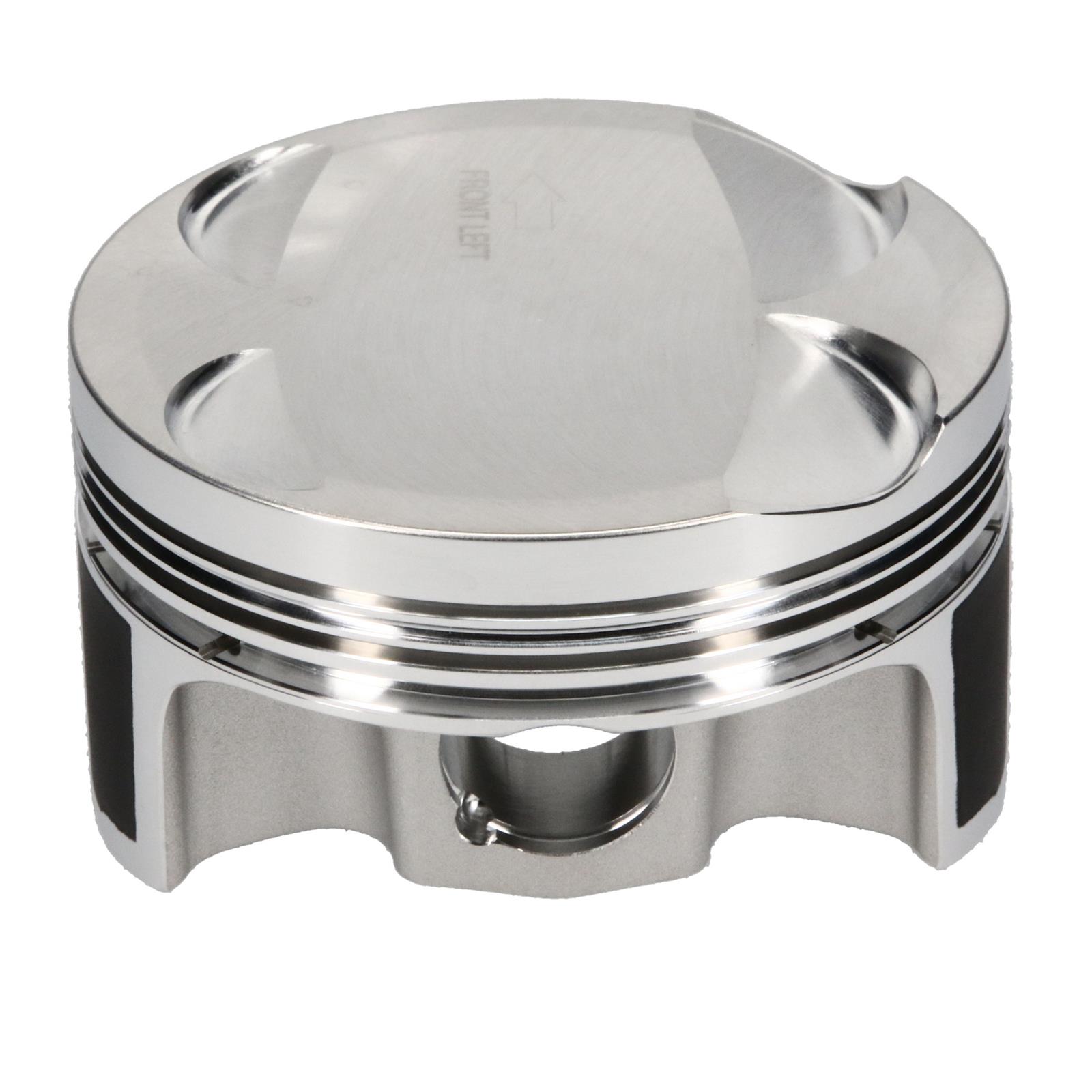

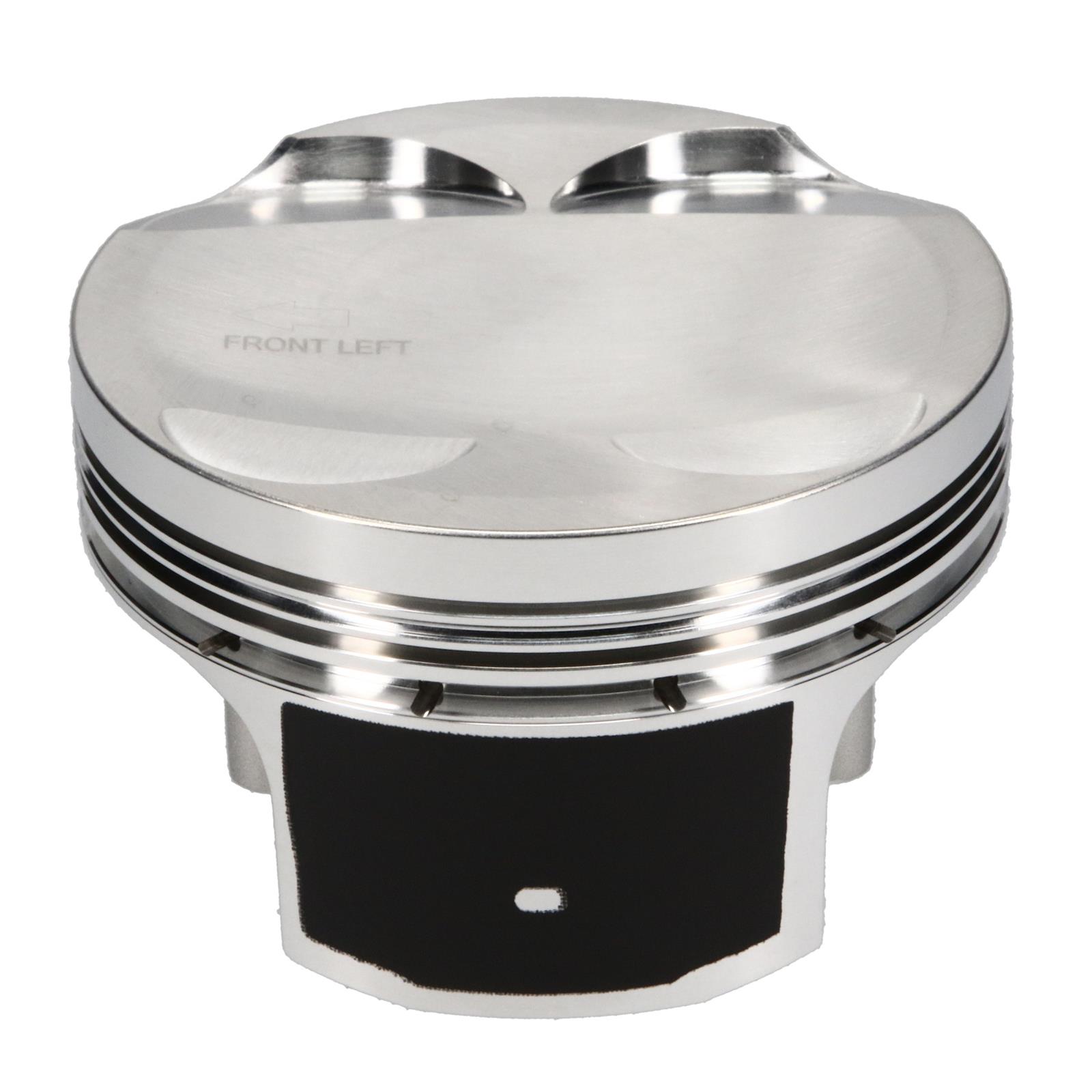

JE Pistons Ford Modular 314687L Pistons, Single - 5.4L 4V MODULAR 8.5
JE Pistons Ford Modular 314687L Pistons, Single - 5.4L 4V MODULAR 8.5
A$512.33
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import, and sport compact applications, and they have been performance-proven in victory lane time and time again.
JE Pistons Ford Modular pistons are single replacements forged from 2618 aluminum and utilize a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower Modular engine. Lightweight and extremely durable, each piston features high-quality offset wrist pins, locks, and accumulator grooves that help reduce pressure from combustion gases, reducing ring flutter and improving ring seal. Equip your engine with the best in forged pistons—JE Pistons.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 314687L
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons Ford Modular Pistons
- Product Attributes - UPC
- 193564195265
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 3.552 in.
- Product Attributes - Bore (mm)
- 90.221mm
- Product Attributes - Stroke
- 4.165 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 5.4L/330
- Product Attributes - Rod Length
- 6.657 in.
- Product Attributes - Piston Style
- Dish, with four valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.320 in.
- Product Attributes - Piston Head Volume (cc)
- -27.70cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.866 in.
- Product Attributes - Piston Ring Thickness
- 0.047 in. x 0.059 in. x 0.118 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits left side exhaust valve orientation, works with turbocharger and nitrous.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep314687L |
| SFX Item ID | 4807109 |
| Supplier Item Code | 4807109 |
| Manufacturer SKU | 314687L |
| Manufacturer UPC | 193564195265 |
| Alternative References | 5.4L |
