JE Pistons Ford Modular 314679R Pistons, Single - 5.4L 3V MODULAR 9.5

SKU: JEP314679R

Pistons

JE Pistons

JE Pistons Ford Modular 314679R Pistons, Single - 5.4L 3V MODULAR 9.5

SKU: JEP314679R

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import, and sport compact applications, and they have been performance-proven in victory lane time and time again.

JE Pistons Ford Modular pistons are single replacements forged from 2618 aluminum and utilize a dedicated Forged Side Relief (FSR) forging specifically designed for high-horsepower Modular engine. Lightweight and extremely durable, each piston features high-quality offset wrist pins, locks, and accumulator grooves that help reduce pressure from combustion gases, reducing ring flutter and improving ring seal. Equip your engine with the best in forged pistons—JE Pistons.

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 11:05:49

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 314679R
Product Attributes - Part Type: Pistons
Product Attributes - Product Line: JE Pistons Ford Modular Pistons
Product Attributes - UPC: 193564195111
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 3.572 in.
Product Attributes - Bore (mm): 90.729mm
Product Attributes - Stroke: 4.165 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 5.5L/334
Product Attributes - Rod Length: 6.657 in.

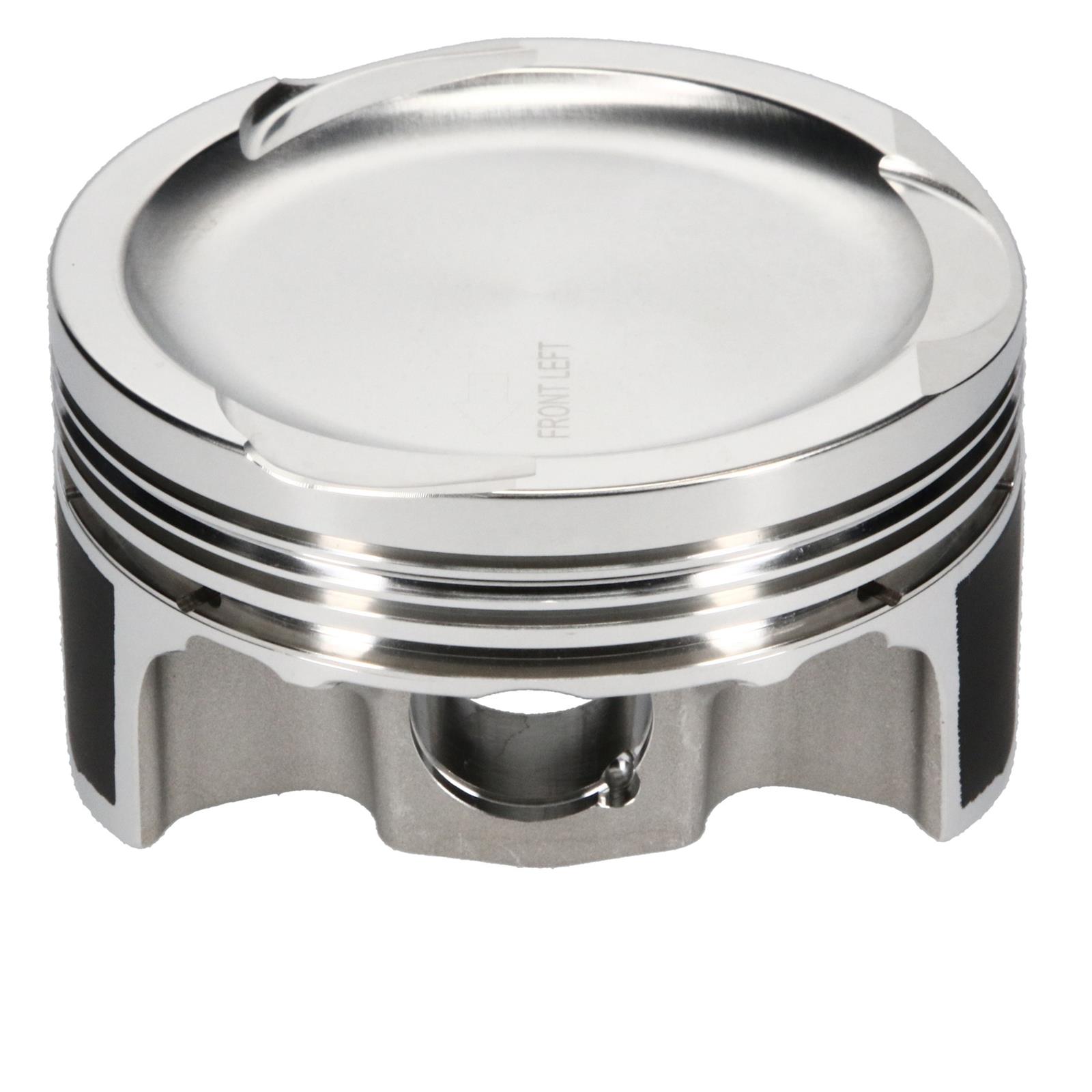

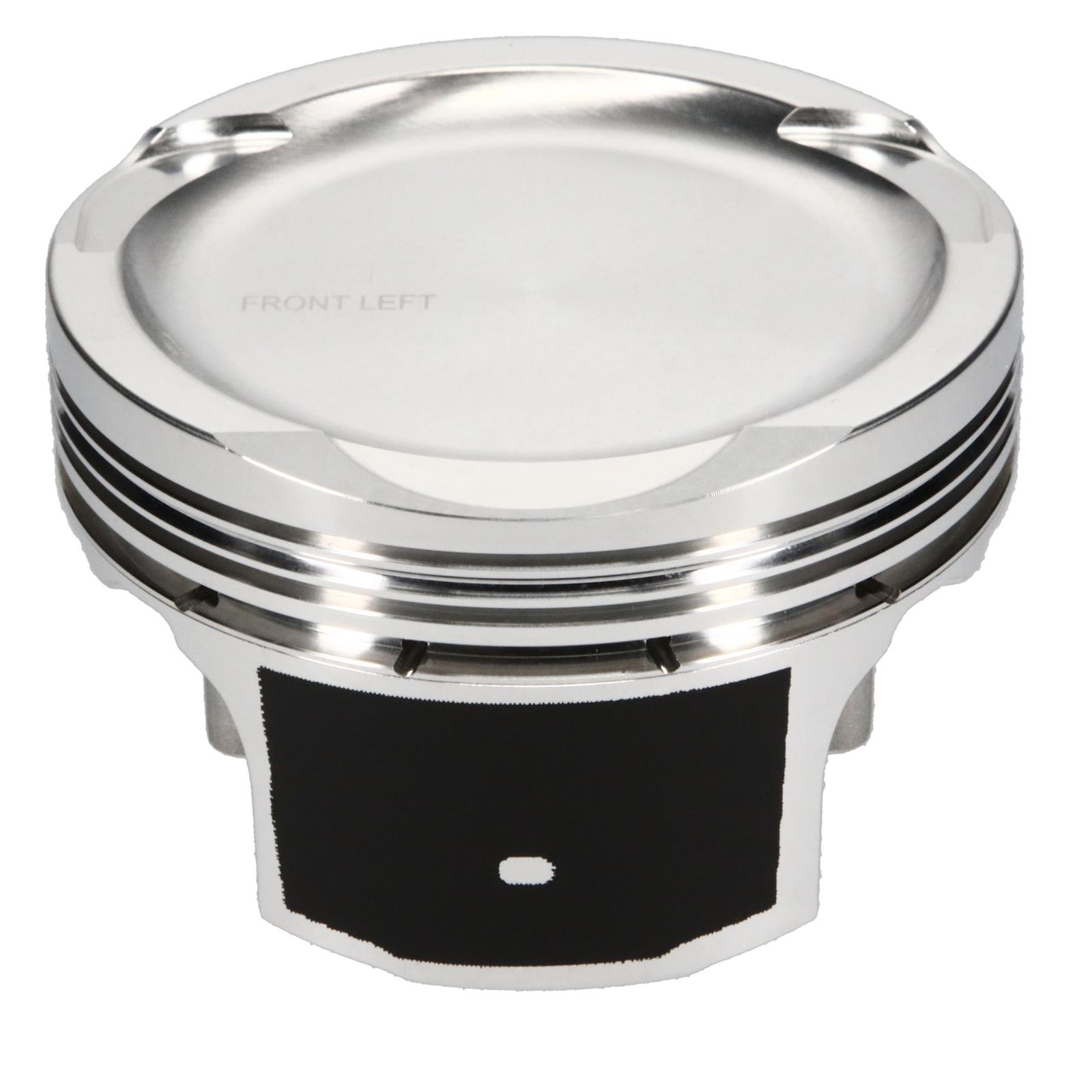

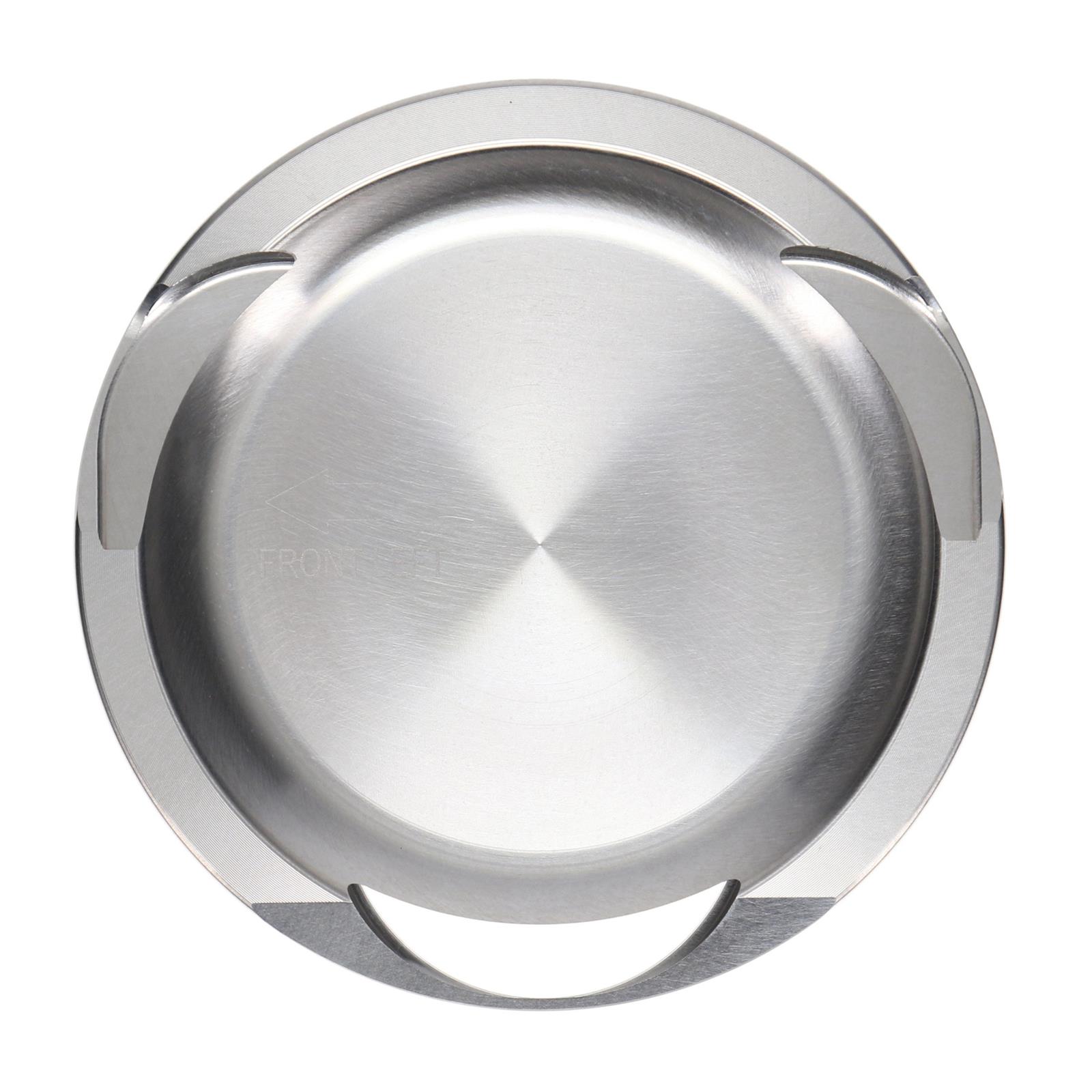

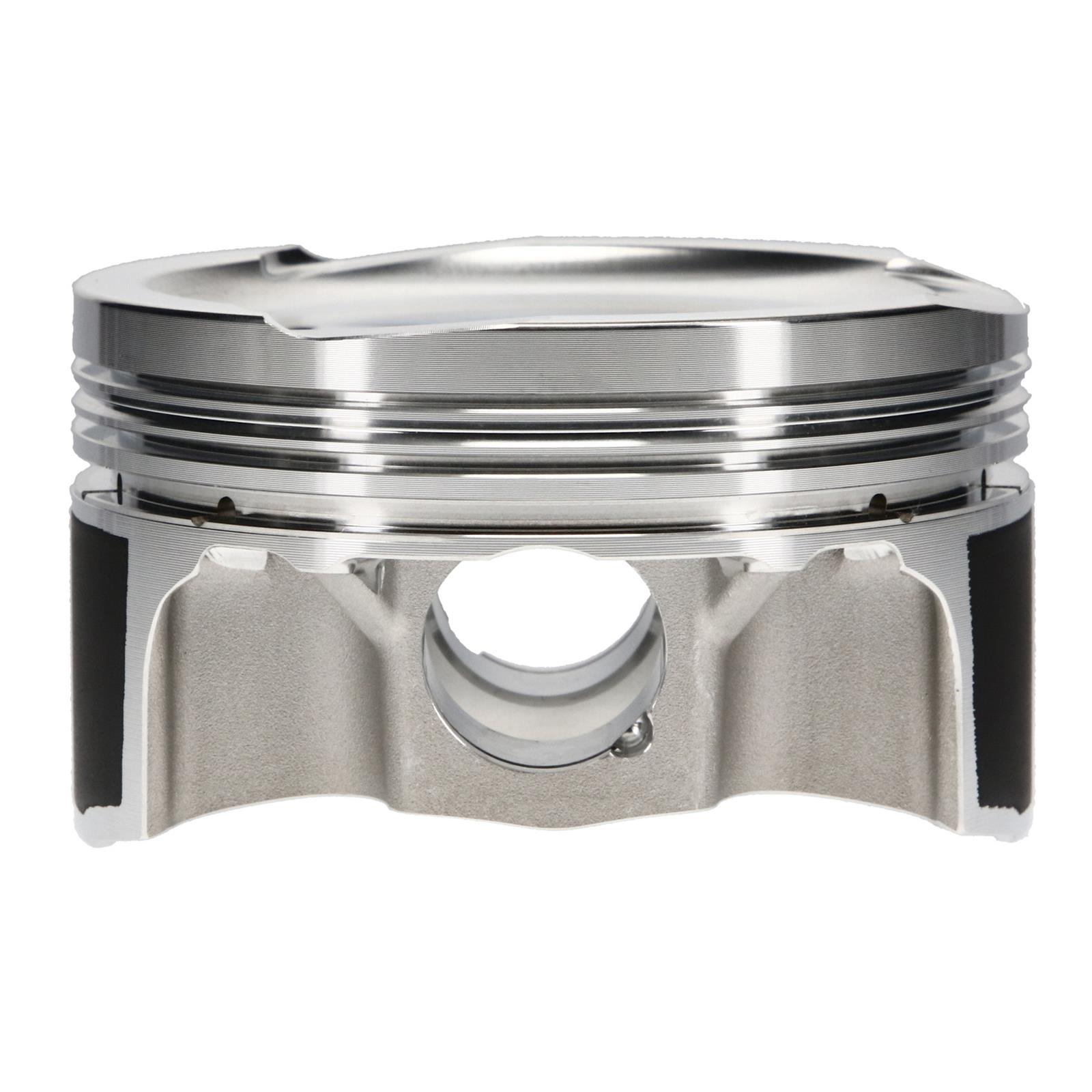

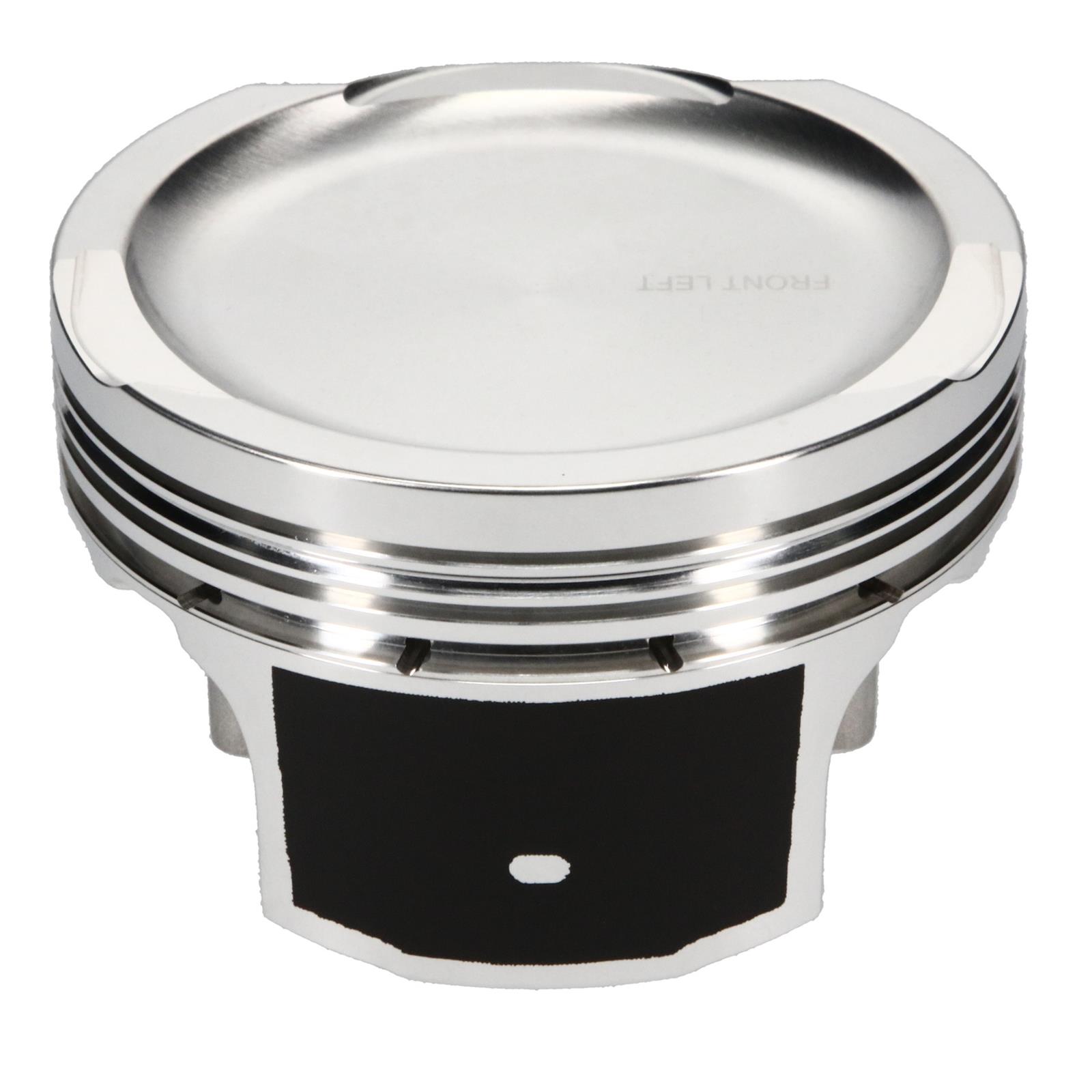

Product Attributes - Piston Style: Dish, with three valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.320 in.
Product Attributes - Piston Head Volume (cc): -20.50cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.866 in.
Product Attributes - Piston Ring Thickness: 0.047 in. x 0.059 in. x 0.118 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Fits right side exhaust valve orientation, works with turbocharger and nitrous.

Reference Information

Brand Name/s	JE Pistons
StreetFX SKU	jep314679R
SFX Item ID	4802692
Supplier Item Code	4802692
Manufacturer SKU	314679R
Manufacturer UPC	193564195111
Alternative References	5.4L

Compatibility

Application Data

Make FORD
Beginning Year 2004
Ending Year 2016
Engine Type V8
Engine Family Ford modular V8
Engine Size 5.4L/330
Application Notes This is a right side piston that can be used with nitrous and turbos,
