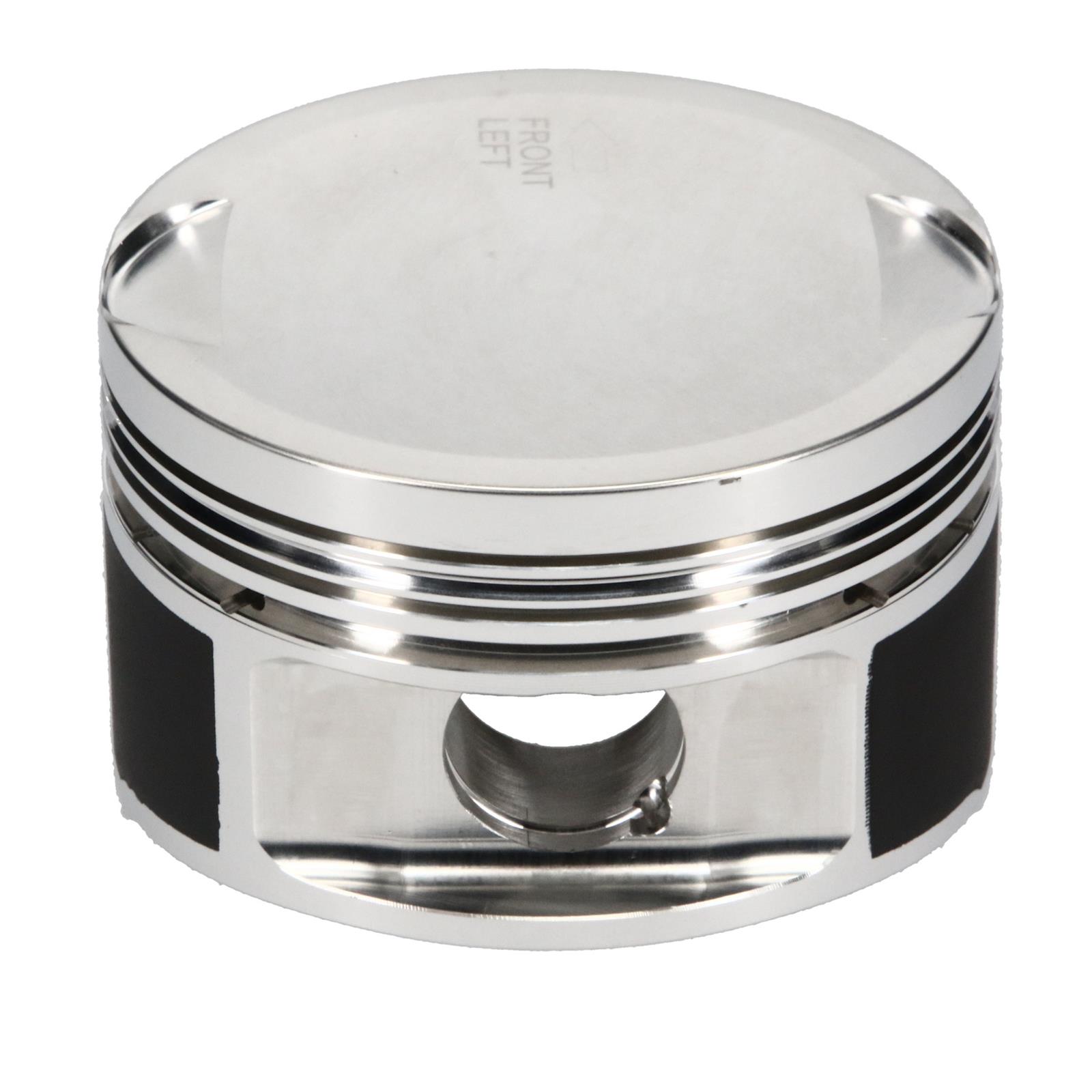

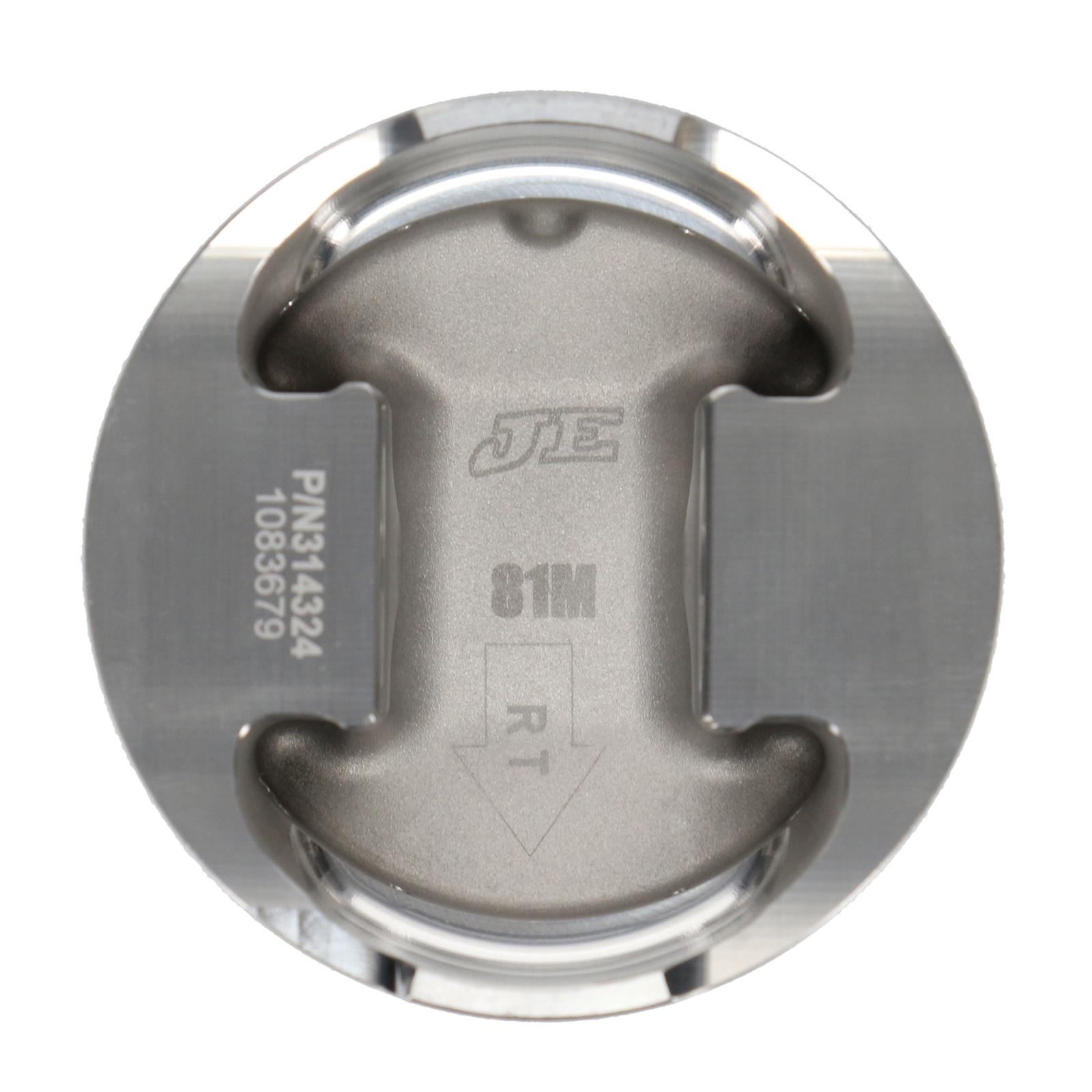

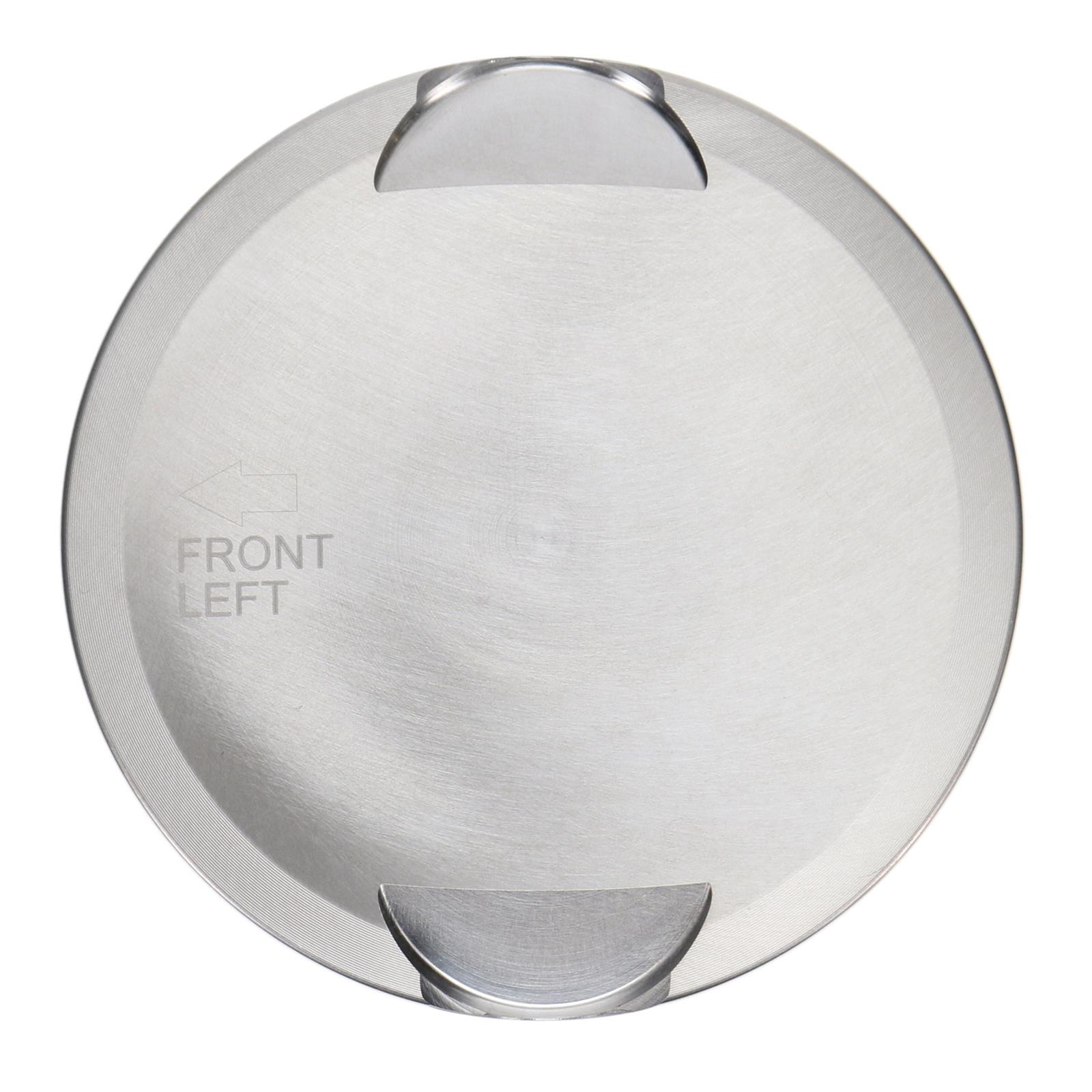

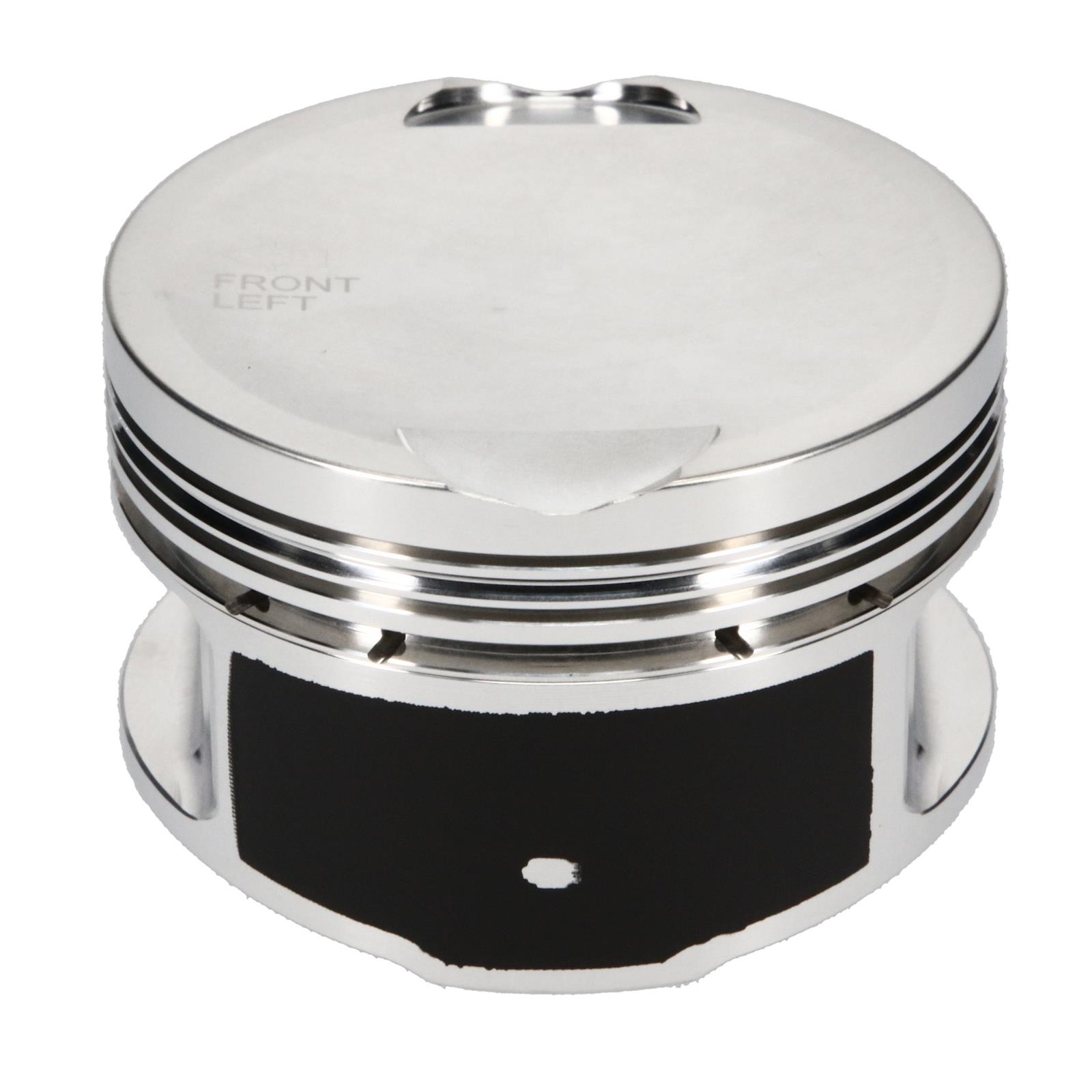

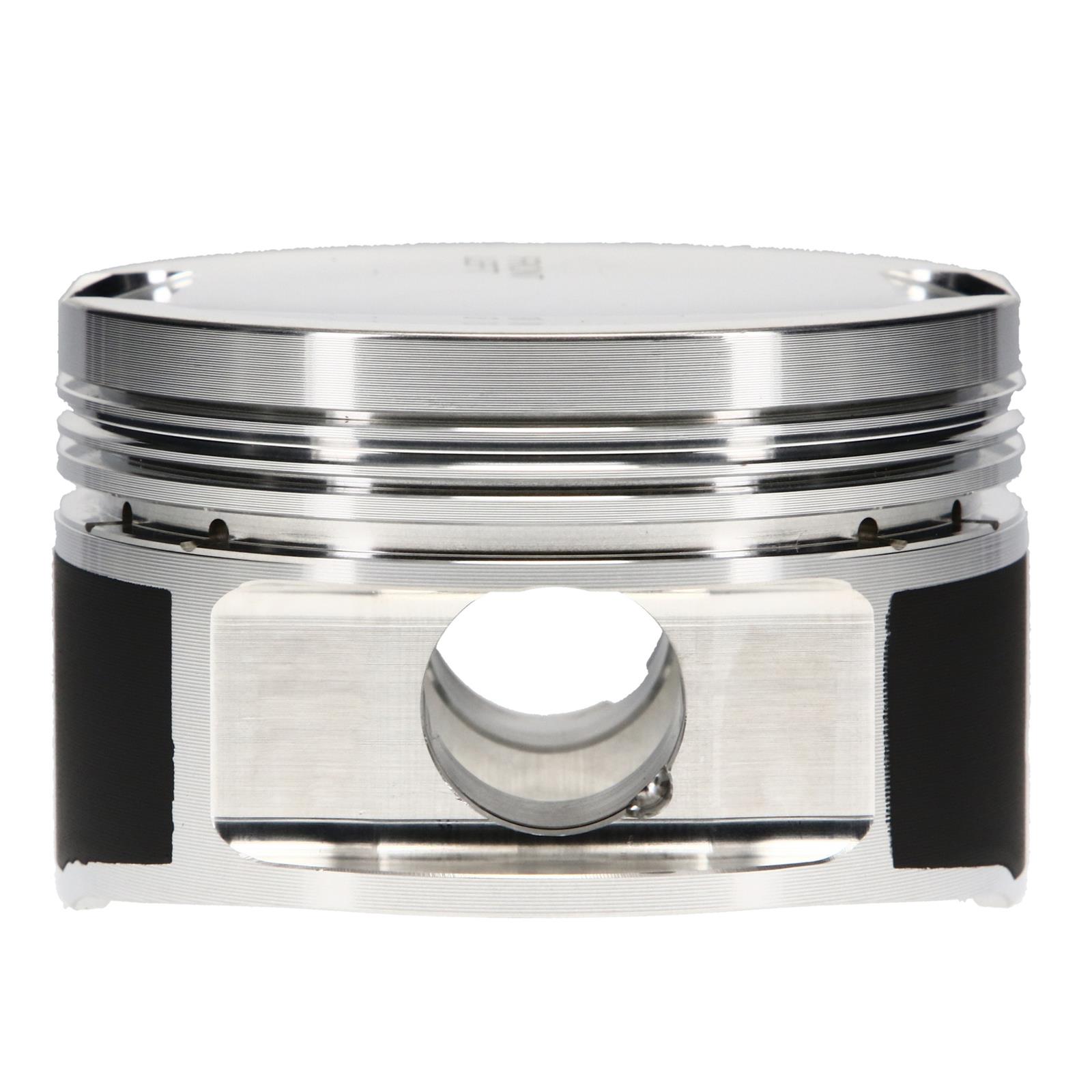

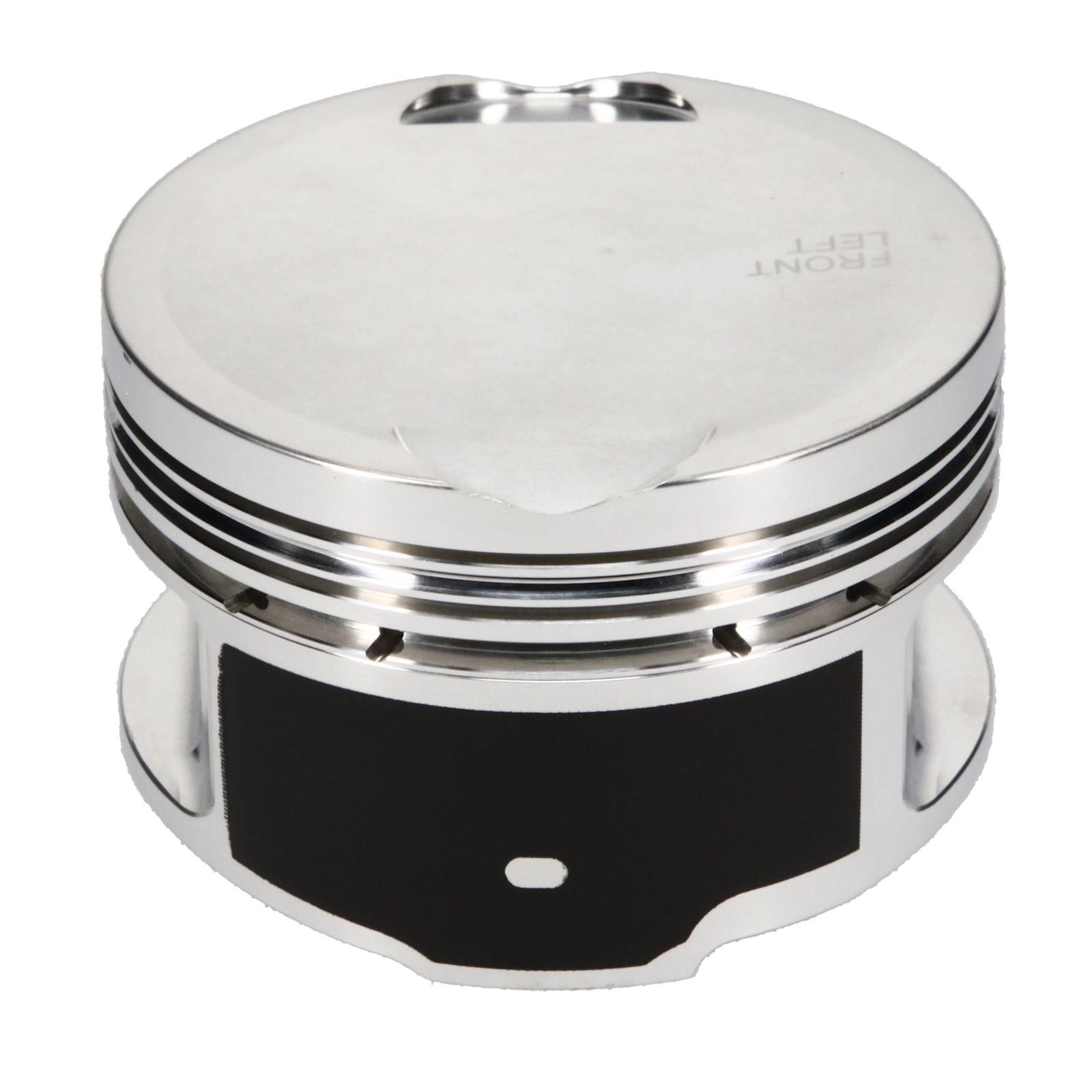

JE Pistons Audi 2.7L S4 TT 314327L Pistons, Single - AUDI 2.7LTT KIT

SKU: JEP314327L

Pistons

JE Pistons

JE Pistons Audi 2.7L S4 TT 314327L Pistons, Single - AUDI 2.7LTT KIT

SKU: JEP314327L

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

JE Pistons Audi 2.7L S4 TT pistons are forged using 2618 aluminum, yielding the high tensile strength needed for high-demand performance applications. They are designed specifically for your Audi's engine and use application; each piston features a proprietary Forged Side Relief (FSR) that minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin. The pistons include high-quality wrist pins, locks, and premium JE Pro Seal piston rings.

JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import, and sport compact applications, and they have been performance-proven in victory lane time and time again. Equip your engine with the best in forged pistons—JE Pistons.

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 10:59:43

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 314327L
Product Attributes - Part Type: Pistons
Product Attributes - Product Line: JE Pistons Audi 2.7L S4 TT Pistons
Product Attributes - UPC: 193564010148
Product Attributes - Piston Rings Included: Yes
Product Attributes - Bore (in.): 3.268 in.
Product Attributes - Bore (mm): 83.000mm
Product Attributes - Stroke: 86.40mm
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 2.8L/2806cc
Product Attributes - Rod Length: 154.000mm
Product Attributes - Piston Style: Dish, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.210 in.
Product Attributes - Piston Head Volume (cc): -6.40cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.827 in.
Product Attributes - Piston Ring Thickness: 0.039 in. x 0.047 in. x 0.110 in.
Product Attributes - File Fit: Yes
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.039 in.
Product Attributes - Top Ring Material: Carbon steel
Product Attributes - Top Ring Facing Material: Gas nitrided
Product Attributes - Second Ring Thickness: 0.047 in.
Product Attributes - Second Ring Material: Ductile iron
Product Attributes - Second Ring Facing Material: Phosphate coated
Product Attributes - Oil Ring Thickness: 0.110 in.
Product Attributes - Oil Ring Material: Carbon steel
Product Attributes - Oil Ring Tension: Low
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Fits left side exhaust valve orientation, works with turbocharger and nitrous.

Reference Information

Brand Name/s	JE Pistons
StreetFX SKU	jep314327L
SFX Item ID	4808333
Supplier Item Code	4808333
Manufacturer SKU	314327L
Manufacturer UPC	193564010148
Alternative References	2.7L, 2.7LTT

Compatibility

Application Data

Make AUDI
Beginning Year 1999
Ending Year 2005
Engine Type V6
Engine Family Audi V6
Engine Size 2.7L/2671cc
Application Notes This is a left side replacement piston.This piston works with turbo and nitrous.
