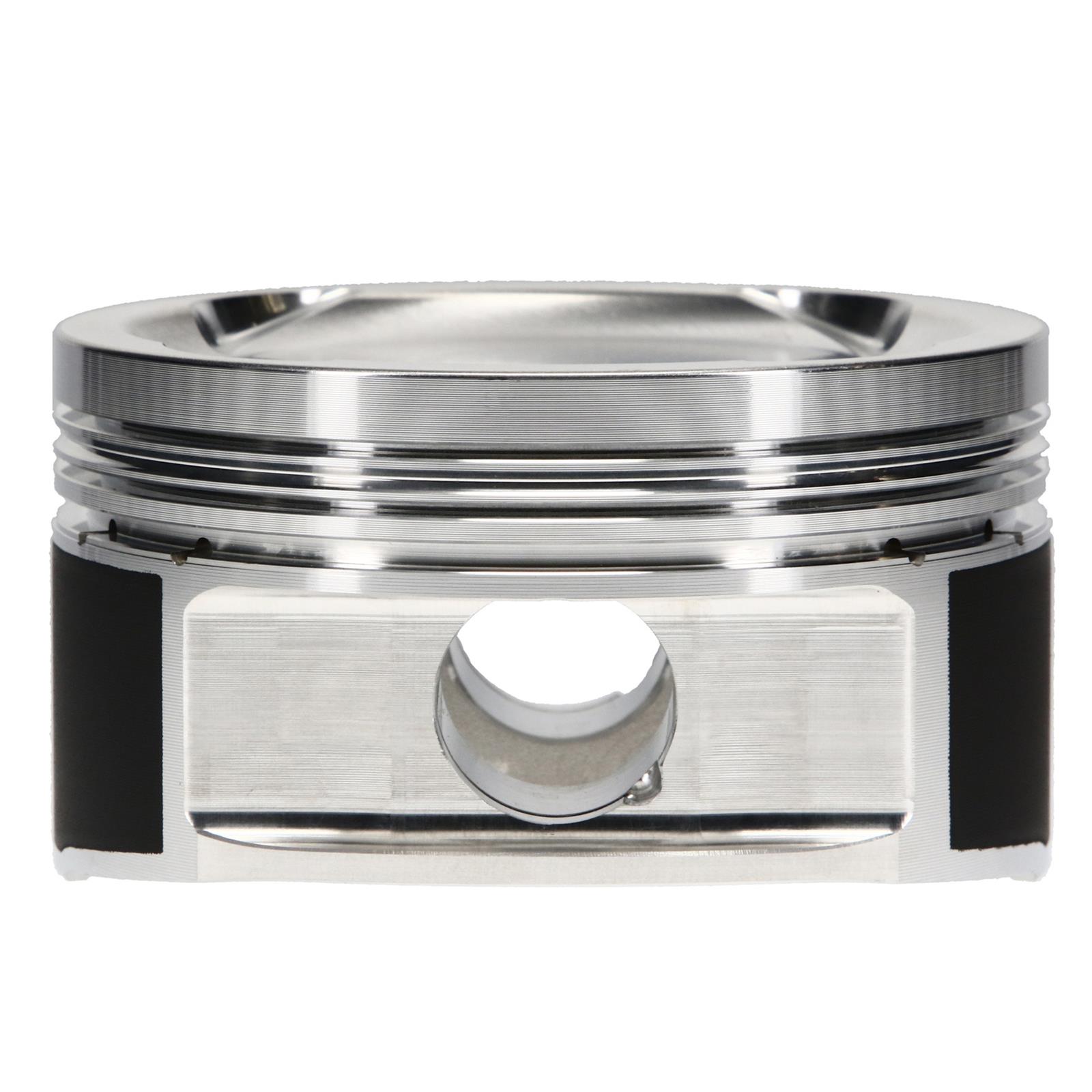

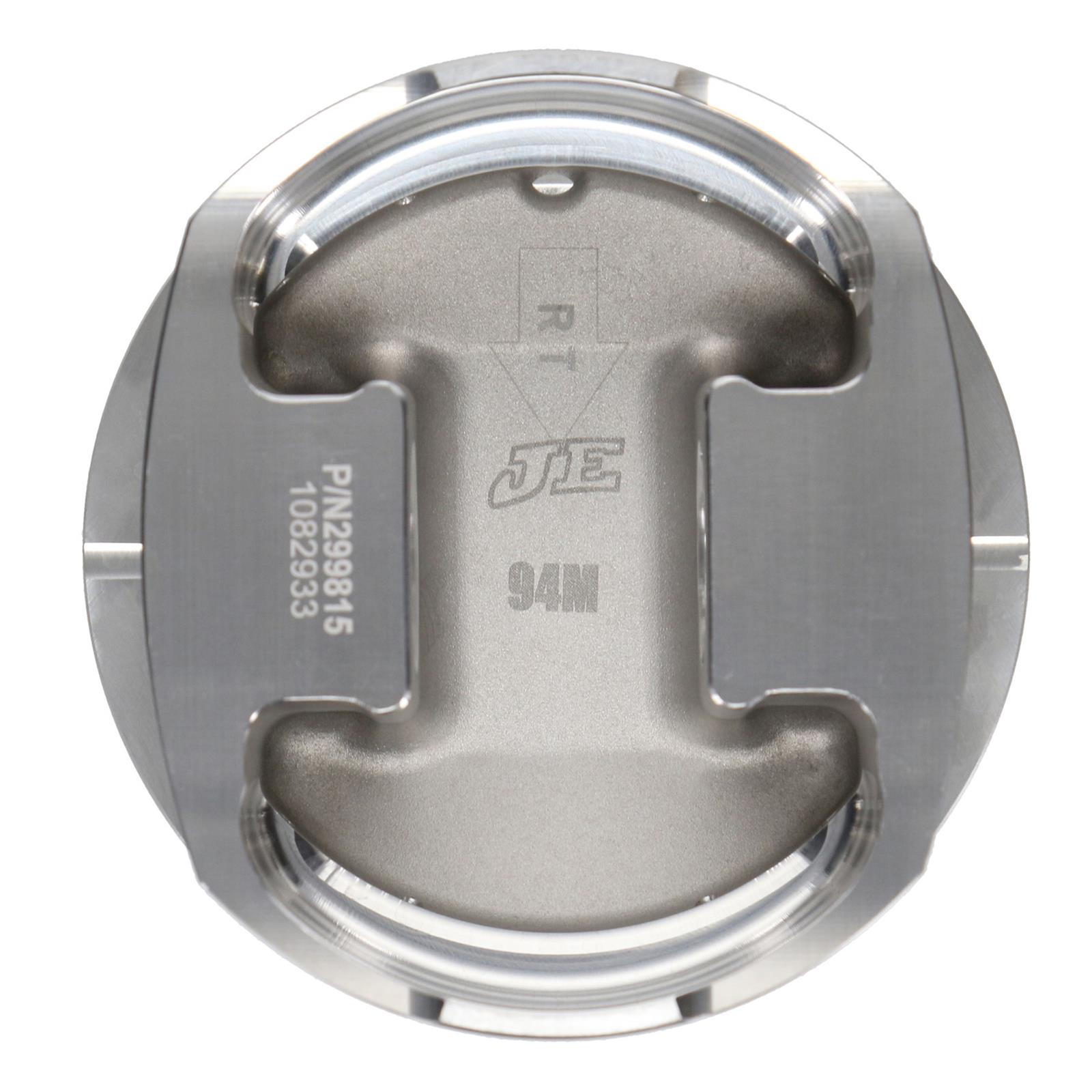

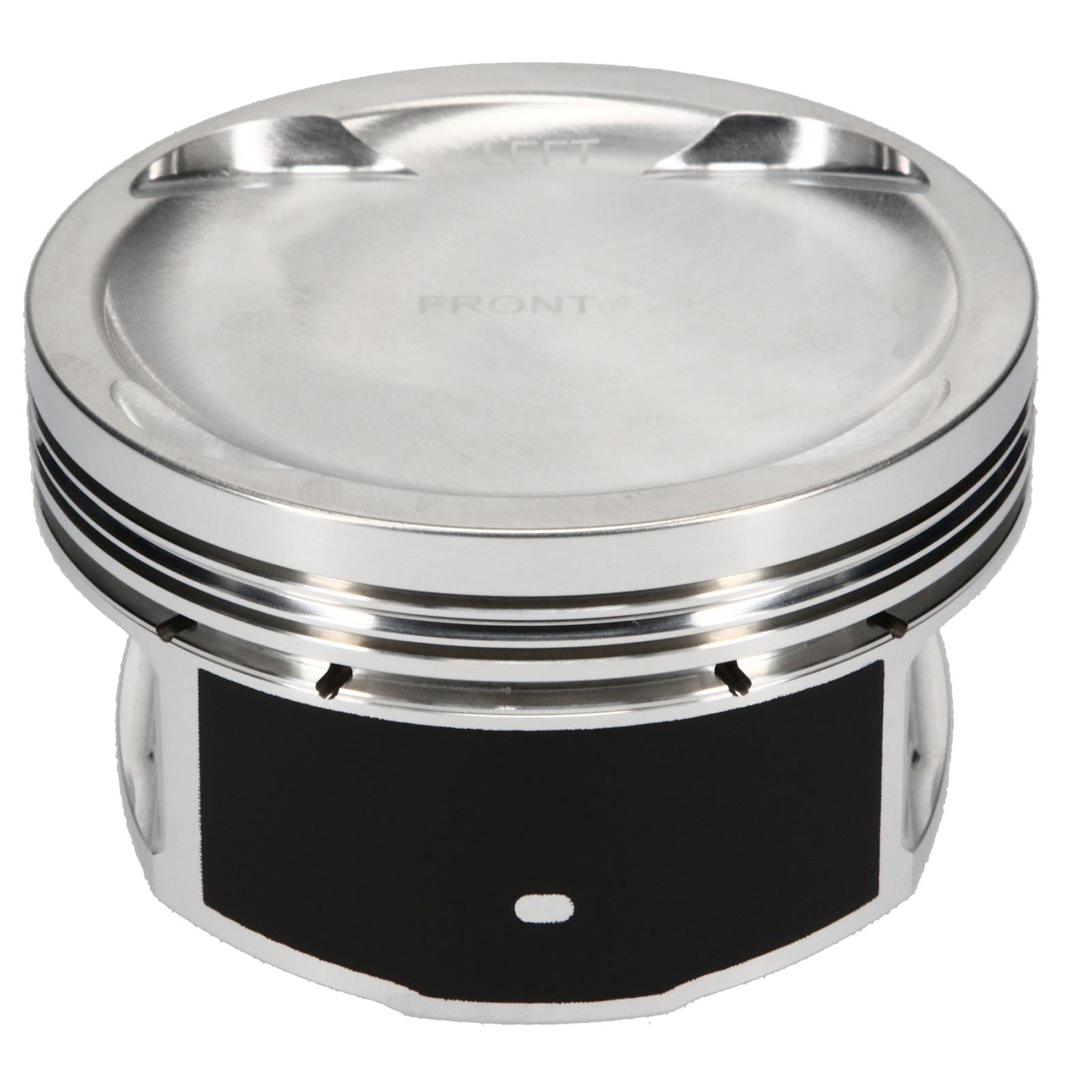

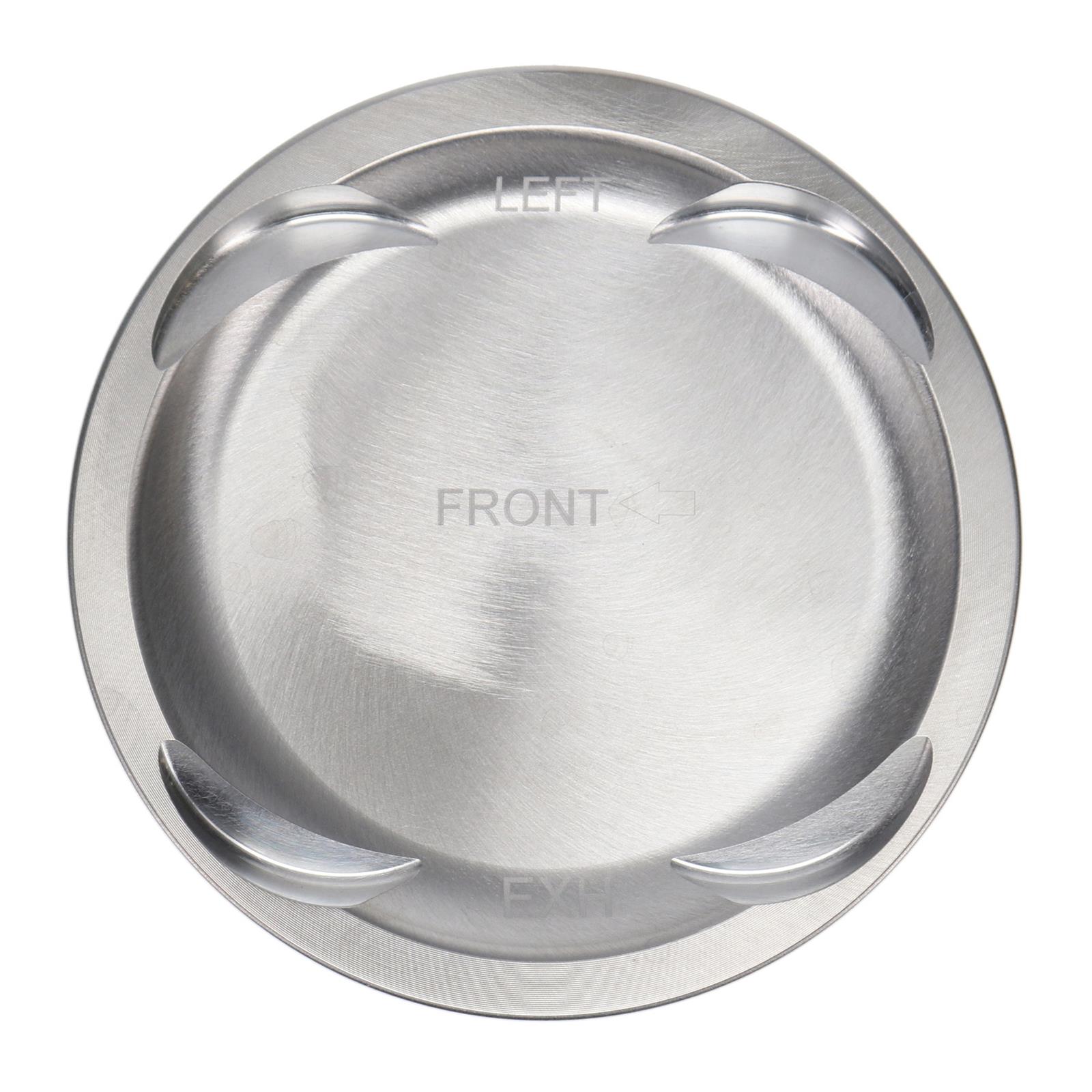

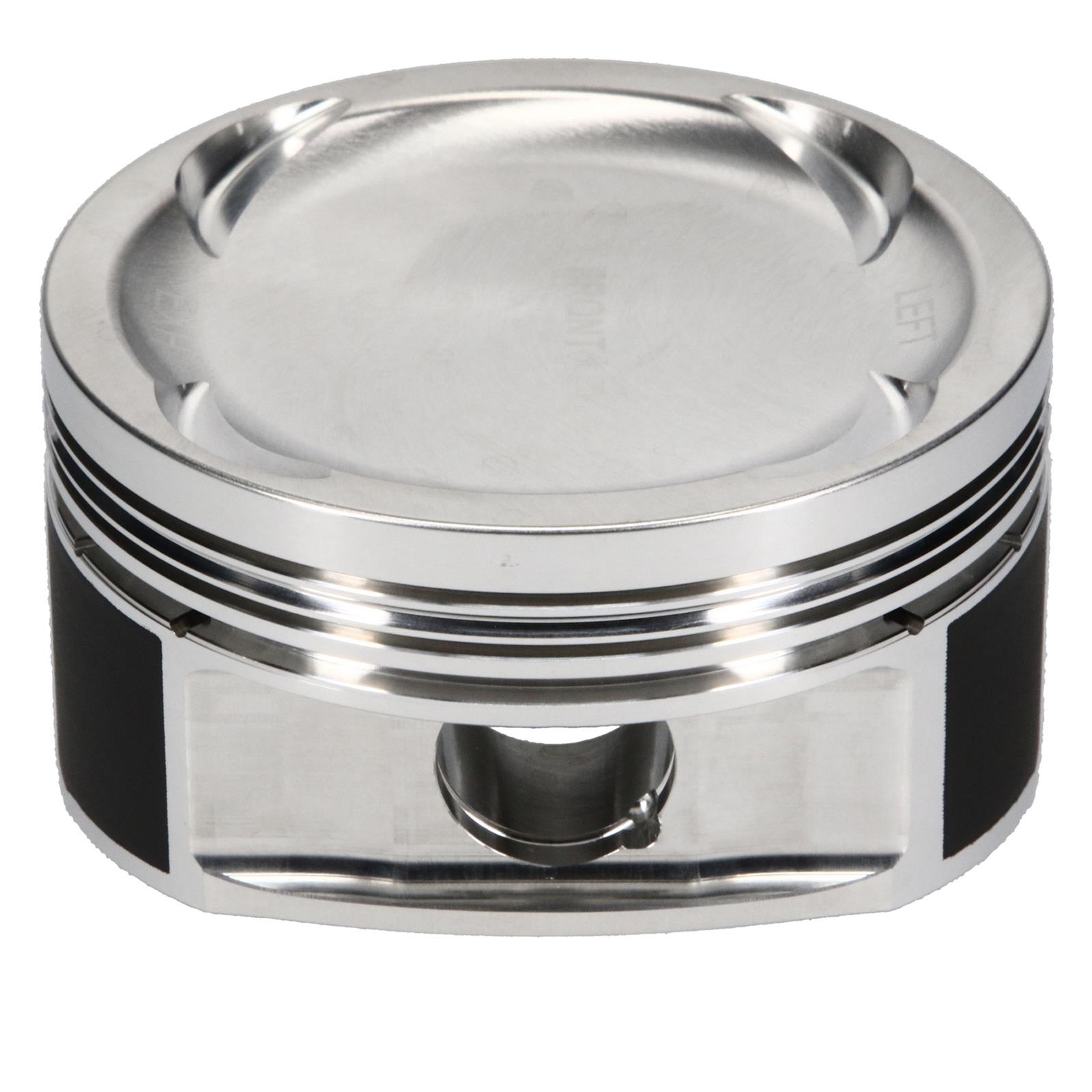

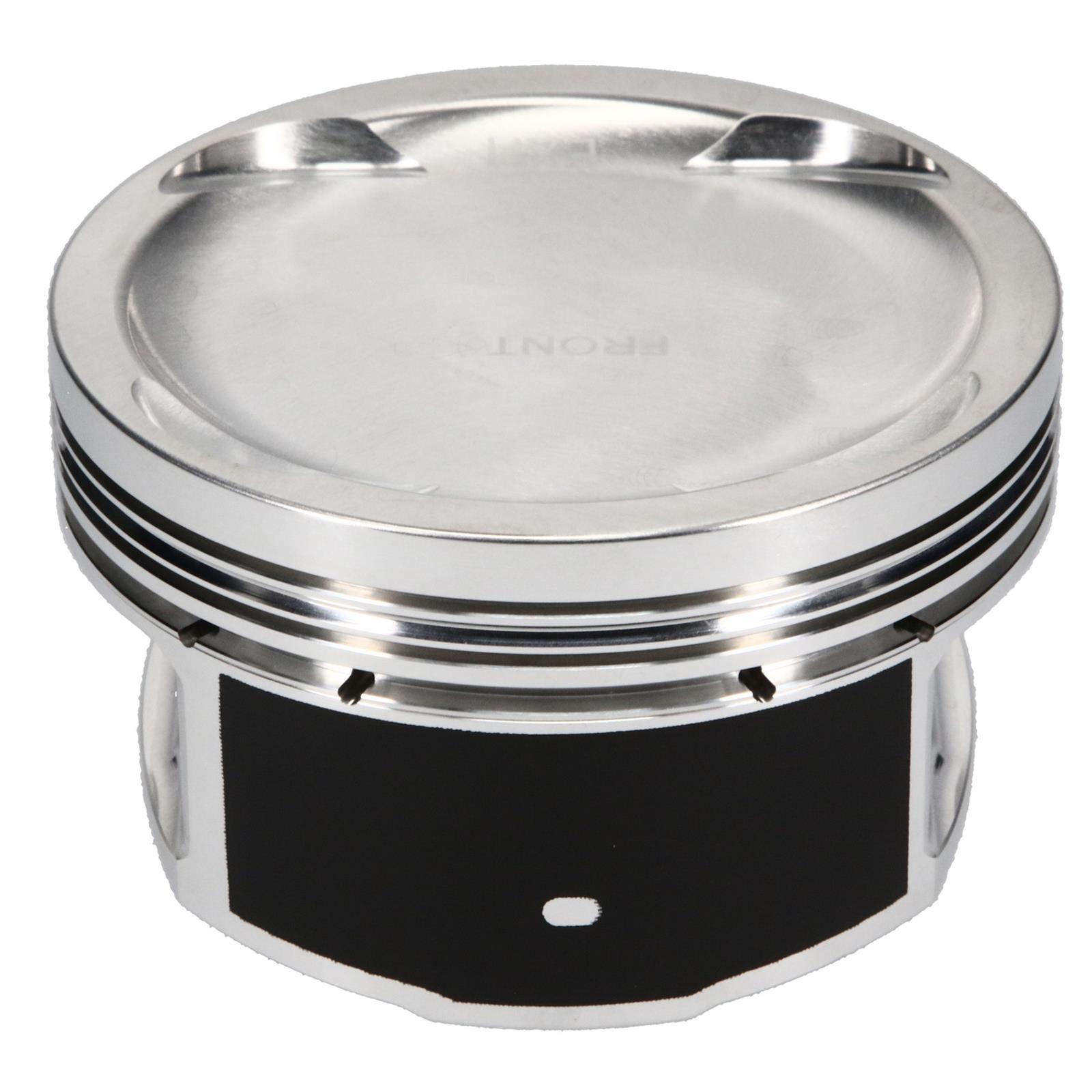

JE Pistons Sport Compact 299816L Pistons, Single - HYUNDIA GEN 9:1 KIT

SKU: JEP299816L

Pistons

JE Pistons

JE Pistons Sport Compact 299816L Pistons, Single - HYUNDIA GEN 9:1 KIT

SKU: JEP299816L

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

JE Pistons sport compact pistons are specifically engineered for extreme applications, up to and including professional competition. In this environment, the higher compression ratios, highest boost, or heavy nitrous usage necessitate the higher tensile strength 2618 aluminum alloy. Their dome/dish requires no deburring or preparation and features smooth-flowing radii for excellent flame travel. A pin fitting, wire locks, and rings are included.

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 10:59:21

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 299816L
Product Attributes - Part Type: Pistons
Product Attributes - Product Line: JE Pistons Sport Compact Pistons
Product Attributes - UPC: 193564013910
Product Attributes - Piston Rings Included: Yes
Product Attributes - Bore (in.): 3.799 in.
Product Attributes - Bore (mm): 96.500mm
Product Attributes - Stroke: 87.00mm
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 3.8L/3818cc
Product Attributes - Rod Length: 149.600mm
Product Attributes - Piston Style: Dish, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.242 in.
Product Attributes - Piston Head Volume (cc): -24.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.866 in.
Product Attributes - Piston Ring Thickness: 1.20mm x 1.20mm x 2.50mm
Product Attributes - File Fit: Yes
Product Attributes - Gapless: Yes
Product Attributes - Top Ring Thickness: 1.2mm
Product Attributes - Second Ring Thickness: 1.2mm
Product Attributes - Oil Ring Thickness: 2.5mm
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Fits the Lamda V6 motors. Designed to fit left exhaust valve orientation.
