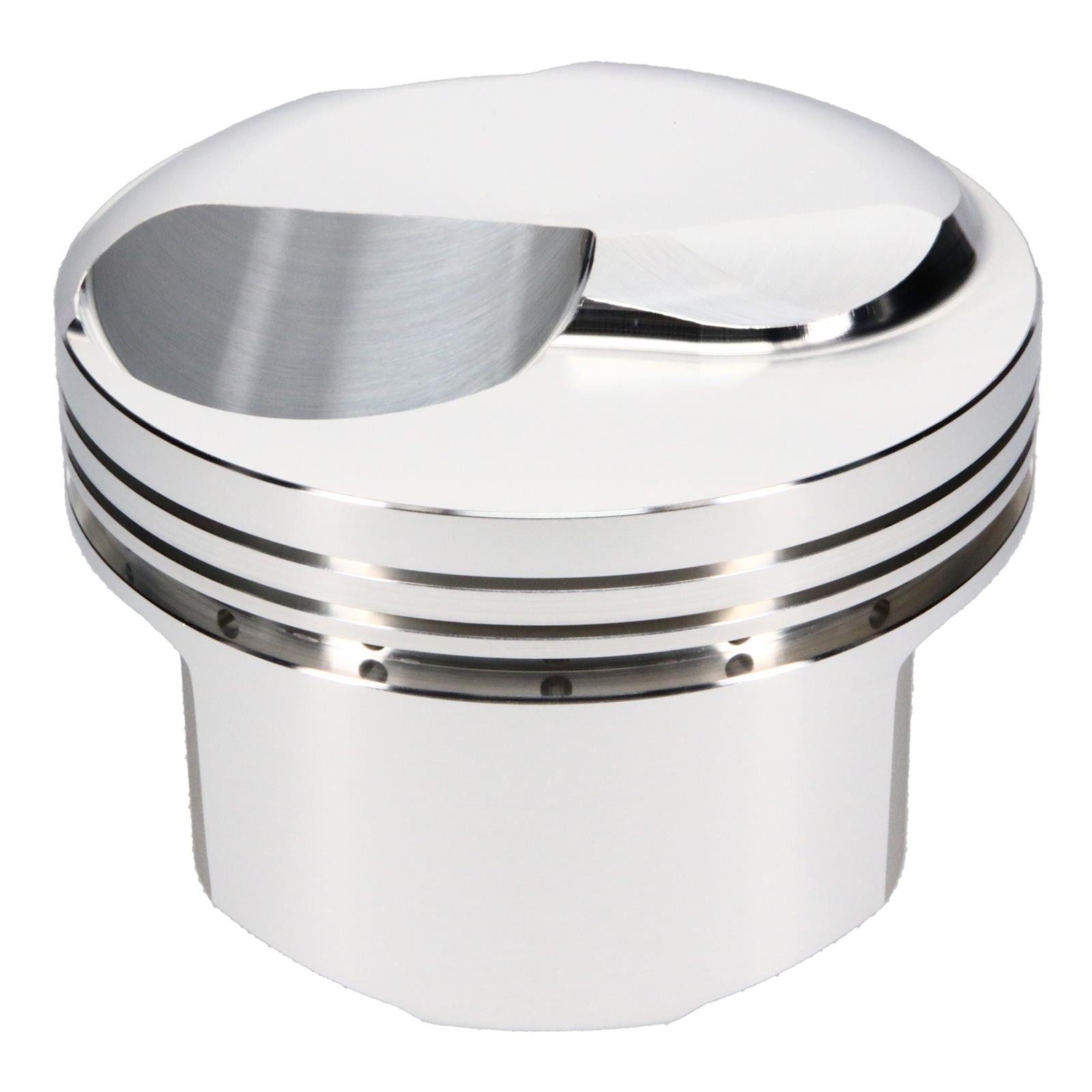

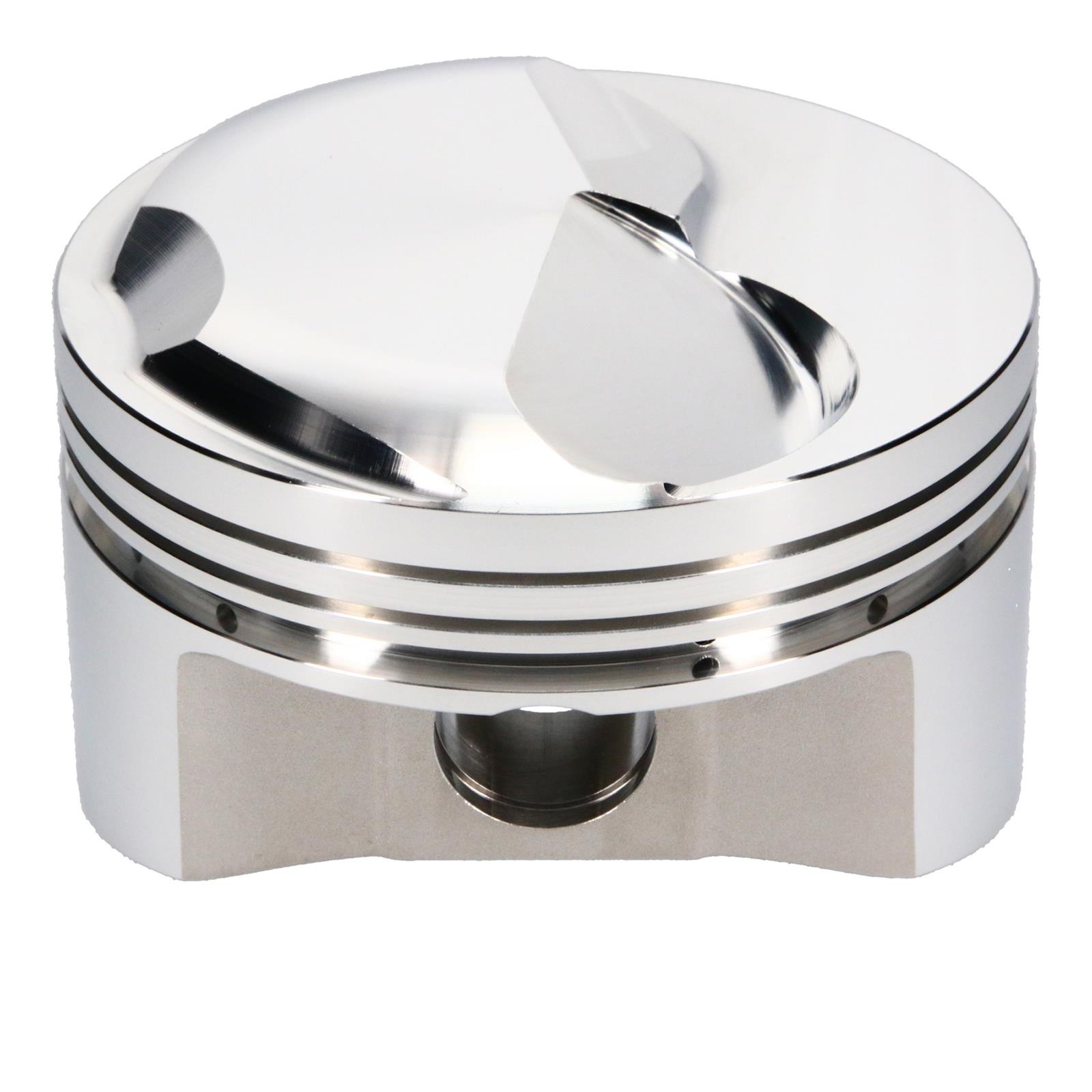

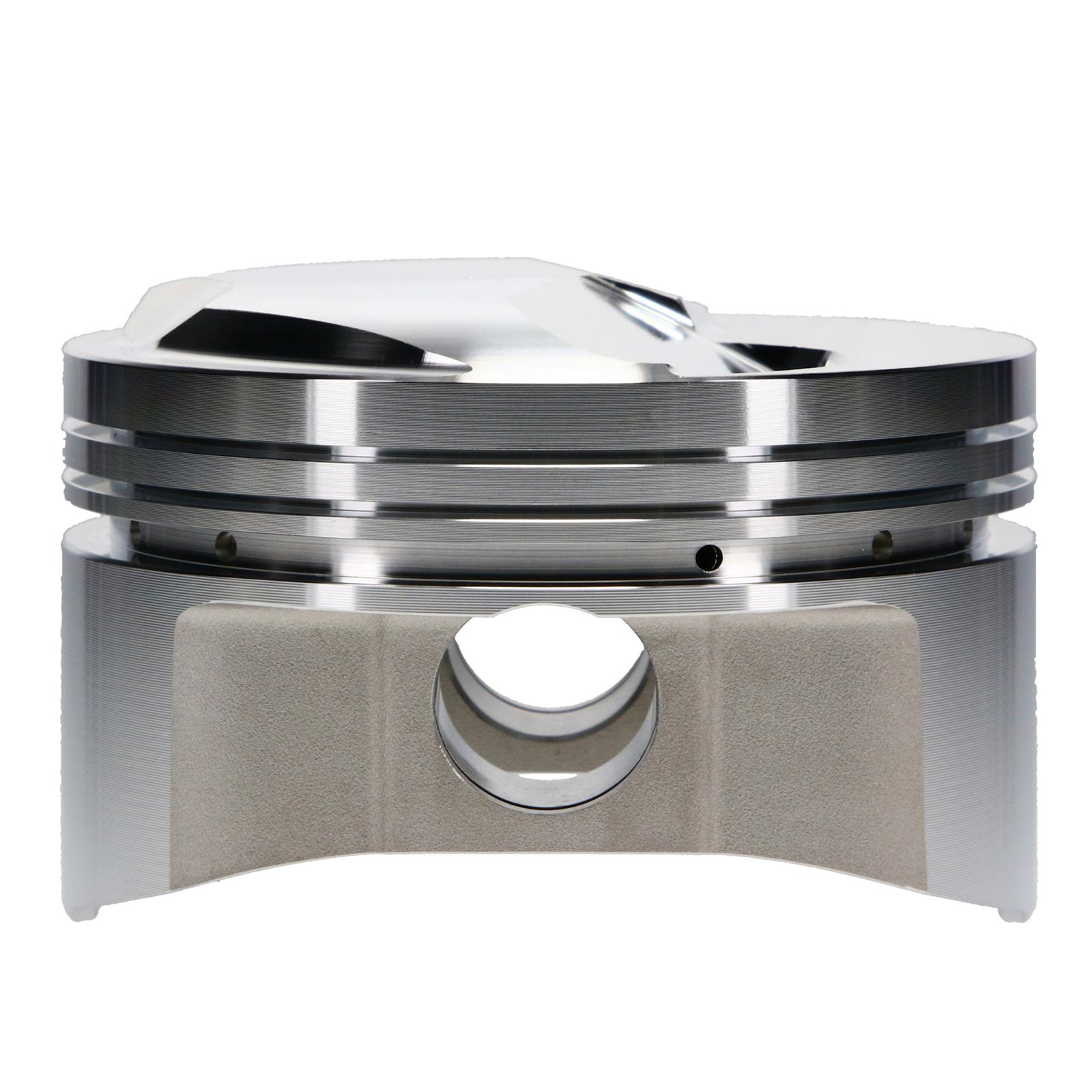

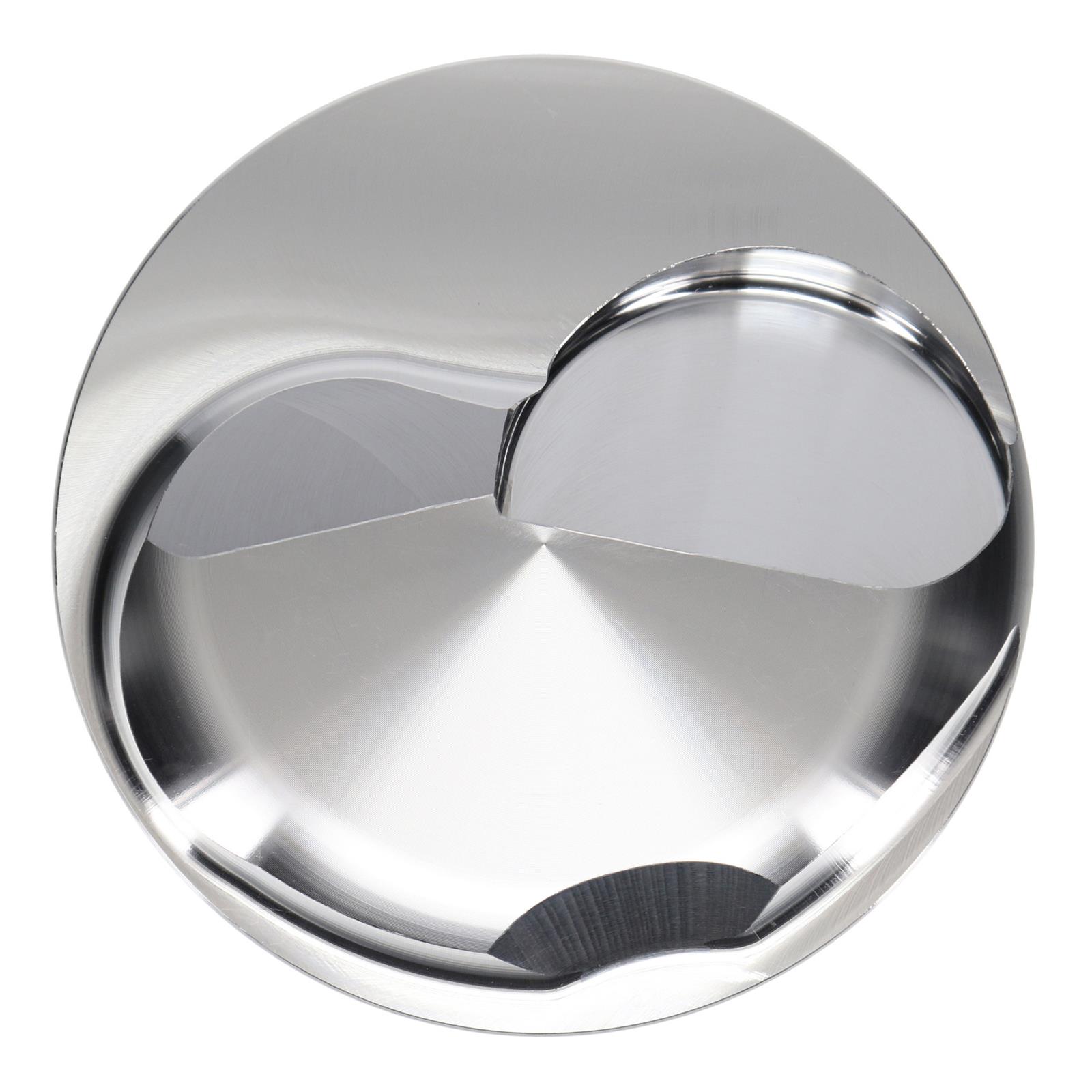

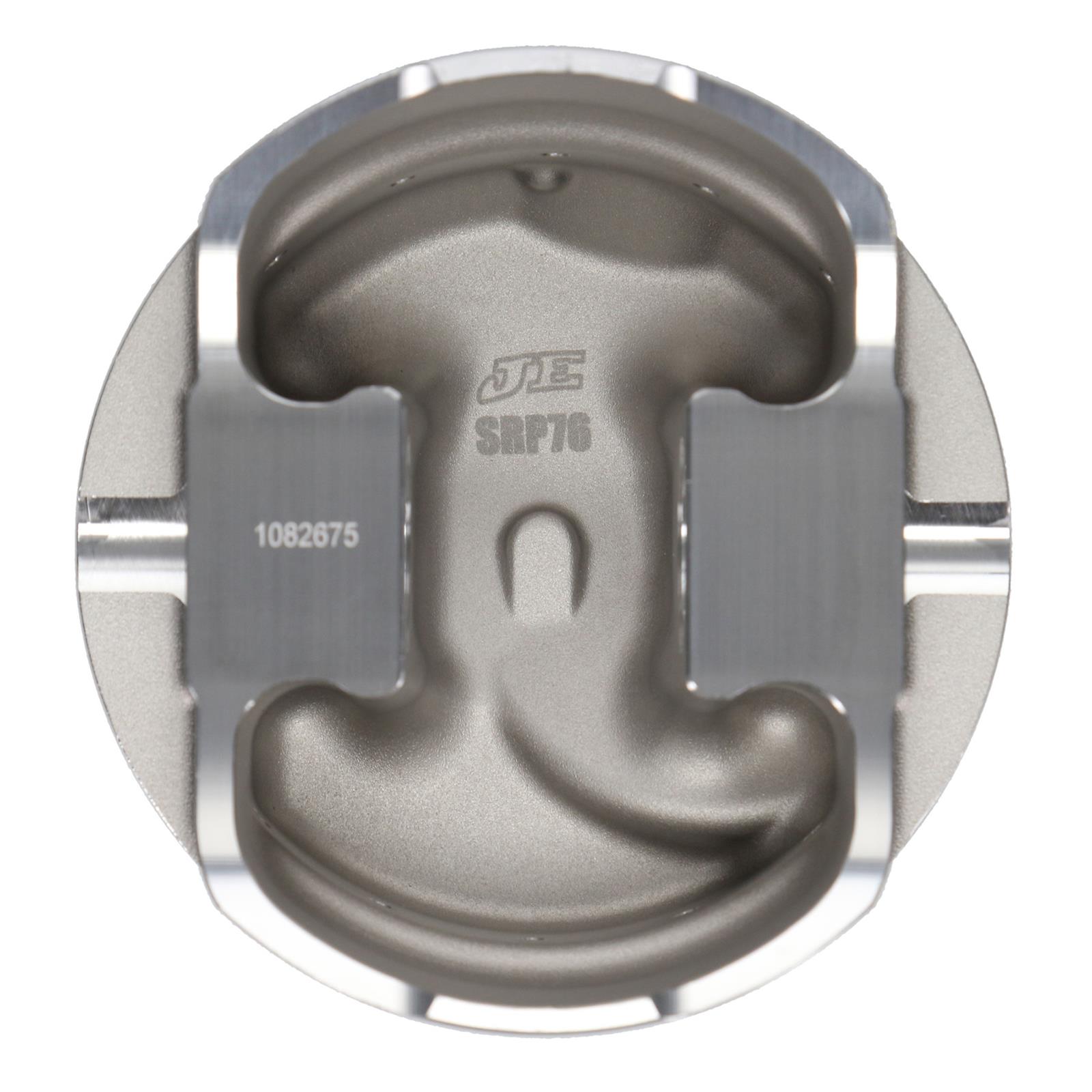

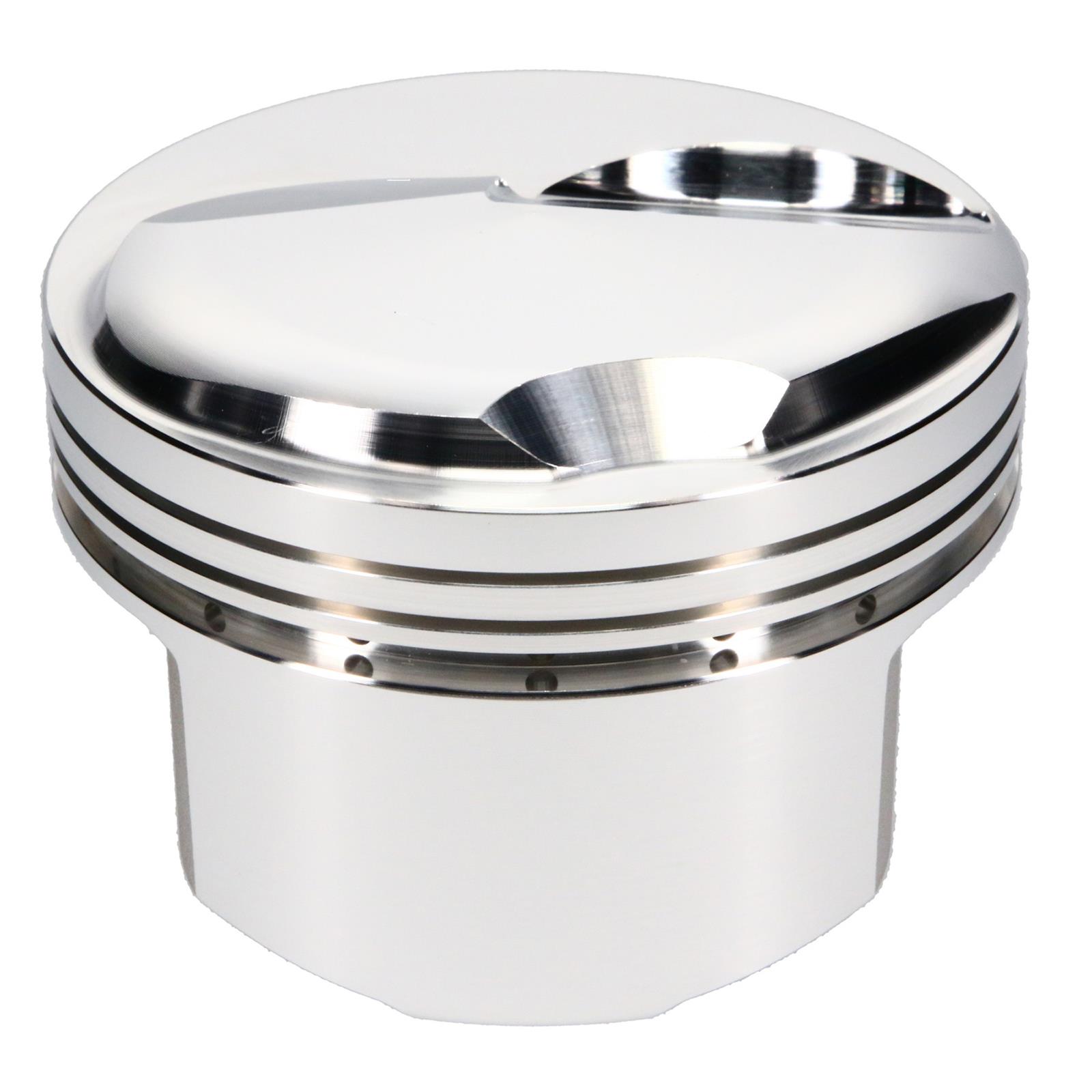

JE Pistons 297254 Pistons, GM 572 DOME REPL

SKU: JEP297254

Pistons

SKU: JEP297254

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Pistons, GM 572 DOME REPL

Pistons

Data: v4.2 - Upd: 2026-10-14 11:03:51

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 297254
Product Attributes - Part Type: Pistons
Product Attributes - UPC: 193564249890
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 4.560 in.
Product Attributes - Bore (mm): 115.824mm
Product Attributes - Stroke: 4.375 in.
Product Attributes - Engine Stroke Type: Stroked
Product Attributes - Actual Engine Displacement: 9.4L/572
Product Attributes - Rod Length: 6.535 in.
Product Attributes - Piston Style: Dome, with single valve relief
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.465 in.
Product Attributes - Piston Head Volume (cc): -30.80cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.990 in.
Product Attributes - Piston Ring Thickness: 0.064 in. x 0.064 in. x 0.188 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.064 in.
Product Attributes - Second Ring Thickness: 0.064 in.
Product Attributes - Oil Ring Thickness: 0.188 in.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 8.
Product Attributes - Notes: Made from 2618 alloy forged aluminum.
