Description

Data: v4.2 - Upd: 2026-10-14 11:04:41

Specifications

Product Attributes - Brand

JE Pistons

Product Attributes - Manufacturer's Part Number

297252R

Product Attributes - Part Type

Pistons

Product Attributes - UPC

193564263889

Product Attributes - Piston Rings Included

No

Product Attributes - Bore (in.)

4.600 in.

Product Attributes - Bore (mm)

116.840mm

Product Attributes - Stroke

4.375 in.

Product Attributes - Engine Stroke Type

Stroked

Product Attributes - Actual Engine Displacement

9.5L/582

Product Attributes - Rod Length

6.535 in.

Product Attributes - Piston Style

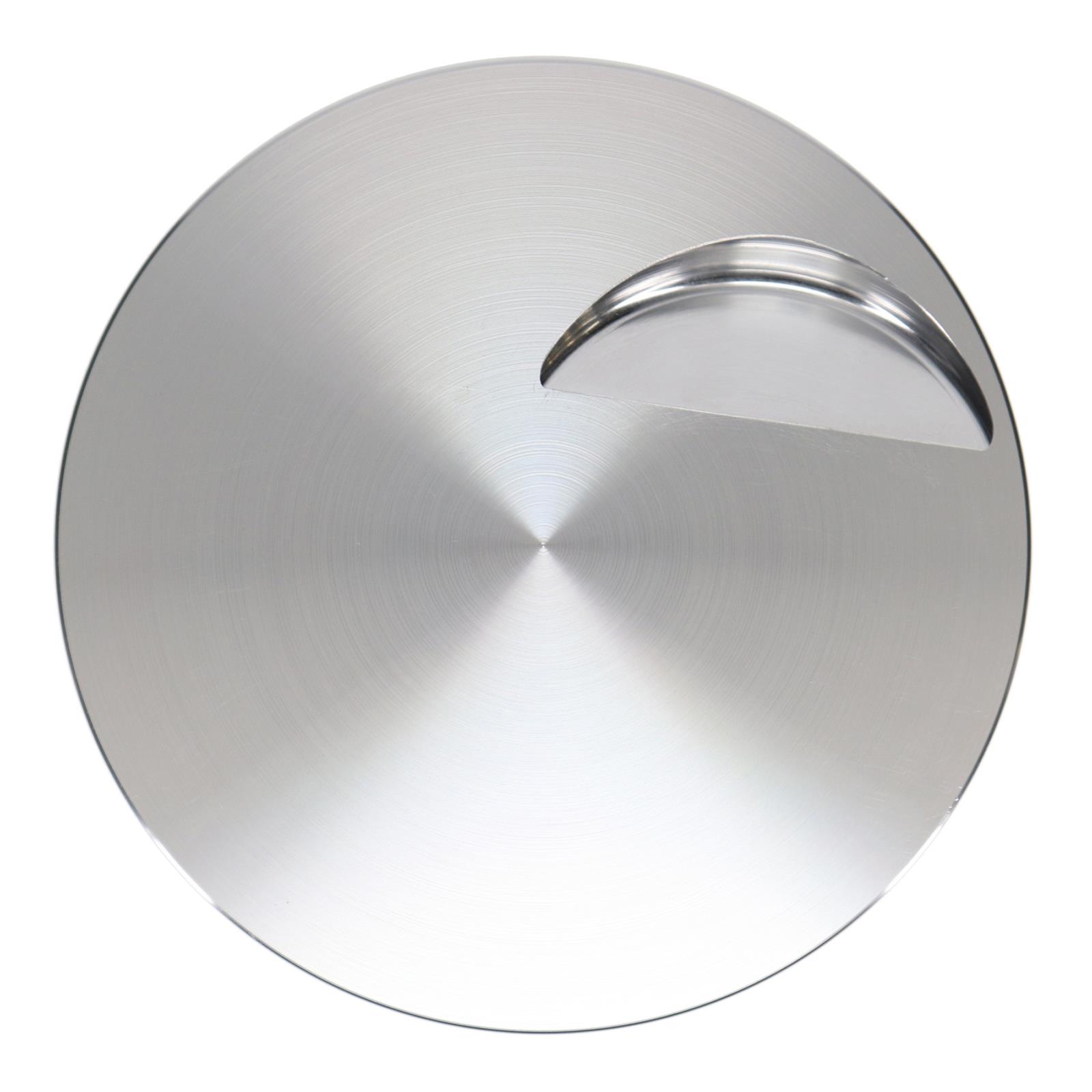

Flat top, with single valve relief

Product Attributes - Piston Material

Forged aluminum

Product Attributes - Compression Height (in.)

1.465 in.

Product Attributes - Piston Head Volume (cc)

+3.00cc

Product Attributes - Wrist Pin Style

Press-fit or floating

Product Attributes - Wrist Pin Retainers Included

Yes

Product Attributes - Wrist Pin Included

Yes

Product Attributes - Pin Diameter (in.)

0.990 in.

Product Attributes - Piston Ring Thickness

0.064 in. x 0.064 in. x 0.188 in.

Product Attributes - File Fit

No

Product Attributes - Gapless

No

Product Attributes - Top Ring Thickness

0.064 in.

Product Attributes - Second Ring Thickness

0.064 in.

Product Attributes - Oil Ring Thickness

0.188 in.

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold individually.

Product Attributes - Notes

For the right side of the engine. Made from 4032 alloy forged aluminum.
