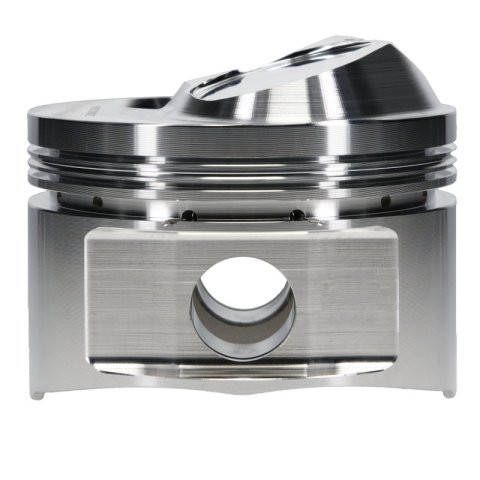

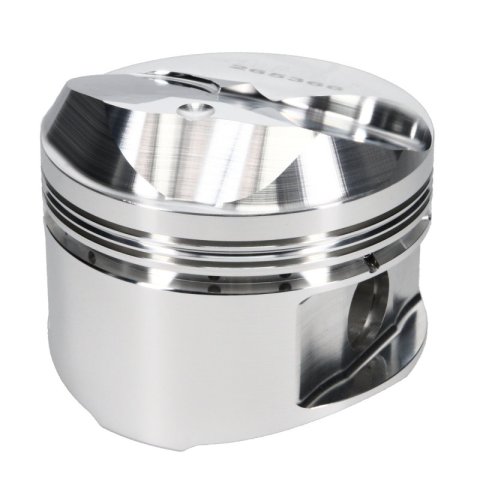

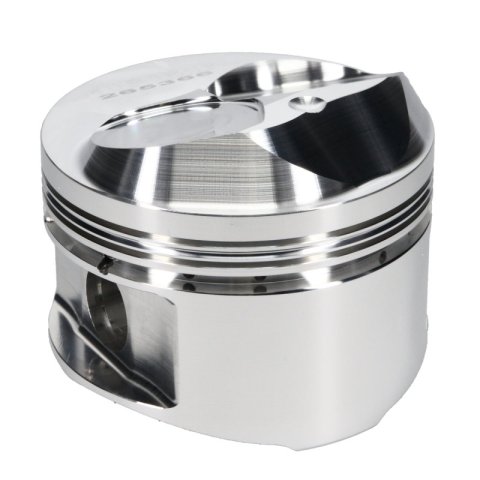

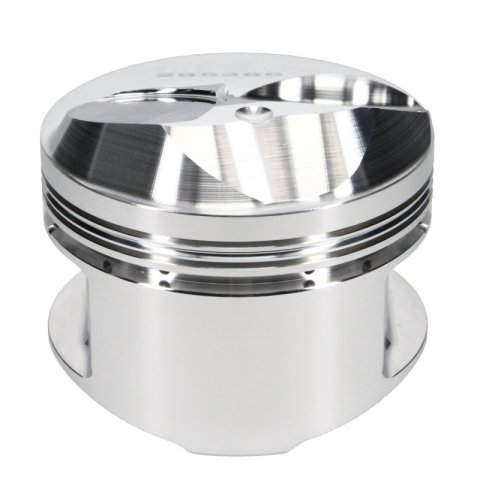

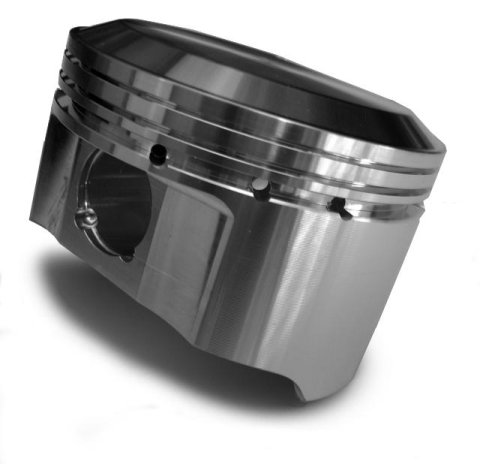

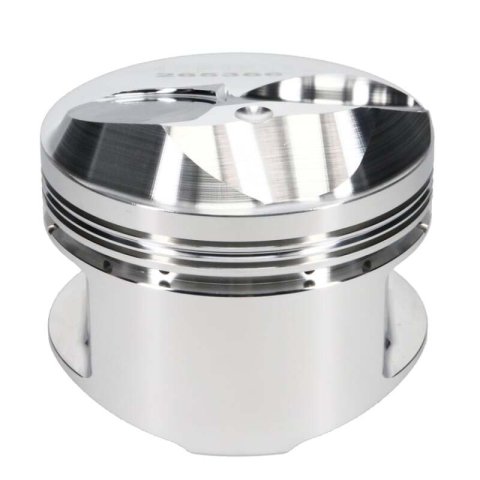

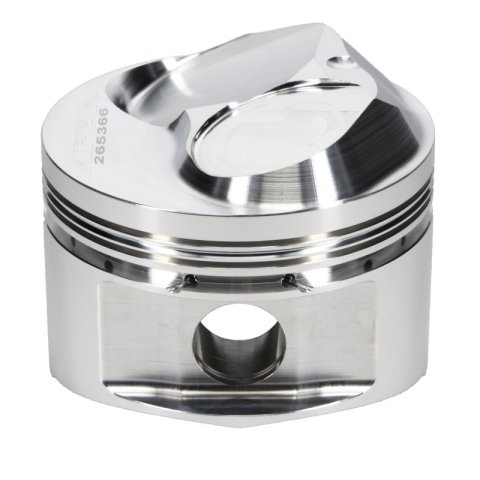

JE Pistons BBC APBA DOME Set of 8 Pistons
JE Pistons BBC APBA DOME Set of 8 Pistons
A$2,206.51
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
JE Auto forged pistons from JE Pistons are the result of over 75 years of industry leading experience extended to our range of premium forged pistons for Chevrolet Big Block 427 Engines. JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equipped with the following custom level features
Application Summary
Chevrolet Big Block 427 APBA
Part Type
Engine Piston Kit
Features
- Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
- Designed specifically for Chevrolet Big Block 427 Engines. To provide optimized performance durability
- Double Pin Oilers: Deliver twice the amount of oil to the wrist pin as compared to the standard single pin oiler.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Includes high-quality wrist pins, and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 262809
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons APBA 427 Pistons
- Product Attributes - UPC
- 193564036520
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.280 in.
- Product Attributes - Bore (mm)
- 108.712mm
- Product Attributes - Stroke
- 3.766 in.
- Product Attributes - Engine Stroke Type
- Stock
- Product Attributes - Actual Engine Displacement
- 7.1L/433
- Product Attributes - Rod Length
- 6.135 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.765 in.
- Product Attributes - Piston Head Volume (cc)
- +50.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.188 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.188 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep262809 |
| SFX Item ID | 4359466 |
| Supplier Item Code | 4359466 |
| Manufacturer SKU | 262809 |
| Manufacturer UPC | N/A |
Compatibility
Chevrolet Big Block 427 APBA
