JE Pistons FSR Tour Series GP 258030R Pistons, Single - SBC TOUR SERS

SKU: JEP258030R

Pistons

JE Pistons

JE Pistons FSR Tour Series GP 258030R Pistons, Single - SBC TOUR SERS

SKU: JEP258030R

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

JE Pistons FSR tour series GP pistons are a lightweight design specifically made for naturally aspirated Circle Track or drag race applications up to 650 hp. Their ring package has been raised for maximum efficiency. These pistons are an aggressive, competition-only design, not intended for street or nitrous use. Their ring grooves are precision-machined for .043, .043, 3.0mm rings and their valve reliefs will accommodate angle-milled aftermarket cylinder heads.

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 11:01:24

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 258030R
Product Attributes - Part Type: Pistons
Product Attributes - Product Line: JE Pistons FSR Tour Series GP Pistons
Product Attributes - UPC: 193564211910
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 4.040 in.
Product Attributes - Bore (mm): 102.616mm
Product Attributes - Stroke: 3.500 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 5.9L/359
Product Attributes - Rod Length: 6.000 in.

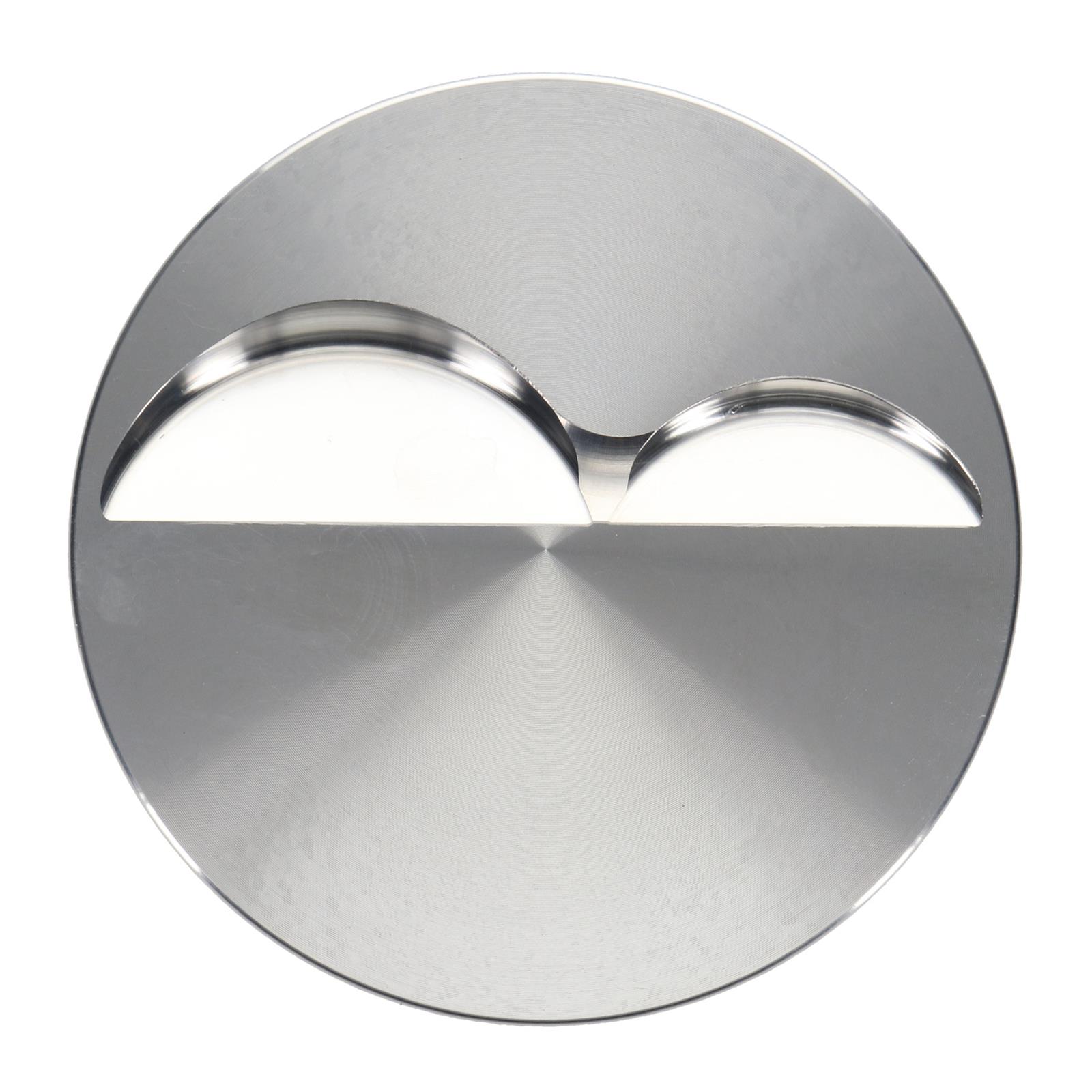

Product Attributes - Piston Style: Flat top, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.250 in.
Product Attributes - Piston Head Volume (cc): +5.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.927 in.
Product Attributes - Piston Ring Thickness: 0.043 in. x 0.043 in. x 3.00mm
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.043 in.
Product Attributes - Second Ring Thickness: 0.043 in.
Product Attributes - Oil Ring Thickness: 3.0mm
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Designed to fit right exhaust valve orientation with 20/30 valve spacing. Also works with 3.480 in. stroke engines.

Reference Information

Brand Name/s	JE Pistons
StreetFX SKU	jep258030R
SFX Item ID	4807597
Supplier Item Code	4807597
Manufacturer SKU	258030R
Manufacturer UPC	193564211910

Compatibility

Application Data

Make	CHEVROLET
Beginning Year	1967
Ending Year	2002
Engine Type	V8
Engine Family	Chevy small block Gen I
Engine Size	5.7L/350
Application Notes	Designed to fit right exhaust valve orientation with 20/30 valve spacing. Also works with 3.480 in. stroke engines.
