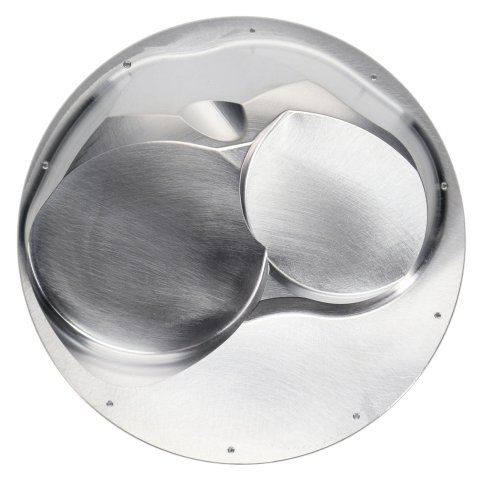

JE Pistons Big Block Open Chamber Dome Top 243331R Pistons, Single - 502BBC OPEN CHAM DOM
JE Pistons Big Block Open Chamber Dome Top 243331R Pistons, Single - 502BBC OPEN CHAM DOM
A$554.40
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
JE Pistons big block open chamber dome top pistons are an excellent choice for drag race applications. Their compression height is figured using a 9.780 in. block height with zero deck clearance. The pistons include a pin, double Spiro locks, and double pin oilers. Their precision CNC-machined ring grooves will accept 1/16, 1/16, 3/16 rings.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 243331R
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons Big Block Open Chamber Dome Top Pistons
- Product Attributes - UPC
- 193564195555
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.600 in.
- Product Attributes - Bore (mm)
- 116.840mm
- Product Attributes - Stroke
- 4.250 in.
- Product Attributes - Engine Stroke Type
- Stock/Stroked
- Product Attributes - Actual Engine Displacement
- 9.3L/565
- Product Attributes - Rod Length
- 6.535 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.120 in.
- Product Attributes - Piston Head Volume (cc)
- +46.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 0.043 in. x 0.043 in. x 0.149 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.043 in.
- Product Attributes - Second Ring Thickness
- 0.043 in.
- Product Attributes - Oil Ring Thickness
- 0.149 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit right exhaust valve orientation. Oil rail support included. Will also work with 632 cubic in. engines with a 4.750 in. stroke and 6.700 in. connecting rod.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep243331R |
| SFX Item ID | 4803174 |
| Supplier Item Code | 4803174 |
| Manufacturer SKU | 243331R |
| Manufacturer UPC | 193564195555 |
| Alternative References | 502BBC |
