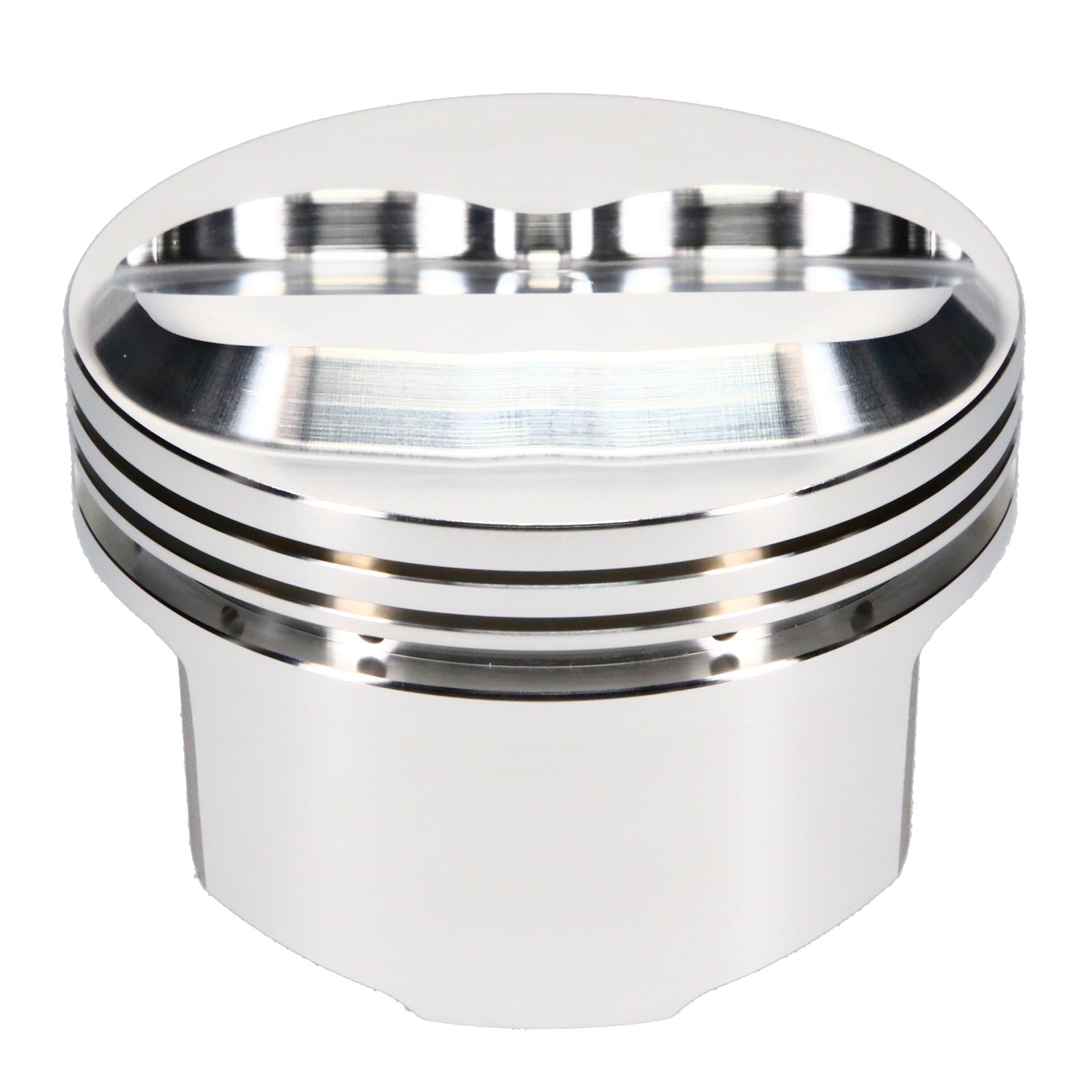

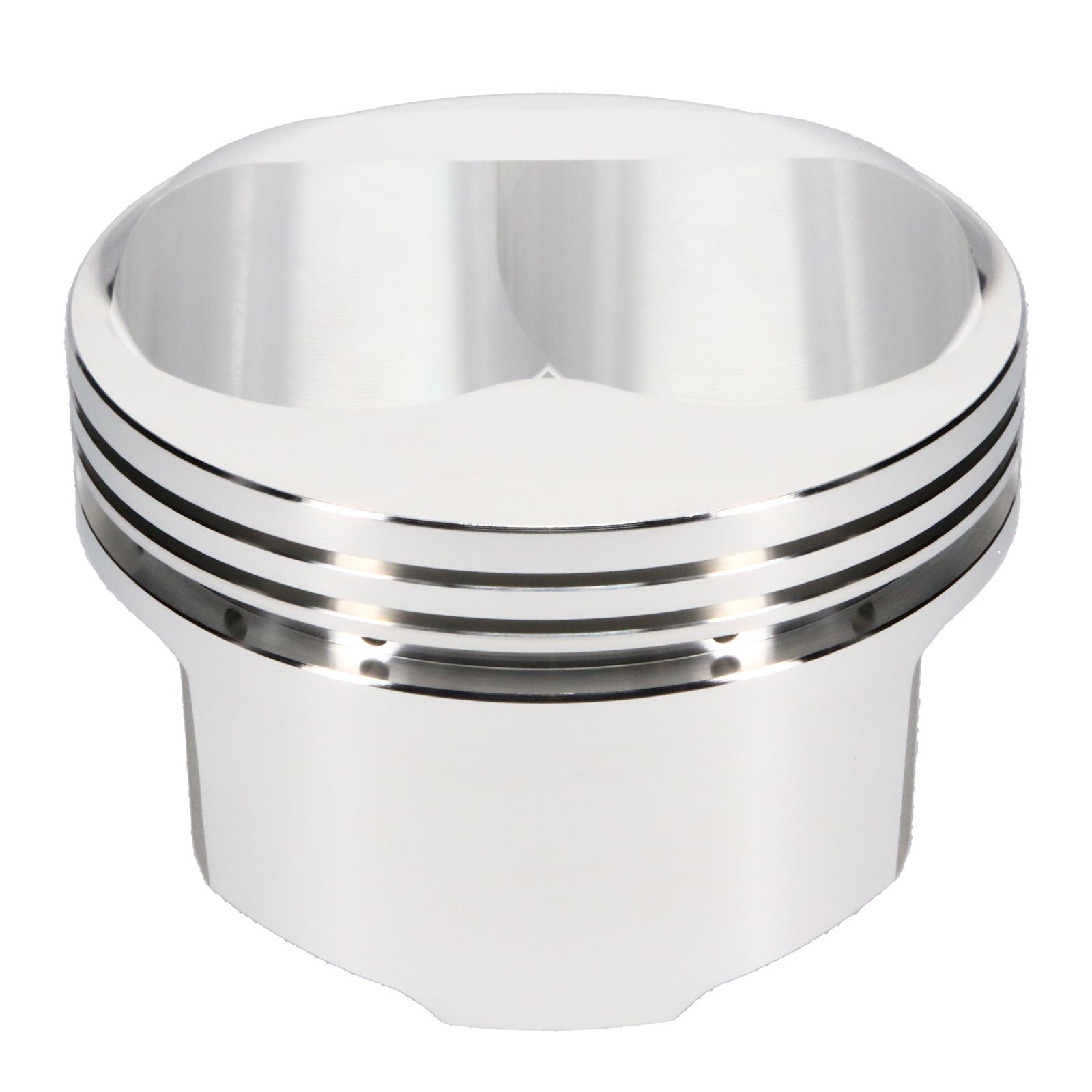

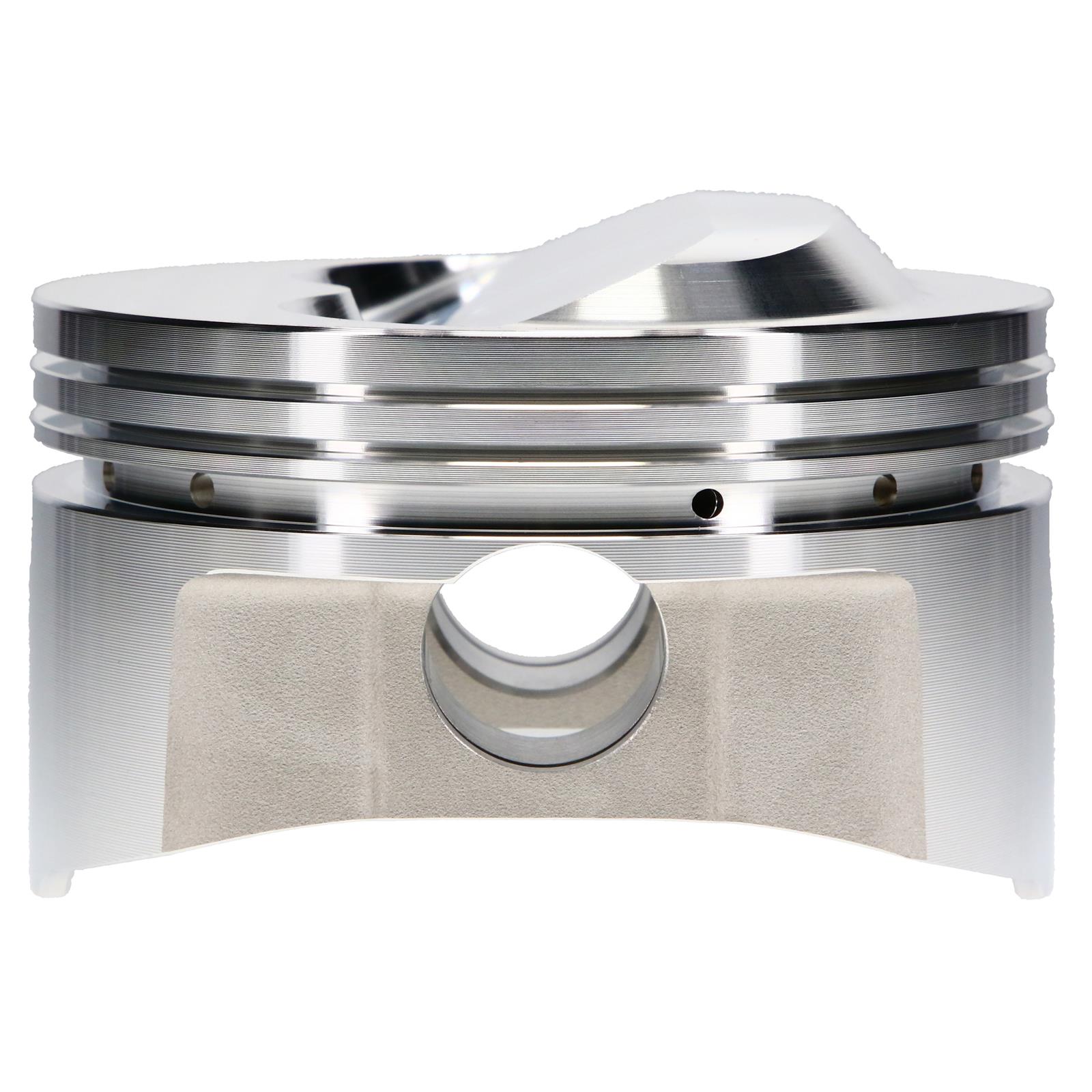

JE Pistons 231309 Pistons, 350 SBC DOME

SKU: JEP231309

Pistons

JE Pistons

JE Pistons 231309 Pistons, 350 SBC DOME

SKU: JEP231309

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Pistons, 350 SBC DOME

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 11:02:48

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 231309
Product Attributes - Part Type: Pistons
Product Attributes - UPC: 193564248862
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 4.000 in.
Product Attributes - Bore (mm): 101.600mm
Product Attributes - Stroke: 3.480 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 5.7L/350
Product Attributes - Rod Length: 5.700 in.
Product Attributes - Piston Style: Dome, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.560 in.
Product Attributes - Piston Head Volume (cc): -11.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.927 in.
Product Attributes - Piston Ring Thickness: 0.064 in. x 0.064 in. x 0.188 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.064 in.
Product Attributes - Second Ring Thickness: 0.064 in.
Product Attributes - Oil Ring Thickness: 0.188 in.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 8.
Product Attributes - Notes: Made from 2618 alloy forged aluminum.
Product Attributes - Special Attention: Designed to work with Chevy 23 degree cylinder heads with 20/30 valve spacing..
