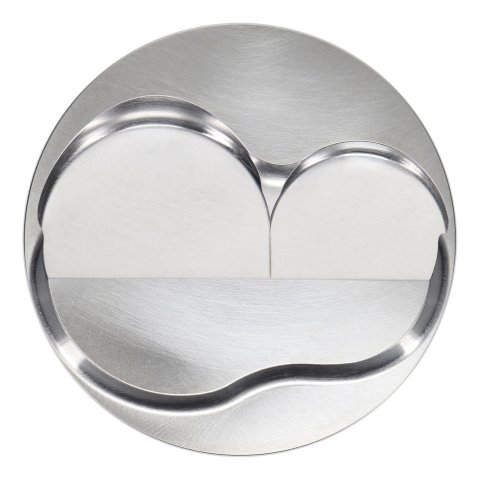

JE Pistons 400 Small Block 18 Degree Dome 213128L Pistons, Single - SBC DOME 18DEG
JE Pistons 400 Small Block 18 Degree Dome 213128L Pistons, Single - SBC DOME 18DEG
A$512.33
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
JE Pistons 400 small block 18 degree dome pistons feature a new dome profile to match a wider variety of 18 degree heads. They're designed to fit your high-compression, high-horsepower, 17/18 degree dirt late model engine. They have smooth flowing domes for optimum flame travel and angle milled head compatibility. New valve reliefs will accommodate larger valves and long-duration, tight lobe separation cams. These pistons utilize dedicated left and right hand forgings and accept 1/16, 1/16, 3/16 rings.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 213128L
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons 400 Small Block 18 Degree Dome Pistons
- Product Attributes - UPC
- 193564192790
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.130 in.
- Product Attributes - Bore (mm)
- 104.902mm
- Product Attributes - Stroke
- 3.500 in.
- Product Attributes - Engine Stroke Type
- De-Stroked
- Product Attributes - Actual Engine Displacement
- 6.1L/375
- Product Attributes - Rod Length
- 6.000 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.250 in.
- Product Attributes - Piston Head Volume (cc)
- +4.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.188 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.188 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit left exhaust valve orientation.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep213128L |
| SFX Item ID | 4800269 |
| Supplier Item Code | 4800269 |
| Manufacturer SKU | 213128L |
| Manufacturer UPC | 193564192790 |
| Alternative References | 18DEG |
