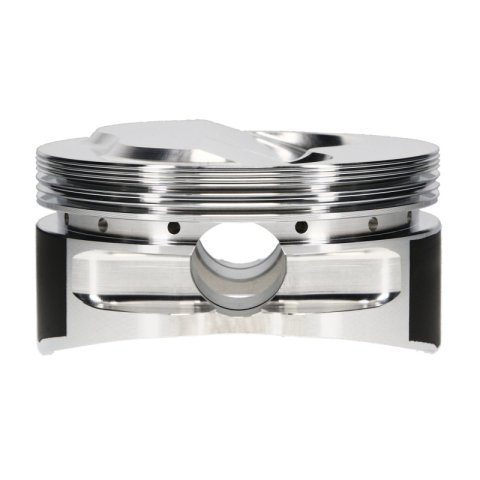

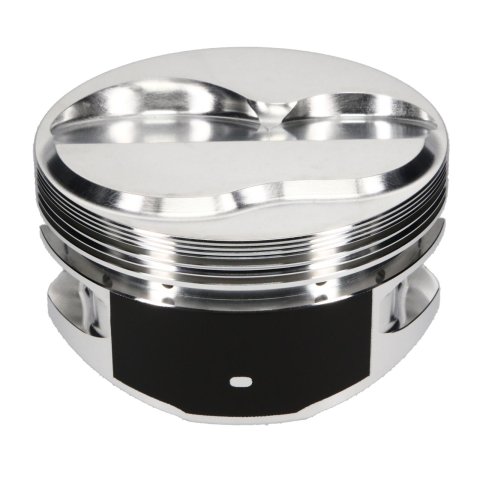

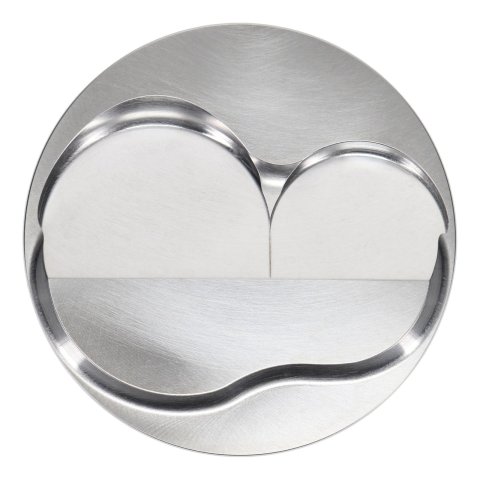

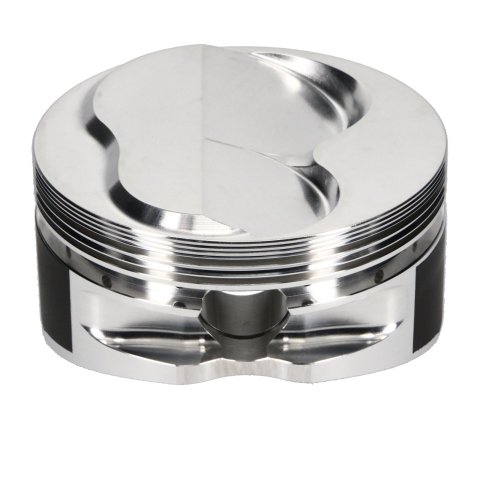

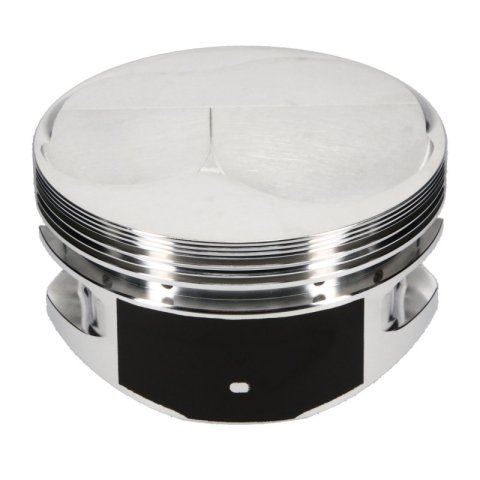

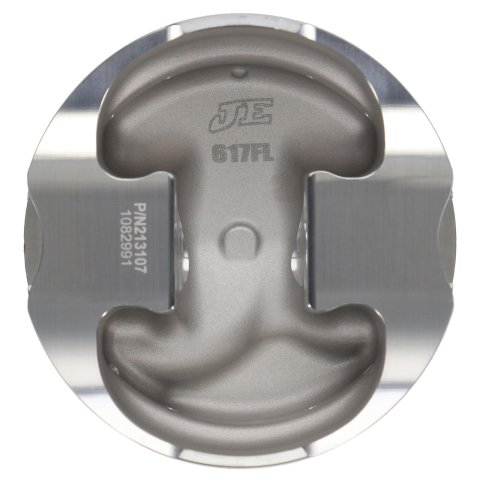

JE Pistons 400 SBC DOME 4.125in Bore 18DEG Single Right Piston
JE Pistons 400 SBC DOME 4.125in Bore 18DEG Single Right Piston
A$397.40
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Application Summary
Chevrolet Small Block 400
Part Type
Engine Piston
Features
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applicationsDesigned specifically for each engine and use application to provide optimized performance durabilityProprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pinSkirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noiseAccumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent powerMade 100% in the USA
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 213127R
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons 400 Small Block 18 Degree Dome Pistons
- Product Attributes - UPC
- 193564192783
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.125 in.
- Product Attributes - Bore (mm)
- 104.775mm
- Product Attributes - Stroke
- 3.500 in.
- Product Attributes - Engine Stroke Type
- De-Stroked
- Product Attributes - Actual Engine Displacement
- 6.1L/374
- Product Attributes - Rod Length
- 6.000 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.250 in.
- Product Attributes - Piston Head Volume (cc)
- +4.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.188 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.188 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit right exhaust valve orientation.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep213127R |
| SFX Item ID | 4361465 |
| Supplier Item Code | 4361465 |
| Manufacturer SKU | 213127R |
| Manufacturer UPC | 193564192783 |
| Alternative References | 4.125in, 18DEG |
Compatibility
Chevrolet Small Block 400
