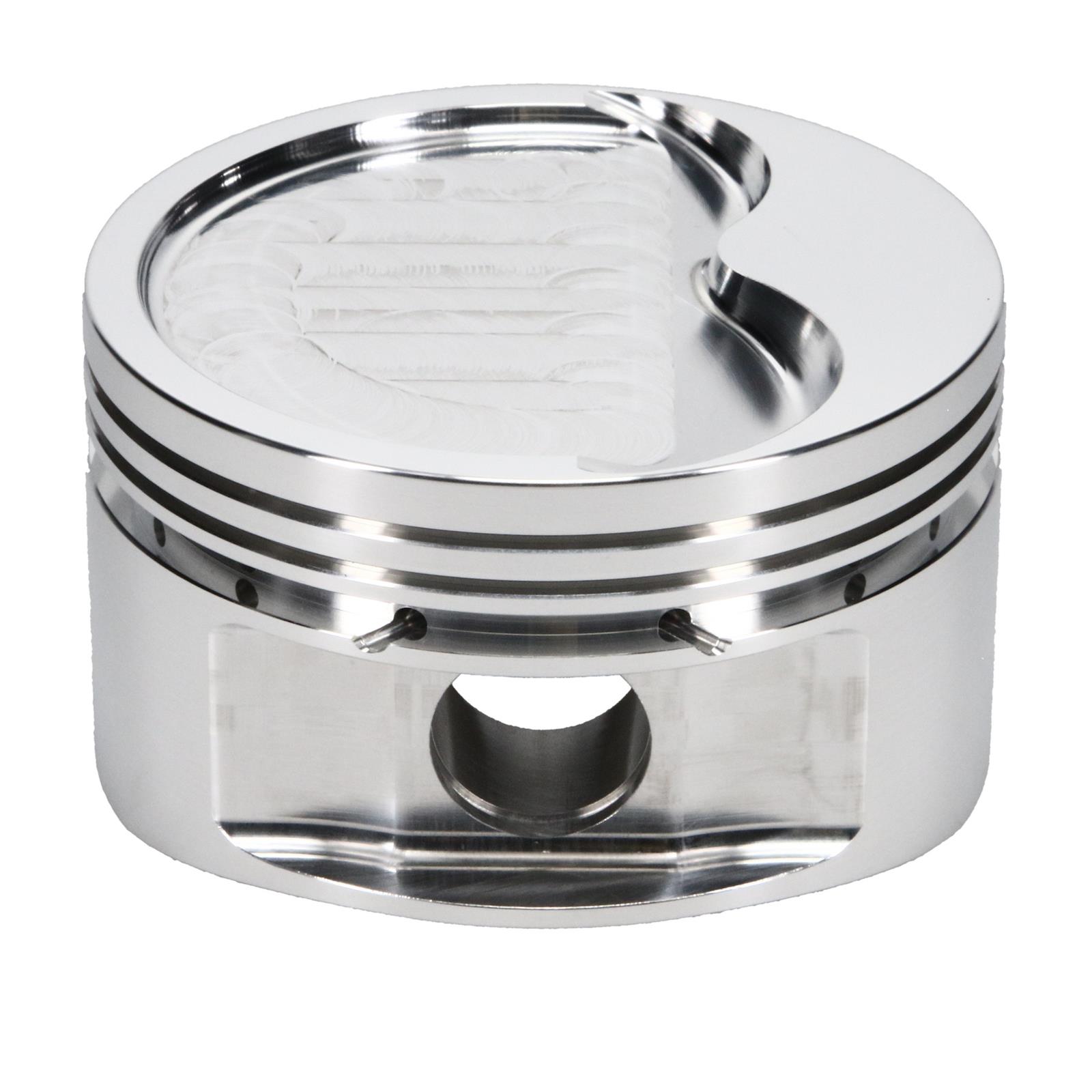

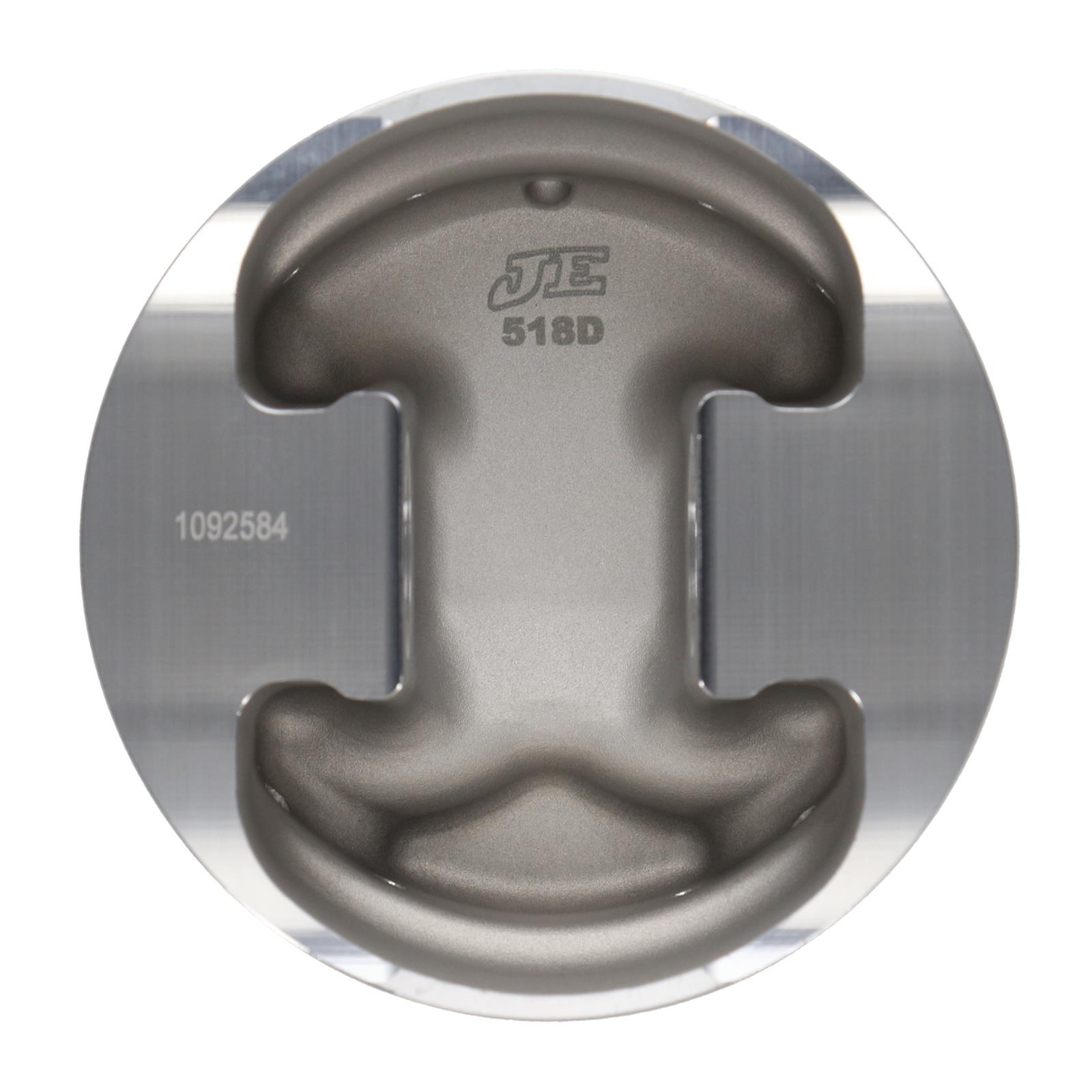

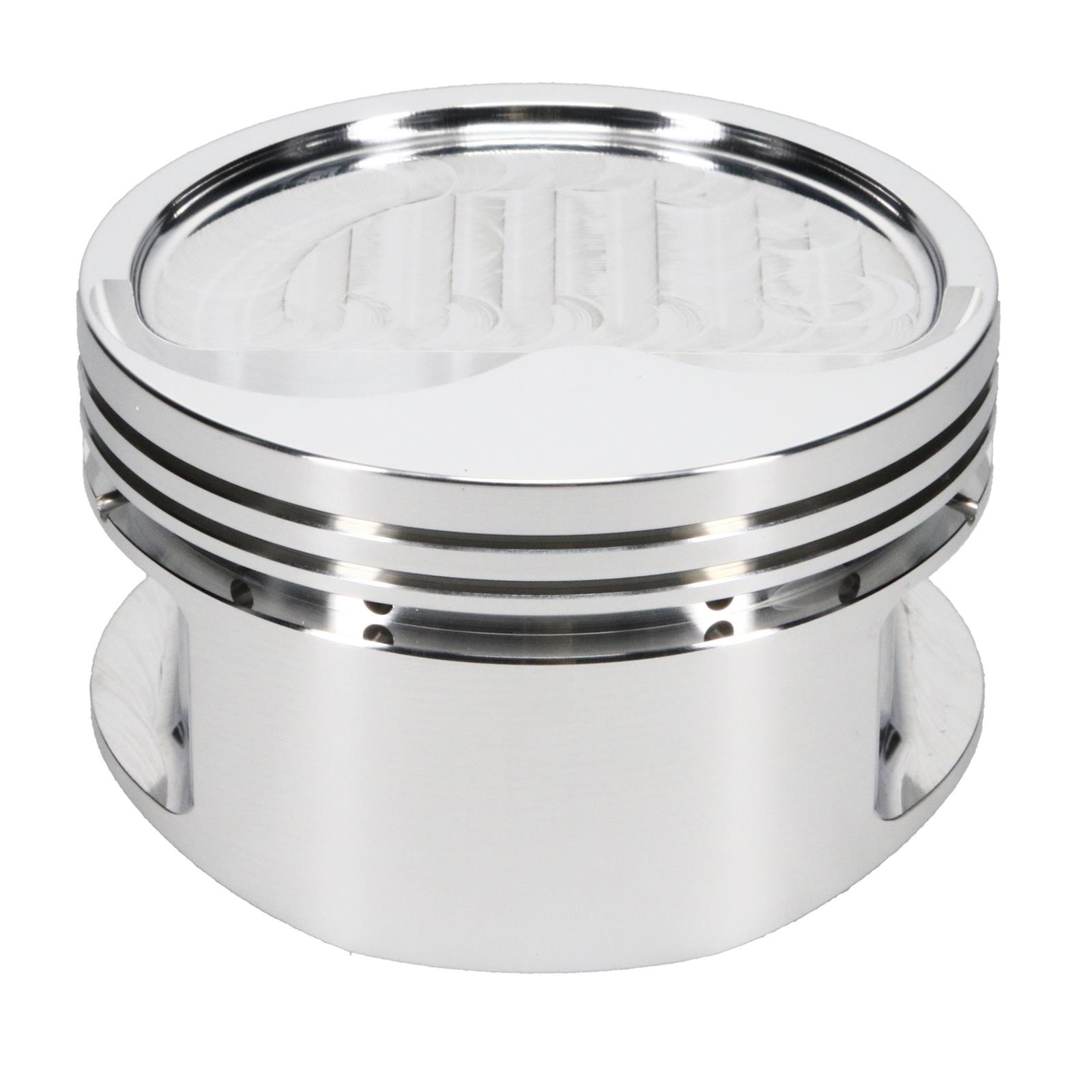

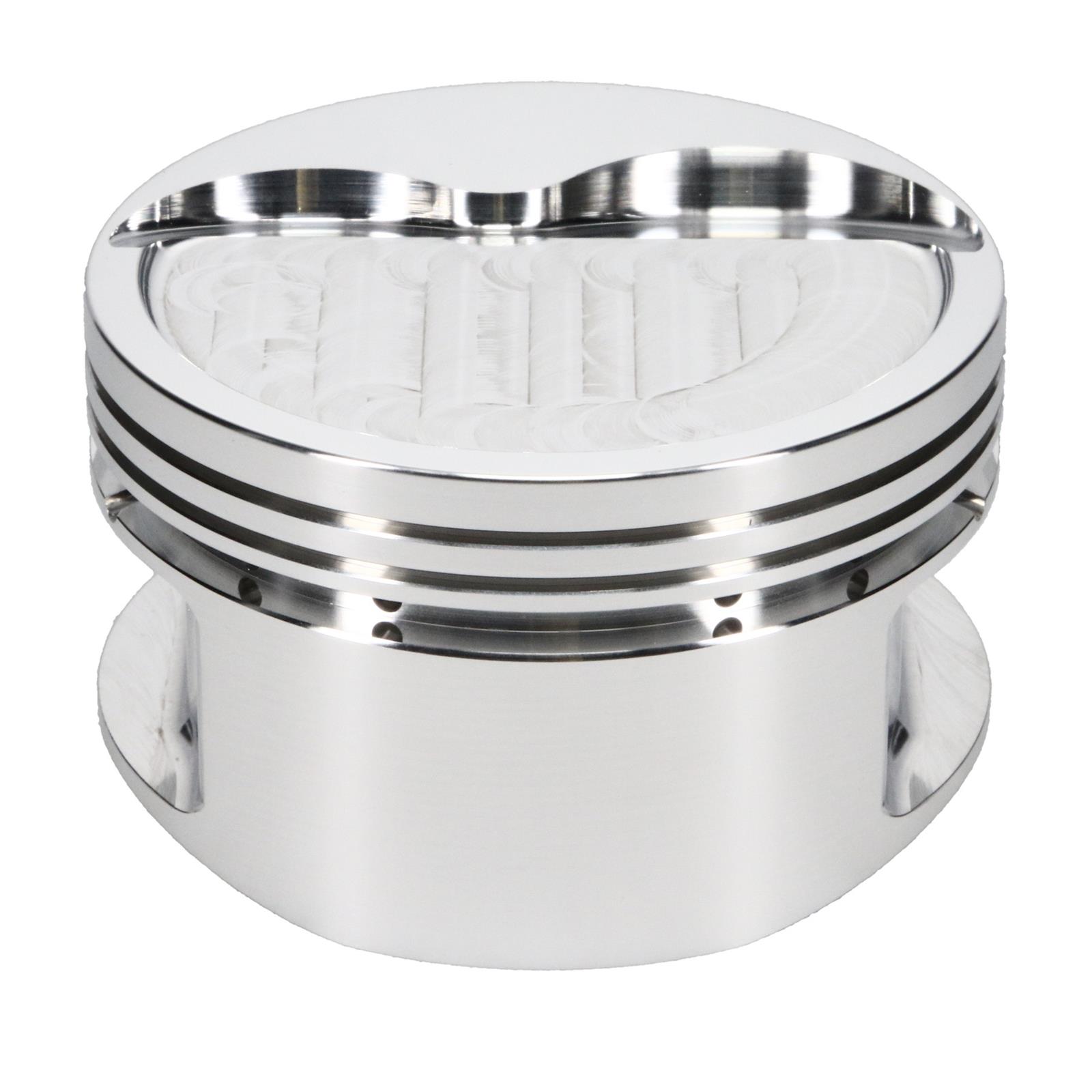

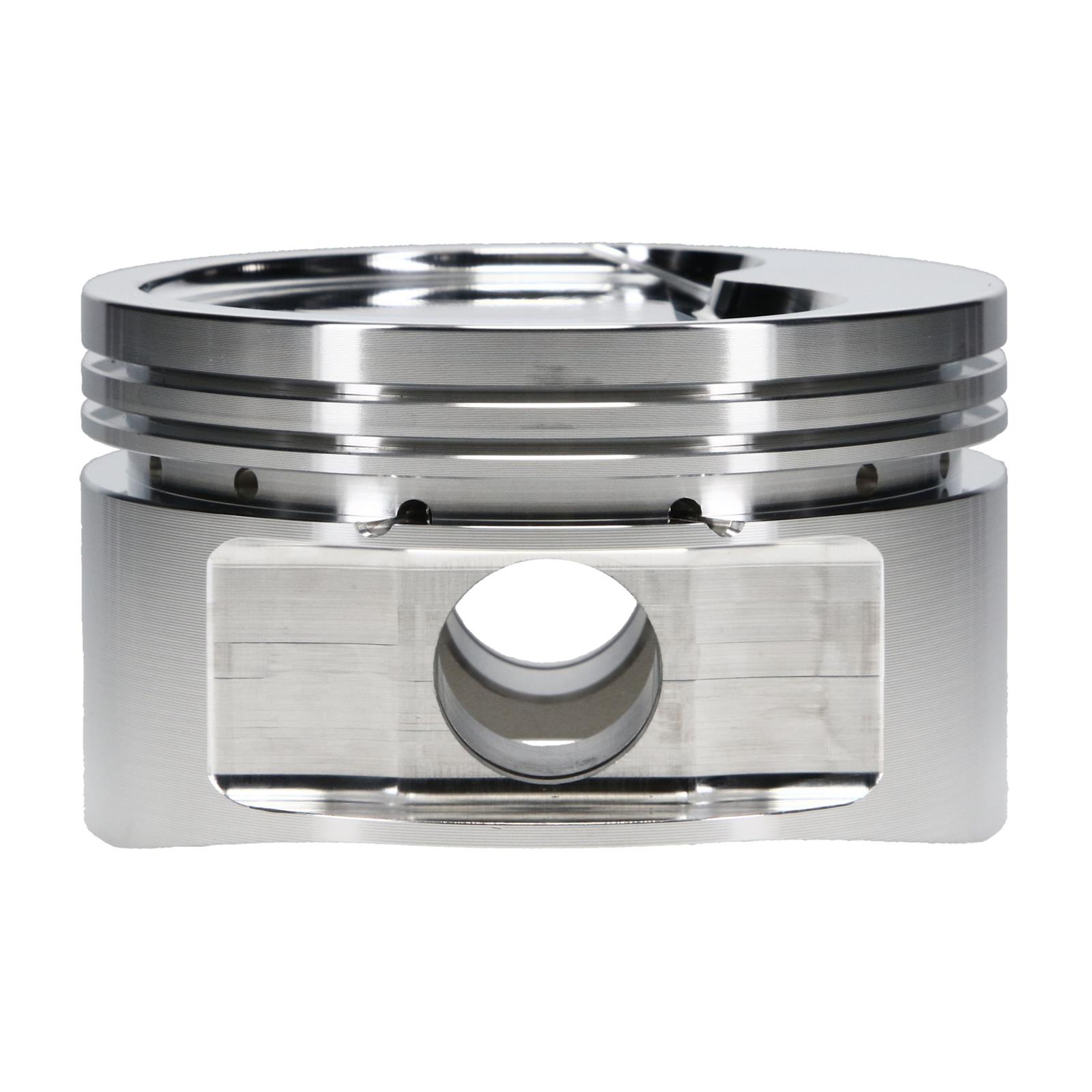

JE Pistons Small Block Chrysler Inverted Dome Top 207420R Pistons, Single - SB CHRY INV DOME

SKU: JEP207420R

Pistons
JE Pistons Small Block Chrysler Inverted Dome Top 207420R Pistons, Single - SB CHRY INV DOME
JE Pistons

JE Pistons

JE Pistons Small Block Chrysler Inverted Dome Top 207420R Pistons, Single - SB CHRY INV DOME

SKU: JEP207420R

Pistons
A$512.33
BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

JE Pistons small block Chrysler inverted dome top pistons are designed for use in high performance street/strip machines and are compatible with turbocharged, nitrous, and forced induction systems. Machined to accommodate large valve and long-duration, tight lobe separation cams, these pistons are machined for 1/16, 1/16, 3/16 rings and .927 in. diameter wrist pins.

Part Type

Pistons

Data: v4.2 - Upd: 2026-10-14 11:00:14

Specifications

Product Attributes - Brand
JE Pistons
Product Attributes - Manufacturer's Part Number
207420R
Product Attributes - Part Type
Pistons
Product Attributes - Product Line
JE Pistons Small Block Chrysler Inverted Dome Top Pistons
Product Attributes - UPC
193564211002
Product Attributes - Piston Rings Included
No
Product Attributes - Bore (in.)
4.030 in.
Product Attributes - Bore (mm)
102.362mm
Product Attributes - Stroke
4.000 in.
Product Attributes - Engine Stroke Type
Stroked
Product Attributes - Actual Engine Displacement
6.7L/408
Product Attributes - Rod Length
6.125 in.
Product Attributes - Piston Style
Dish, with two valve reliefs
Product Attributes - Piston Material
Forged aluminum
Product Attributes - Compression Height (in.)
1.460 in.
Product Attributes - Piston Head Volume (cc)
-20.00cc
Product Attributes - Wrist Pin Style
Press-fit or floating
Product Attributes - Wrist Pin Retainers Included
Yes
Product Attributes - Wrist Pin Included
Yes
Product Attributes - Pin Diameter (in.)
0.927 in.
Product Attributes - Piston Ring Thickness
0.064 in. x 0.064 in. x 0.188 in.
Product Attributes - File Fit
No
Product Attributes - Gapless
No
Product Attributes - Top Ring Thickness
0.064 in.
Product Attributes - Second Ring Thickness
0.064 in.
Product Attributes - Oil Ring Thickness
0.188 in.
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Designed to fit right exhaust valve orientation.

Reference Information

Brand Name/s JE Pistons
StreetFX SKU jep207420R
SFX Item ID 4807702
Supplier Item Code 4807702
Manufacturer SKU 207420R
Manufacturer UPC 193564211002

Compatibility

Application Data
  • MakeDODGE
    Beginning Year1971
    Ending Year1991
    Engine TypeV8
    Engine FamilyMopar small block LA
    Engine Size5.9L/360
    Application NotesDesigned to fit right exhaust valve orientation.
  • MakeDODGE
    Beginning Year1992
    Ending Year2003
    Engine TypeV8
    Engine FamilyMopar small block Magnum
    Engine Size5.9L/360
    Application NotesDesigned to fit right exhaust valve orientation.
  • MakeJEEP
    Beginning Year1998
    Ending Year1998
    Engine TypeV8
    Engine FamilyMopar small block Magnum
    Engine Size5.9L/360
    Application NotesDesigned to fit right exhaust valve orientation.
  • MakePLYMOUTH
    Beginning Year1971
    Ending Year1983
    Engine TypeV8
    Engine FamilyMopar small block LA
    Engine Size5.9L/360
    Application NotesDesigned to fit right exhaust valve orientation.
