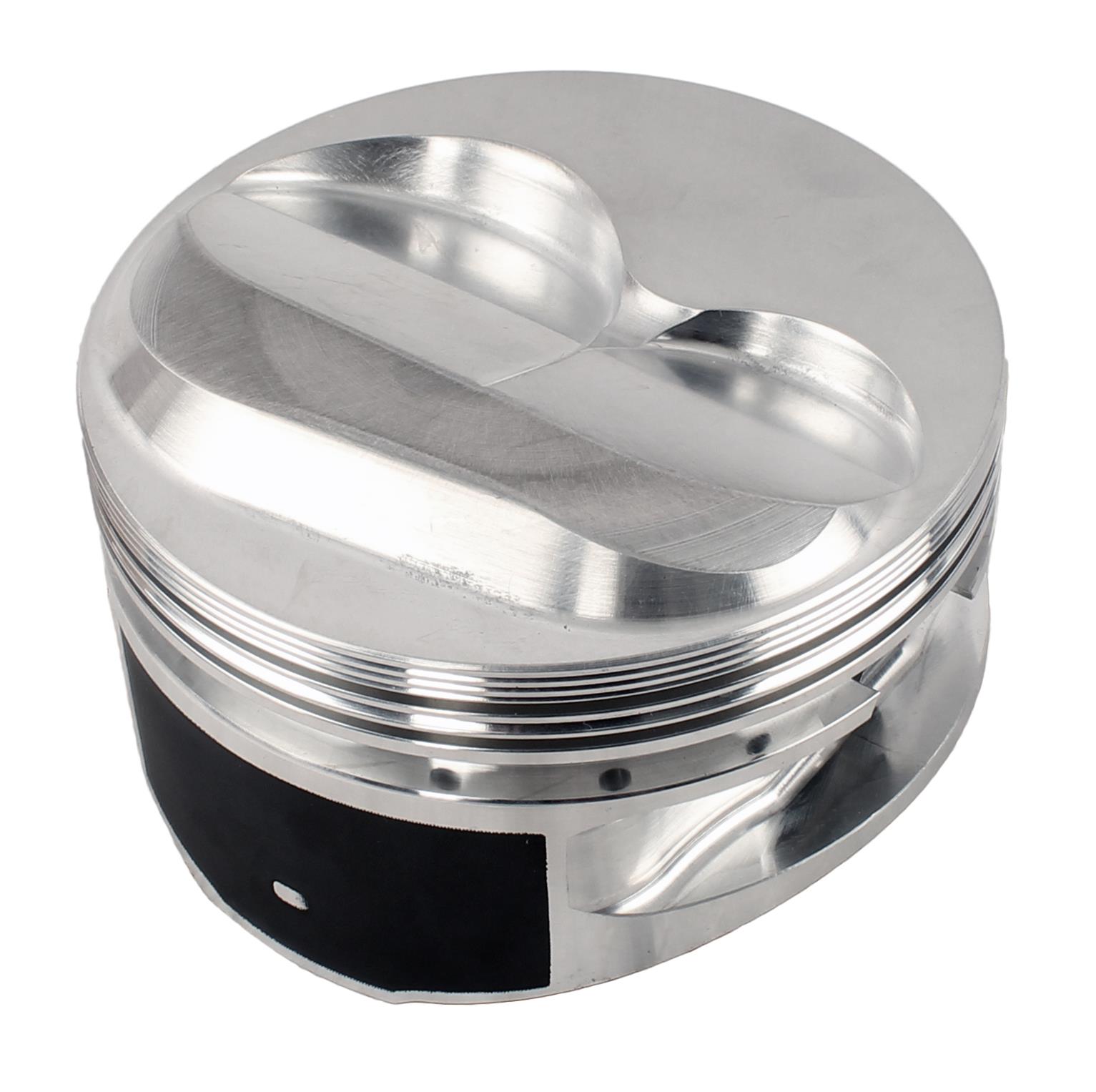

JE Pistons 350/400 Small Block Dome Top 182042L Piston, 23 Degree, Forged, Dome, 2-Valve Reliefs, 4.165 in. Bore, 3.875 in. Stroke, 6.000 in. Rod, 1.062 in. Compression, Chevy, Left, Each
JE Pistons 350/400 Small Block Dome Top 182042L Piston, 23 Degree, Forged, Dome, 2-Valve Reliefs, 4.165 in. Bore, 3.875 in. Stroke, 6.000 in. Rod, 1.062 in. Compression, Chevy, Left, Each
A$505.15
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
JE Pistons 350/400 small block dome top pistons are high-compression pistons that are compatible with most aftermarket 23 degree heads and are ideal for drag race and Circle Track applications. Valve reliefs will accommodate oversized valves and long-duration, tight lobe separation cams. Precision CNC ring grooves are designed for 1/16, 1/16, 3/16 rings. However, these will not fit JE Pistons Pro Topline or Brodix cylinder heads.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 182042L
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons 350/400 Small Block Dome Top Pistons
- Product Attributes - UPC
- 193564191373
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.165 in.
- Product Attributes - Bore (mm)
- 105.791mm
- Product Attributes - Stroke
- 3.875 in.
- Product Attributes - Engine Stroke Type
- Stroked
- Product Attributes - Rod Length
- 6.000 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.062 in.
- Product Attributes - Piston Head Volume (cc)
- -8.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- No
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.927 in.
- Product Attributes - Piston Ring Thickness
- 1/16 in. x 1/16 in. x 3/16 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Oil rail support included.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep182042L |
| SFX Item ID | 4802616 |
| Supplier Item Code | 4802616 |
| Manufacturer SKU | 182042L |
| Manufacturer UPC | 193564191373 |
| Alternative References | 2-Valve |
