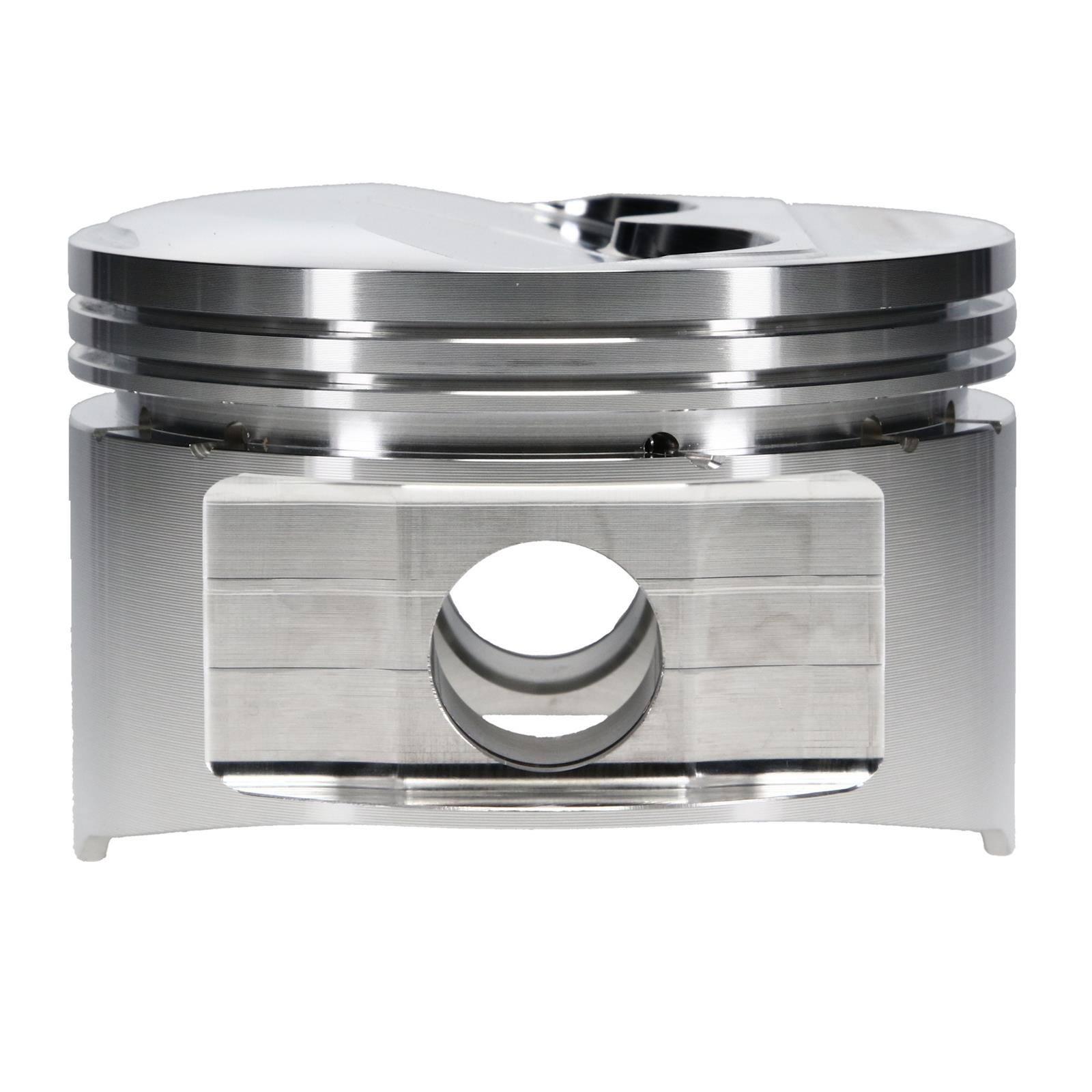

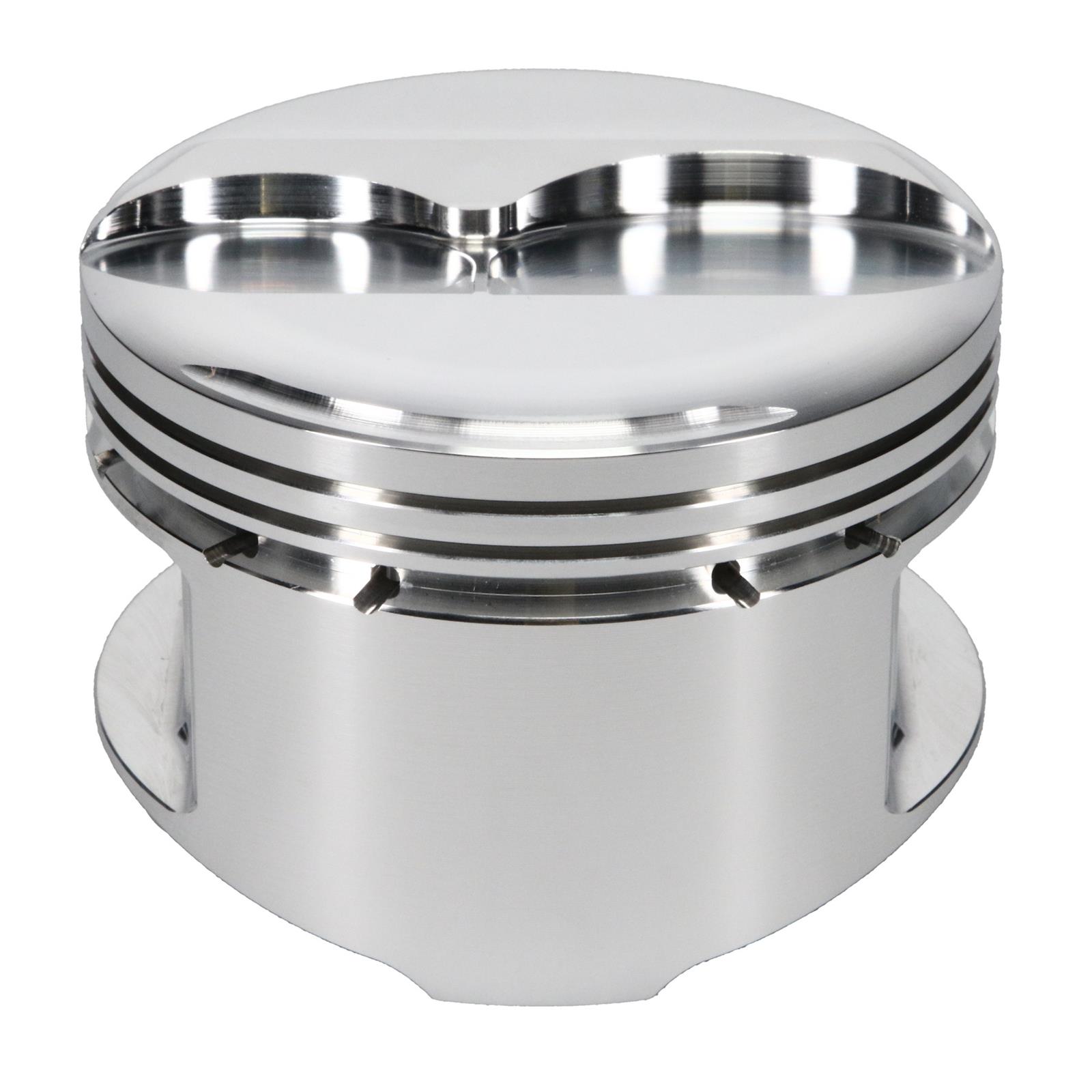

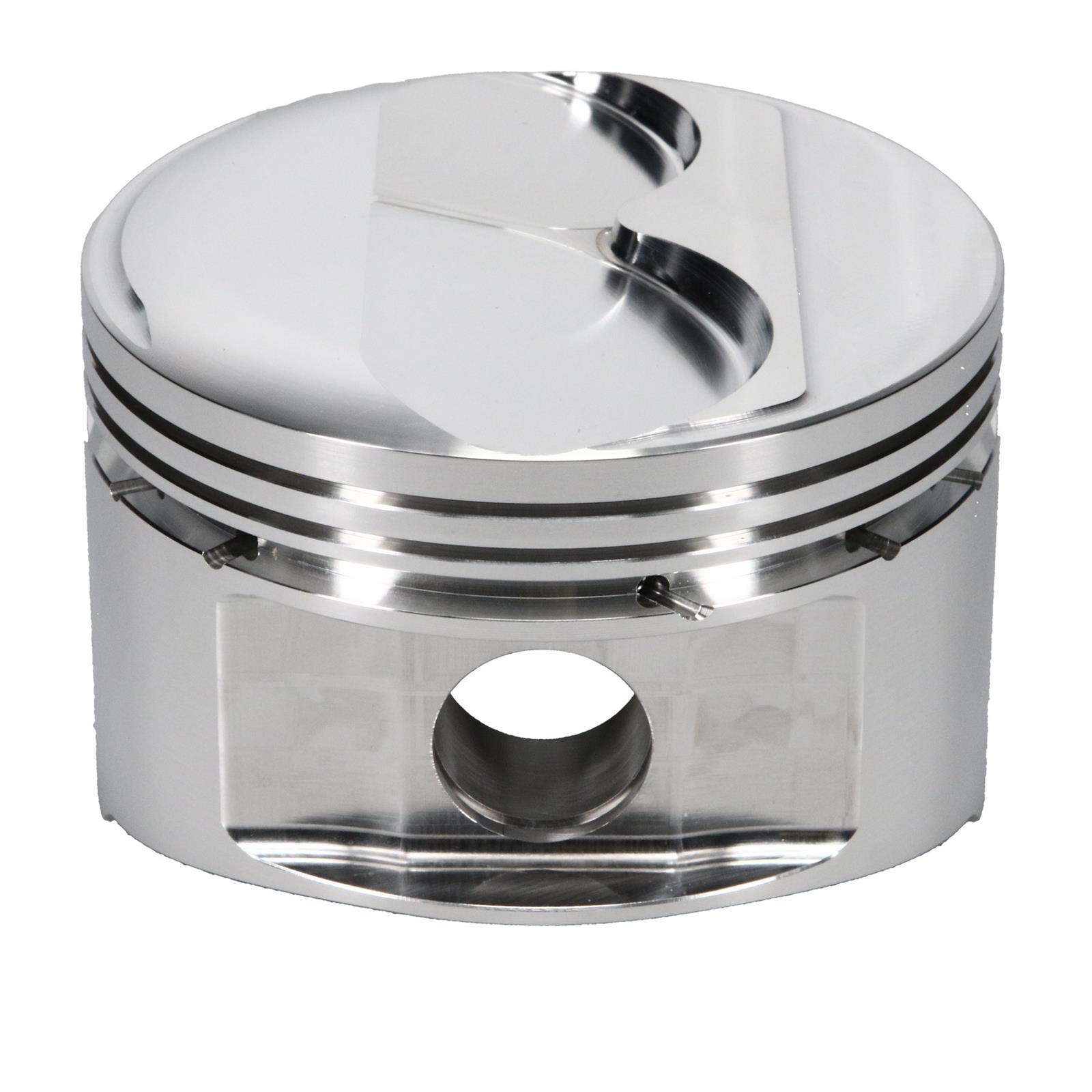

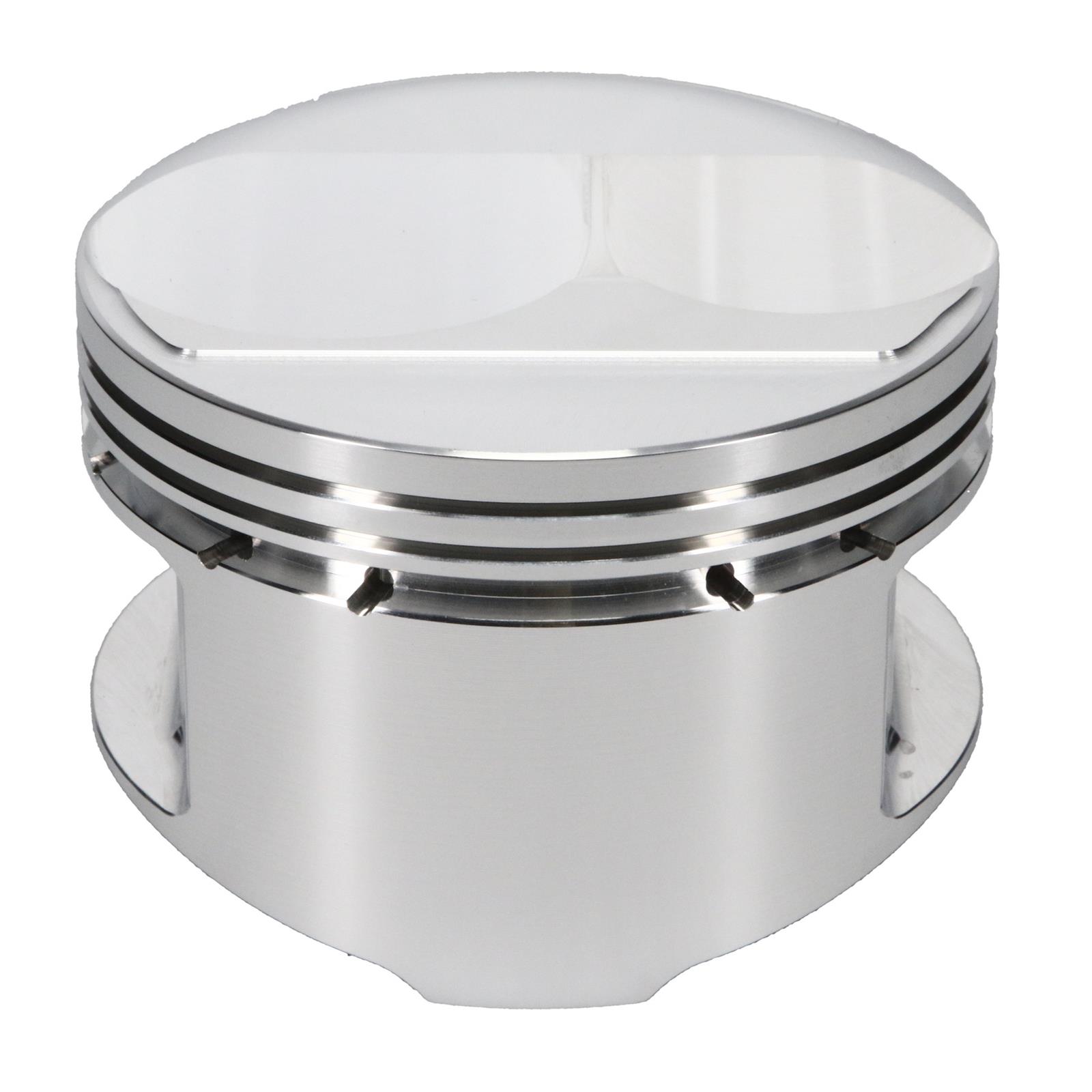

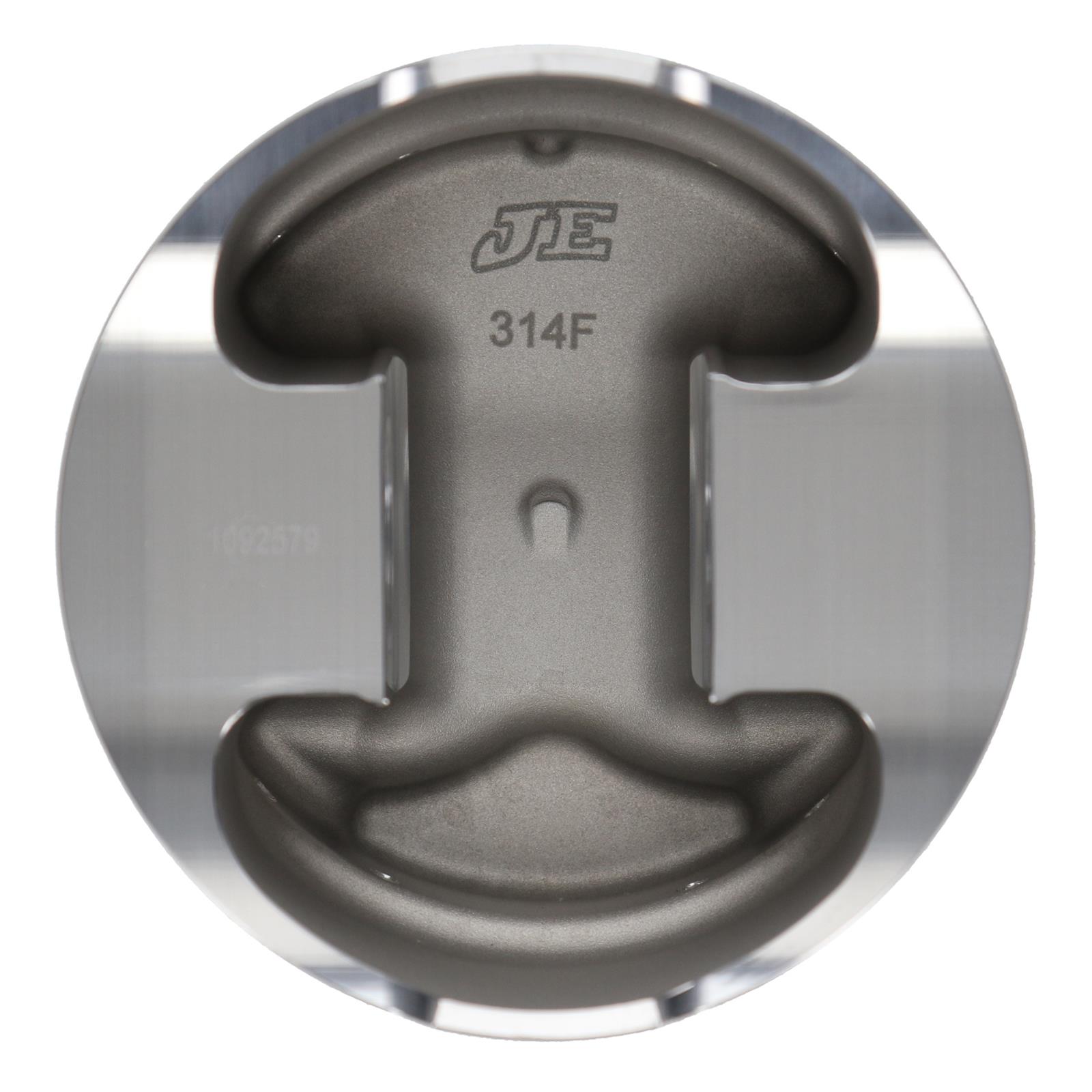

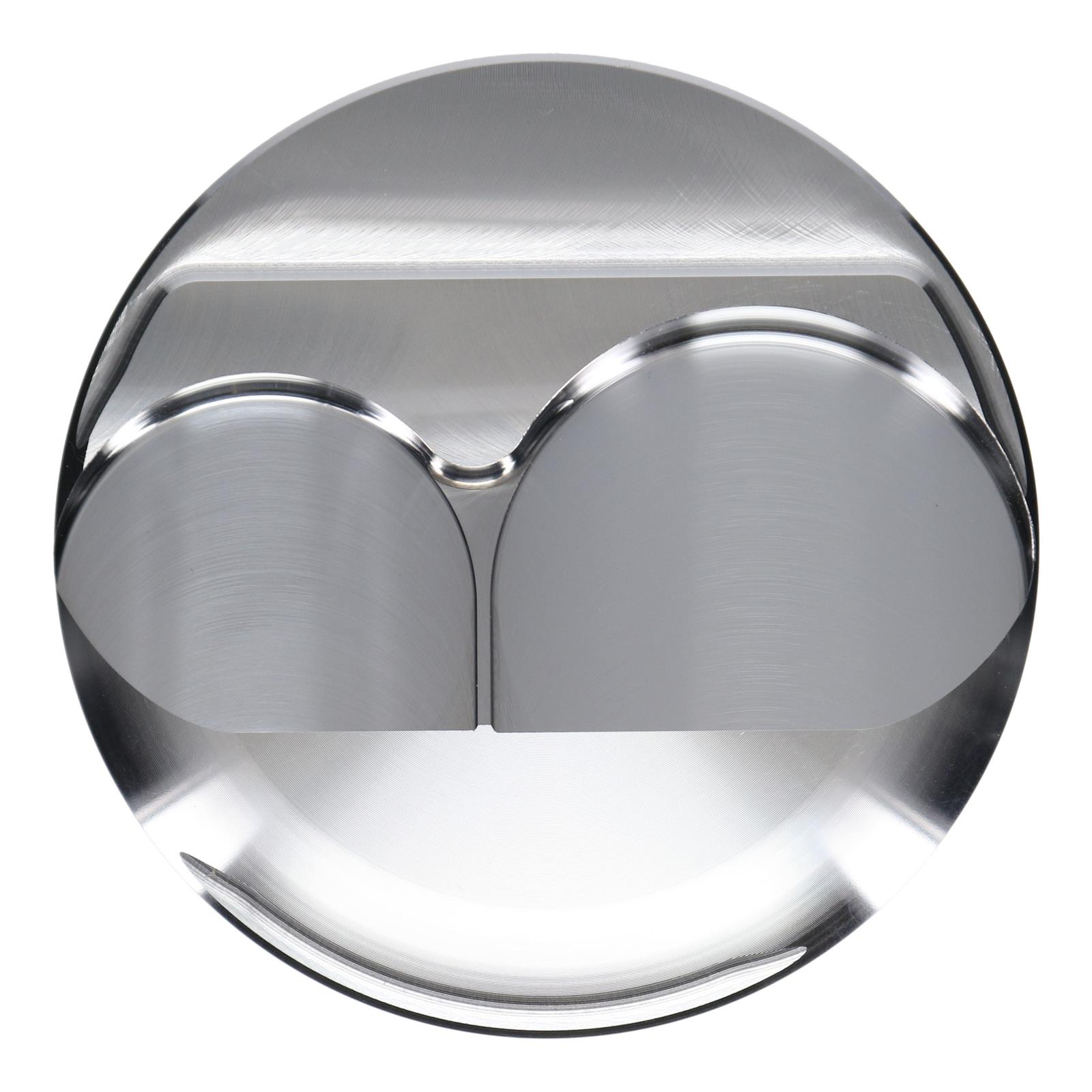

JE Pistons 427/428 FE Dome Top 168741R Piston, Bore 4.250 in., Bore 107.950mm, Stroked, Dome, Forged Aluminum, Right Exhaust Valve Orientation, Ford, Each
JE Pistons 427/428 FE Dome Top 168741R Piston, Bore 4.250 in., Bore 107.950mm, Stroked, Dome, Forged Aluminum, Right Exhaust Valve Orientation, Ford, Each
A$512.33
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
JE Pistons 427/428 FE dome top pistons are specially designed for OEM blocks and heads, and are for use with the 427 or 428 crank. Designed with a minor +.017 inch overbore for cast iron blocks, these pistons use a 4.250 inch ring set with 1/16, 1/16, 3/16 rings. The compression ratios are figured for 10.150 block height. Larger bore sizes available as customs, please contact manufacturer for more details.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 168741R
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons 427/428 FE Dome Top Pistons
- Product Attributes - UPC
- 193564193933
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.250 in.
- Product Attributes - Bore (mm)
- 107.950mm
- Product Attributes - Stroke
- 3.980 in.
- Product Attributes - Engine Stroke Type
- Stroked
- Product Attributes - Actual Engine Displacement
- 7.4L/451
- Product Attributes - Rod Length
- 6.490 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.670 in.
- Product Attributes - Piston Head Volume (cc)
- +2.50cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.975 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.188 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.188 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit right exhaust valve orientation. Designed for use with 428 crankshaft.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep168741R |
| SFX Item ID | 4801951 |
| Supplier Item Code | 4801951 |
| Manufacturer SKU | 168741R |
| Manufacturer UPC | 193564193933 |
| Alternative References | 107.950mm |
