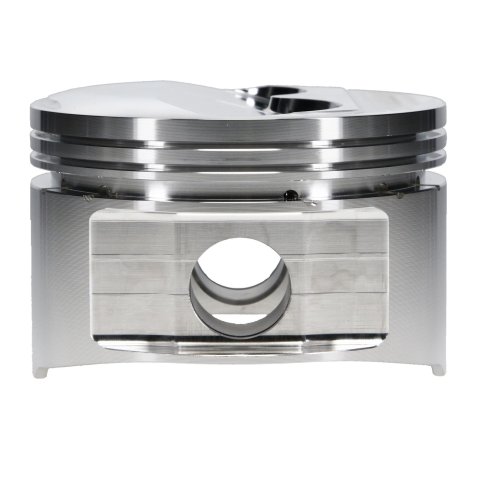

JE Pistons 427/428 FE Dome Top 168741L Piston, Bore 4.250 in., Bore 107.950mm, Stroked, Dome, Forged Aluminum, Left Exhaust Valve Orientation, Ford, Each
JE Pistons 427/428 FE Dome Top 168741L Piston, Bore 4.250 in., Bore 107.950mm, Stroked, Dome, Forged Aluminum, Left Exhaust Valve Orientation, Ford, Each
A$512.33
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
JE Pistons 427/428 FE dome top pistons are specially designed for OEM blocks and heads, and are for use with the 427 or 428 crank. Designed with a minor +.017 inch overbore for cast iron blocks, these pistons use a 4.250 inch ring set with 1/16, 1/16, 3/16 rings. The compression ratios are figured for 10.150 block height. Larger bore sizes available as customs, please contact manufacturer for more details.
Part Type
Pistons
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 168741L
- Product Attributes - Part Type
- Pistons
- Product Attributes - Product Line
- JE Pistons 427/428 FE Dome Top Pistons
- Product Attributes - UPC
- 193564193926
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.250 in.
- Product Attributes - Bore (mm)
- 107.950mm
- Product Attributes - Stroke
- 3.980 in.
- Product Attributes - Engine Stroke Type
- Stroked
- Product Attributes - Actual Engine Displacement
- 7.4L/451
- Product Attributes - Rod Length
- 6.490 in.
- Product Attributes - Piston Style
- Dome, with two valve reliefs
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.670 in.
- Product Attributes - Piston Head Volume (cc)
- +2.50cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.975 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.188 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.188 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to fit left exhaust valve orientation. Designed for use with 428 crankshaft.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep168741L |
| SFX Item ID | 4803817 |
| Supplier Item Code | 4803817 |
| Manufacturer SKU | 168741L |
| Manufacturer UPC | 193564193926 |
| Alternative References | 107.950mm |
