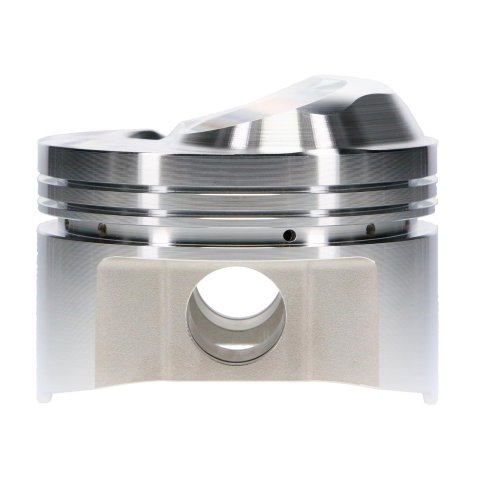

JE Pistons 152156 Pistons, 454 BBC DOME 33cc
JE Pistons 152156 Pistons, 454 BBC DOME 33cc
A$1,521.06
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
SRP forged pistons are born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. SRP Pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. SRP pistons are made 100% in the USA. Available for Chevrolet Big Block Engines Pistons include
Part Type
Engine Piston Kit
Features
- Designed specifically for Chevrolet Big Block Engines to provide optimized performance durability
- Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion, SRP Pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics.
- Includes high-quality wrist pins, forced wrist pin oiling and locks
- Made 100% in the USA
- Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Specifications
- Product Attributes - Brand
- JE Pistons
- Product Attributes - Manufacturer's Part Number
- 152156
- Product Attributes - Part Type
- Pistons
- Product Attributes - UPC
- 193564250773
- Product Attributes - Piston Rings Included
- No
- Product Attributes - Bore (in.)
- 4.560 in.
- Product Attributes - Bore (mm)
- 115.824mm
- Product Attributes - Stroke
- 4.250 in.
- Product Attributes - Engine Stroke Type
- Stroked
- Product Attributes - Actual Engine Displacement
- 9.1L/555
- Product Attributes - Rod Length
- 6.385 in.
- Product Attributes - Piston Style
- Dome, with single valve relief
- Product Attributes - Piston Material
- Forged aluminum
- Product Attributes - Compression Height (in.)
- 1.270 in.
- Product Attributes - Piston Head Volume (cc)
- -33.00cc
- Product Attributes - Wrist Pin Style
- Press-fit or floating
- Product Attributes - Wrist Pin Retainers Included
- Yes
- Product Attributes - Wrist Pin Included
- Yes
- Product Attributes - Pin Diameter (in.)
- 0.990 in.
- Product Attributes - Piston Ring Thickness
- 0.064 in. x 0.064 in. x 0.218 in.
- Product Attributes - File Fit
- No
- Product Attributes - Gapless
- No
- Product Attributes - Top Ring Thickness
- 0.064 in.
- Product Attributes - Second Ring Thickness
- 0.064 in.
- Product Attributes - Oil Ring Thickness
- 0.218 in.
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a set of 8.
- Product Attributes - Notes
- Made from 2618 alloy forged aluminum.
Reference Information
| Brand Name/s | JE Pistons |
|---|---|
| StreetFX SKU | jep152156 |
| SFX Item ID | 4808586 |
| Supplier Item Code | 4808586 |
| Manufacturer SKU | 152156 |
| Manufacturer UPC | N/A |
| Alternative References | 33cc |
