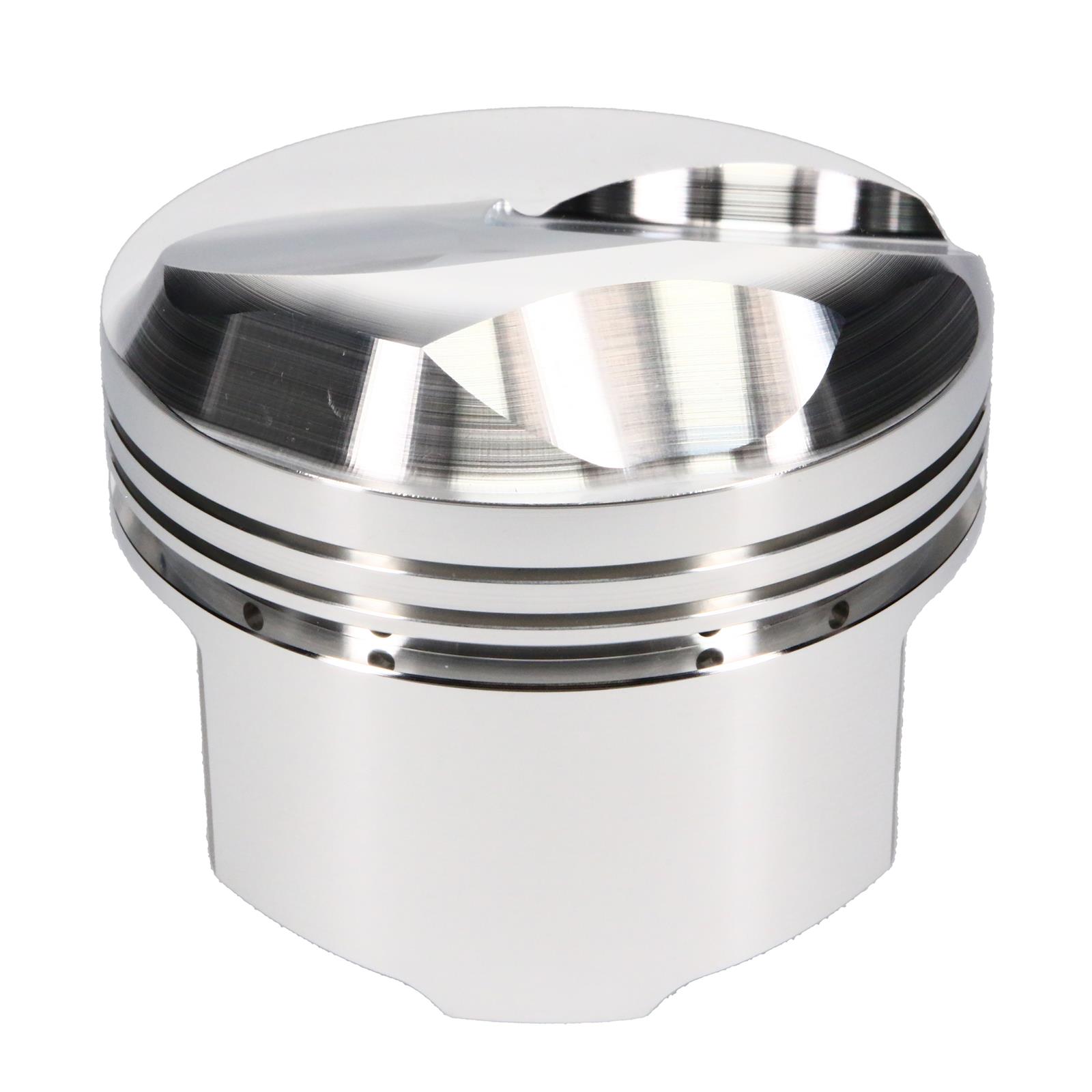

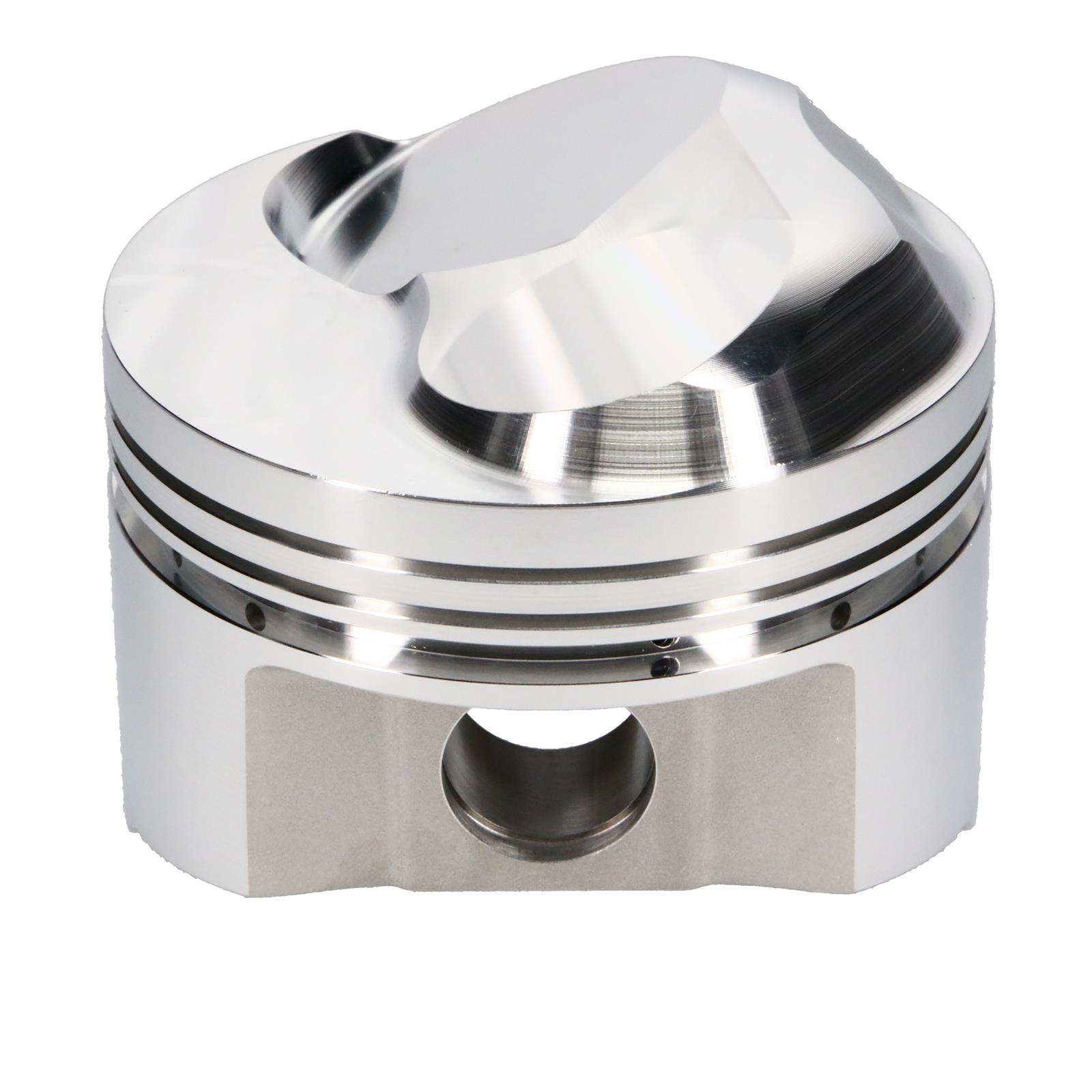

JE Pistons 139837S Pistons, 454 BBC DOME 48cc

SKU: JEP139837S

Pistons

SKU: JEP139837S

Pistons

BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.

We accept

Description

Pistons, 454 BBC DOME 48cc

Pistons

Data: v4.2 - Upd: 2026-10-14 10:58:57

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 139837S
Product Attributes - Part Type: Pistons
Product Attributes - UPC: 193564262929
Product Attributes - Piston Rings Included: No
Product Attributes - Bore (in.): 4.320 in.
Product Attributes - Bore (mm): 109.728mm
Product Attributes - Stroke: 4.000 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Actual Engine Displacement: 7.7L/469
Product Attributes - Rod Length: 6.535 in.
Product Attributes - Piston Style: Dome, with two valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.245 in.
Product Attributes - Piston Head Volume (cc): -48.00cc
Product Attributes - Wrist Pin Style: Press-fit or floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.990 in.
Product Attributes - Piston Ring Thickness: 0.064 in. x 0.064 in. x 0.218 in.
Product Attributes - File Fit: No
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 0.064 in.
Product Attributes - Second Ring Thickness: 0.064 in.
Product Attributes - Oil Ring Thickness: 0.218 in.
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: Made from 2618 alloy forged aluminum.

Application Data
