Description

IMPORTANT NOTICE: Coilovers will not fit the Raptor trim.

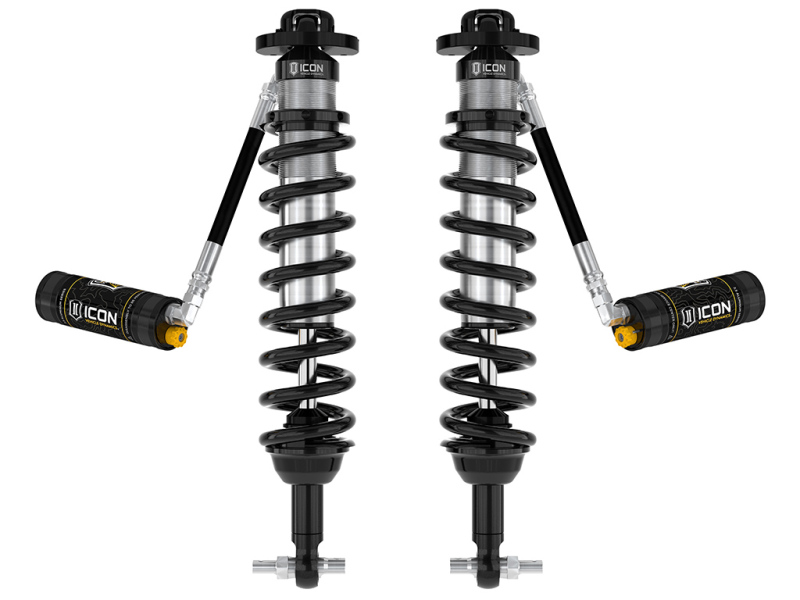

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-UP Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Product Overview

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDCV are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features and Benefits

• Increased wheel travel (up to 11.5”) and ride quality over stock
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• High strength alloy CNC machined lower bar pin
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add-On Part:	42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
Adjustable Compression:	Yes
Adjustable Damping:	Yes
Adjustable Height:	Yes
Adjustable Rebound:	No
Body Diameter:	2,5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Cylinder Color:	Silver
Cylinder Finish:	Cadmium Plated
Cylinder Material:	Steel
Damping Adjustment Type:	Manual
Damping Type:	Oil
Description:	21-UP BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	BAR PIN
Material:	Steel
Maximum Lift:	4
Minimum Lift:	1.5
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico48700C
Recommended Aftermarket Tires:	(Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Recommended Aftermarket Wheels:	(Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
Remote Reservoir:	Yes
Reservoir Style:	Remote
Self-Leveling:	No
Service Parts:	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Flat on Bar Pin
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Title:	21-UP BRONCO FRONT 2.5 VS RR CDCV COILOVER KIT
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK40006T	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 6 SUSPENSION SYSTEM TUBULAR (1x ico44000T, 1x ico48400DJ, 1x ico48700C, 1x ico48710C, 1x ico611073)
	icoK40006	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 6 SUSPENSION SYSTEM BILLET (1x ico44000, 1x ico48500DJ, 1x ico48700C, 1x ico48710C)
	icoK40007T	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 7 SUSPENSION SYSTEM TUBULAR (1x ico44000T, 1x ico44200T, 1x ico48400DJ, 1x ico44100T, 1x ico48700C, 1x ico48710C, 1x ico611073)
	icoK40007	ICON 21-UP BRONCO NON-SASQUATCH 3-4" LIFT STAGE 7 SUSPENSION SYSTEM BILLET (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48710C)
	icoK40016T	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 6 SUSPENSION SYSTEM TUBULAR (1x ico44000T, 1x ico48400DJ, 1x ico48700C, 1x ico48710C, 1x ico611073)
	icoK40016	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 6 SUSPENSION SYSTEM BILLET (1x ico44000, 1x ico48500DJ, 1x ico48700C, 1x ico48710C)
	icoK40017T	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 7 SUSPENSION SYSTEM TUBULAR (1x ico44000T, 1x ico44200T, 1x ico48400DJ, 1x ico44100T, 1x ico48700C, 1x ico48710C, 1x ico611073)
	icoK40017	ICON 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 7 SUSPENSION SYSTEM BILLET (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48710C)
	icoK40016X	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 6 Suspension System Billet Heavy Rate (1x ico44000, 1x ico48500DJ, 1x ico48700C, 1x ico48711C)
	icoK40016TX	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 6 Suspension System Tubular Heavy Rate (1x ico44000T, 1x ico48400DJ, 1x ico48700C, 1x ico611073, 1x ico48711C)
	icoK40017X	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 7 Suspension System Billet Heavy Rate (1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48711C)
	icoK40017TX	ICON 21-23 Ford Bronco Sasquatch 2-3in Lift Stage 7 Suspension System Tubular Heavy Rate (1x ico44000T, 1x ico44200T, 1x ico48400DJ, 1x ico44100T, 1x ico48700C, 1x ico611073, 1x ico48711C)
	icoK40006TX	(1x ico44000T, 1x ico48400DJ, 1x ico48700C, 1x ico611073, 1x ico48711C)
	icoK40007X	(1x ico44100, 1x ico44000, 1x ico48500DJ, 1x ico44200T, 1x ico48700C, 1x ico48711C)
	icoK40007TX	(1x ico44000T, 1x ico44200T, 1x ico48400DJ, 1x ico44100T, 1x ico48700C, 1x ico611073, 1x ico48711C)
	icoK40006X	Icon Vehicle Dynamics Stage 6 Suspension Lift Kits for 2021-2023 BRONCO - K40006X 21-23 NON-SASQ 3-4" LIFT STAGE SUSPENSION SYSTEM BILLET HEAVY RATE

Data: v4.2 - Upd: 2026-10-15 19:38:31

Features

Specifications

Product Attributes - UPC

00840103412375

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Notes

Coilovers will not fit the Raptor trim.

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Coilover Kits

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

T-bar

Product Attributes - Upper Mount

Bracket

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR CDCV Coilover Kits

Product Attributes - Spring Finish

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Hardware Included

Yes

Product Attributes - Shock Body Finish

Zinc plated

Product Attributes - Adjustable Valving

Yes

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Crossmember Included

No

Product Attributes - Coilover Kit Position

Front

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Manufacturer's Part Number

48700C

Product Attributes - Number of Valving Selections

10

Product Attributes - Suspension Height Adjustment

0.0-4.0 in. raised

Product Attributes - Adjustable Mounting Bracket Included

No
