ICON Vehicle Dynamics Suspension Leveling & Lift Kits K53136 05-11 HILUX 0-3" STAGE 1 SUSPENSION SYSTEM
icoK53136
A$3,610.29

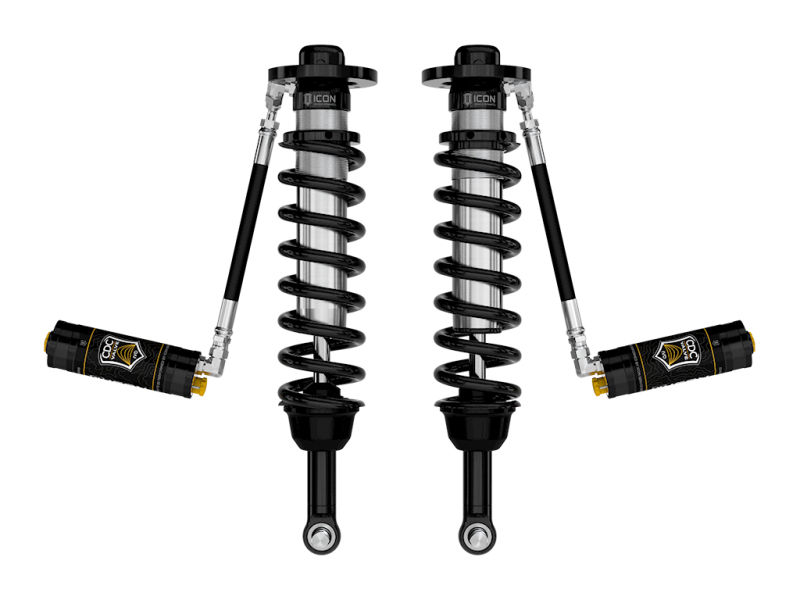

ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS RR CDCV Coilover Kit
ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS RR CDCV Coilover Kit
A$3,982.61
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2026 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Product Overview
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Features and Benefits
- Increased wheel travel and ride quality over stock
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no cutting or welding necessary for installation
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 2.75-3.5" of lift height over stock
- Remote reservoir to attain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression: | Yes |
| Adjustable Damping: | Yes |
| Adjustable Height: | yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Adjustment Type: | Manual |
| Damping Type: | Oil |
| Description: | ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS RR CDCV Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | BAR PIN |
| Material: | Aluminum |
| Maximum Lift: | 3.5 |
| Minimum Lift: | 2.75 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico91825C |
| Recommended Aftermarket Tires: | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Remote Reservoir: | Yes |
| Reservoir Style: | Remote |
| Self-Leveling: | No |
| Service Parts: | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 21-23 Ford F150 4WD, 2.75-3.5" Lift, Front 2.5 VS RR Coilovers w/ CDCV, Pair |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK93134T | ICON 21-23 Ford F-150 4WD 2.75-3.5in Stage 4 Suspension System w/ Tubular UCA (1x ico97720CP, 1x ico91825C, 1x ico98522DJ) |
 |

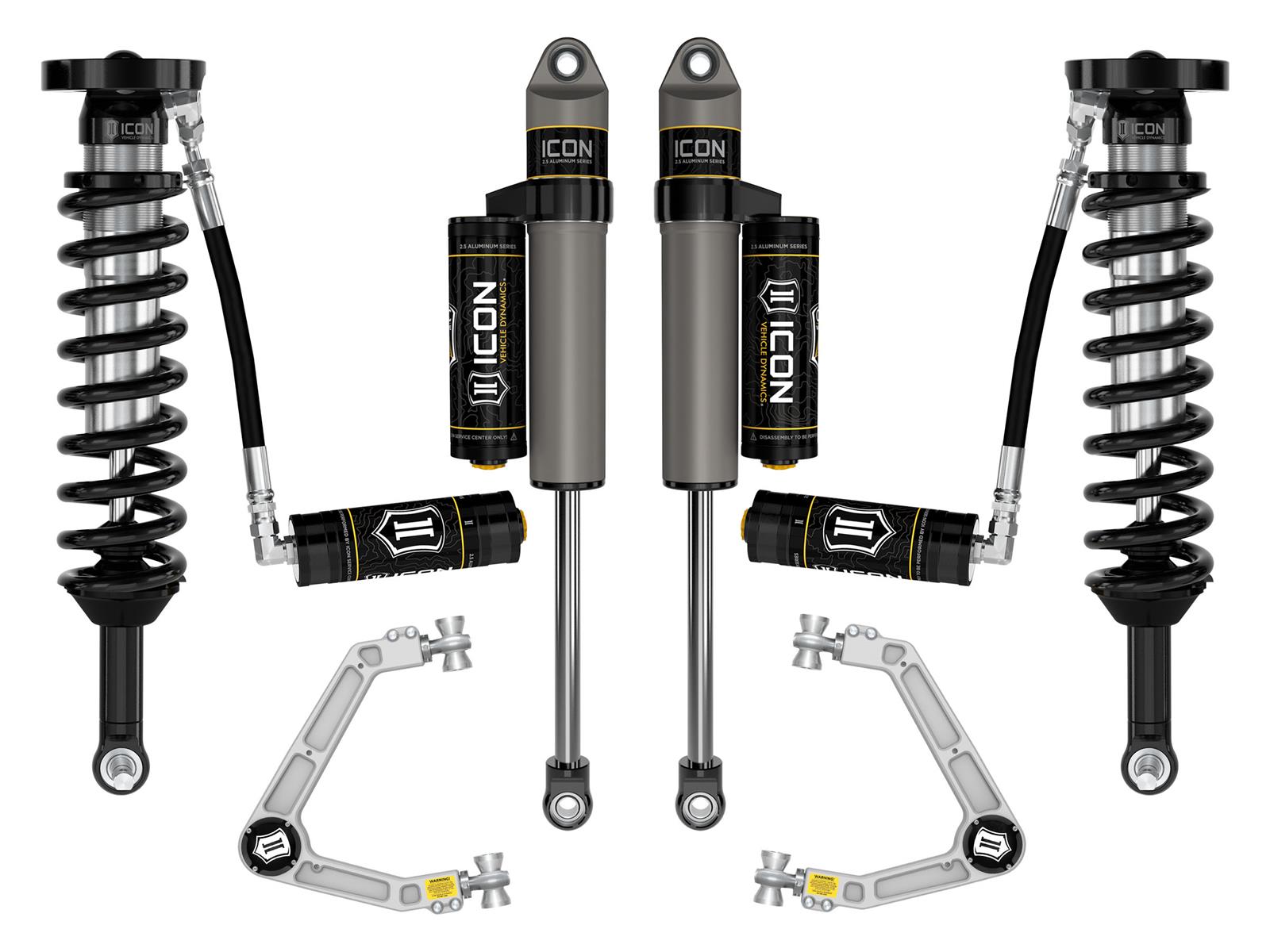

icoK93134 | ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93134 21-24 FORD F150 4WD 2.75-3.5" STAGE 4 SUSPENSION SYSTEM BILLET CDCV |
Part Type
Coilover Set
Features
- 100% Bolt-on - no cutting or welding necessary for installation
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable for 2.75-3.5" of lift height over stock
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil Springs
- Increased wheel travel and ride quality over stock
- Remote reservoir to attain cooler operating temperatures during extended off-road use
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 91825C
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103423692
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico91825C |
| SFX Item ID | 4141633 |
| Supplier Item Code | 4141633 |
| Manufacturer SKU | 91825C |
| Manufacturer UPC | 840103423692 |
| Alternative References | IVD91825C, F150, 4WD, 3in |
