Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Product Overview

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features and Benefits

• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• Double-sealed Schrader caps reduce risk of damage
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft

Product Details

3042:	24.18
71060:	Yes
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable:	NO
Attributed Description:	ICON Vehicle Dynamics; Shock Absorber Set; Adjustable: No; Boot Included: No; Bore Diameter: 2.25 IN; Compressed Length: 14.85 IN; Fully Open Length: 24.18 IN; Gas Charged: Yes; Lower Mount Type: Eyelet; Mounting Hardware Included: Yes; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Eyelet; Stroke Length Front: 9.3 IN; Tube Outside Diameter: 2.50 IN; Upper Mount Type: Stem; External Reservoir: Yes
Boot Included:	NO
Bore Diameter:	2.25
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color:	Silver
Cylinder Material:	Aluminum
Damping Type:	Oil
Description:	14-UP RAM 2500 2.5" FRONT 2.5 VS RR PAIR
Diámetro del árbol:	2021-07-08
External Reservoir:	Yes
Fully Open Length:	24.18
Gas Charged:	Yes
Grade Type:	Performance
Longitud completamente abierta:	24.18
Lower Mount Type:	EYELET
Mounting Hardware Included:	Yes
Part Number:	ico217802P
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	Shoulder of Stem
Shock Absorber Rod End Measuring Point:	CENTER OF EYELET
Tipo de Grado:	Reparación de Banda
Title:	14-UP RAM 2500 2.5" FRONT 2.5 VS RR PAIR
Tube Outside Diameter:	2.5
Upper Mount Type:	Stem

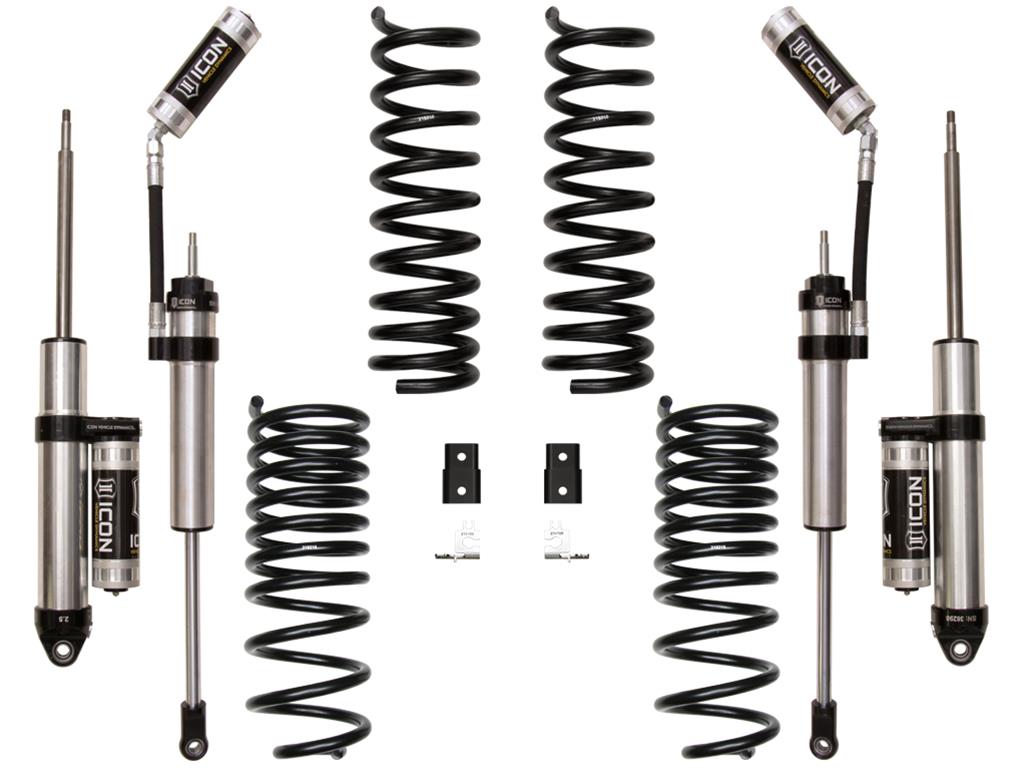

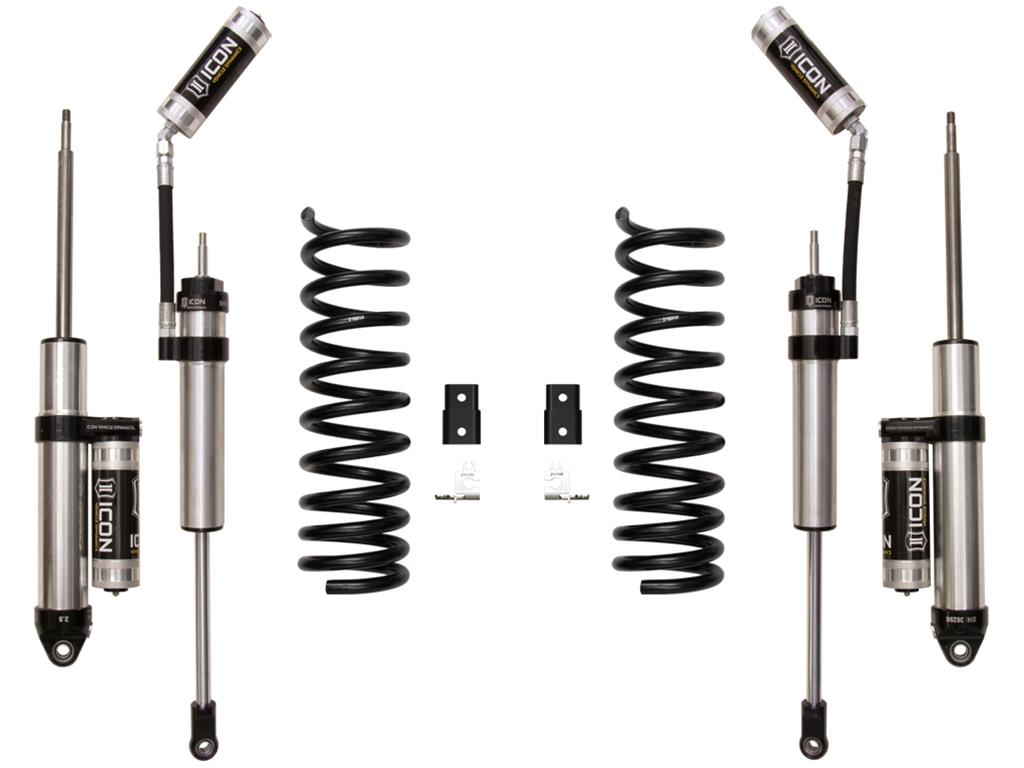

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK212512P	ICON 2014+ Ram 2500 4WD 2.5in Stage 2 Suspension System (Performance) (1x ico214206, 1x ico217802P, 1x ico217705P, 1x ico214200)
	icoK212512A	ICON 2014+ Ram 2500 4WD 2.5in Stage 2 Suspension System (Air Ride) (1x ico217802P, 1x ico217708P, 1x ico214200)
	icoK212512	ICON 2014+ Ram 2500 4WD 2.5in Stage 2 Suspension System (1x ico217704P, 1x ico217802P, 1x ico214200)
	icoK212543P	ICON 19+ Ram 2500 4WD 2.5in Stage 3 Suspension System (Performance) (1x ico214206, 1x ico217802P, 1x ico217705P, 1x ico214200, 1x ico214214)
	icoK212542P	ICON 19+ Ram 2500 4WD 2.5in Stage 2 Suspension System (Performance) (1x ico214206, 1x ico217802P, 1x ico217705P, 1x ico214200)
	icoK212542	14-Up Ram 2500 4WD 2.5in Stage 2 Suspension System (1x ico217704P, 1x ico217802P, 1x ico214200)
	icoK212542A	ICON 14+ Ram 2500 4WD 2.5in Stage 2 Suspension System(Air Ride) (1x ico217802P, 1x ico217708P, 1x ico214200)
	icoK212543A	ICON 14+ Ram 2500 4WD 2.5in Stage 3 Suspension System (1x ico217802P, 1x ico217708P, 1x ico214200, 1x ico214214)
	icoK212543	ICON Vehicle Dynamics Suspension Leveling & Lift Kits K212543 19-UP RAM 2500 4WD 2.5" STAGE 3 SUSPENSION SYSTEM

Data: v4.2 - Upd: 2026-10-14 13:32:01

Features

Specifications

Product Attributes - UPC

00840103401089

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a pair.

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Ride Height

Lifted

Product Attributes - Upper Mount

Stud

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 VS RR Shocks

Product Attributes - Boot Included

No

Product Attributes - Internal Design

Monotube

Product Attributes - Bushing Material

Spherical bearing/PTFE

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Adjustable Valving

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Lifted Amount Range (in.)

2.50 in.

Product Attributes - Manufacturer's Part Number

217802P
