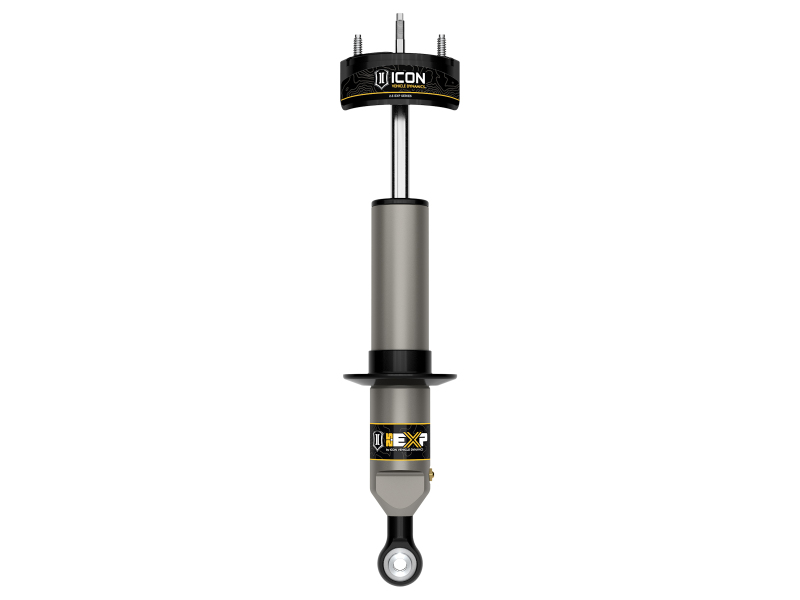

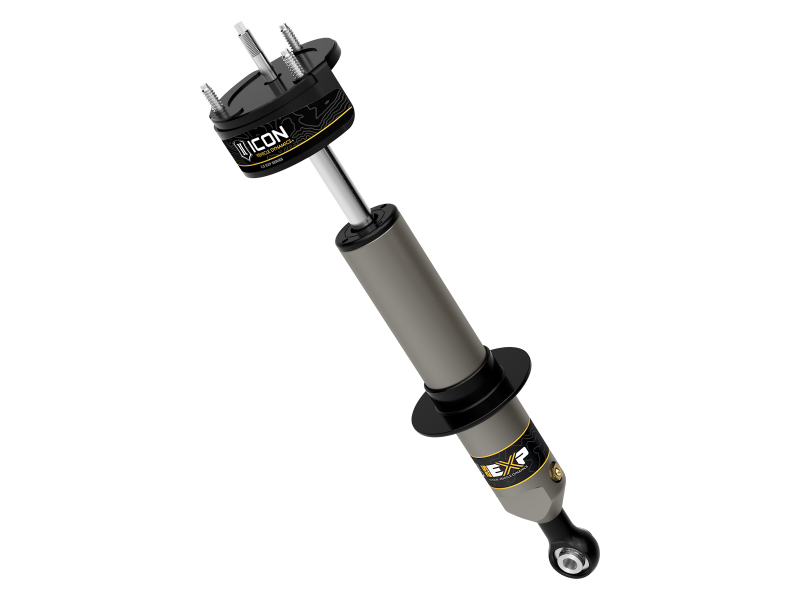

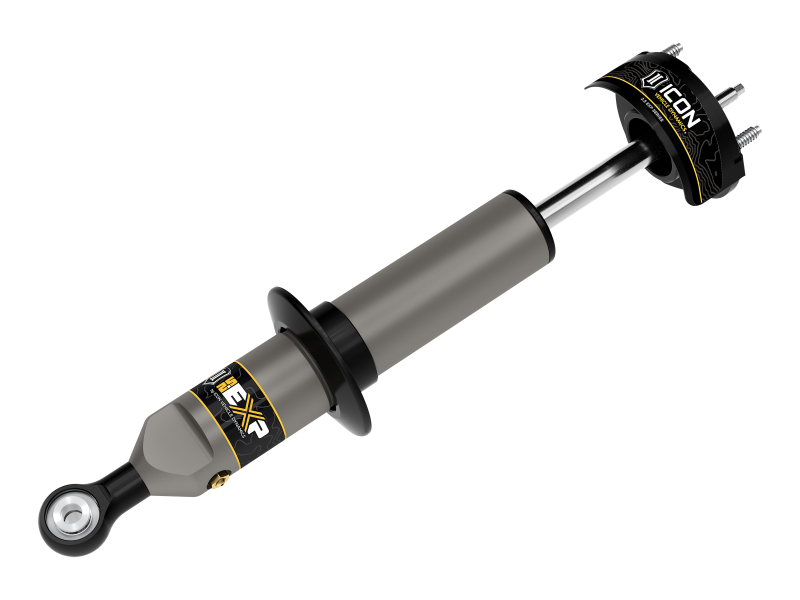

Product Overview

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features and Benefits

• Vehicle specific design for 2005-2023 Toyota Tacoma
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection

Product Details

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53222	ICON 05-22 Toyota Tacoma 0-2in Stage 3 Exp Suspension System Billet (1x ico51100, 1x ico58550DJ, 1x ico611030, 2x ico56503R, 2x ico58632)
	icoK53222T	(1x ico51100, 1x ico58450DJ, 1x ico611030, 2x ico56503R, 2x ico58632)
	icoK53220	ICON 05-23 Toyota Tacoma 0-2in Stage 1 Exp Suspension System (1x ico611030, 2x ico56503, 2x ico58632)
	icoK53221	ICON 05-23 Toyota Tacoma 0-2in Stage 2 Exp Suspension System (1x ico51100, 1x ico611030, 2x ico56503, 2x ico58632)
