Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

Product Overview

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

Features and Benefits

• 100% Revalveable
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)

Product Details

71060:	Yes
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable Damping:	No
Adjustable:	NO
Boot Included:	NO
Bore Diameter:	2.25
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color:	Gray
Cylinder Diameter:	2.5
Cylinder Material:	Aluminum
Damping Type:	Oil
Description:	05-UP TACOMA 0-1.5" REAR 2.5 VS RR PAIR
Diámetro del árbol:	2021-07-08
External Reservoir:	Yes
Gas Charged:	Yes
Grade Type:	Performance
Lower Mount Type:	EYELET
Material del cilindro:	Acero
Mounting Hardware Included:	Yes
Part Number:	ico57805P
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shaft Material:	Chrome
Shock Absorber Body End Measuring Point:	Shoulder of Stem
Shock Absorber Rod End Measuring Point:	CENTER OF EYELET
Tipo de Grado:	Reparación de Banda

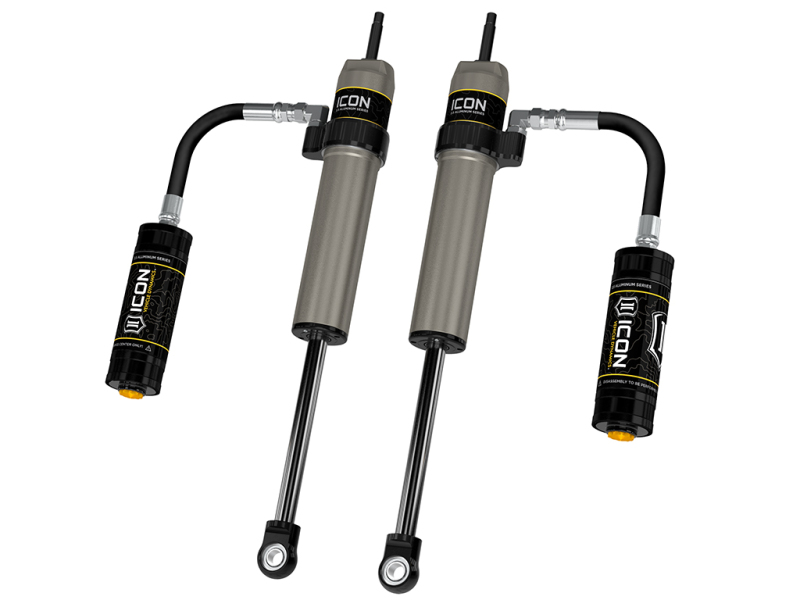

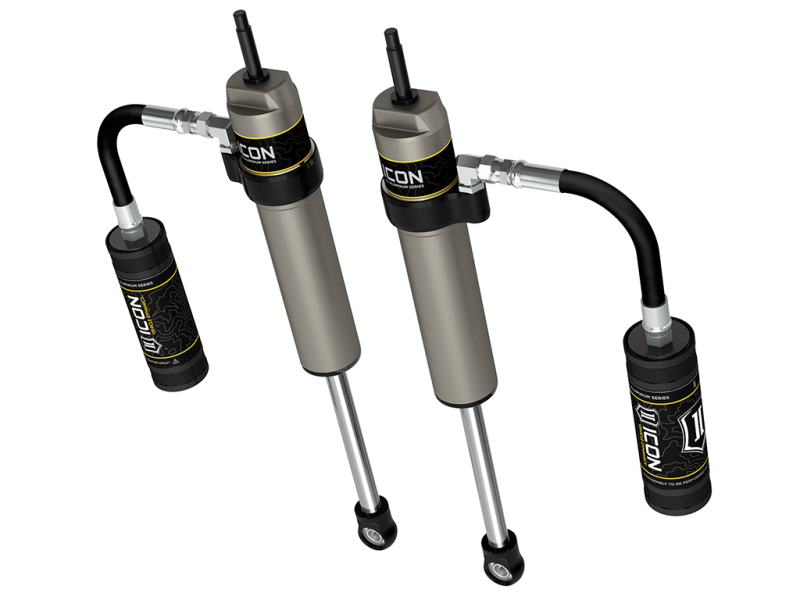

Title:	ICON 2005-2023 Toyota Tacoma, 0-1.5” Lift, Rear, 2.5 VS Remote Reservoir Shocks, Pair
Tube Outside Diameter:	2.5
Upper Mount Type:	Stem

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53005	ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 5 Suspension System w/Billet Uca (1x ico51100, 1x ico58550DJ, 1x ico57805P, 1x ico58735)
	icoK53005T	ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 5 Suspension System w/Tubular Uca (1x ico51100, 1x ico58450DJ, 1x ico57805P, 1x ico58735)

Data: v4.2 - Upd: 2026-10-13 20:37:28

Features

Specifications

Product Attributes - UPC

00840103403489

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a pair.

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Ride Height

Stock/Lifted

Product Attributes - Upper Mount

Stud

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 VS RR Shocks

Product Attributes - Boot Included

No

Product Attributes - Internal Design

Monotube

Product Attributes - Bushing Material

Spherical bearing/PTFE

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Adjustable Valving

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Lifted Amount Range (in.)

0.00-1.50 in.

Product Attributes - Manufacturer's Part Number

57805P
