Description

ICON Vehicle Dynamics 2024 Lexus GX550 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

Product Overview

ICON Vehicle Dynamics 2024 Lexus GX550 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

Features and Benefits

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Product Details

Active or Passive Suspension:	Passive
Add-On Part:	54202 - 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR KIT
Adjustable Compression:	No
Adjustable Control Arm:	Yes
Adjustable Damping:	No
Adjustable Rebound:	No
Bushings Included:	Yes
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front:	2
Coils Quantity Front:	2
Description:	ICON 2024+ Lexus GX550 1.25-3in Lift Stage 5 Billet Suspension System
Front Shock Body Diameter:	2.5
Front Spring Rate Type:	Linear
Grade Type:	Performance
Maximum Lift Front:	3
Maximum Lift Rear:	2
Maximum Lift:	3
Minimum Lift Front:	1.25
Mounting Hardware Included:	Yes
OEM Wheels & Tires Fitment:	Yes
Rear Shock Body Diameter:	2.5
Rear Spring Rate Type:	Progressive Dual Rate
Recommended Aftermarket Tires:	34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels:	ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Reservoir Style:	Remote
Shocks Included:	Yes
Spring Color:	Black
Spring Material:	Steel
Title:	ICON 2024 Lexus GX550, 1.25-3" Lift, Stage 5 Suspension System, Billet

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	ico55156	55156	00840103421391	ICON 22-23 Toyota Tundra Diff Drop Kit
	1x	ico52752	52752	00840103430423	ICON 2024+ Toyota Land Cruiser 250 Series/Lexus GX550 Rear 2in Lift Dual Rate Coil Spring Kit
	1x	ico58552DJ	58552DJ		ICON 2024+ Toyota Tacoma Billet UCA DJ Pro Kit
	1x	ico57870P	57870P	00840103430515	ICON 2024 Toyota Land Cruiser 250/2024 Lexus GX550, 2.5 Aluminum Series Shocks 0-3 in Lift - Rear

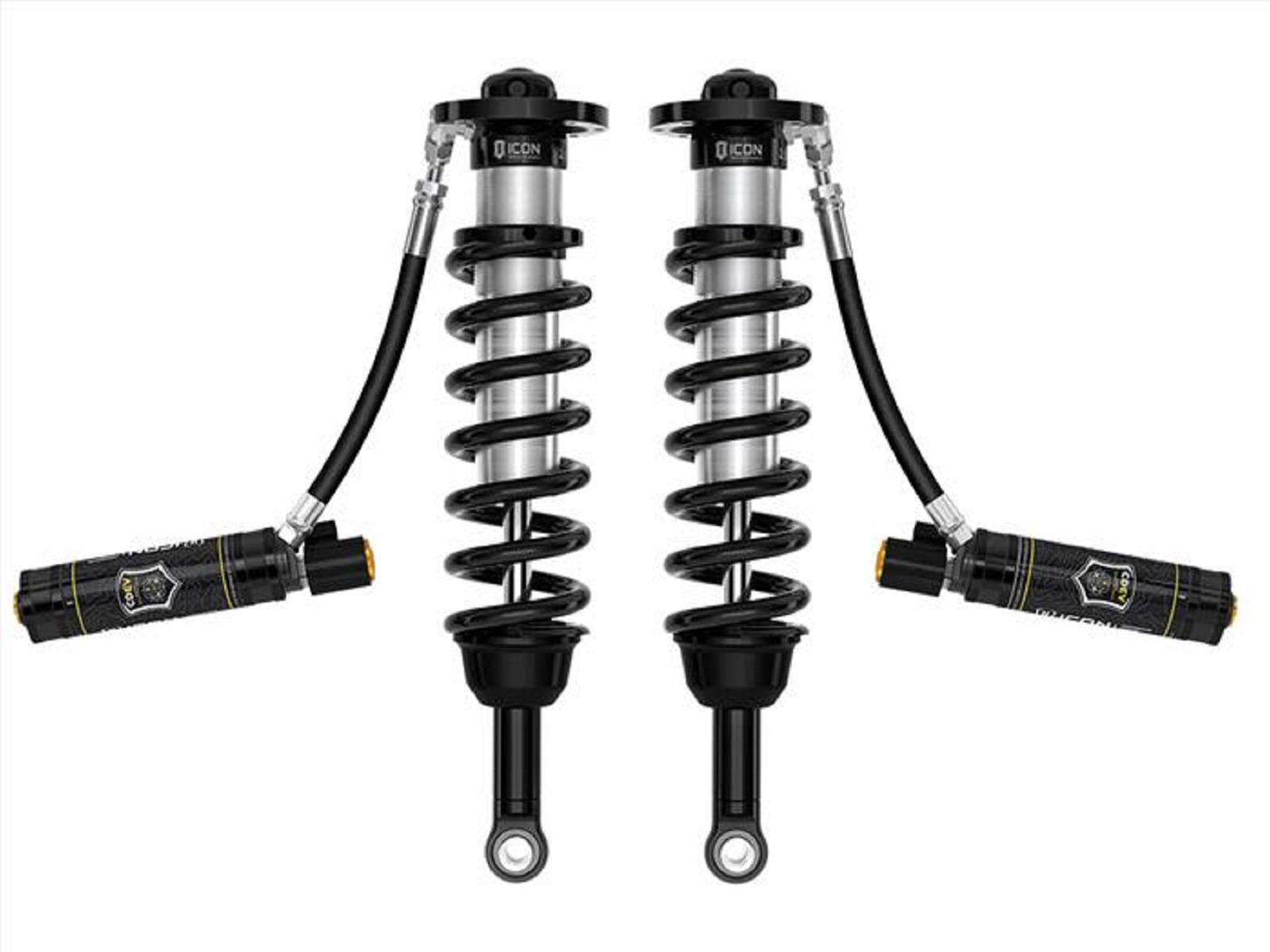

	1x	ico58790E	58790E	840103430829	ICON 2024 Lexus GX550 2.5 Series Coilover Kit w/Remote Reservoir CDEV

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-15 20:15:24

Features

Specifications

Active or Passive Suspension:

Passive

Add-On Part:

54202 - 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR KIT

Adjustable Compression:

No

Adjustable Control Arm:

Yes

Adjustable Damping:

No

Adjustable Rebound:

No

Bushings Included:

Yes

California Prop 65 Warning:

Yes

California Proposition 65:

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Coil Quantity Front:

2

Coils Quantity Front:

2

Description:

ICON 2024+ Lexus GX550 1.25-3in Lift Stage 5 Billet Suspension System

Front Shock Body Diameter:

2.5

Front Spring Rate Type:

Linear

Grade Type:

Performance

Maximum Lift Front:

3

Maximum Lift Rear:

2

Maximum Lift:

3

Minimum Lift Front:

1.25

Mounting Hardware Included:

Yes

OEM Wheels & Tires Fitment:

Yes

Rear Shock Body Diameter:

2.5

Rear Spring Rate Type:

Progressive Dual Rate

Recommended Aftermarket Tires:

34" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels:

ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset

Reservoir Style:

Remote

Shocks Included:

Yes

Spring Color:

Black

Spring Material:

Steel

Title:

ICON 2024 Lexus GX550, 1.25-3" Lift, Stage 5 Suspension System, Billet
