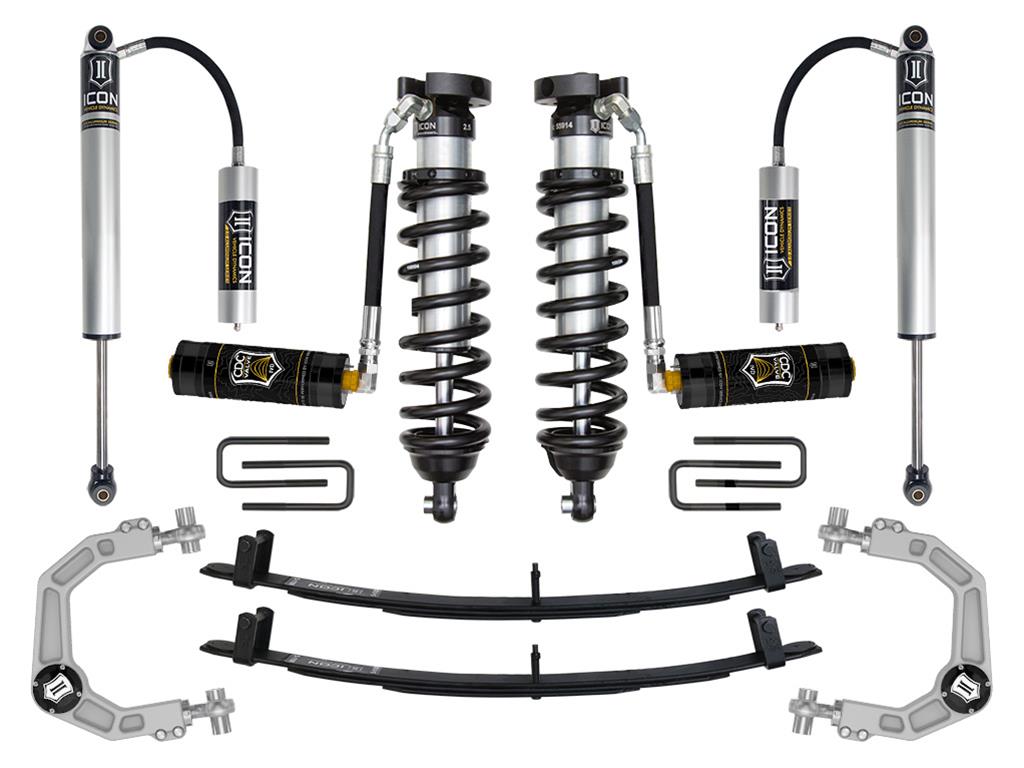

ICON 95.5-04 Toyota Tacoma 0-3in. Stage 5 Suspension System W/ Billet Upper Control Arms (1x ico51100, 2x ico56502R, 1x ico58715C, 1x ico58500DJ)
ICON 95.5-04 Toyota Tacoma 0-3in. Stage 5 Suspension System W/ Billet Upper Control Arms (1x ico51100, 2x ico56502R, 1x ico58715C, 1x ico58500DJ)
A$7,330.71
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDC Valves, extended travel & remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Product Overview
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDC Valves, extended travel & remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features and Benefits
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Front Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Adjustable coilovers provide up to 3.5" of front lift height
- Extended Travel coilovers offer maximum wheel travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
Product Details
| Active or Passive Suspension: | Passive |
|---|---|
| Add-On Part: | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable Compression: | Front Only |
| Adjustable Control Arm: | Yes |
| Adjustable Damping: | Front Only |
| Adjustable Rebound: | No |
| Bushings Included: | Yes |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Quantity Front: | 2 |
| Coils Quantity Front: | 2 |
| Damping Adjustment Type: | Manual |
| Description: | ICON 95.5-04 Toyota Tacoma 0-3in. Stage 5 Suspension System W/ Billet Upper Control Arms |
| Front Shock Body Diameter: | 2.5 |
| Front Spring Rate Type: | Linear |
| Grade Type: | Performance |
| Leaf Spring Leaf Quantity: | 3 |
| Maximum Lift Front: | 3 |
| Maximum Lift Rear: | 1.5 |
| Maximum Lift: | 3 |
| Minimum Lift Front: | 0 |
| Mounting Hardware Included: | Yes |
| OEM Wheels & Tires Fitment: | Yes |
| Rear Shock Body Diameter: | 2 |
| Rear Spring Rate Type: | Linear |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels: | ICON Alloys - 18x9 with 5” Backspace / 0mm Offset |
| Reservoir Style: | Remote |
| Shocks Included: | Yes |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate: | 650 |
| Title: | ICON 1995.5-04 Toyota Tacoma, 0-3" Lift, Stage 5 Suspension System, Billet UCA |
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | ico51100 | 51100 | 840103402680 | ICON 1996+ Toyota Tacoma / 00-06 Toyota Tundra 1.5in Add-A-Leaf Kit |
 | 2x | ico56502R | 56502R | 00840103403038 | ICON 96-04 Toyota Tacoma 4WD 0-1.5in Rear 2.0 Series Aluminum Shocks VS RR |

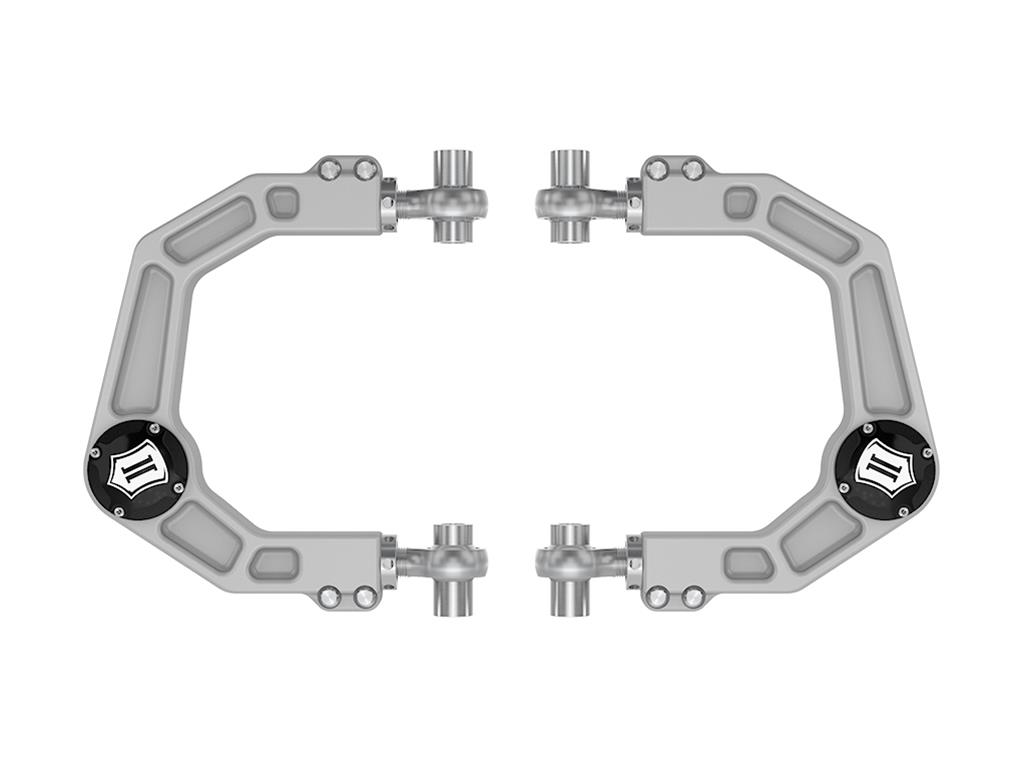

 | 1x | ico58500DJ | 58500DJ | 00840103431314 | ICON 96-04 Toyota Tacoma Billet Upper Control Arm DJ Kit |
 | 1x | ico58715C | 58715C | 00840103404172 | ICON 96-04 Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR CDCV Coilover Kit |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Suspension Lift Kit
Features
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- K53015B
- Product Attributes - Part Type
- Suspension Leveling & Lift Kits
- Product Attributes - UPC
- 00840103431338
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | icoK53015B |
| SFX Item ID | 4530448 |
| Supplier Item Code | 4530448 |
| Manufacturer SKU | K53015B |
| Manufacturer UPC | N/A |
| Alternative References | ico-51100, 1.5in, ico-56502R, 56502R, 4WD, ico58715C |
