Description

The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON 2.5 Aluminum Series reservoir shocks are included front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. Together the combination of ICON dual rate coils and 2.5 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 4 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. Upgraded tubular steel upper & lower link arms are designed to add performance, strength, and improved alignment range. This ICON 3" JK lift system is designed from the ground up to give the Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).

Product Overview

The ICON Vehicle Dynamics 3" Lift Suspension System is designed for Jeep JK owner's demanding the ultimate in performance and ride quality, without the larger stance you find in bigger lift systems on today's market. ICON's Jeep Wrangler JK 3" lift system is engineered with front and rear dual rate progressive wound springs which is the foundation for on and off-road performance and suspension articulation. The dual rate design gives you a softer initial rate for superb on road comfort and a firmer than stock secondary rate that increases during compression for excellent bottom out control. ICON 2.5 Aluminum Series reservoir shocks are included front and rear to ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. Together the combination of ICON dual rate coils and 2.5 Aluminum Series shocks adds 30% more wheel travel over stock, helping you rock crawl safer or soak up larger terrain at higher speeds keeping those wheels on the ground. In this Stage 4 system adjustable track bars are included front and rear for optimizing axle position to ensure your axles are perfectly centered under the vehicle. Upgraded tubular steel upper & lower link arms are designed to add performance, strength, and improved alignment range. This ICON 3" JK lift system is designed from the ground up to give the Jeep Wrangler JK's the best performance, suspension handling / ride quality, and clearance for 33" tall tires (35" tall with installation of aftermarket high-clearance fenders).

Product Details

Add-On Part:	22011 - 12-18 JK EXHAUST SPACER KIT
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coils Quantity Front:	2
Coils Quantity Rear:	2
Description:	07-18 JEEP JK 3" STAGE 5 SUSPENSION SYSTEM
Dual Rate Coil Springs:	Yes
Maximum Lift:	3.0
OEM Wheels & Tires Fitment:	Yes
Recommended Aftermarket Tires:	33" x 11.50" (Larger 35" tire packages will fit with minor modifications or aftermarket high clearance fenders, test fitment recommended)
Recommended Aftermarket Wheels:	ICON Alloys | 20x9" w/ 4.5” Backspace / -12mm Offset
Spring Color:	Black
Spring Material:	Steel
Title:	07-18 JEEP JK 3" STAGE 5 SUSPENSION SYSTEM

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description
	1x	ico22010	22010	00840103401195	ICON 07-18 Jeep Wrangler JK Front 3in Dual Rate Spring Kit
	1x	ico22015	22015	00840103401232	ICON 07-18 Jeep Wrangler JK Rear 2in Dual Rate Spring Kit
	1x	ico22040	22040	00840103401430	ICON 07-18 Jeep Wrangler JK 3in Front/Rear Box Kit
	1x	ico21036	21036	00840103400464	ICON 07-18 Jeep Wrangler JK Front Upper Adj Link Kit
	1x	ico21020	21020	00840103400433	ICON 07-18 Jeep Wrangler JK Front Adj Track Bar Kit
	1x	ico21046	21046	00840103400488	ICON 07-18 Jeep Wrangler JK Rear Upper Fixed Link Kit
	1x	ico21031	21031	00840103400457	ICON 07-18 Jeep Wrangler JK Front Lower Fixed Link Kit
	1x	ico21025	21025	00840103400440	ICON 07-18 Jeep Wrangler JK Rear Adj Track Bar Kit
	1x	ico21041	21041	00840103400471	ICON 07-18 Jeep Wrangler JK Rear Lower Adj Link Kit
	1x	ico27820CP	27820CP	00840103401867	ICON 07-18 Jeep Wrangler JK 3in Front 2.5 Series Shocks VS RR CDCV - Pair

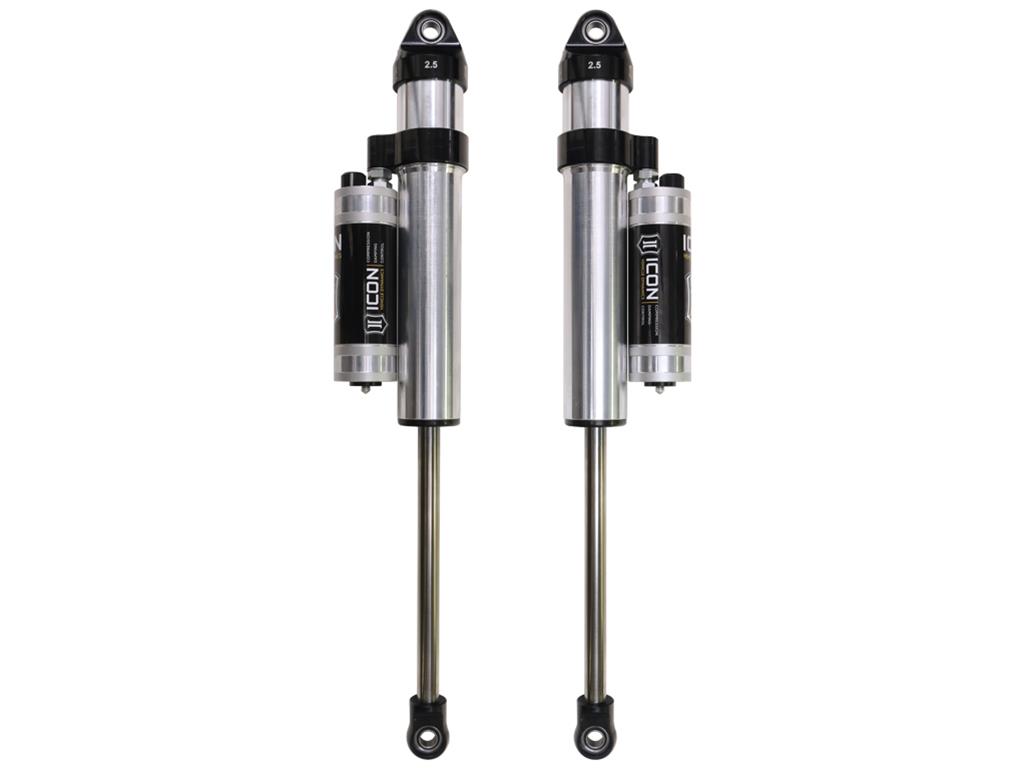

	1x	ico27725CP	27725CP	00840103401799	ICON 07-18 Jeep Wrangler JK 3in Rear 2.5 Series Shocks VS PB CDCV - Pair

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-17 03:12:51

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

K22005

Product Attributes - Part Type

Suspension Leveling & Lift Kits

Product Attributes - Product Line

Icon Vehicle Dynamics Stage 5 Suspension Lift Kits

Product Attributes - UPC

00840103415765

Product Attributes - Lift Style

Suspension Lift Kit

Product Attributes - Primary Front Lift Component

Coil spring

Product Attributes - Primary Rear Lift Component

Coil spring

Product Attributes - Front Shocks/Struts Included

Yes

Product Attributes - Front Shock Quantity Per Wheel

1

Product Attributes - Rear Shocks/Struts Included

Yes

Product Attributes - Rear Shock Quantity Per Wheel

1

Product Attributes - Brake Lines Included

No

Product Attributes - Hardware Included

Yes

Product Attributes - FMVSS 126 Certification

No

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Notes

Requires Icon part numbers 22011 exhaust extension spacer or 22014 aftermarket driveshaft for installation. Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims. 35 in. tires will require high clearance fenders.
