Product Overview

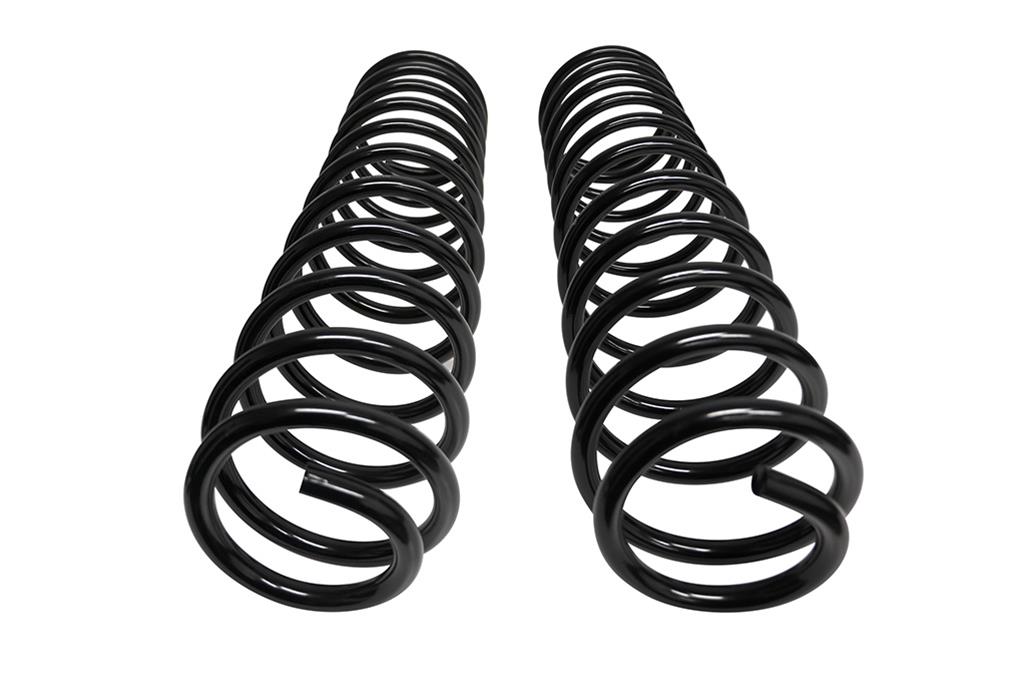

ICON Triple Rate rear coil springs for 2021-2024 Ford F-150 Raptor provides a modest increase in ground clearance while greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. The triple-rate coil design combines a performance ride rate for compliance and comfort, with an overload rate for load and bottom out resistance, and an extra soft initial rate for maximum droop travel. A unique tapered wire design helps achieve maximum travel and efficiency and an extra-long free height ensures the coils stay seated in their coil buckets for up to 17” of droop travel. In addition, these springs are also designed to net 1" of rear lift on a Gen3 Raptor with approximately 300lbs of additioanl weight added to the rear for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. Like all ICON coil springs, these feature a lifetime guarantee against sagging/breakage to provide confidence in knowing that you have the best suspension products available for the 2021-2024 Ford F-150 Raptor.

Features and Benefits

• Vehicle specific design for the Gen3 F-150 Raptor
• 1" rear lift height over stock on Raptors with approximately 300lbs of additional weight in the rear
• Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
• Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
• Tapered wire design achieves maximum travel and efficiency
• Tall free height - will not come loose from coil buckets for up to 17” of droop
• Significantly improves on- and off-road ride quality and performance over stock
• Dual stage powder coating for maximum corrosion resistance
• Lifetime guarantee against sagging/breakage

Product Details

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK93171X	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93171X SUSPENSION SYSTEM OVERLAND 21-24 FORD F150 RAPTOR 2-2.25" STAGE 1
	icoK93172X	ICON Vehicle Dynamics - Suspension Leveling & Lift Kits for 2021-2024 F-150 K93172X SUSPENSION SYSTEM OVERLAND 21-24 FORD F150 RAPTOR 2-2.25" STAGE 2
	icoK93174X	ICON 21-25 Ford F150 Raptor 1-3in Lift Stage 4 Overland Suspension System (1x ico93500, 1x ico98564DJ, 1x ico95231, 1x ico95003, 1x ico95020, 1x ico95206L, 1x ico95206R)
