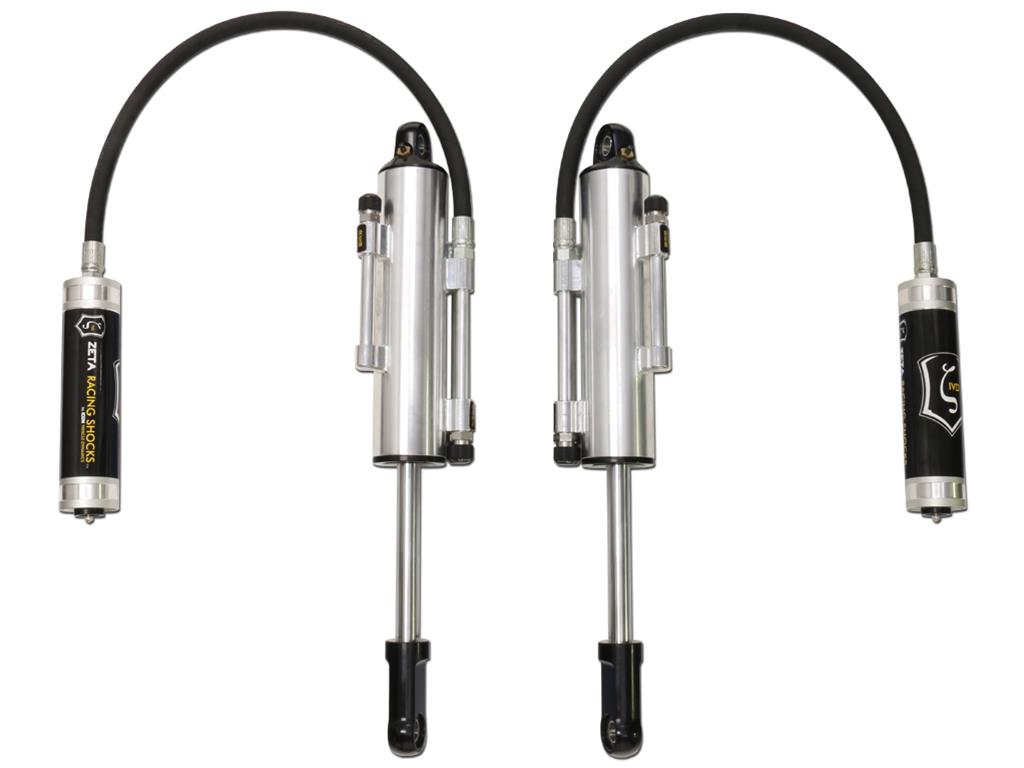

ICON 10-14 Ford Raptor Front Secondary 3.0 Zeta Series Shocks RR - Pair
ICON 10-14 Ford Raptor Front Secondary 3.0 Zeta Series Shocks RR - Pair
A$5,828.19
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

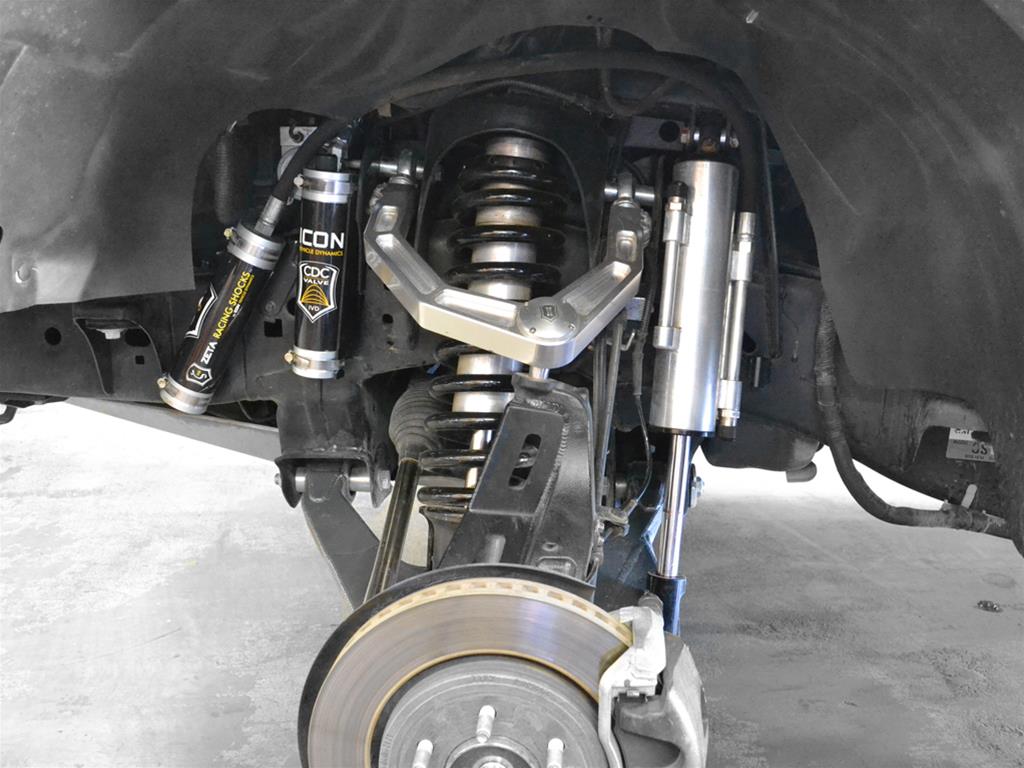

The ICON Ford SVT Raptor Secondary Front Shocks are a three tube External Bypass shock with remote reservoir. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature damped valve seats for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the "Easy-to-Adjust" knobs and the replaceable bypass tubes. The "Easy to Adjust" Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds for thedemand of the terrain you will be facing. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Product Overview
The ICON Ford SVT Raptor Secondary Front Shocks are a three tube External Bypass shock with remote reservoir. These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature damped valve seats for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the "Easy-to-Adjust" knobs and the replaceable bypass tubes. The "Easy to Adjust" Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds for thedemand of the terrain you will be facing. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Features and Benefits
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- Further increases front damping ability of the Raptor in off-road conditions
- East-to-adjust bypass knobs allow for quick changes to shock without the use of tools
- Hydraulically damped bypass valve seats are engineered to attenuate the loud bypass clicking noise transferred to the cab that is common with other brands.
- High resolution bypass valves designed for noticeable fine-tuning of rebound and compression damping
- Digressive rebound on main piston in conjunction with calibrated external rebound valve preload facilitates good low-speed characteristics. This is in contrast to most bypass shocks that are designed primarily for high-speed use only.
- Compact bypass tube design allows ICON to fit 3 bypass tubes where others could only fit 2, allowing for more adjustability of the shock
- Compact tube block design keeps bypass tubes close to the body, providing maximum clearance from tires and other suspension components
- Replaceable bypass tubes can easily slide into position in case of damage
Product Details
| 71060: | Yes |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable: | Yes |
| Boot Included: | NO |
| Bore Diameter: | 2.75 |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color: | Silver |
| Cylinder Material: | Steel |
| Damping Type: | Oil |
| Description: | 10-14 RAPTOR FRONT SECONDARY 3.0 ZETA RR PAIR |
| Diámetro del árbol: | Bi-Color |
| External Reservoir: | Yes |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material del cilindro: | Acero |
| Mounting Hardware Included: | Yes |
| Part Number: | ico95005 |
| Service Parts: | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter: | 1 |
| Shaft Material: | Chrome |
| Shock Absorber Body End Measuring Point: | TOP OF MOUNTING PLATE |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Tipo de Grado: | Reparación de Banda |
| Title: | 10-14 RAPTOR FRONT SECONDARY 3.0 ZETA RR PAIR |
| Tube Outside Diameter: | 3 |
| Upper Mount Type: | Mounting Plate |
Part Type
Suspension Shock Absorber Set
Features
- Compact bypass tube design allows ICON to fit 3 bypass tubes where others could only fit 2, allowing for more adjustability of the shock
- Compact tube block design keeps bypass tubes close to the body, providing maximum clearance from tires and other suspension components
- Digressive rebound on main piston in conjunction with calibrated external rebound valve preload facilitates good low-speed characteristics. This is in contrast to most bypass shocks that are designed primarily for high-speed use only.
- East-to-adjust bypass knobs allow for quick changes to shock without the use of tools
- Further increases front damping ability of the Raptor in off-road conditions
- High resolution bypass valves designed for noticeable fine-tuning of rebound and compression damping
- Hydraulically damped bypass valve seats are engineered to attenuate the loud bypass clicking noise transferred to the cab that is common with other brands.
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- Replaceable bypass tubes can easily slide into position in case of damage
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 95005
- Product Attributes - Part Type
- Shocks and Struts
- Product Attributes - Product Line
- Icon Vehicle Dynamics 3.0 Zeta RR Secondary Shocks
- Product Attributes - UPC
- 00840103407135
- Product Attributes - Ride Height
- Stock
- Product Attributes - Ride Height Note
- Additional ride height information may be available for your vehicle, please refer to the app tab.
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Gas Charged
- No
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Bushing Material
- PTFE/Steel
- Product Attributes - Boot Included
- No
- Product Attributes - Body Diameter (in.)
- 2.750
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a pair.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico95005 |
| SFX Item ID | 4140873 |
| Supplier Item Code | 4140873 |
| Manufacturer SKU | 95005 |
| Manufacturer UPC | 840103407135 |
| Alternative References | IVD95005 |
