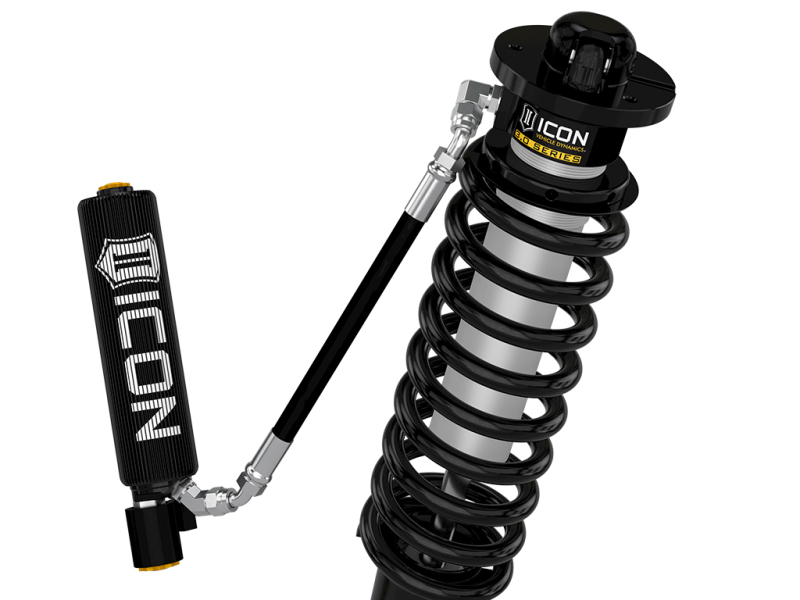

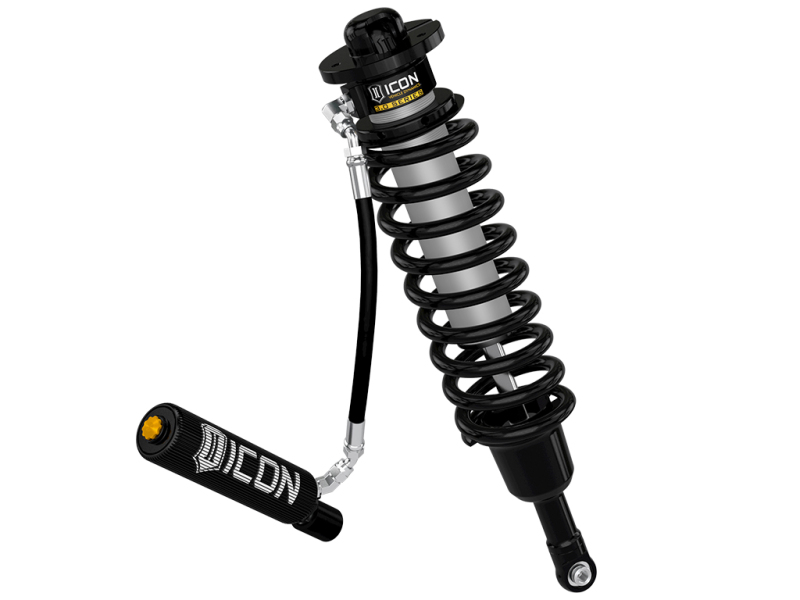

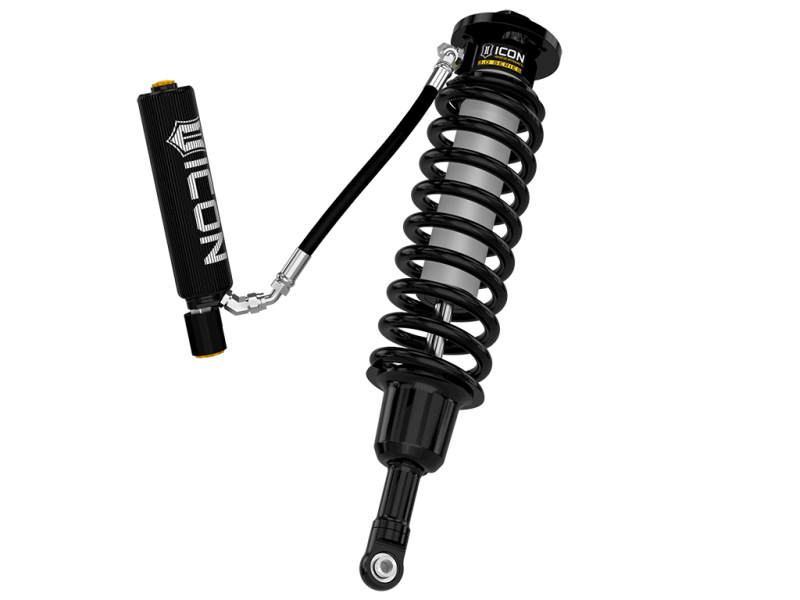

The front-end geometry of the Gen 3 F-150 Raptor was found to be fairly similar to the previous model truck, however there are a few key differences that required a redesign of the coilover to be compatible with the newer generation chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging and provide 1-3” of front lift height adjustment. The vehicle-specific valving featured in these shocks and the ICON-engineered coil spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area compared to standard reservoir cylinders for enhanced cooling and consistent damping under aggressive off-road use.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK93174X	ICON 21-25 Ford F150 Raptor 1-3in Lift Stage 4 Overland Suspension System (1x ico93500, 1x ico98564DJ, 1x ico95231, 1x ico95003, 1x ico95020, 1x ico95206L, 1x ico95206R)
	icoK93174	ICON 21-25 Ford F150 Raptor 1-3in Lift Stage 4 Suspension System (1x ico93500, 1x ico98564DJ, 1x ico95230, 1x ico95003, 1x ico95020, 1x ico95206L, 1x ico95206R)

• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Adjustable coilovers yield 1-3” of front lift height
• Barreled coil spring design maximizes travel and provides more efficient packaging
• Bolt-in design makes for an easy install into OEM shock location
• Cerakoted shock body with hard anodized piston and top cap
• FK Rod End COM12 spherical bearings ensure maximum strength and durability
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Heavy duty CNC machined 1” shock shafts
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• ICON's Compression Damping Electronic Valve (CDEV) technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
