ICON 2021+ Ford F-150 2WD 0-3in 2.5 Series Shocks VS RR CDCV Coilover Kit
ICON 2021+ Ford F-150 2WD 0-3in 2.5 Series Shocks VS RR CDCV Coilover Kit
A$4,064.90
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

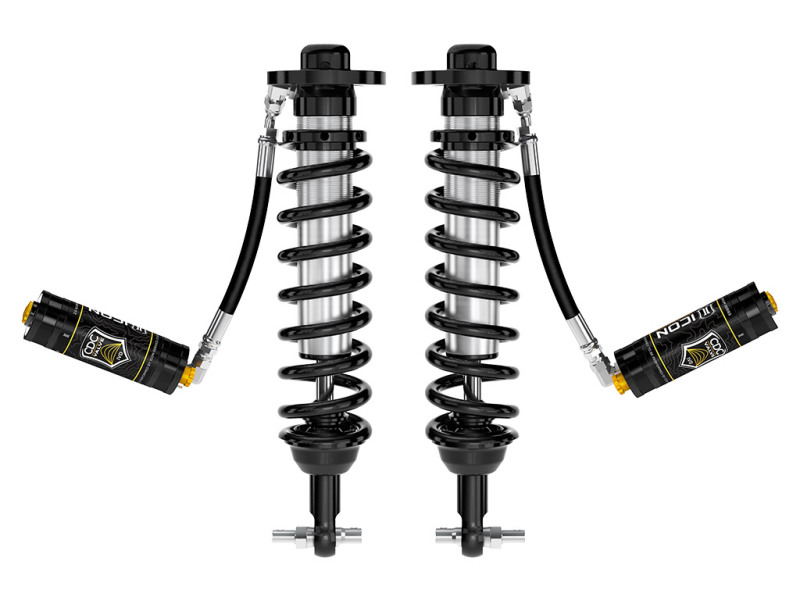

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-UP Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-UP F-150 2WD.
Product Overview
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2023 Ford F-150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2023 F-150 2WD.
Features and Benefits
- Increased wheel travel and ride quality over stock
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pins
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- External reservoirs to attain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for external tuneability of your shocks
- Adjustable 0-3" lift height over stock
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Compression: | Yes |
| Adjustable Damping: | Yes |
| Adjustable Height: | Yes |
| Adjustable Rebound: | No |
| Adjustable: | Yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Adjustment Type: | Manual |
| Damping Type: | Oil |
| Description: | 21-UP F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | Yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | BAR PIN |
| Material: | Aluminum |
| Maximum Lift: | 3 |
| Minimum Lift: | 0 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico91818C |
| Recommended Aftermarket Tires: | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Remote Reservoir: | Yes |
| Reservoir Style: | Remote |
| Self-Leveling: | No |
| Service Parts: | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Flat on Bar Pin |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | 21-UP F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Application Summary
ICON 21-23 F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
Part Type
Coilover Set
Features
- 100% Bolt-on - no cutting or welding necessary for installation
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable 0-3" lift height over stock
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
- External reservoirs to attain cooler operating temperatures during extended off-road use
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pins
- ICON CDCV equipped for external tuneability of your shocks
- ICON engineered Eibach Springs
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
Specifications
- 110:
- No
- AAP_UDA_12:
- EA
- AAP_UDA_22:
- 1
- AAP_UDA_4:
- 55
- Active or Passive Suspension:
- Passive
- Add-On Part:
- 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable Compression:
- Yes
- Adjustable Damping:
- Yes
- Adjustable Height:
- Yes
- Adjustable Rebound:
- No
- Adjustable:
- Yes
- Body Diameter:
- 2.5
- Boot Included:
- No
- California Prop 65 Warning:
- Yes
- California Proposition 65:
- WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Coil Over Springs Included:
- Yes
- Cylinder Color:
- Silver
- Cylinder Finish:
- Cadmium Plated
- Cylinder Material:
- Steel
- Damping Adjustment Type:
- Manual
- Damping Type:
- Oil
- Description:
- 21-UP F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
- Dust Shield Included:
- No
- Dust Shield:
- No
- Gas Charged:
- Yes
- Grade Type:
- Performance
- Internal Construction Type:
- Single Tube
- Lower Mount Type:
- BAR PIN
- Material:
- Aluminum
- Maximum Lift:
- 3
- Minimum Lift:
- 0
- OEM Wheels & Tires Fitment:
- Yes
- Part Number:
- ico91818C
- Recommended Aftermarket Tires:
- 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Recommended Aftermarket Wheels:
- ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Remote Reservoir:
- Yes
- Reservoir Style:
- Remote
- Self-Leveling:
- No
- Service Parts:
- 191016 - 7.5" FINNED RESI UPGRADE KIT
- Shaft Diameter:
- 0.875
- Shock Absorber Body End Measuring Point:
- Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point:
- Flat on Bar Pin
- Spring Color:
- Black
- Spring Material:
- Steel
- Spring Rate Type:
- Linear
- Title:
- 21-UP F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
- Upper Mount Type:
- Mounting Plate
- Valving Type:
- Digressive
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico91818C |
| SFX Item ID | 4141390 |
| Supplier Item Code | 4141390 |
| Manufacturer SKU | 91818C |
| Manufacturer UPC | 840103411569 |
| Alternative References | IVD91818C, F-150, 2WD, 0-3in |
Brochures
Compatibility
ICON 21-23 F150 2WD 0-3" 2.5 VS RR CDCV COILOVER KIT
