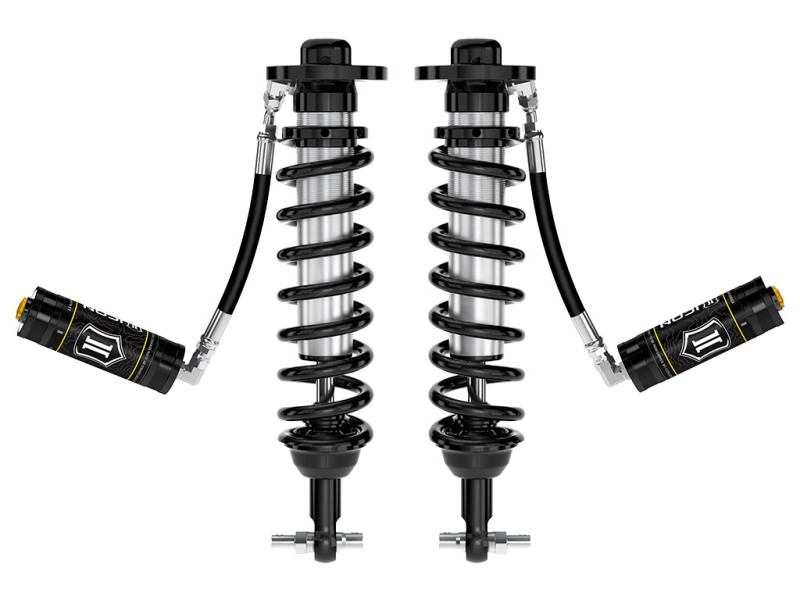

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2021-UP Ford F150 2WD. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150.

Product Overview

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2021-2023 Ford F-150 2WD. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F-150.

Features and Benefits

• Increased wheel travel over stock
• High strength alloy CNC machined lower bar pins
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 0-3” of lift height adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add-On Part:	191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression:	No
Adjustable Damping:	NO
Adjustable Height:	yes
Adjustable Rebound:	No
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Cylinder Color:	Silver
Cylinder Finish:	Cadmium Plated
Cylinder Material:	Steel
Damping Type:	Oil
Description:	21-UP F150 2WD 0-3" 2.5 VS RR COILOVER KIT
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	BAR PIN
Material:	Steel
Maximum Lift:	3
Minimum Lift:	0
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico91818
Recommended Aftermarket Tires:	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels:	ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Remote Reservoir:	Yes
Reservoir Style:	Remote
Self-Leveling:	No
Service Parts:	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Title:	21-UP F150 2WD 0-3" 2.5 VS RR COILOVER KIT
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK93123	ICON 21-23 Ford F150 2WD 0-3in Stage 3 Suspension System (1x ico97720P, 1x ico91818)
