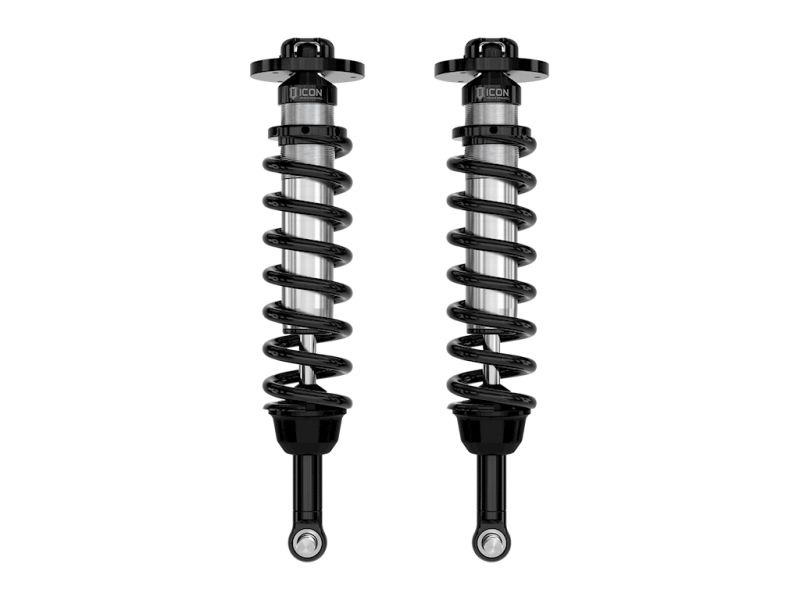

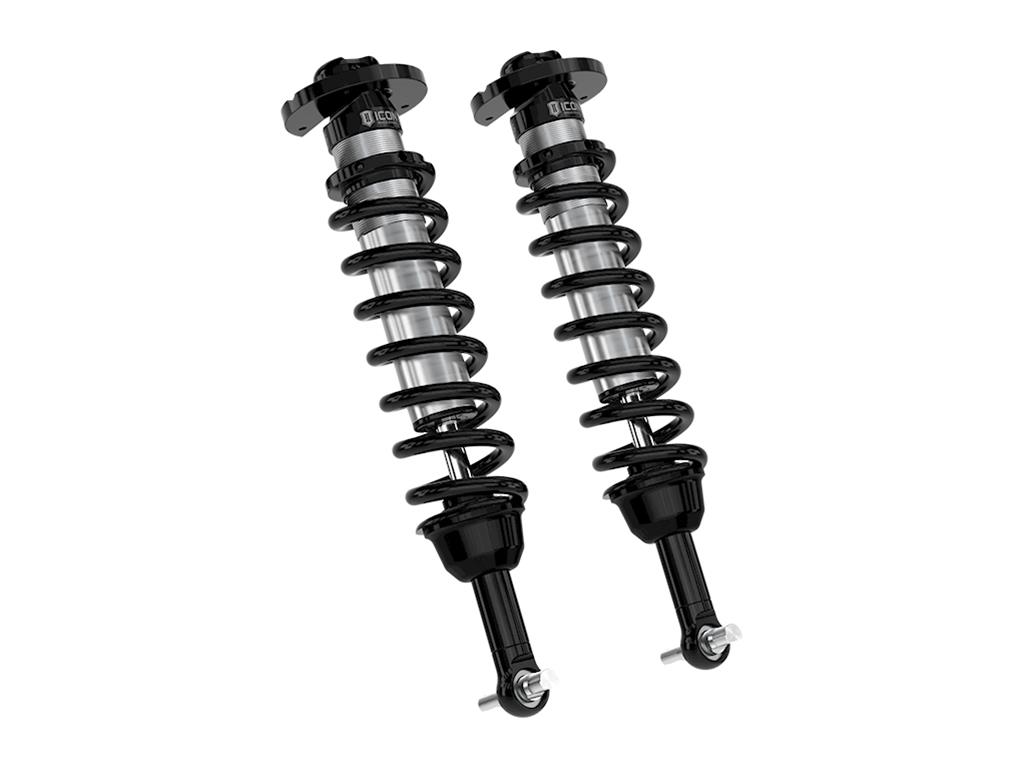

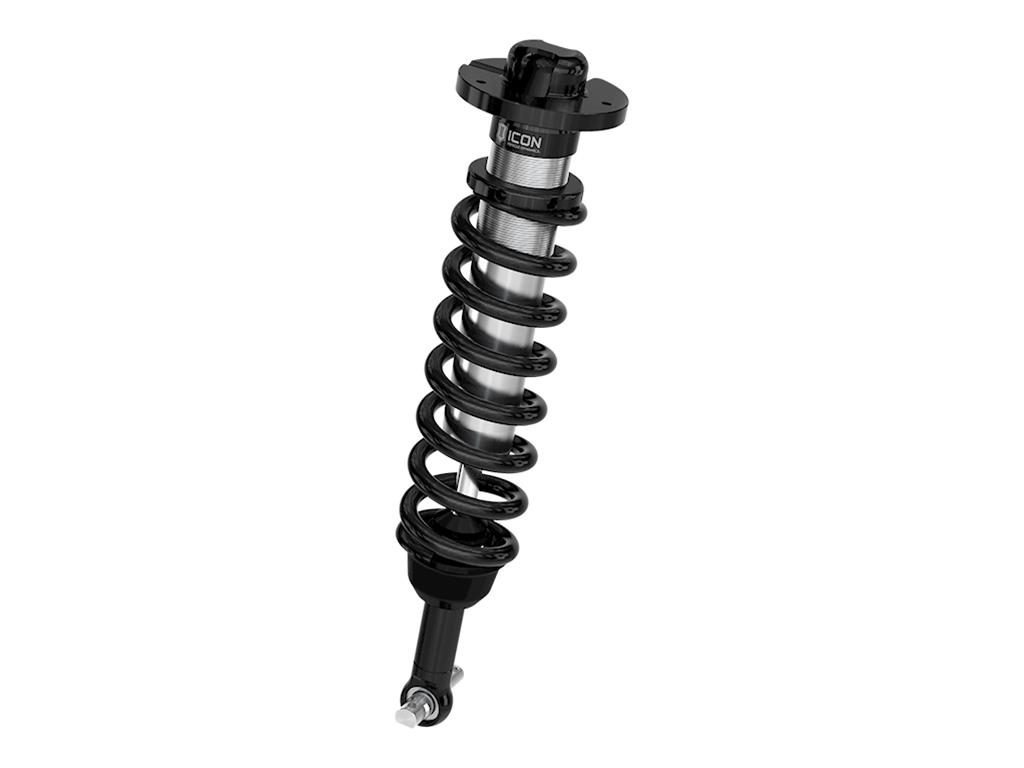

ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS IR Coilover Kit
ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS IR Coilover Kit
A$3,268.06
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Product Overview
ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Features and Benefits
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- FK rod end bearings for extended longevity and minimal deflection
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 2.75-3.5" of lift height over stock
- Internal nitrogen reservoir ensures consistent performance under hard use
- ICON engineered coil Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" shaft
- High strength alloy CNC machined lower bar pin
Product Details
| AAP_UDA_12: | EA |
|---|---|
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Active or Passive Suspension: | Passive |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression: | No |
| Adjustable Damping: | NO |
| Adjustable Height: | yes |
| Adjustable Rebound: | No |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Cylinder Color: | Silver |
| Cylinder Finish: | Cadmium Plated |
| Cylinder Material: | Steel |
| Damping Type: | Oil |
| Description: | ICON 21-23 Ford F150 4WD 3in Lift 2.5 VS IR Coilover Kit |
| Dust Shield Included: | No |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Internal Construction Type: | Single Tube |
| Lower Mount Type: | BAR PIN |
| Material: | Aluminum |
| Maximum Lift: | 3.5 |
| Minimum Lift: | 2.75 |
| OEM Wheels & Tires Fitment: | Yes |
| Part Number: | ico91724 |
| Recommended Aftermarket Tires: | 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels: | ICON Alloys - 17x8.5" w/ 5.00†Backspace / 6mm Offset |
| Remote Reservoir: | NO |
| Reservoir Style: | Internal |
| Self-Leveling: | No |
| Service Parts: | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Spring Rate Type: | Linear |
| Title: | ICON 21-23 Ford F150 4WD, 2.75-3.5" Lift, Front 2.5 VS IR Coilovers, Pair |
| Upper Mount Type: | Mounting Plate |
| Valving Type: | Digressive |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
icoK93131T | ICON 21-23 Ford F150 4WD 2.7in To 3.5in Stage 1 Suspension System (2x ico96518, 1x ico91724, 1x ico98522DJ) |
 |
icoK93132T | ICON Vehicle Dynamics - Shocks and Struts for 2021-2024 F-150 K93132T 21-23 FORD F150 4WD 2.75-3.5" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA |
 |
icoK93131 | ICON 21-24 Ford F150 4WD 2.75-3.5in Stage 1 Suspension System - Billet UCA (2x ico96518, 1x ico91724, 1x ico98523DJ) |
 |
icoK93132 | ICON 21-24 Ford F150 4WD 2.75-3.5in Stage 2 Suspension System - Billet UCA (1x ico97720P, 1x ico91724, 1x ico98523DJ) |
Part Type
Coilover Set
Features
- 100% Bolt-on - no drilling, cutting, or welding necessary for installation
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable for 2.75-3.5" of lift height over stock
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- ICON engineered coil Springs
- Increased wheel travel and ride quality over stock
- Internal nitrogen reservoir ensures consistent performance under hard use
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 91724
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - UPC
- 00840103423678
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico91724 |
| SFX Item ID | 4141631 |
| Supplier Item Code | 4141631 |
| Manufacturer SKU | 91724 |
| Manufacturer UPC | 840103423678 |
| Alternative References | IVD91724, F150, 4WD, 3in |
