Description

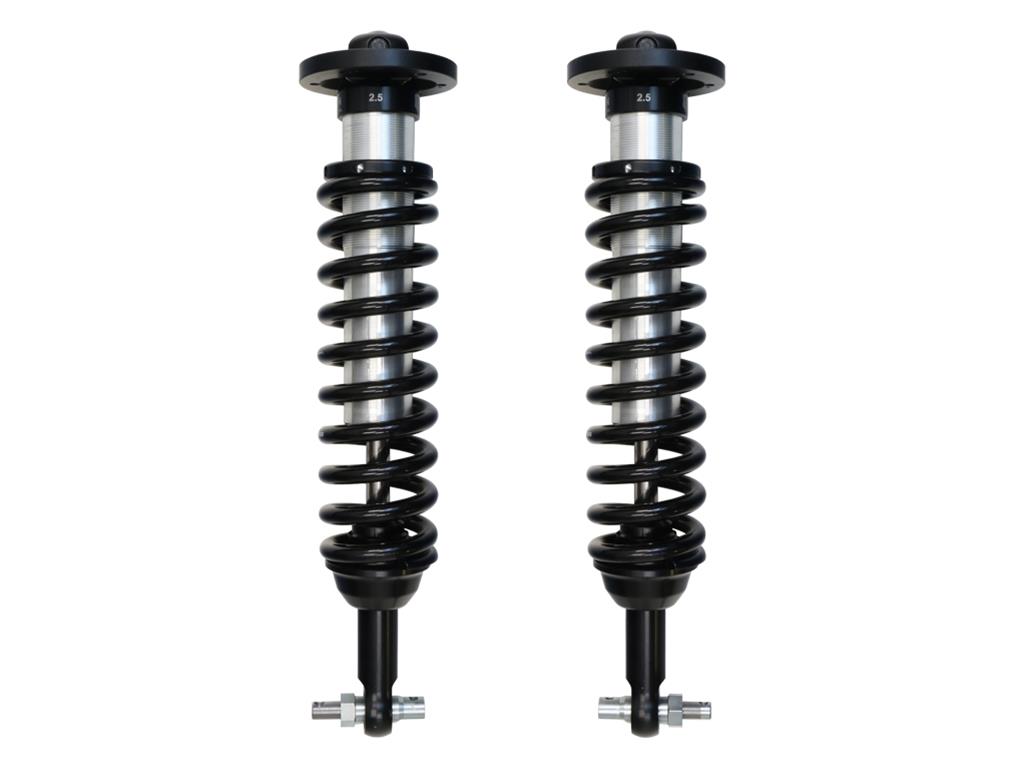

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2014 F150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.63” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150 truck.

Product Overview

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2014 F150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.63” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150 truck.

Features and Benefits

• 100% Bolt-on - no drilling or welding necessary for installation
• Increase in wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• Improved ride quality over stock both on and off-road
• Height-adjustable coilovers offer 0-2.63" of lift height adjustment
• ICON engineered coil springs
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping:	NO
Adjustable Height:	yes
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Damping Type:	Oil
Description:	2014 F150 2WD 0-2.63" 2.5 VS IR COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield:	No
Gas Charged:	yes
Grade Type:	Performance
Lower Mount Type:	BAR PIN
Material del resorte:	Acero
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico91615
Recommended Aftermarket Tires:	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels:	ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Remote Reservoir:	NO
Service Parts:	252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Flat on Bar Pin
Spring Color:	Black
Spring Material:	Steel
Tipo de Grado:	Reparación de Banda
Title:	2014 F150 2WD 0-2.63" 2.5 VS IR COILOVER KIT
Upper Mount Type:	Mounting Plate

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

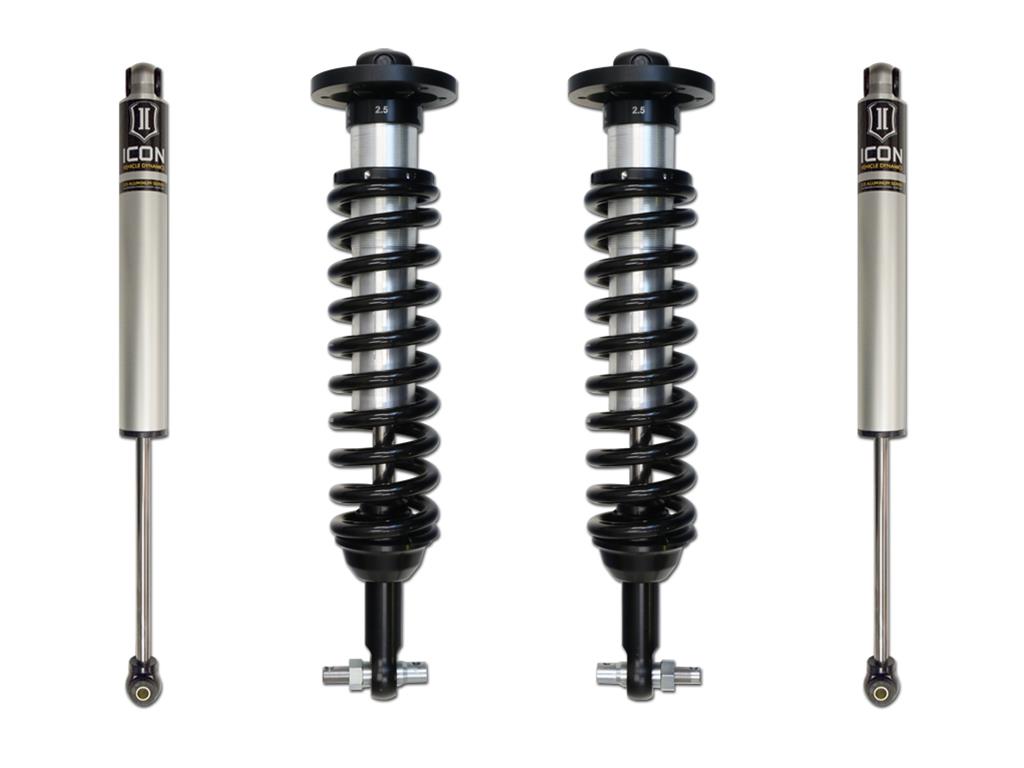

	icoK93072	ICON 2014 Ford F-150 2WD 0-2.63in Stage 2 Suspension System w/Billet Uca (1x ico98505DJ, 1x ico91615, 2x ico96518)
	icoK93072T	ICON 2014 Ford F-150 2WD 0-2.63in Stage 2 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico91615, 2x ico96518)
	icoK93073	ICON 2014 Ford F-150 2WD 0-2.63in Stage 3 Suspension System w/Billet Uca (1x ico98505DJ, 1x ico97720P, 1x ico91615)
	icoK93073T	ICON 2014 Ford F-150 2WD 0-2.63in Stage 3 Suspension System w/Tubular Uca (1x ico98500DJ, 1x ico97720P, 1x ico91615)
	icoK93071	ICON 2014 Ford F-150 2WD 0-2.63in Stage 1 Suspension System (1x ico91615, 2x ico96518)

Data: v4.2 - Upd: 2026-10-13 20:37:27

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

91615

Product Attributes - Part Type

Coilover Kits

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 IR Coilover Kits

Product Attributes - UPC

00840103406916

Product Attributes - Coilover Kit Position

Front

Product Attributes - Adjustable Valving

No

Product Attributes - Shocks Included

Yes

Product Attributes - Internal Design

Monotube

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Suspension Height Adjustment

0.0-2.75 in. raised

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Bracket

Product Attributes - Lower Mount

T-bar

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Shock Body Finish

Silver

Product Attributes - Spring Finish

Black

Product Attributes - Crossmember Included

No

Product Attributes - Adjustable Mounting Bracket Included

No

Product Attributes - Hardware Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Quantity

Sold as a kit.
