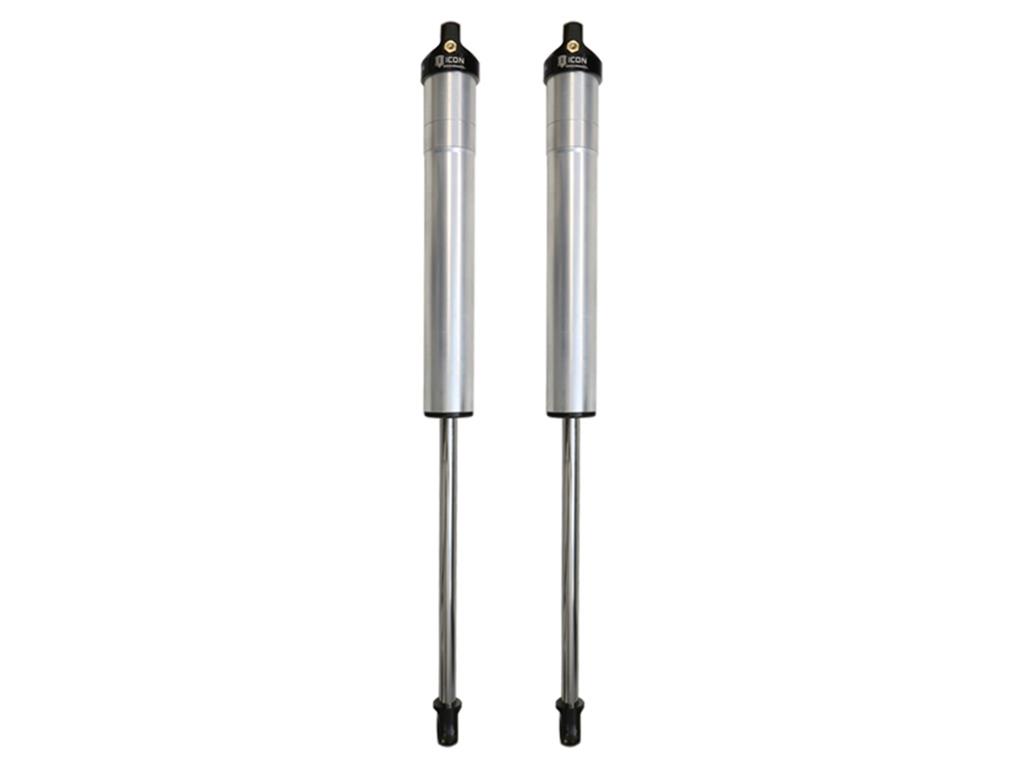

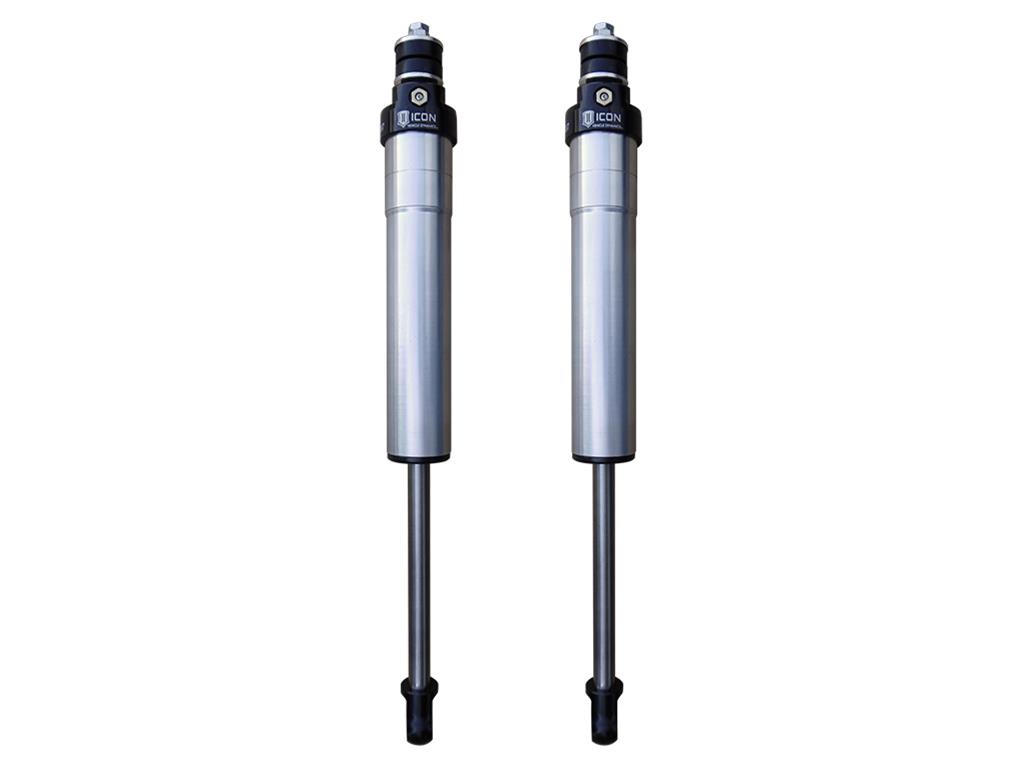

ICON 04-08 Ford F-150 2WD 2.5 Custom Shocks VS IR Coilover Kit w/Fabtech 6in
ICON 04-08 Ford F-150 2WD 2.5 Custom Shocks VS IR Coilover Kit w/Fabtech 6in
A$3,238.49
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
ICON Vehicle Dynamics V.S. Series 2.5" coil-over shocks are an incredible upgrade for the front end of 2004-2008 Ford F-150 2WD trucks equipped with a 6" lift subframe lift kit. ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while lift height adjustability allows the fine tuning of the vehicle's ride height. Their full-length design eliminates the need for top-load coilover spacers that are commonly used with factory length coilovers for these taller lift kits. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Product Overview
Coilovers optimized for use with the Fabtech 6" lift but may also be compatible with others
Product Details
| 110: | No |
|---|---|
| AAP_UDA_12: | EA |
| AAP_UDA_22: | 1 |
| AAP_UDA_4: | 55 |
| Add-On Part: | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Damping: | NO |
| Adjustable Height: | yes |
| Body Diameter: | 2.5 |
| Boot Included: | No |
| California Prop 65 Warning: | Yes |
| California Proposition 65: | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included: | Yes |
| Damping Type: | Oil |
| Description: | 04-08 F150 2WD 2.5 VS IR COILOVER KIT W FABTECH 6" |
| Diámetro del árbol: | 2021-07-08 |
| Dust Shield: | No |
| Gas Charged: | yes |
| Grade Type: | Performance |
| Lower Mount Type: | Eyelet |
| Material del resorte: | Acero |
| Material: | Steel |
| Muelles helicoidales incluidos: | SI |
| Part Number: | ico91501-CB |
| Remote Reservoir: | NO |
| Service Parts: | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Shaft Diameter: | 0.875 |
| Shock Absorber Body End Measuring Point: | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point: | Center of Eylet |
| Spring Color: | Black |
| Spring Material: | Steel |
| Tipo de Grado: | Reparación de Banda |
| Title: | 04-08 F150 2WD 2.5 VS IR COILOVER KIT W FABTECH 6" |
| Upper Mount Type: | Mounting Plate |
Part Type
Coilover Set
Features
- 100% Bolt-on - no drilling,cutting or welding necessary for installation
- 6061 Aircraft grade aluminum CNC machined components
- Adjustable lift height
- Corrosion resistant CAD plated shock body with 7/8" hardened chrome shafts
- FK rod end bearings for extended longevity and minimal deflection
- Full length coilovers eliminate need for coilover spacers
- ICON engineered coil Springs
- Increased wheel travel and ride quality
- Length optimised for pairing with Fabtech 6" lift kits
- Vehicle specific tuned for superior shock damping and control
Specifications
- Product Attributes - Brand
- ICON Vehicle Dynamics
- Product Attributes - Manufacturer's Part Number
- 91501-CB
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- Icon Vehicle Dynamics 2.5 IR Coilover Kits
- Product Attributes - UPC
- 00840103406893
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- No
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Monotube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Suspension Height Adjustment
- 6.0 in. raised
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Upper Mount
- Bracket
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 2.500
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Designed for vehicles having a Fabtech 6 in. lift kit.
Reference Information
| Brand Name/s | Icon |
|---|---|
| StreetFX SKU | ico91501-CB |
| SFX Item ID | 4141070 |
| Supplier Item Code | 4141070 |
| Manufacturer SKU | 91501-CB |
| Manufacturer UPC | 840103406893 |
| Alternative References | IVD91501-CB, F-150, 2WD, 6in |
