Description

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable

Product Overview

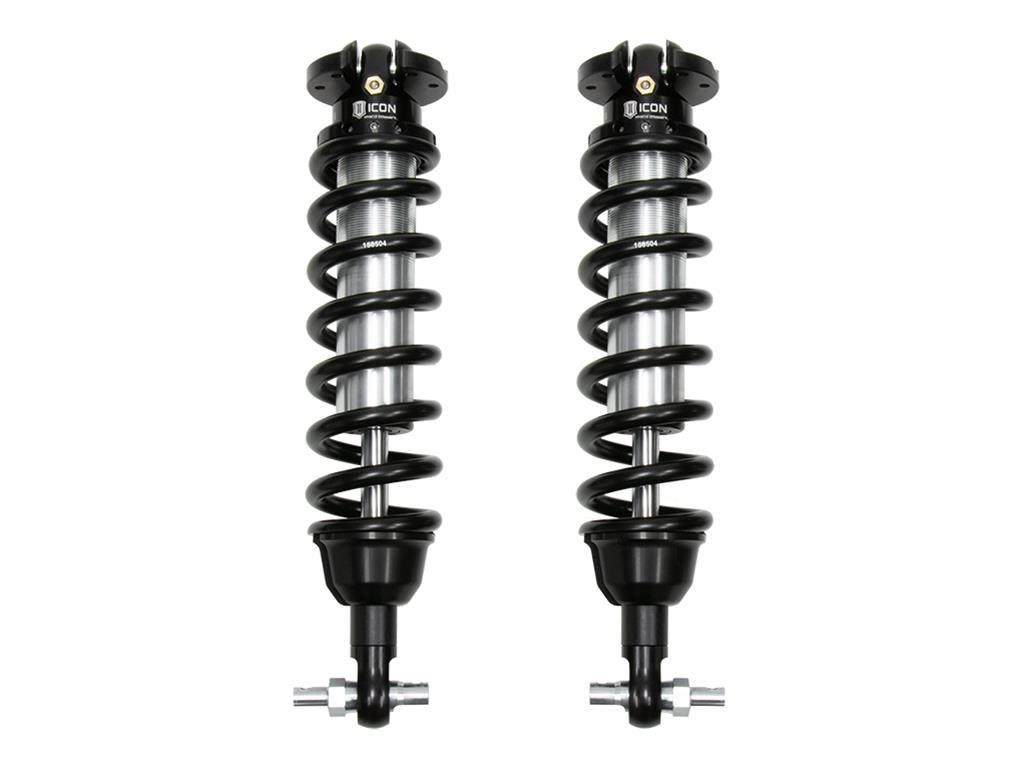

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.

Features and Benefits

• Bolt-in design makes for an easy install into OEM shock location
• Adjustable coilovers yield 0-3.5” of front lift height
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Superior low speed control reduces body roll and increases on-road stability
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Add-On Part:	198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Damping:	NO
Adjustable Height:	Yes
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Damping Type:	Oil
Description:	2019-UP RANGER 4WD 2.5 VS IR COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Lower Mount Type:	BAR PIN
Material del resorte:	Acero
Maximum Lift:	3.5
Minimum Lift:	0
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico91250
Recommended Aftermarket Tires:	285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels:	ICON Alloys | 17x8.5 w/ 5.75" Backspace / 25mm Offset
Remote Reservoir:	NO
Service Parts:	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Flat on Bar Pin
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Tipo de Grado:	Reparación de Banda
Title:	ICON 2019-2023 Ford Ranger, 0-3.5” Lift, 2.5 VS Coilover Kit
Upper Mount Type:	Mounting Plate

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK93201	ICON 2019+ Ford Ranger 0-3.5in Stage 1 Suspension System (1x ico91250, 2x ico96519)

Data: v4.2 - Upd: 2026-10-13 20:37:25

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

91250

Product Attributes - Part Type

Coilover Kits

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 IR Coilover Kits

Product Attributes - UPC

00840103406862

Product Attributes - Coilover Kit Position

Front

Product Attributes - Adjustable Valving

No

Product Attributes - Shocks Included

Yes

Product Attributes - Internal Design

Monotube

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Suspension Height Adjustment

0.0-3.5 in. raised

Product Attributes - Gas Charged

Yes

Product Attributes - Upper Mount

Bracket

Product Attributes - Lower Mount

T-bar

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Shock Body Finish

Silver

Product Attributes - Spring Finish

Black

Product Attributes - Crossmember Included

No

Product Attributes - Adjustable Mounting Bracket Included

No

Product Attributes - Hardware Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Quantity

Sold as a kit.

Compatibility
